LMG002 Overview

Two Stage Linear Amplifier

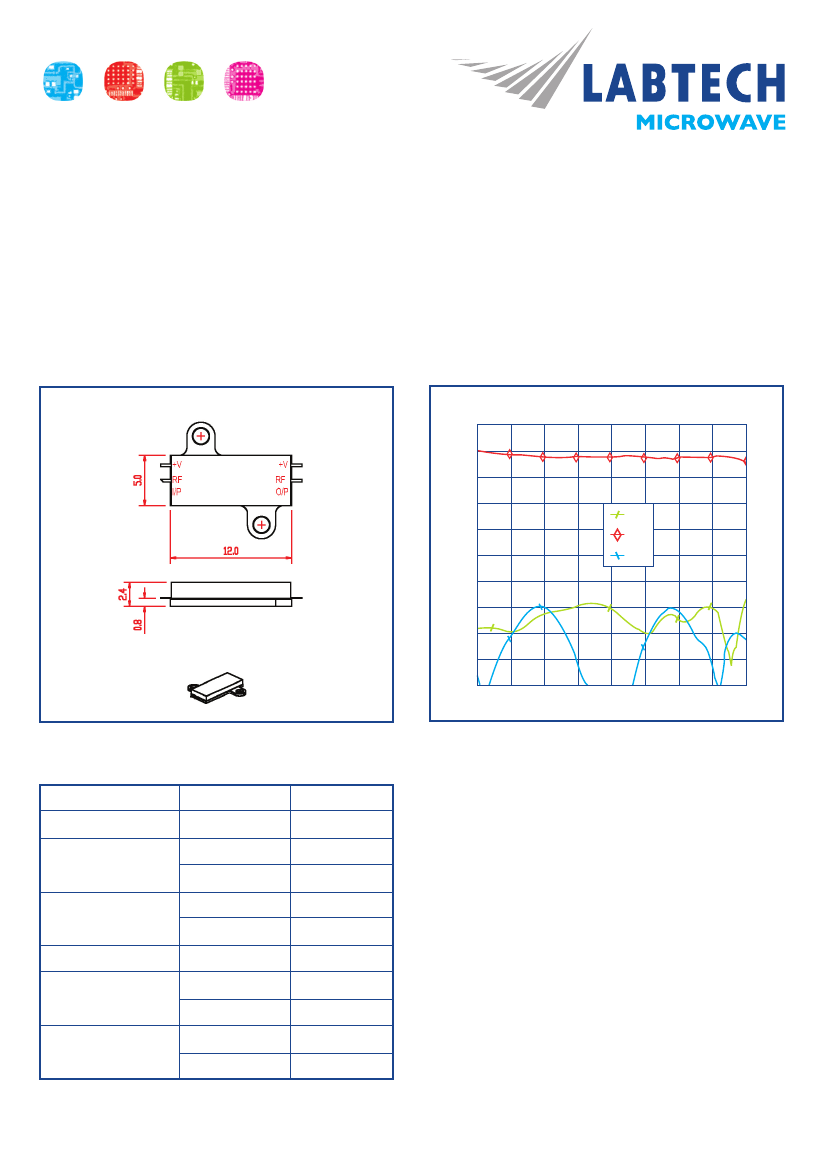

GAIN MODULES - LMG000 Series
LMG002
Two Stage Linear Amplifier
The LMG002 is a two stage PHEMT based
microwave amplifier module comprising an
organic substrate MIC on a metal carrier with a
bonded cover.
OUTLINE
TYPICAL RESULTS
Two Stage Lidded Gain Module
25
20
15
10
S11
5
0
-5
-10
-15
Gain
S22
Actual size
-20
-25
2
4
6
8
10
12
14
16
18
Frequency (GHz)
SPECIFICATIONS - Typical Values
Parameter
Frequency range
Gain
Value
2 to 18 GHz
19dB
18dB
Gain Ripple
±1dB
±1.5dB
Noise Figure
PldB
4.5dB
12dBm
14dBm
Bias Current
60mA
60mA
6V
8V
6V
8V
6V
6V
8V
6V
8V
Bias Voltage
NOTES
1. All specifications at +25ºC, measured in a 50_system, using Labtech
test jig (details on application).
2. Recommended maximum input power +19dBm
3. Gain level varies by approx. -0.03dB/ºC
4. These are standard specifications, customised options are available
Labtech Microwave • 8 Vincent Avenue • Crownhill • Milton Keynes • MK8 OAB • UK • Tel: +44 (0) 1908 261755 • Fax: +44 (0) 1908 261788
visit our web site www.labtechmicrowave.com or email sales@labtech.ltd.uk
LMW:05/06
