DS-100-15-S-W-Y

Description
D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Plug
CategoryThe connector    The connector
File Size76KB,1 Pages
ManufacturerMarktech
Websitehttps://www.marktechopto.com/

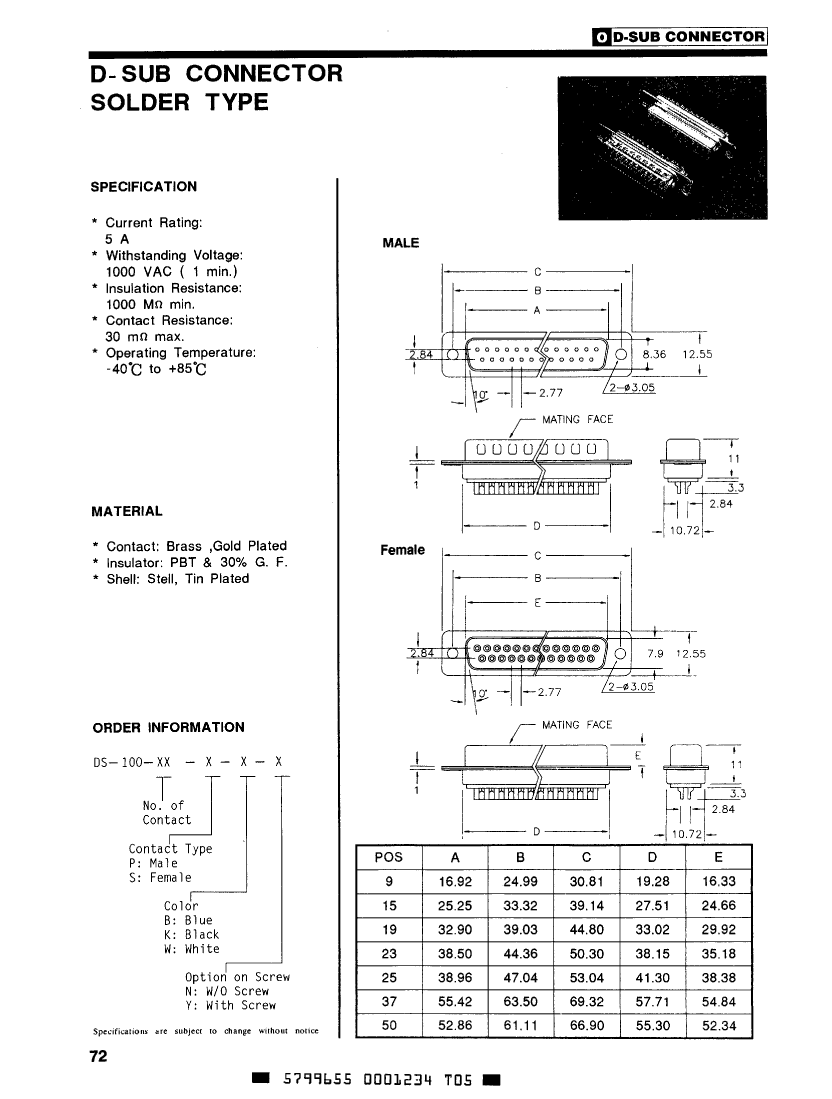

Download Datasheet Parametric View All

DS-100-15-S-W-Y Overview

D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Lug Terminal, Hole .112-.124, Plug

DS-100-15-S-W-Y Parametric

Parameter NameAttribute value
MakerMarktech
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresWITH SCREW
body width0.494 inch
body length1.54 inch
Body/casing typePLUG
Contactor designPREASSEM CONN
Contact to complete cooperationAU
Contact point genderFEMALE
Contact materialBRASS
contact modeSTAGGERED
Contact resistance30 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
Insulation resistance1000000000 Ω
Insulator colorWHITE
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberDS
Plug contact pitch0.109 inch
Match contact row spacing0.112 inch
Installation option 1HOLE .112-.124
Installation typePANEL
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Rated current (signal)5 A
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Terminal length0.13 inch
Termination typeSOLDER LUG
Total number of contacts15
