LL25V470MTR8X11: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size375KB，1 Pages; ManufacturerMeritek Electronics; Websitehttp://www.meritekusa.com

Download Datasheet Parametric Compare View All

LL25V470MTR8X11 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, RADIAL LEADED

LL25V470MTR8X11 Parametric

Parameter Name	Attribute value
Maker	Meritek Electronics
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	47 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	0.004 mA
Manufacturer's serial number	LL
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TR
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
surface mount	NO
Delta tangent	0.14
Terminal shape	WIRE

Preview

Download Datasheet

View All

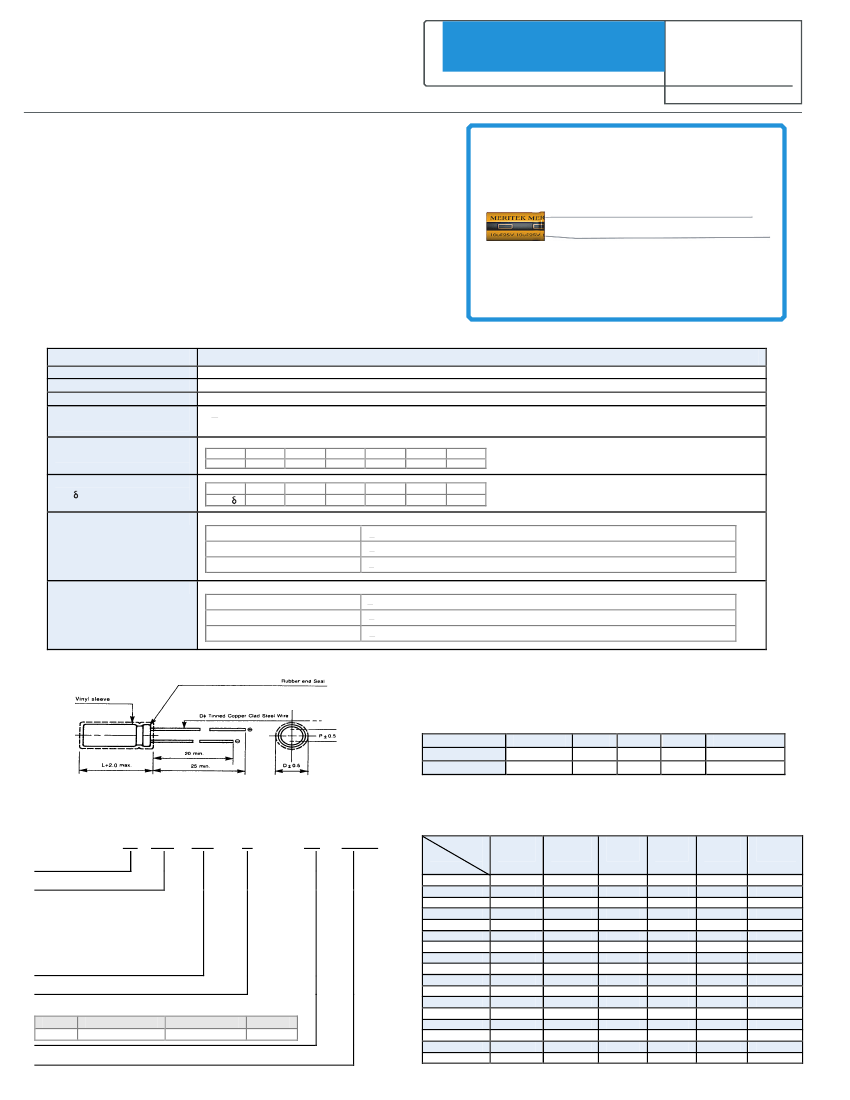

Aluminum Electrolytic Capacitors

LL

Series

(Low Leakage)

MERITEK

F

EATURE

•

Low leakage current

Applications for Hi -Fi pre-amp and TV oscillation

S

PECIFICATIONS

Item

Operating Temp Range

Rated Working Voltage

Capacitance Tolerance

Leakage Current

(25

o

C)

Surge voltage (25

o

C)

Characteristic

-40

o

C to +85

o

C

10 to 50VDC

±20%

(M)

I < 0.002CV or 0.4µA,

whichever is greater

after 3 minutes

l= Leakage current (µA) C= Nominal Capacitance (µF) V= Rated voltage

(V)

WV

SV

WV

tan

10

13

10

0.20

16

20

16

0.16

25

32

25

0.14

35

44

35

0.12

50

63

50

0.10

63

79

63

0.10

Dissipation Factor

Tan (120Hz, 25

o

C)

Load Life

After 1000 hours application of WV at 85

o

C the capacitor shall meet the following limits.

Capacitance change

< ±

20% of initial value

Dissipation Factor

Leakage current

<

200% of initial specified value

<

initial specified value

Shelf Life

At 85

o

C no voltage applied after 500 hours the capacitor shall meet the following limits.

Capacitance change

< ±

20% of initial value

Dissipation Factor

Leakage current

<

200% of initial specified value

<

200% of initial specified value

L

EAD

S

PACING

D

Ø

p

d

Ø

5

2.0

0.5

6.3

2.5

0.5

8

3.5

0.5

10

5.0

0.6

13

5.0

0.6

P

ART

N

UMBERING

S

YSTEM

LL

Meritek Series

Voltage

Capacitance

Expressed in microfarads (µF).

First two digits are significant

figures. Third digit denotes

number of zeros. ‘R’ Denotes

decimal point for values less

than 10µF.

Tolerance –

M = ±20%, K = ±10%

Package

CODE

TA

Tape & Ammo

TR

Tape & Reel

BLANK

Bulk

C

ASE

S

IZE

M

TA

10x12

µF

0.1

0.22

0.33

0.47

1

2.2

3.3

4.7

10

22

33

47

100

220

330

470

1000

16V

222

WV

(SV)

DXL (mm)

10

16

(13)

(20)

25

(32)

35

(44)

50

(63)

5x11

8x11

10x12

10x16

63

(73)

5x11

6.3x11

10x12

10x16

13x21

Case size – (D)

Diameter X

(L)

Length in mm (Optional)

5x11

6.3x11

8x11

10x12

10x16

5x11

6.3x11

8x11

10x12

10x16

5x11

6.3x11

10x12

10x16

5x11

6.3x11

8x 11

8x11

10x12

10x16

Specifications are

subject to change without notice.

rev: 5b
