Type LP
105 ºC Snap-In Aluminum Electrolytic Capacitors
Stable ESR, Long Life, Snap-In

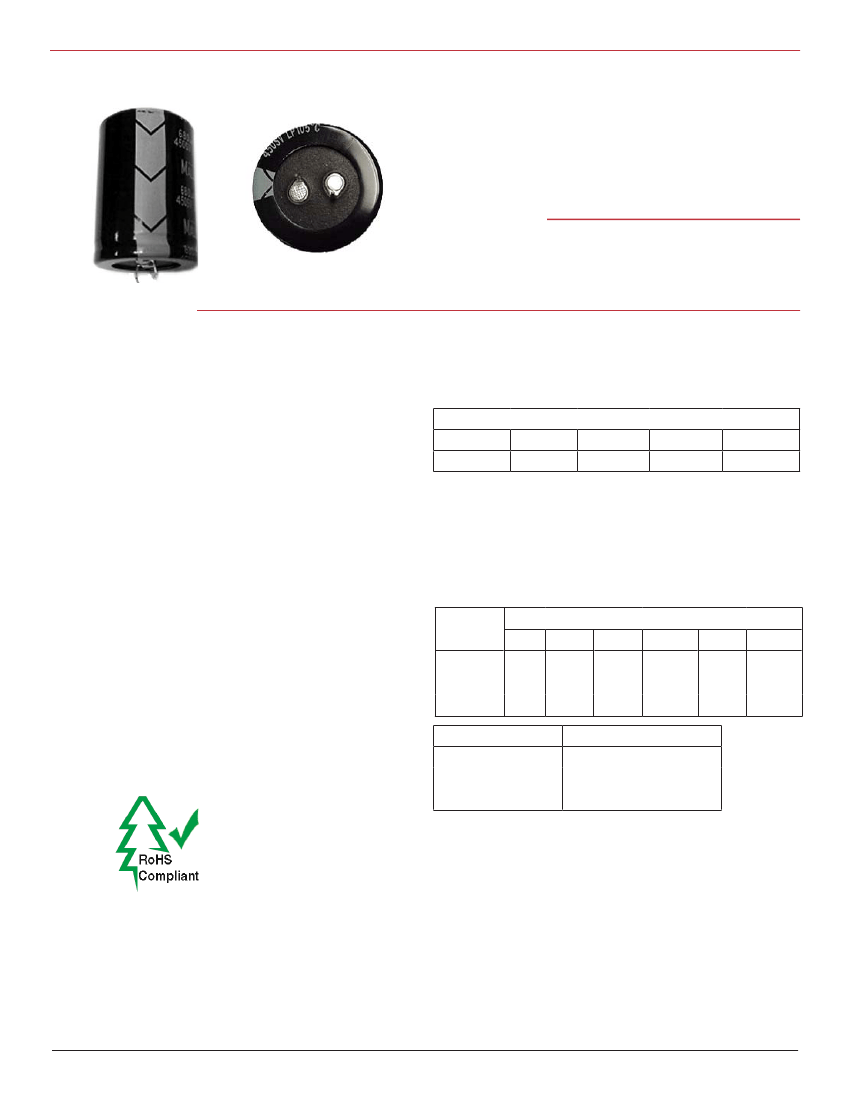

Type LP radial snap-in aluminum electrolytic capacitors
are small in size and are rated for low voltage applica-
tions. Their durable construction guarantees a long life
while operating up to 105 ºC with a stable ESR. These
features make the Type LP ideal for use in switch-mode
power supplies.
Highlights
•
•
•
Capacitance Range:
Voltage Range:
Capacitance tolerance:
Operating Temperature Range:
Dissipation Factor:
High Reliability
105 ºC
22 to 35 mm diameter with 10 mm lead spacing
Specifications
100 to 47,000 µF
16 to 250 Vdc
±20%
–40 ºC to +105 ºC
DF at 120 Hz, +25 ºC
Vdc
DF %
16
30
25 - 35
25
50 - 63
20
100- 250
15
DC Leakage Test:
For values that are >1000 µF, the DF (%) increases
2% for every additional 1000 µF
I = .02CV
C = capacitance in µF
V = rated voltage
I = leakage current in µA
Rated
Vdc
10 to 50
0.90
1.00
1.00
1.00
Ripple Multipliers
60 Hz 100 Hz 300 Hz 1000 Hz 10 kHz 100 kHz
1.03
1.07
1.15
1.65
2.25
2.55
Voltage/Frequency Ripple Multipliers:
1.05
1.13
1.25
1.10
1.19
1.35
1.10
1.20
1.40
63 to 100 0.85
160 to 250 0.80
Temperature Ripple Multipliers:
Temperature
+85 ºC
+65 ºC
+45 ºC
Ripple Multiplier
The maximum ripple current at 105 ºC and 120 Hz are
the Ratings Table. Adjust to other temperature and fre-
quencies using the tables here.
Complies with the EU Directive
2002/95/EC requirement restricting
the use of Lead (Pb), Mercury (Hg),
Cadmium (Cd), Hexavalent chromium
(Cr(VI)), PolyBrominated Biphenyls
(PBB) and PolyBrominated Diphenyl
Ethers (PBDE).
Load Life Test:
1,000 h @ full load at +105 ºC per EIA IS-749
∆ Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
Shelf Life:
500 h @ 105 ºC, capacitance, ≤200% ESR and
DC ±20%, initial requirements
Vibration:
10 to 55 Hz, 0.06” and 10 g max, 2 h in each
plane
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
Type LP
105 ºC Snap-In Aluminum Electrolytic Capacitors
Part Numbering System
LP
Type
LP
332
Cap
821
= 820 µF
332
= 3300 µF
103
= 10,000 µF
M
Tolerance
M =
±20%
025
Voltage
025
= 25 Vdc
250
= 250 Vdc
A1
Case
Code
Polarity
P
= Polarized
Length
30
A3
C3
E3
H3
25
mm
22
25
30
(in)
(0.87)
(1.00)
(1.18)
(1.38)
A1
C1
E1
H1
35
A5
C5
E5
H5
P
3
Insulating
Sleeve
3
= PVC
50
A9
C9
E9
H9
Diameter
mm
40
A7
C7
E7
H7
(in)
45
A4
C4
E4
H4
(1.00) (1.18) (1.38) (1.57) (1.77) (2.00)

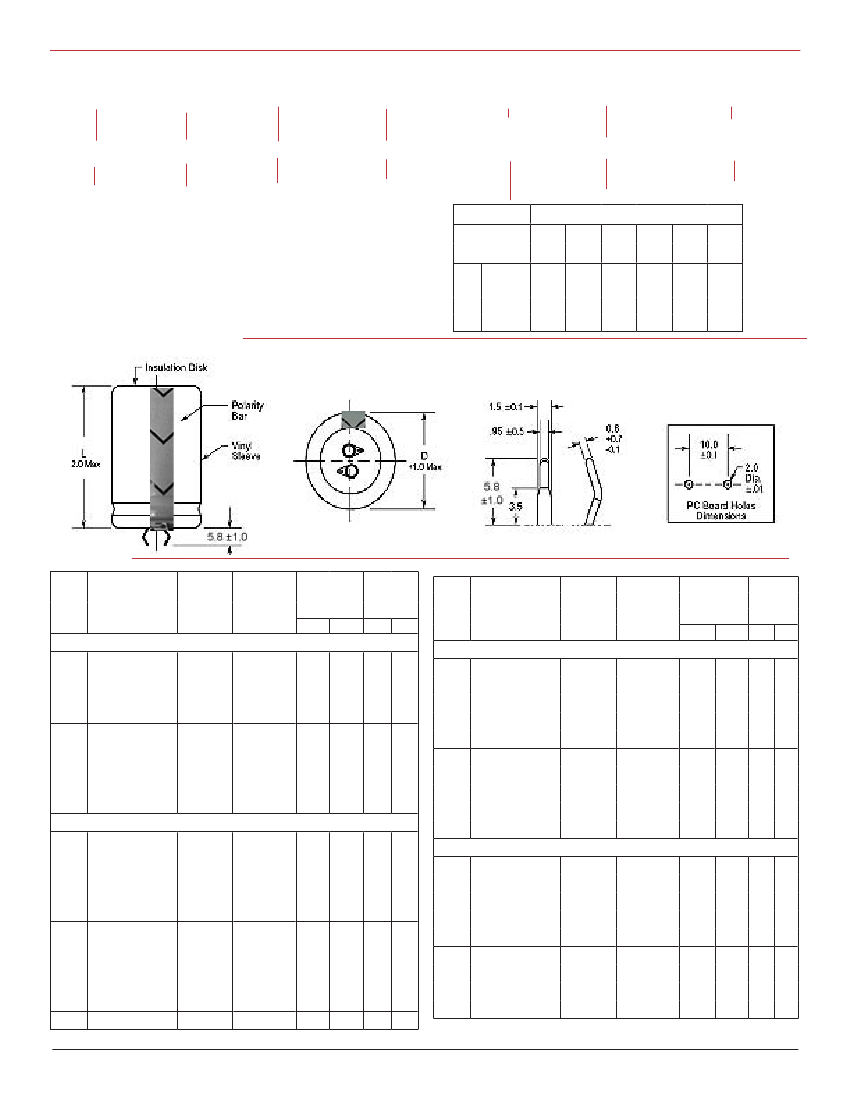

Outline Drawing
(Arrow Indicates Ground Lead)
35
Ratings
Cap
(µF)
4,700
5,600
8,200
12,000
15,000
22,000
27,000
33,000
47,000
2,700
3,300
3,300
4,700
5,600
5,600
6,800
10,000
12,000
15,000
22,000
Catalog
Part Number
Max ESR Max Ripple
@ 120 Hz @ 120 Hz
+25 ºC
+105 ºC
(Ω)
(A)
16 Vdc; 20 Vdc Surge
0.141
1.20
0.120
1.43
0.081
1.82
0.055
2.38
0.046
3.00
0.030
3.53
0.025
4.27
0.020
5.00
0.020
6.80
25 Vdc; 32 Vdc Surge
0.180
1.000
0.151
1.160
0.150
1.143
0.106
1.480
0.090
1.857
0.089
1.730
0.073
1.940
0.050
3.333
0.041
2.970
0.033
3.360
0.023
4.857
Size
(Inches)
D
L
0.866
0.984
0.866
1.181
1.378
1.181
1.378
1.378
1.181
0.984
0.866
0.984
0.984
1.181
0.984
0.984
1.378
1.378
1.181
1.378
0.984
0.984
1.378
1.181
1.181
1.575
1.575
1.969
1.969
0.984
0.984
0.984
0.984
0.984
1.181
1.378
1.181
1.181
1.575
1.969
(Dimension in Millimeters)
Size
(mm)
D
L
22
25
22
30
35
30
35
35
30
25
22
25
25
30
25
25
35
35
30
35
25
25
35
30
30
40
40
50
50
25
25
25
25
25
30
35
30
30
40
50
Cap
(µF)
1,800
2,700
3,900
5,600
6,800
6,800
8,200
10,000
12,000
15,000
1,200
1,500
2,200
2,200
3,300
3,300
3,300
3,900
4,700
Catalog
Part Number
LP472M016A1P3
LP562M016C1P3
LP822M016A5P3
LP123M016E3P3
LP153M016H3P3
LP223M016E7P3
LP273M016H7P3
LP333M016H9P3
LP473M016E9P3
LP272M025C1P3
LP332M025A1P3
LP332M025C1P3
LP472M025C1P3
LP562M025E1P3
LP562M025C3P3
LP682M025C5P3
LP103M025H3P3
LP123M025H3P3
LP153M025E7P3
LP223M025H9P3
LP182M035A1P3
LP272M035C1P3
LP392M035E1P3
LP562M035E3P3
LP682M035E5P3
LP682M035C7P3
LP822M035H3P3
LP103M035E7P3
LP123M035H7P3
LP153M035H9P3
LP122M050A1P3
LP152M050A1P3
LP222M050A5P3
LP222M050E1P3
LP332M050E3P3
LP332M050C5P3
LP332M050C3P3
LP392M050C7P3
LP472M050H3P3
Max ESR Max Ripple
@ 120 Hz @ 120 Hz
+25 ºC
+105 ºC
(Ω)
(A)
35 Vdc; 44 Vdc Surge
0.188
1.040
0.155
1.257
0.108
1.571
0.074
2.050
0.060
2.286
0.061
2.320
0.051
2.690
0.041
3.000
0.035
3.590
0.028
4.000
50 Vdc; 63 Vdc Surge
0.280
0.860
0.225
0.983
0.151
1.330
0.150
1.429
0.101
0.176
0.101
1.710
0.101
1.710
0.085
1.970
0.071
2.270
Size
(Inches)
D
L
0.866
0.984
1.181
1.181
1.181
0.984
1.378
1.181
1.378
1.378
0.866
0.866
0.866
1.181
1.181
0.984
0.984
0.984
1.378
0.984
0.984
0.984
1.181
1.378
1.575
1.181
1.575
1.575
1.969
0.984
0.984
1.378
0.984
1.181
1.378
1.181
1.575
1.181
Size
(mm)
D
L
22
25
30
30
30
25
35
30
35
35
22
22
22
30
30
25
25
25
35
25
25
25
30
35
40
30
40
40
50
25
25
35
25
30
35
30
40
30
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
