923833

Description
66 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT
CategoryThe connector    The connector
File Size42KB，1 Pages
ManufacturerERNI
Websitehttp://www.erni.com
Environmental Compliance
Download Datasheet Parametric View All

923833 Overview

66 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT

923833 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerERNI
Reach Compliance Codecompliant
ECCN codeEAR99
Other features11 GROUND SHIELD CONTACTS IN 1 ROW ALSO AVAILABLE
body width0.583 inch
subject depth1.091 inch
body length0.984 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Durability250 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.7506 N
Insulation resistance10000000000 Ω
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL complianceNO
Manufacturer's serial number923833
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number6
Number of rows loaded6
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.138 inch
Terminal pitch2 mm
Termination typePRESS FIT
Total number of contacts66
Evacuation force-minimum value.139 N
Base Number Matches1

Preview

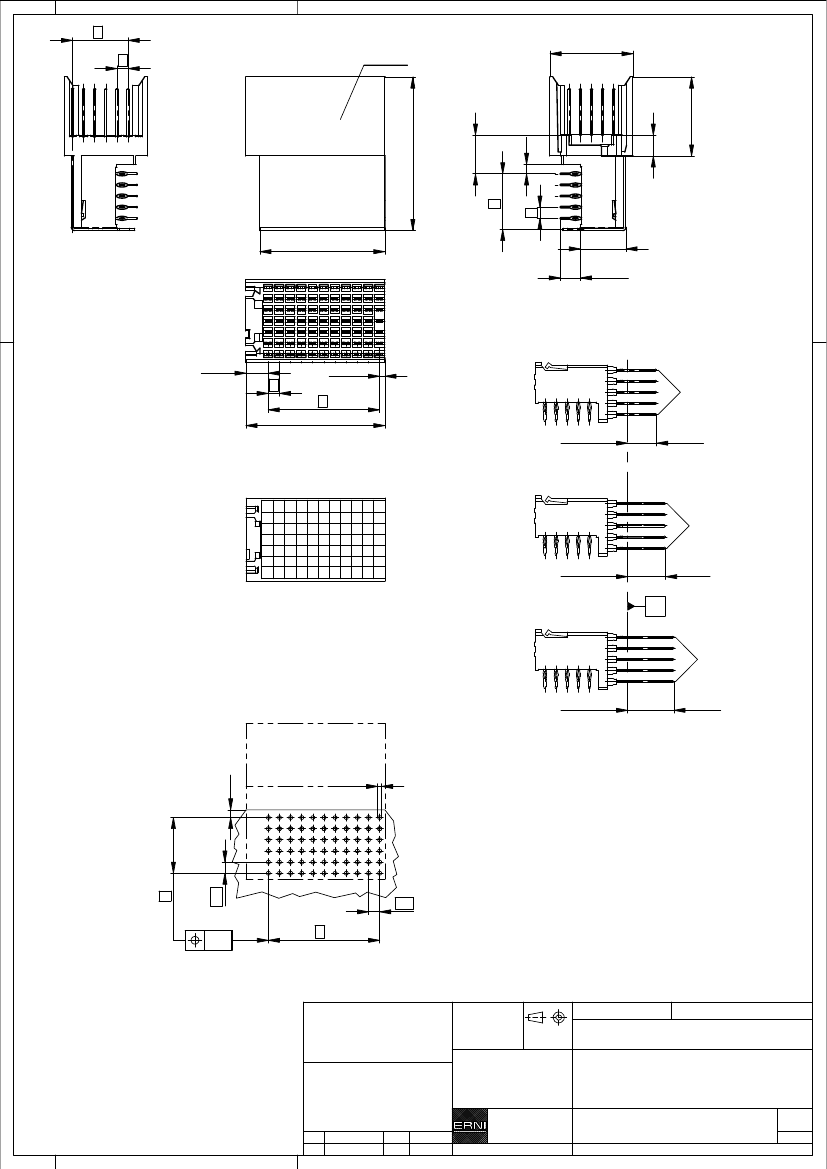

Download Datasheet
5 x 2 = 10
2
Date Code
14,8
27,7 max.
6,9
5 x 2 = 10
2
22,4
±0,25
8,2
3,6
-0,4
+0,15
CONTACT LENGTH EXAMPLES
4 max.
2
10 x 2 = 20
25 max.
LEVEL 1
Ebene 1
Bestückungsplan /
contact layout
11 10 9 8 7 6 5 4 3 2 1
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
z
a
b
c
d
e
f
B
5,3
±0,1
1 max.
A
LEVEL 2
Ebene 2
A
3,7
1,6
Lochbild für Leiterplatte (Bestückungsseite)
Board hole pattern (component mounting side)
1,5
11 10 9 8 7 6 5 4 3 2 1
a
b
c
d
e
f
2
2
10 x 2 = (20)
5 x 2 = (10)
0,05
alle Löcher
all holes
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
XXXX
ERNI RC
LEVEL 3
Ebene 3
1)
RoHS Konform
DATUM PLANE DEPTH
14,2
6,8
±0,1
C
8,3
±0,1
RoHS compliant
1)
ø
0,6
±0,05
Durchmesser des metallisierten Loches
ø
0,6
±0,05
Diameter of finished plated-through hole
ø
0,7
±0,02
Bohrungsdurchmesser des Loches
ø
0,7
±0,02
Diameter of drilled hole
Schichtaufbau im metallisierten Loch siehe Zeichnung 114406
Metal plating of plated-through hole see drawing 114406
Fehlende Masse und Angaben nach IEC 61076-4-101
Missing information and dimensions per IEC 61076-4-101
Information:
Level 3
siehe Bestückungsplan /
see contact layout
ohne Zentrierzapfen /
without location peg
Anforderungsstufe 2 /
class 2
Mit Abschirmblech an Reihe f /
Tolerances
All Dimensions
in mm
Scale
2:1
with shielding on row f
Designation
All rights reserved.
Only for Information.
To ensure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
b
Index
05.02.2014
Date
Subject to modification without
prior notice.
Drawing will not be updated.
ERmet Messerl. C, abgew
ERmet male type C, r/a
www.ERNI.com
Class
923833
ERMC
I
A3
