GRM1885C1H6R5WA01J: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 0.77% +Tol, 0.77% -Tol, C0G, 30ppm/Cel TC, 0.0000065uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size41KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

GRM1885C1H6R5WA01J Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 0.77% +Tol, 0.77% -Tol, C0G, 30ppm/Cel TC, 0.0000065uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT

GRM1885C1H6R5WA01J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	, 0603
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0000065 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.8 mm
JESD-609 code	e3
length	1.6 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	0.77%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER, 13 INCH
positive tolerance	0.77%
Rated (DC) voltage (URdc)	50 V
size code	0603
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.8 mm

Preview

Download Datasheet

View All

GRM1885C1H6R5WA01#

# indicates a package specification code.

< List of part numbers with package codes >

GRM1885C1H6R5WA01D , GRM1885C1H6R5WA01J

Shape

References

Packaging

D

J

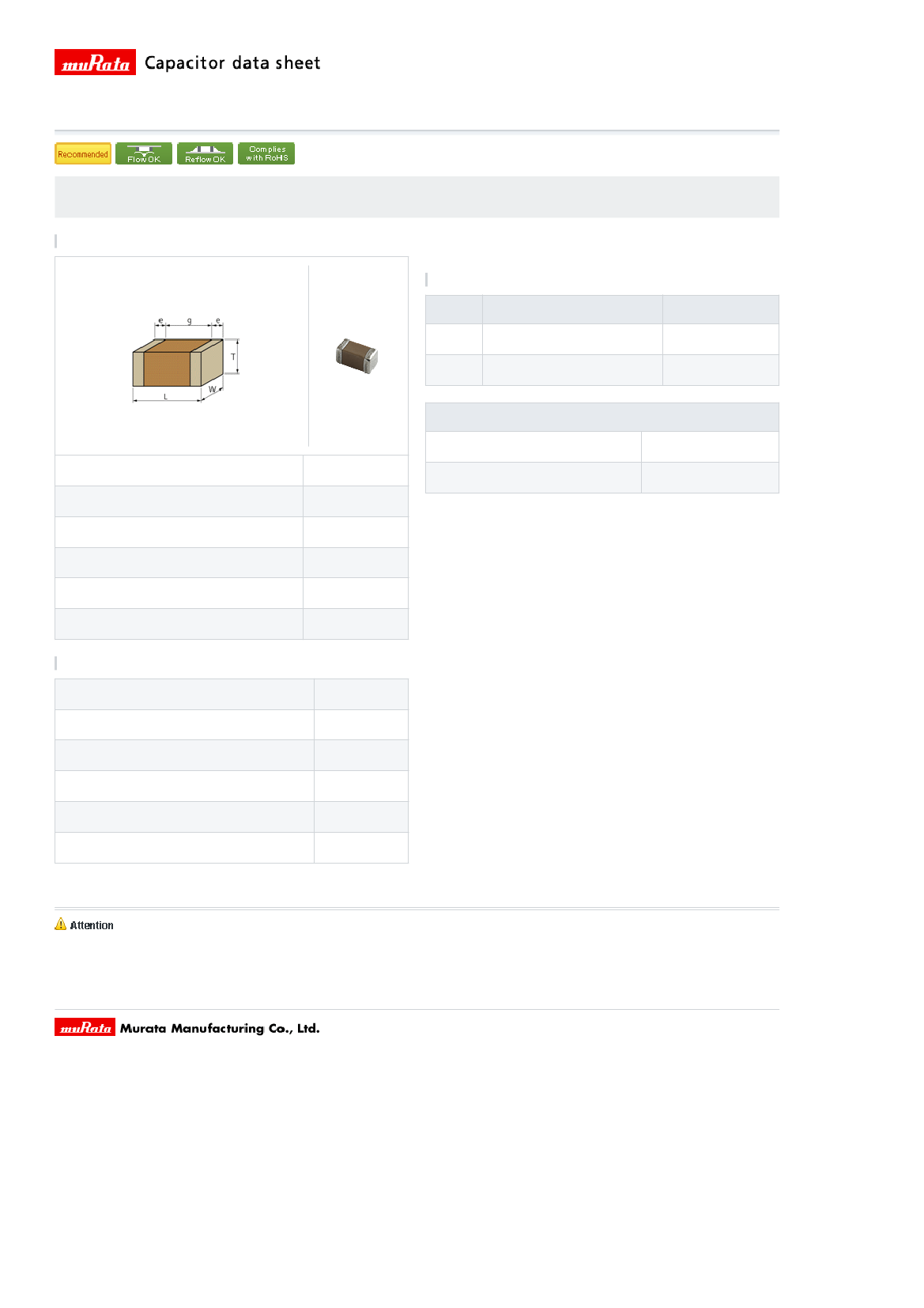

Specifications

φ180mm Paper taping

φ330mm Paper taping

Minimum quantity

4000

10000

Mass (typ.)

1 piece

L size

W size

T size

External terminal width e

Distance between external terminals g

Size code in inch(mm)

1.6 ±0.1mm

0.8 ±0.1mm

0.2 to 0.5mm

0.5mm min.

0603 (1608)

φ180mm Reel

6.3mg

144g

Specifications

Capacitance

Rated voltage

Temperature characteristics (complied standard)

Temperature coefficient

Temperature range of temperature characteristics

Operating temperature range

6.5pF ±0.05pF

50Vdc

C0G(EIA)

0±30ppm/℃

25 to 125℃

-55 to 125℃

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.co.jp/

Last updated: 2013/11/20
