LKG1K123MESAAK

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 80V, 20% +Tol, 20% -Tol, 12000uF, Through Hole Mount, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size60KB,3 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Environmental Compliance
Download Datasheet Parametric View All

LKG1K123MESAAK Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 80V, 20% +Tol, 20% -Tol, 12000uF, Through Hole Mount, ROHS COMPLIANT

LKG1K123MESAAK Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerNichicon
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance12000 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
JESD-609 codee4
leakage current1.31453 mA
Manufacturer's serial numberKG
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package shapeCYLINDRICAL PACKAGE
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)80 V
ripple current2150 mA
surface mountNO
Delta tangent0.35
Terminal surfaceGold (Au)
Terminal shapeSNAP-IN

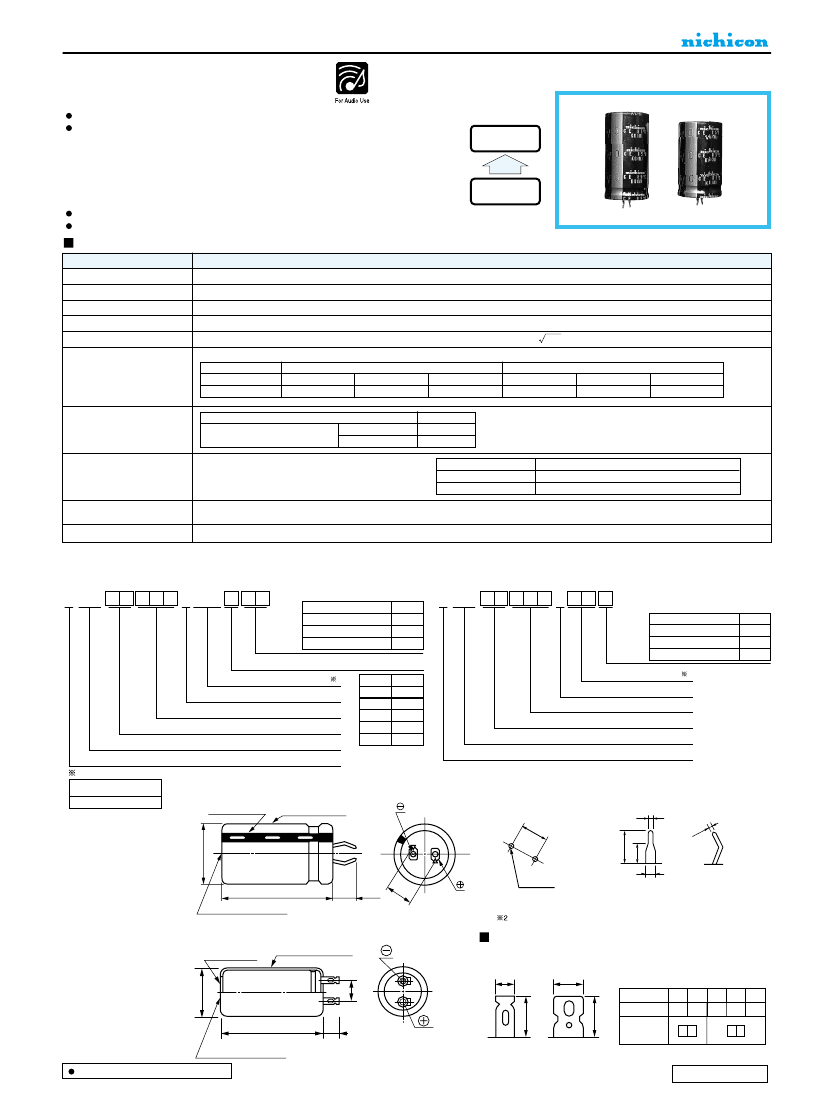

ALUMINUM ELECTROLYTIC CAPACITORS
KG
Lug / Snap-in Terminal Type,
For Audio Equipment
series
Disigned for high grade audio equipment, giving priority to high fidelity sound quality.
The variation expansion of the KG series.
Super Through
TYPE-1: The low profile high tone quality grade of the new development
electrolyte adoption.
TYPE-2: The center grade that the best sound is provided electrode foil,
High Grade
with the multiple use.
TYPE-3: The highest tone quality grade by the low drag the gold plating
Gold Tune
terminal adoption.
The sound quality that it meets the high tone quality needs for HD Audio equipment.
Compliant to the RoHS directive (2002/95/EC).
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
40 to +85°C
Performance Characteristics
16 to 100V (TYPE-1, TYPE-2, TYPE-3)
680 to 33000µF
± 20% at 120Hz, 20°C
After 5 minutes' application of rated voltage, leakage current is not more than 3 CV (µA),
[C : Rated Capacitance(µF), V : Voltage ( V ) ]
For capacitance of more than 22000µF, add 0.02 for every increase of 1000µF.
Measurement frequency : 120Hz, Temperature : 20°C
TYPE
Rated voltage(V)
tan
δ
(MAX.)
Tangent of loss angle (tan
δ)
TYPE-1, TYPE-2
TYPE-3
16
0.35
25 to 63
0.30
80
100
0.25
16 to 100
4
12
16
0.25
25 to 63
0.22
80
100
0.20
Rated voltage(V)
Measurement frequency : 120Hz
Stability at Low Temperature
Impedance ratio ZT/Z20(MAX.)
Z
25°C/ Z+20°C
Z
40°C/ Z+20°C
Endurance
The specifications listed at right shall be met when the
capacitors are restored to 20°C after the rated voltage is
applied for 1000 hours at 85°C.
Capacitance change
tan
δ
Leakage current
Within ±20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Shelf Life
Marking
After storing the capacitors under no load at 85°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4 clause
4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Printed with gold color letter on black sleeve.
Type numbering system (Snap-in terminal type)
(Example : Gold Tune 25 V 6800µF, Dia.φ30)
1
2
3
4
5
6
7
8
9 10 11
12
13 14
Type numbering system (Lug terminal type)
(Example : Super Through 50 V 15000µF)
1
2
3
4
5
6
7
8
9 10 11
12
L KG 1 E 6 8 2 ME S B B K
Grade
Grade
Code
TYPE-1(Gold Tune) AK
TYPE-2(Gold Tune) BK
TYPE-3(Super Through)
CK
Case dia.code
L KG 1 H 1 5 3 MK Z S
Grade
TYPE-1(Gold Tune)
TYPE-2(Gold Tune)
TYPE-3(Super Through)
2
Grade
Code
F
S
Configuration
1
Capacitance tolerance (±20%)
Rated capacitance(6800µF)
Rated voltage(25V)
Series name
Type
1 Configuration
Pb-free terminal
Pb-free PET sleeve
φD
20
22
25
30
35
Code
Y
Z
A
B
C
Configuration
Capacitance tolerance(±20%)
Rated capacitance(15000µF)
Rated voltage(50V)
Series name
Type
ES
Polarity bar
Sleeve (P.E.T.)
(Snap-in terminal type)
φ
D
+1MAX.
10±
0
.
0.8
-0.1
6.3±1
3.5
+0.2
1
0.1
0.8
-
.2
+0
L
±
2
10
6.3±1
2-2φ
±
0.1
(PC board hole dimensions)
1.5
+0.2
-0.1
(Terminal dimensions)
Pressure relief vent
(Lug terminal type)
φD
+2MAX.
Bottom plate
(P.E.T.)
Sleeve (Polyolefin)
Configuration
φ
35 to
φ
40
4.5
φ
50 to
φ
76
8
P
±
1
(mm)
φD
35
14
40
14
50
18
63
25
76
25
P
Configuration
t=0.8
t=1.0
11
L
+3MAX.
Pressure relief vent
11±2
11
KN
KZ
KN
KZ
Dimension table in next page.
CAT.8100Y
