LP CORES
Introduce of LP cores
LP core, EQ cores, EQ13 core, is all E-E core shapes with large wide windows, and is New planar cores. The
shape of the core is not a significant consideration for continuous mode operation due to low AC losses. For
discontinuous mode operation, the winding area window is chosen as wide as possible to minimize AC winding
losses. A table of suitable LP cores types for various power levels like ST core, SQ core, EQ13 core, LP kern,
LP22, LP23, LP32, EPX cores, EOP core, EIR core, are given for applications with the converter cores, controller
(frequency range 100kHz to 500kHz).
Application of LP cores
LP cores are widely application in Driver transformer, Wideband transformer, Transformatoren kern, DC
converter core.

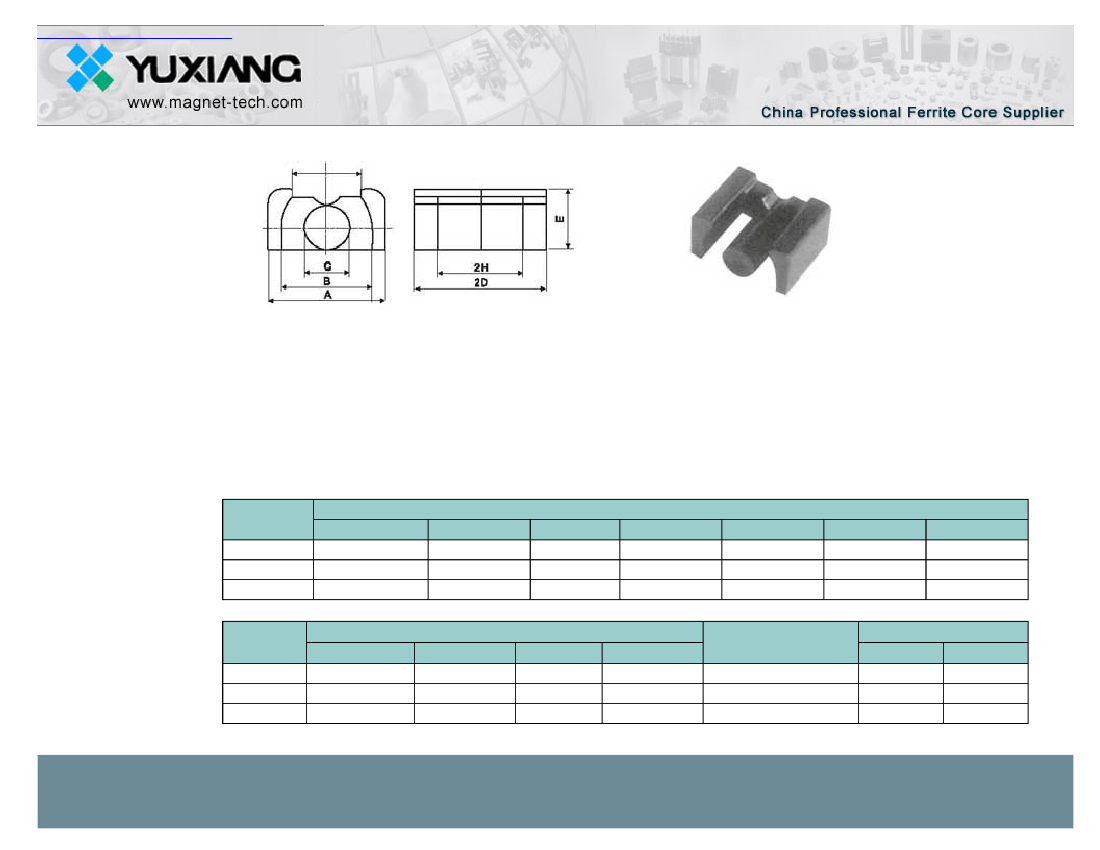

Type
LP22/13
LP23/8
LP32/13
Type
LP22/13
LP23/8
LP32/13
A
25.00±0.4
16.5±0.3
25.0±0.4
B
19.0±0.3
12.5±0.3
19.0±0.3
ΦC
8.6±0.2
5.7±0.2
8.6±0.2
Dimensions(mm)
2D
E
22.4±0.2
12.9±0.3
23.4±0.2
8.7±0.2
31.8±0.2
12.9±0.3
2H
16.4±0.3
17.4±0.2
24.1±0.3
I
13.5±0.5
9.0±0.5
13.5±0.5
Core parameter
weight (g/pr. )
C1 (mm
-1
) Ae (mm
2
) Ie (mm) Ve (mm
3
)
0.72
67.9
49.0
3327
21
1.41
31.3
44.1
1380
9.6
0.91
70.3
64
4499
30
Copyright 2005 YUXIANG Magnetic Materials Ind. Co.,Ltd.All Rights Reserved.
Add:16F1,jinyuan building,NO.57,hubin S.Rd.,Xiamen,China.361004
Tel : (86)592 2225286 (86)592 2219816 (86)592 2217138 Fax: (86)592 2207122
Email : yingli@magnets.com.cn yuxiang@sohu.net
A
l
(nH/N
2
)±25%
F2BD
F2B1
3500
3000
1600
1600
2750
2630
