HE0J279M30025HC datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> HE0J279M30025HC

HE0J279M30025HC: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 6.3V, 20% +Tol, 20% -Tol, 27000uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size251KB，3 Pages; ManufacturerSAMWHA; Websitehttp://www.samwha.com/; Environmental Compliance

Download Datasheet Parametric View All

HE0J279M30025HC Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 6.3V, 20% +Tol, 20% -Tol, 27000uF, Through Hole Mount, RADIAL LEADED

HE0J279M30025HC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMWHA
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	27000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	1.23729 mA
Manufacturer's serial number	HE
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	3420 mA
surface mount	NO
Delta tangent	0.76
Terminal surface	Tin (Sn)
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

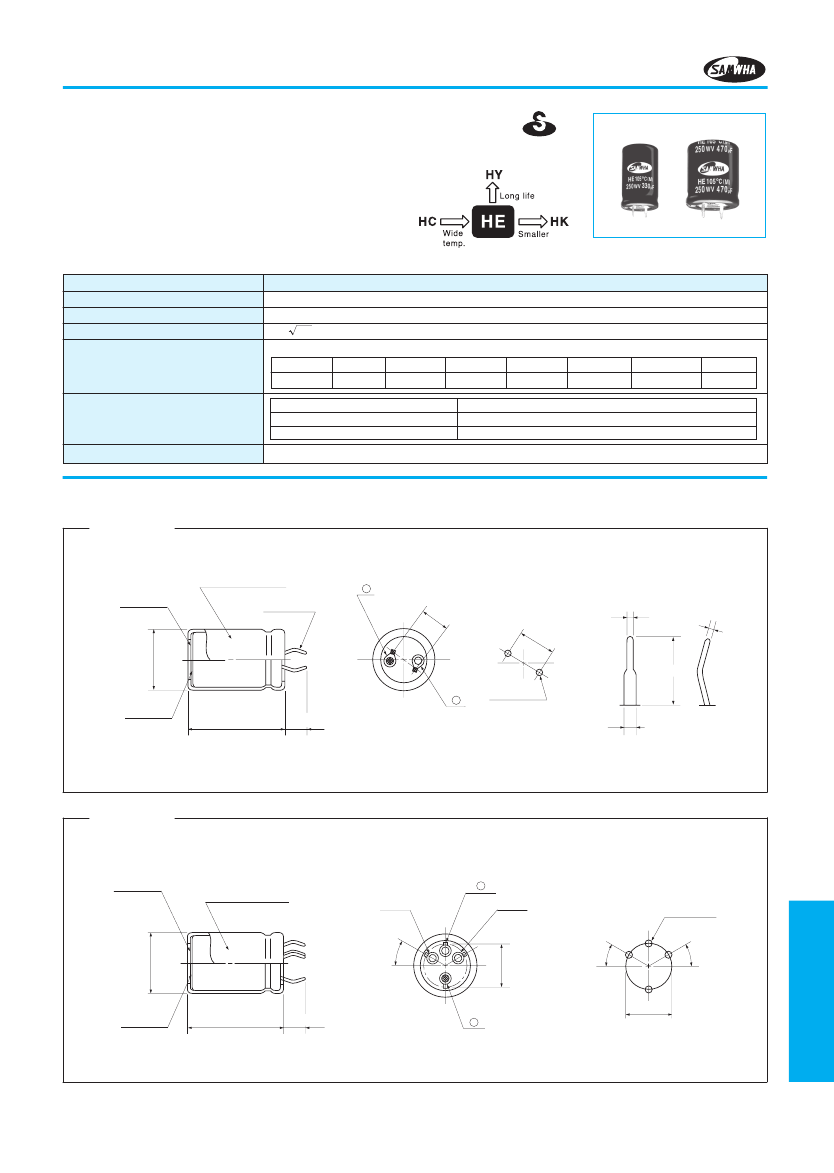

LARGE ALUMINUM ELECTROLYTIC CAPACITORS

Wide Temperature Range, Standard

Series

Solvent Proof

WV≦100V

・Wide

temperature range of -40(-25) ~ +105°

・Standard

snap-in terminal type

・Including

height 20mm products, low profile sized

(Voltage range of 160 ~ 500V)

・Complied

to the RoHS directive

Item

Operating temperature range

Capacitance tolerance

Leakage current max.

Dissipation factor max.

(at 120Hz, 20°

Load life

(after application of the rated

voltage for 2000 hours at 105°

Shelf life (at 105°

Characteristics

WV≦350 : -40 ~ +105° WV

≻

350 : -25 ~ +105°

±20%

at 120Hz, 20°

I=3 CV (μ (after 5 minutes)

Capacitance > 1000μ : tanδ

increases by 0.01 for each 1000μ from below value.

tanδ

6.3, 10

0.50

0.40

25, 35

0.35

50, 63

0.25

80, 100

0.20

160~400

0.15

450, 500

0.20

Leakage current

Capacitance change

tanδ

Less than specified value

Within

±20%

of initial value

Less than 200% of specified value

After 1000 hours no load test, leakage current, capacitance and tanδ

are same as load life value.

Unit : mm

●

DRAWING

●

≦

PC Board

Mounting Holes

－

●

Terminal

Insulating sleeve

Bottom plate

●Terminal

0.8±0.1

0.8

0.1

ØD+1

max.

0.2

6.0±1

2-Ø2±0.1

＋

Safety vent

L+2 max.

6.0±1

(4.0±0.5)

1.5±0.1

Shorter terminal(4.0±0.5) is also available upon request.

Terminal length of height 20mm products is applied shorter terminal to standard terminal type.

●

PC Board

Mounting Holes

Bottom plate

Insulating sleeve

Blank

4-Ø2±0.1

＋

ØD+1

max.

LARGE TYPES

30°

22.5

30°

Safety vent

L+2 max.

6.0±1

－

Ø22.5±0.2

145
