8D517J75PD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8D517J75PD

8D517J75PD: DescriptionMIL Series Connector,; CategoryThe connector The connector; File Size303KB，2 Pages; ManufacturerSOURIAU

Download Datasheet Parametric View All

8D517J75PD Overview

MIL Series Connector,

8D517J75PD Parametric

Parameter Name	Attribute value
Maker	SOURIAU
Reach Compliance Code	unknown
ECCN code	EAR99

Preview

Download Datasheet

View All

LAYOUT SHOWN AS EXAMPLE

Keying Shown as example

CHARACTERISTICS

-Standard : Based on MIL-DTL-38999 Series III

-Shell Material

-Shell Plating

-Insulator

-Contacts

-Seals & Grommet

-Contact Plating

-Durability

: Composite

: Olive drab Cadmium

: Thermoplastic

: Copper Alloy

: Silicon Elastomer

: Gold over copper Alloy 0.8µm minimum

: 500 Mating cycles

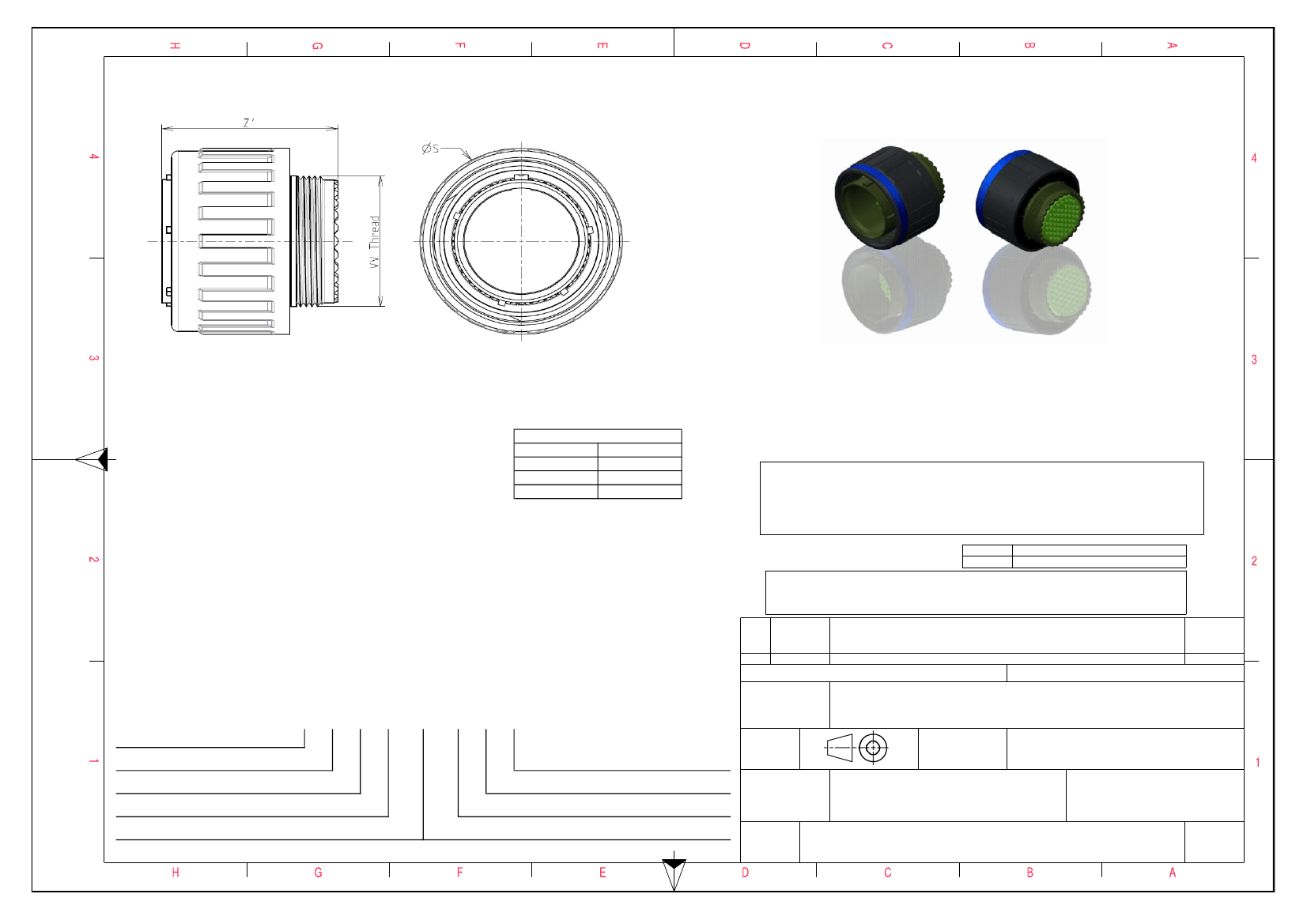

Connector dimension

Dim

Nominal

ØS

35.7 Max

31.5 Max

VV THREAD

M25x1-6g

SOURIAU shall not be liable for any non-conformity or damage

due to a use of the Products which does not comply with

the Specifications issued by either of the Parties or by a third party

(professional recommendation, technical notice.)

Country

Jurisdiction & Control List

Not Listed

-Delivered with Souriau contacts and Accessories

-Temperature Range

-Salt Spray

-Mass

: -65°C to +175°C

: 2000 hours

: 31.3 g ± 10%

PN: 8D517J75PD

ISS

14-10-2016 First Release

DATE

Latest modification - by

Date:

MOD N°

CUSTOMER DRAWING

TITLE

BASIC SERIES:

SHELL TYPE : Plug with RFI Shielding

CONTACT TYPE

SHELL SIZE : 17

PLATING

J =

Olive drab Cadmium

: Standard Crimp Contact

ORIENTATION : D

CONTACT TYPE : PIN(500 Matings)

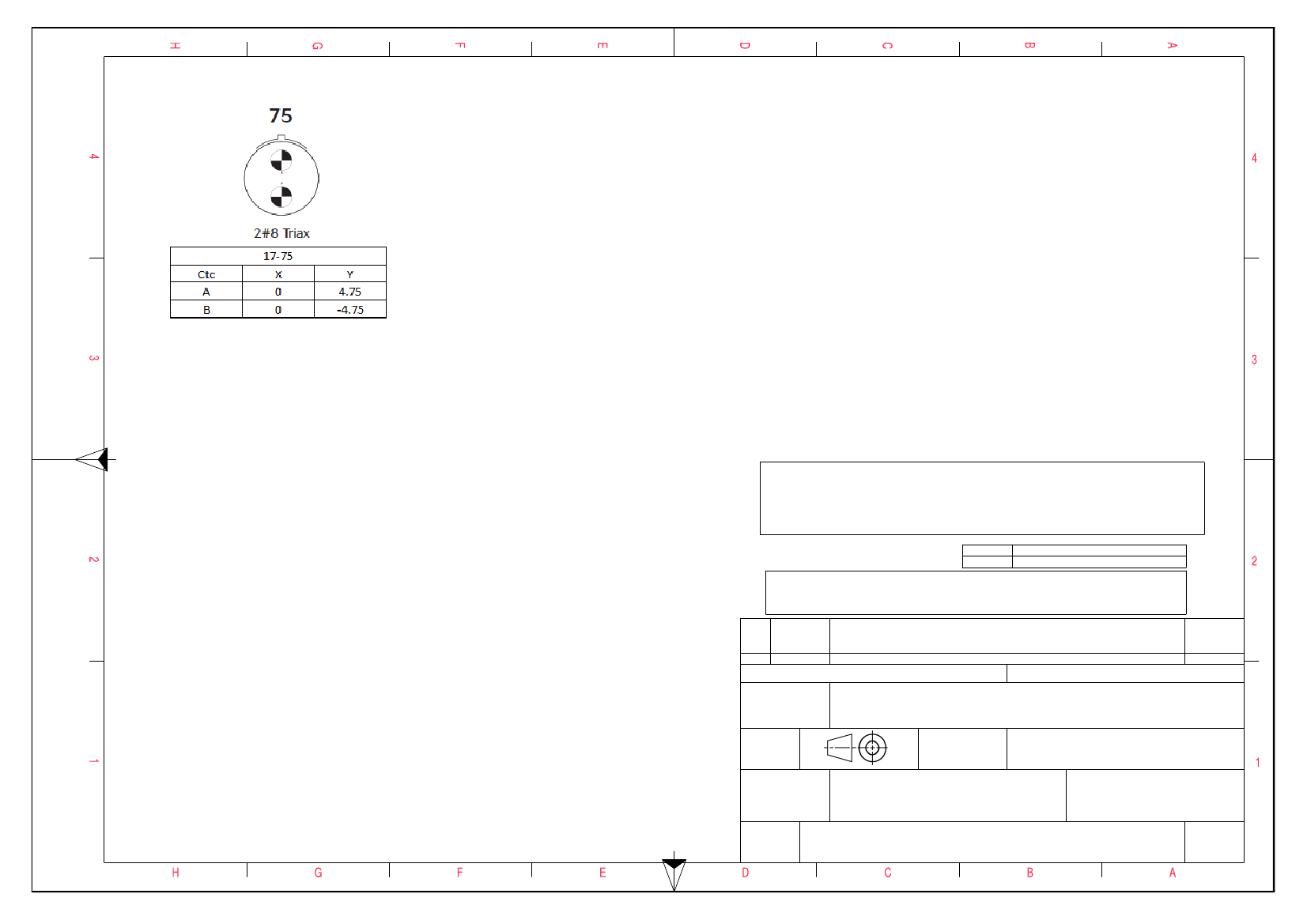

CONTACT LAYOUT : 17-75

FORMAT

Composite Plug 8D series

General linear

Tolerances:

±--

SCALE

NPRDS / PROJECT

859

This document is the property of

SOURIAU

it must not be reproduced or

communicated without permission

SOURIAU

WWW.SOURIAU.COM

SOURIAU DRG N°

8D517J75PD-C

SHEET

1/2
