127107MS032G404ZU datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 127107MS032G404ZU

Preview

127107MS032G404ZU: DescriptionBoard Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size294KB，1 Pages; ManufacturerSUYIN-USA; Websitehttp://www.suyinusa.com

Download Datasheet Parametric View All

127107MS032G404ZU Overview

Board Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

127107MS032G404ZU Parametric

Parameter Name	Attribute value
Maker	SUYIN-USA
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TUBE PKG W/O CAP
body width	0.118 inch
subject depth	0.079 inch
body length	0.82 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Insulator color	BLACK
Manufacturer's serial number	127107
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.27 mm
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	32

Preview

Download Datasheet

View All

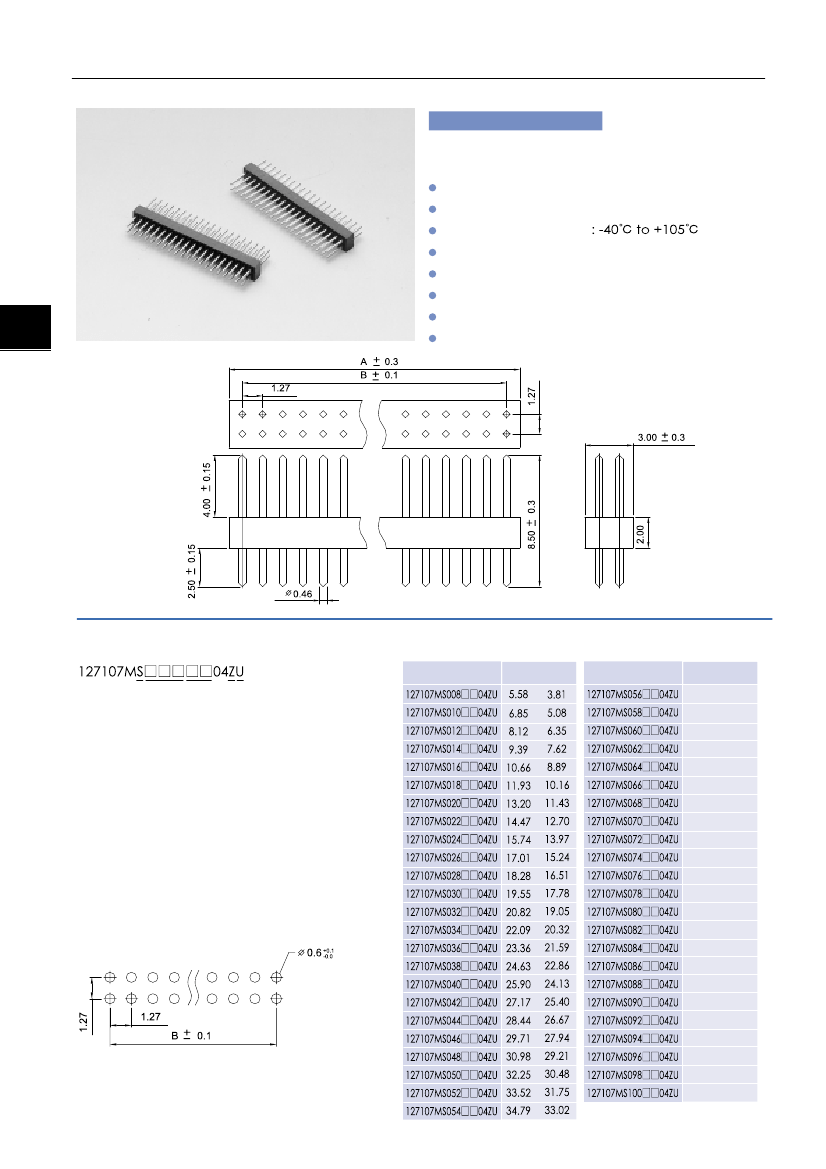

1.27X1.27mm DUAL ROW HEADER STRAIGHT TYPE

12107MS Series

Mates with SUYIN 127150,127151, Series

Specifications:

8-100 Circuits

Insulator material

Operating Temp. Range

Terminal Material

Plating

Max. Current Rating

1.27

mm

: Black High Temp . Plastic

: Brass

: Contact- Gold Plated

: 1.0A

: 150V AC

: 500V(Min. 60 seconds)

Voltage Rating

Dielectric Strength

Order Information

1

2

3

45

Dimensional Information

SUYIN P/NO.

DIM.A

DIM.B

SUYIN P/NO.

DIM.A

36.06

37.33

38.60

39.87

41.14

42.14

43.68

44.95

46.22

47.79

48.76

50.03

51.30

52.57

53.84

55.11

56.38

57.65

58.92

60.19

61.46

62.73

64.00

DIM.B

34.29

35.56

36.83

38.10

39.37

40.64

41.91

43.18

44.45

45.72

46.99

48.26

49.53

50.80

52.07

53.34

54.61

55.88

57.15

58.42

59.69

60.96

62.23

1. 'S' : Straight DIP Type

2. No. of Pins

3. Plating

4. Color 'Z' : Black

5. Package

'U' : Tube Package Without CAP

Reference Page 11

Recommended P.C.B. Layout

38
