127151FE020G405ZU datasheet, PDF

Datasheet> All Categories > The connector> The connector> 127151FE020G405ZU

127151FE020G405ZU: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size136KB，1 Pages; ManufacturerSUYIN-USA; Websitehttp://www.suyinusa.com

Download Datasheet Parametric View All

127151FE020G405ZU Overview

Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Plug

127151FE020G405ZU Parametric

Parameter Name	Attribute value
Maker	SUYIN-USA
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PACKAGING TUBE W/O CAP
Board mount options	EDGE MOUNT
body width	0.118 inch
subject depth	0.177 inch
body length	0.516 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulator color	BLACK
Manufacturer's serial number	127151FE
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	20

Preview

Download Datasheet

View All

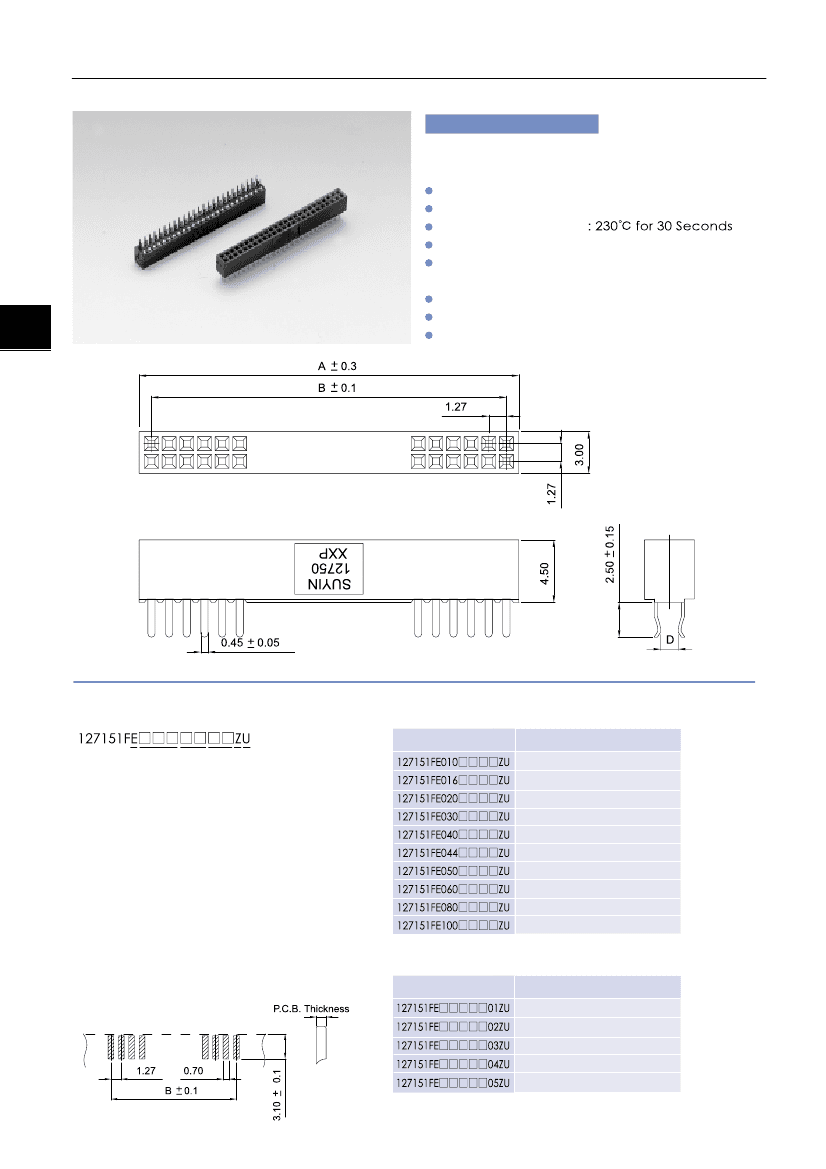

1.27X1.27mm DUAL ROW SOCKET EDGE MOUNT TYPE

(WITHOUT POLARIZATION KEY)

127151FE Series

Mates with SUYIN 127153,127154,127155,127156,127157,127196 Series

Specifications:

10-100 Circuits

: Black High Temp . Plastic

Insulator material

Max.Processing Temp.

: Phosphor Bronze

Terminal Material

: Selective Plated(Gold/Tin)

Plating

or Full Gold Plated

: 1.0A

Max. Current Rating

: 150V AC

Voltage Rating

: 500V(Min. 60 seconds)

Dielectric Strength

1.27

Order Information

1 2

1. 'E' : Edge Mount

2. No. of Pins

3. Plating

4. Color 'Z' : Black

5. Package

'U' : Tube Package Without CAP

6. P.C Board Thickness

Reference Page 11

6 45

Dimensional Information I

SUYIN P/NO.

NO. PINS

100

DIM.A

6.75

10.56

13.10

19.45

25.80

28.34

32.15

38.50

51.20

63.90

DIM.B

5.08

8.89

11.43

17.78

24.13

26.67

30.48

36.83

49.53

62.23

Dimensional Information II

SUYIN P/NO.

For P.C.B.

Thickness(m/m

)

Recommended P.C.B. Layout

DIM.D

0.7

0.9

1.1

1.5

1.9

0.8

1.0

1.2

1.6

2.0
