254210FS009G400ZU: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size208KB，1 Pages; ManufacturerSUYIN-USA; Websitehttp://www.suyinusa.com

Download Datasheet Parametric View All

254210FS009G400ZU Overview

Board Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug

254210FS009G400ZU Parametric

Parameter Name	Attribute value
Maker	SUYIN-USA
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TUBE PACKAGE WITHOUT CAP
body width	0.13 inch
subject depth	0.339 inch
body length	0.924 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	254210FS
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.165 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

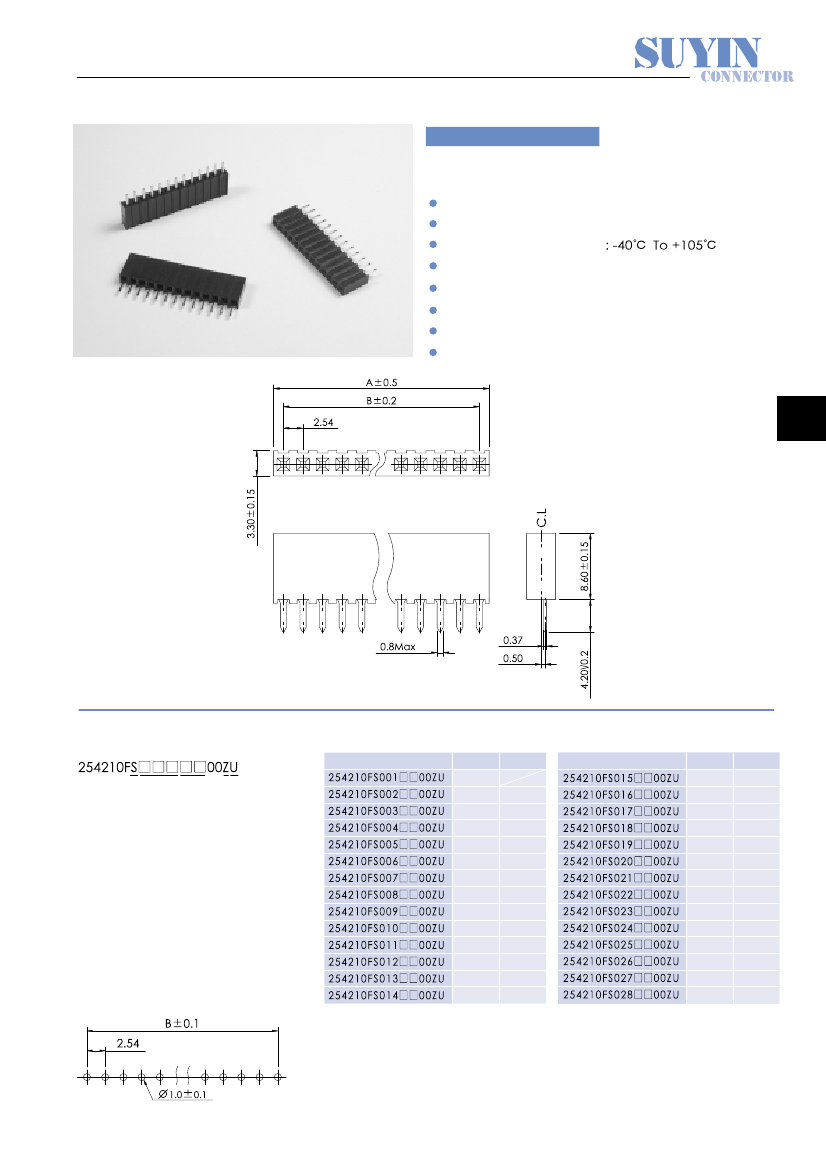

2.54 SINGLE ROW SOCKET P.C.B.

MOUNT RIGHT ANGLE TYPE

254210FS Series

Mates With SUYIN 254211, 254201, 254205 Series

Specifications:

1~28 Circuits

Insulator Material

Operating Temp. Range

Terminal Material

Plating

Max. Current Rating

Max. Voltage Rating

Dielectric Strength

: Phosphor Bronze

: Gold Plated

: 1.5A

: 250V AC

: 500V AC (Min. 60 Seconds)

: P.B.T UL94V-0

2.54

mm

Order Information

1

2

3

45

Dimension Information

SUYIN P/NO.

DIM.A

3.14

5.68

8.22

10.76

13.30

15.84

18.38

20.92

23.46

26.00

28.54

31.08

33.62

36.16

DIM.B

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

SUYIN P/NO.

DIM.A

38.70

41.24

43.78

46.32

48.86

51.40

53.94

56.48

59.02

61.56

64.10

66.64

69.18

71.72

DIM.B

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

1. 'S'

:

Straight DIP Type

2. No. of Pins

3. Plating

4. Color 'Z'

:

Black

5. Package

'U'

:

Tube Package Without CAP

Reference Page 11

Recommended P.C.B. Layout

131
