ATC800E391KT2500XC

Description
Ceramic Capacitor, Multilayer, Ceramic, 2500V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.00039uF, Surface Mount, 3838, CHIP, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size374KB,4 Pages
ManufacturerATC [American Technical Ceramics]
Environmental Compliance
Download Datasheet Parametric View All

ATC800E391KT2500XC Overview

Ceramic Capacitor, Multilayer, Ceramic, 2500V, 10% +Tol, 10% -Tol, C0G, 30ppm/Cel TC, 0.00039uF, Surface Mount, 3838, CHIP, ROHS COMPLIANT

ATC800E391KT2500XC Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerATC [American Technical Ceramics]
package instruction, 3838
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresSTANDARDS: MIL-PRF-123, MIL-PRF-55681
capacitance0.00039 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
high4.83 mm
JESD-609 codee3
length9.65 mm
Manufacturer's serial numberATC800E
Installation featuresSURFACE MOUNT
multi-layerYes
negative tolerance10%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
Package formSMT
method of packingTRAY
positive tolerance10%
Rated (DC) voltage (URdc)2500 V
series800E(CHIP)
size code3838
surface mountYES
Temperature characteristic codeC0G
Temperature Coefficient-/+30ppm/Cel ppm/°C
Terminal surfaceTin (Sn) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
width9.65 mm

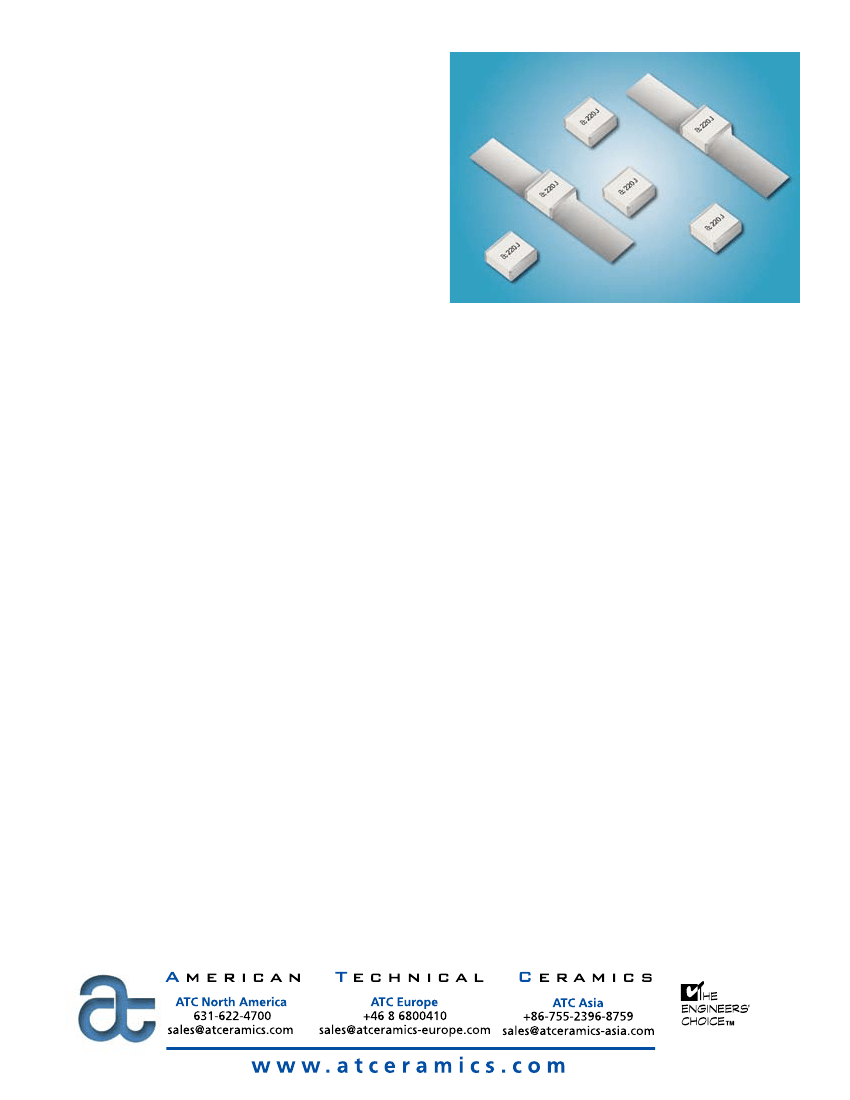

ATC 800 E Series
NPO Ceramic
High RF Power Multilayer
Capacitors
• Case E Size
(.380" x .380")
• High Q
• Ultra Low ESR
• High RF Power
• 7200 WVDC
• Capacitance Range:
3.3 pF to 5100 pF
• Ultra-Stable Performance
• High RF Current/Voltage
• High Reliability
• RoHS Compliant, Pb free
ATC’s 800 E Series offers superb performance in demanding high RF
power applications requiring consistent and reliable operation. The
combination of highly conductive metal electrode systems, optimized case
geometries, and proprietary dielectrics, yields the lowest ESR. ATC’s new
NPO low loss rugged dielectrics are designed to provide superior heat
transfer in high RF power applications. Ultra-low ESR and superior thermal
performance insure that the 800 E Series products are your best choice for
high RF power applications from VHF through microwave frequencies.
Typical functional applications: Bypass, Coupling, Tuning, Impedance
Matching and DC Blocking
Typical circuit applications: HF/RF Power Amplifiers, Transmitters, Antenna
Tuning, Plasma Chambers and Medical (MRI coils).
ELECTRICAL AND MECHANICAL
SPECIFICATIONS
QUALITY FACTOR (Q):
Greater than 5,000 (3.3 pF to 1000 pF) @ 1 MHz.
Greater than 5,000 (1100 pF to 5100 pF) @ 1 KHz.
TEMPERATURE COEFFICIENT OF CAPACITANCE (TCC):
0 ±30 PPM/°C (-55°C to +125°C)
INSULATION RESISTANCE (IR):
10
5
Megohms min. @ +25°C at rated WVDC
10
4
Megohms min. @ +125°C at rated WVDC
WORKING VOLTAGE (WVDC):
See Capacitance Values Table, page 2
DIELECTRIC WITHSTANDING VOLTAGE (DWV):
150% of WVDC for capacitors rated above 500 volts DC and
≤1250
volts
DC for 5 seconds.
120% of WVDC for capacitors rated above 1250 volts DC for 5 seconds..
ENVIRONMENTAL TESTS
ATC 800 E Series Capacitors are designed and manufactured to
meet and exceed the requirements of EIA-198, MIL-PRF-55681 and
MIL-PRF-123.
THERMAL SHOCK:
MIL-STD-202, Method 107, Condition A
MOISTURE RESISTANCE:
MIL-STD-202, Method 106
LOW VOLTAGE HUMIDITY:
MIL-STD-202, Method 103, Condition A, with 1.5 Volts DC applied while
subjected to an environment of 85°C with 85% relative humidity for 240
hours min.
LIFE TEST:
RETRACE:
Less than ±(0.02% or 0.02 pF), whichever is greater
AGING EFFECTS:
None
PIEzOELECTRIC EFFECTS:
None
(No capacitance variation with voltage or pressure)
CAPACITANCE DRIFT:
±(0.02% or 0.02 pF), whichever is greater
OPERATING TEMPERATURE RANGE:
From -55°C to +125°C
TERMINATION STYLE:

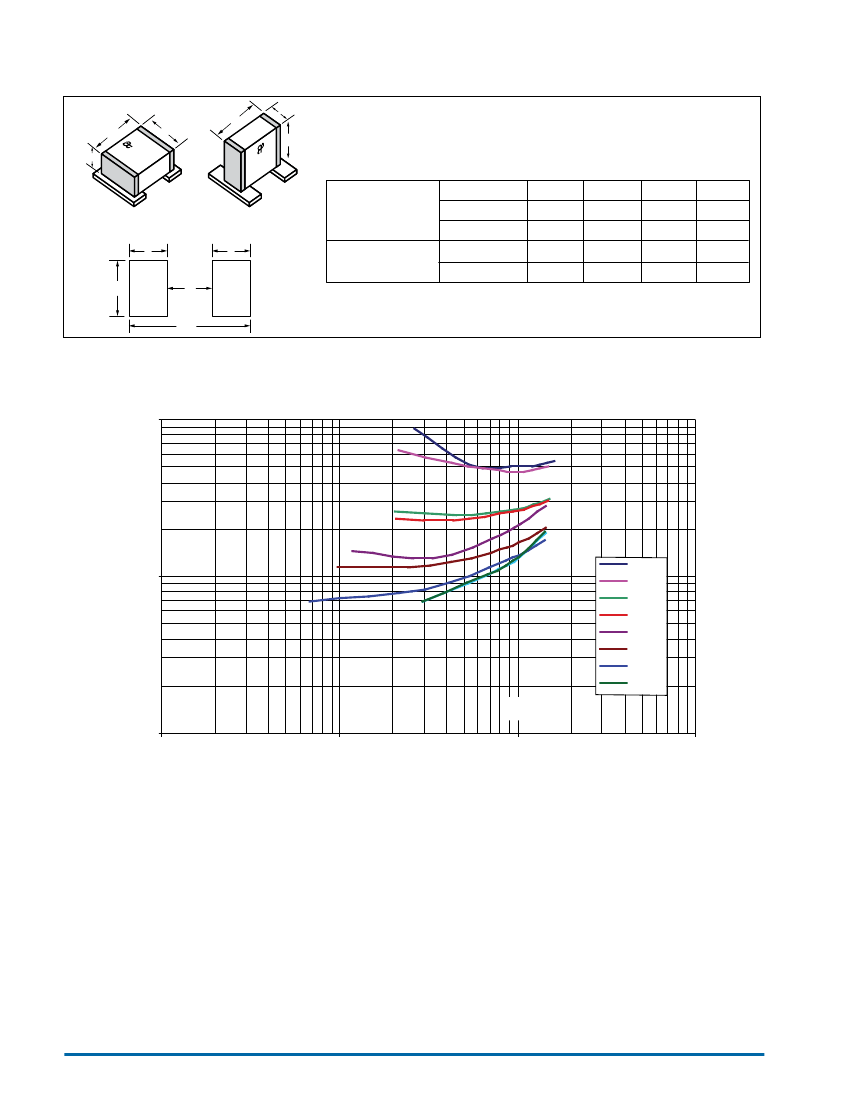

See Mechanical Configurations, page 3
TERMINAL STRENGTH:
Terminations for chips withstand a pull of 10 lbs.
min., 25 lbs. typical, for 5 seconds in direction perpendicular to the
termination surface of the capacitor. Test per MIL-STD-202, method 211.
MIL-STD-202, Method 108, for 2000 hours, at 125°C.
Voltage applied.
120% of WVDC for capacitors rated at 1250 volts DC or less.
100% of WVDC for capacitors rated above 1250 volts DC
ISO 9001
REGISTERED
COMPANY
ATC # 001-1077 Rev. G, 1/12
