HV 500 V Narrow Tolerance
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1, 500 V (DC) Narrow Tolerance
FEATURES
•
Low losses
D
•
High stability
•
High capacitance in small size
•
Kinked (preferred) or straight leads
•
Lead (Pb)-free available
SH
e3
RoHS
COMPLIANT
tangent
line
APPLICATIONS
•
Bypassing
•
Coupling
•
Resonant circuit
F
DESIGN
The capacitors consist of a ceramic disc both sides of which
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.6 mm.
Capacitors with 5 mm (0.20") lead spacing
The capacitors have inward kinked leads with a spacing of
5 mm (0.200") and a lead length from 4 to 30 mm.
Encapsulation is made of phenolic resin.
CAPACITANCE RANGE:
TEMPERATURE COEFFICIENTS:
Class 1 NP0; P100; N150; N750
Class 1, at 1 MHz, 1.2 V (RMS); 1.0 pF to 330 pF
1 kHz, 1 ± 0.2 V (RMS) for capacitance values higher than
1000 pF
SECTIONAL SPECIFICATIONS:
Class 1 IEC 60 384-8,
EIA 198
RATED DC VOLTAGE:
500 V
DIELECTRIC STRENGTH:
CLIMATIC CATEGORY:
Class 1 55/125/21
250 % of rated voltage
INSULATION RESISTANCE AT 500 V (DC):
OPERATING TEMPERATURE RANGE:
Class 1 - 55 to + 125 °C
≥
10 000 MΩ
TOLERANCE ON CAPACITANCE:
± 0.25 pF; ± 2 %
MARKING
Marking indicates capacitance value and tolerance in
accordance with “EIA 198”.
DISSIPATION FACTOR:
Class 1, C
≤
30 pF;
≤
20 x (10/C + 0.7) x 10
-4
maximum
Class 1, C > 30 pF;
≤
0.2 %
The capacitors meet the essential requirements of “EIA 198”. Unless stated otherwise all electrical values apply at an ambient
temperature of 25 ± 3 °C, at normal atmospheric conditions.
www.vishay.com
40
For technical questions contact: CDC@vishay.com
Document Number: 28514
Revision: 28-Sep-06
HV 500 V Narrow Tolerance
Ceramic Disc Capacitors
Class 1, 500 V (DC) Narrow Tolerance
ORDERING INFORMATION, CLASS 1, 500 V (DC), KINKED
CLEAR TEXT CODE
C
(pF)
TOL.
(%)
D
max
(mm)
LEAD SPACING
F
(mm)
SH
(2)
(mm)
13
th
DIGIT:
T = REEL; U = AMMO; 3 = BULK
16
th
DIGIT:
R = RoHS COMPLIANT
Vishay BCcomponents
CLASS 1 P100
1.5
2.2
3.3
4.7
6.8
10
15
22
33
CLASS 1 NP0
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
CLASS 1 N150
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
±2%
6.5
7.5
8.5
11.0
5.0
4.0
± 0.25 pF
5.0
D229C20P2JL6.J5.
D339C20P2JL6.J5.
D479C20P2HL6.J5.
D689C20P2HL6.J5.
D100G20P2GL6.J5.
D150G20P2GL6.J5.
D220G25P2GL6.J5.
D330G25P2GL6.J5.
D470G29P2GL6.J5.
D680G33P2GL6.J5.
D101G43P2GL6.J5.
±2%
6.5
7.5
8.5
10.0
12.0
5.0
4.0
± 0.25 pF
5.0
D109C20C0KL6.J5.
D159C20C0KL6.J5.
D229C20C0JL6.J5.
D339C20C0JL6.J5.
D479C20C0HL6.J5.
D689C20C0HL6.J5.
D100G20C0GL6.J5.
D150G20C0GL6.J5.
D220G25C0GL6.J5.
D330G25C0GL6.J5.
D470G29C0GL6.J5.
D680G33C0GL6.J5.
D101G39C0GL6.J5.
D151G47C0GL6.J5.
±2%
6.5
7.5
8.5
10.0
12.0
5.0
4.0
± 0.25 pF
5.0
D159C20M7GL6.J5.
D229C20M7GL6.J5.
D339C20M7GL6.J5.
D479C20M7GL6.J5.
D689C25M7GL6.J5.
D100G29M7GL6.J5.
D150G33M7GL6.J5.
D220G39M7GL6.J5.
D330G47M7GL6.J5.
Document Number: 28514
Revision: 28-Sep-06
For technical questions contact: CDC@vishay.com
www.vishay.com
41
HV 500 V Narrow Tolerance
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1, 500 V (DC) Narrow Tolerance
ORDERING INFORMATION, CLASS 1, 500 V (DC), KINKED
CLEAR TEXT CODE
C
(pF)
TOL.
(%)
D
max
(mm)
LEAD SPACING
F
(mm)
SH
(2)
(mm)
13
th
DIGIT:
T = REEL; U = AMMO; 3 = BULK
16
th
DIGIT:
R = RoHS COMPLIANT
D689C20U2JL6.J5.
D100G20U2JL6.J5.
5.0
D150G20U2JL6.J5.
D220G20U2JL6.J5.
±2%
6.5
7.5
8.5
10.0
12.0
5.0
4.0
D330G25U2JL6.J5.
D470G29U2JL6.J5.
D680G33U2JL6.J5.
D101G39U2JL6.J5.
D151G47U2JL6.J5.
CLASS 1 N750
6.8
10
15
22
33
47
68
100
150
Notes
1. Maximum thickness 4.0 mm.
2. SH = seated height.
3. Lead style codes refer to inward kinked leads. Other styles available on request.
4. Other capacitance values E12 series available.
± 0.25
PACKAGING
D
max
(mm)
5.0 (0.20")
6.5 (0.25")
7.5 (0.29")
8.5 (0.33")
10.0 (0.39")
11.0 (0.43")
12.0 (0.47")
SIZE CODE
20
25
29
33
39
43
47
1000
2000
2000
PACKAGING QUANTITIES
BULK
REEL
AMMO
Note
1. The capacitors are supplied in bulk packaging (cardboard boxes), in tape on reel or in ammopack.
www.vishay.com
42
For technical questions contact: CDC@vishay.com
Document Number: 28514
Revision: 28-Sep-06
HV 500 V Narrow Tolerance
Ceramic Disc Capacitors
Class 1, 500 V (DC) Narrow Tolerance
Vishay BCcomponents
Δ
Δ
Δ
Δ
∅

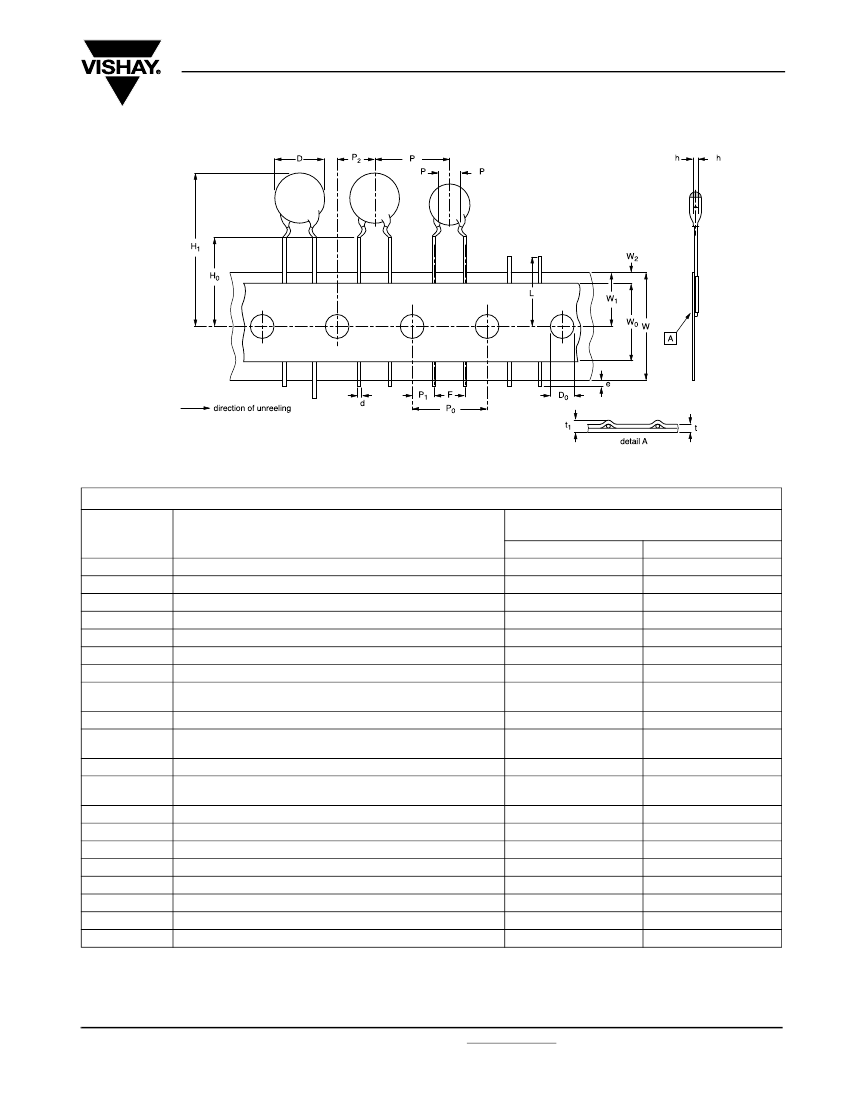

Kinked capacitors on tape, lead spacing 5.0 mm (0.2")
DIMENSIONS OF TAPE
SYMBOL
D
d
P
P
0
ΔP
P
1
P
2
F
Δh
W
W
0
W
1
W
2
H
0
H
1
e
L
D
0
t
t
1
PARAMETER
NOMINAL
body diameter
lead diameter
pitch between capacitors
feed-hole pitch
plane deviation
feed-hole centre to lead centre
feed-hole centre to component centre
lead spacing
component alignment
tape width
hold-down tape width
hole position
hold-down tape margin
height to seating plane
maximum component height
lead end protrusion
maximum length of snipped lead
feed-hole diameter
total tape thickness
maximum thickness of tape and wires
11.0 maximum
0.6
12.7
12.7
1.0 maximum
3.85
6.35
5.0
0
18.0
5.0 minimum
9.0
3.0 maximum
16.0
32.0
1.0 maximum
11.0
4.0
0.9 maximum
1.5 maximum
DIMENSIONS
(mm)
TOLERANCE
-
± 0.05
± 1.0
± 0.3; note 1
-
± 0.7; note 2
± 1.3; note 2
+ 0.6
- 0.4
± 1.0
+ 1.0
- 0.5
-
+ 0.75
- 0.5
-
± 0.5
-
-
-
± 0.2
−
−
Notes
1. Cumulative pitch error: ±
≤
1 mm/20 pitches.
2. Obliquity maximum 3°.
Document Number: 28514
Revision: 28-Sep-06
For technical questions contact: CDC@vishay.com
www.vishay.com
43
HV 500 V Narrow Tolerance
Vishay BCcomponents
Ceramic Disc Capacitors
Class 1, 500 V (DC) Narrow Tolerance
REEL AND TAPE DATA
in millimeters
±
±

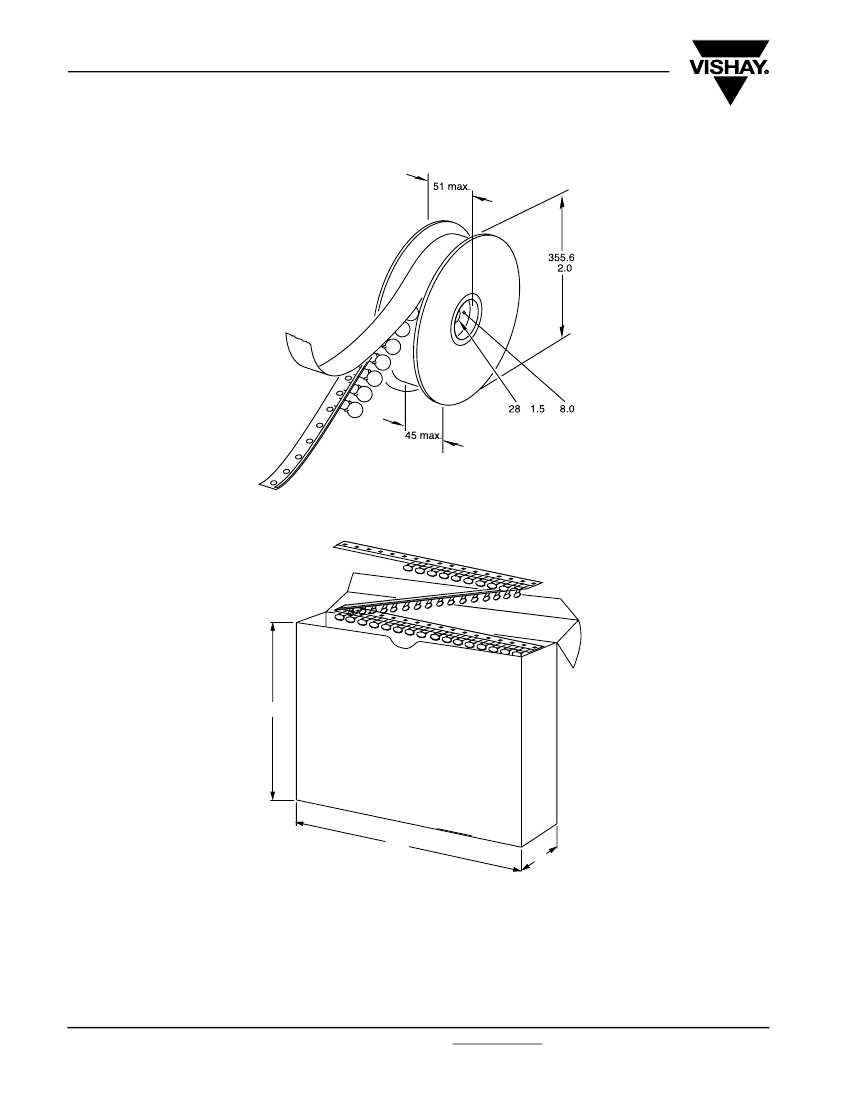

Reel with capacitors on tape
290
335
50
Ammopack with capacitors on tape
www.vishay.com
44
For technical questions contact: CDC@vishay.com
Document Number: 28514
Revision: 28-Sep-06
