LPE5047ER472NU

Description
1 ELEMENT, 4700 uH, GENERAL PURPOSE INDUCTOR, SMD
CategoryPassive components    inductor
File Size105KB,3 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

LPE5047ER472NU Overview

1 ELEMENT, 4700 uH, GENERAL PURPOSE INDUCTOR, SMD

LPE5047ER472NU Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
package instruction5047
Reach Compliance Codeunknow
ECCN codeEAR99
uppercase and lowercase codes5047
DC Resistance2.24 Ω
Nominal inductance(L)4700 µH
Inductor ApplicationsFILTER CHOKE
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee2
Manufacturer's serial numberLPE-5047
Number of functions1
Number of terminals10
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Maximum rated current0.24 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
special characteristicsPARALLEL CONNECTED
surface mountYES
Terminal surfaceTin/Copper (Sn/Cu)
Terminal locationDUAL IN-LINE
Terminal shapeGULL WING
Test frequency0.01 MHz
Tolerance30%

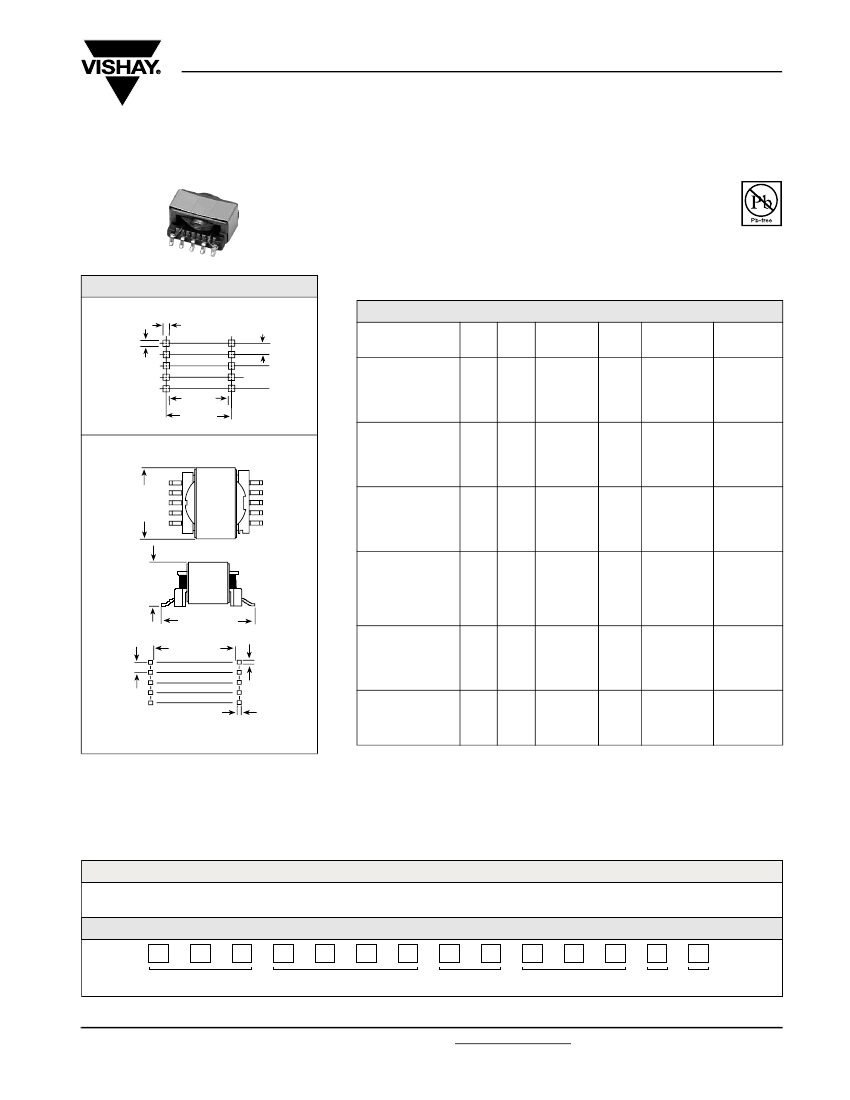

LPE-5047
Vishay Dale
Surface Mount Transformers/Inductors,
Gapped and Ungapped Custom Configurations Available
ELECTRICAL SPECIFICATIONS
(Multiple winds are connected in parallel)
Inductance Range:
10 µH to 68 000 µH, measured at 0.10 V RMS
at 10 kHz without DC current, using an HP 4263A or HP 4284A
impedance analyzer
DC Resistance Range:
0.03
Ω
to 24.1
Ω,
measured at + 25 °C ± 5 °C
Rated Current Range:
2.29 amps to 0.07 amps
Dielectric Withstanding Voltage:
500 V RMS, 60 Hz, 5 seconds
RoHS
COMPLIANT
DIMENSIONS
in inches [millimeters]
Pad Layout
0.045 [1.14] Pad Dimensions
Typical, 10 places
0.079 [2.01]
0.045
[1.14]
0.414
[10.52]
0.459
[11.66]
Reference Only
Typical 4
places
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
Ungapped
Models
(A)
LPE5047ER151NU
LPE5047ER221NU
LPE5047ER331NU
LPE5047ER471NU
LPE5047ER681NU
LPE5047ER102NU
LPE5047ER152NU
LPE5047ER222NU
LPE5047ER332NU
LPE5047ER472NU
LPE5047ER682NU
LPE5047ER103NU
LPE5047ER153NU
LPE5047ER223NU
LPE5047ER333NU
LPE5047ER473NU
LPE5047ER683NU
Gapped Models
(B)
LPE5047ER100MG
LPE5047ER150MG
LPE5047ER220MG
LPE5047ER330MG
LPE5047ER470MG
LPE5047ER680MG
LPE5047ER101MG
LPE5047ER151MG
LPE5047ER221MG
LPE5047ER331MG
LPE5047ER471MG
LPE5047ER681MG
LPE5047ER102MG
LPE5047ER152MG
LPE5047ER222MG
LPE5047ER332MG
LPE5047ER472MG
IND.
(µH)
150
220
330
470
680
1000
1500
2200
3300
4700
6800
10 000
15 000
22 000
33 000
47 000
68 000
10
15
22
33
47
68
100
150
220
330
470
680
1000
1500
2200
3300
4700
DCR MAX. RATED* SATURATING
IND. SCHEMATIC MAX. DC CURRENT CURRENT**
TOL.
LETTER
(Ohms)
(Amps)
(Amps)
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
B
B
B
C
D
D
D
D
E
E
E
E
E
E
E
E
E
0.20
0.24
0.29
0.35
0.42
0.51
0.63
0.76
1.00
2.24
2.70
3.27
6.26
7.58
9.50
18.5
24.1
0.03
0.04
0.05
0.09
0.13
0.15
0.24
0.37
0.55
0.85
1.29
1.96
2.38
3.66
5.47
8.48
13.2
0.79
0.72
0.65
0.59
0.54
0.49
0.44
0.40
0.35
0.24
0.21
0.19
0.14
0.13
0.11
0.08
0.07
2.29
2.07
1.68
1.35
1.11
1.01
0.81
0.65
0.53
0.43
0.35
0.28
0.26
0.21
0.17
0.14
0.11
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
2.690
2.230
1.860
1.540
1.300
1.085
0.900
0.740
0.610
0.500
0.420
0.350
0.290
0.240
0.195
0.160
0.135
Dimensional Outline
6
0.472
[11.99]
Max.
10
5
1
0.248
[6.30]
Max.
0.525 [13.34]
Max.
0.437 [11.10]
0.079
[2.01]
Typ.
0.028
[0.71]
0.028
[0.71]
Foot print Diagram
NOTE:
Pad layout guidelines per MIL-STD-275E
(printed wiring for electronic equipment).
Tolerances: xx ± 0.01" [± 0.25 mm]; xxx ± 0.005"
[± 0.12 mm]
The underside of these components contains
metal and thus should not come in contact with
active circuit traces.
* DC current that will create a maximum temperature rise of 30 °C when applied at + 25 °C
ambient. ** DC current that will typically reduce the initial inductance by 20 %
UNGAPPED MODELS:
Highest possible inductance with the lowest DCR and highest
Q capability. Beneficial in filter, impedance matching and line coupling devices.
GAPPED MODELS:
Capable of handling large amounts of DC current, tighter
inductance tolerance with better temperature stability than ungapped models. Beneficial
in DC to DC converters or other circuits carrying DC currents or requiring inductance
stability over a temperature range.
DESCRIPTION
LPE
5047
1000 µH
± 30 %
A
ER
e2
MODEL SIZE INDUCTANCE
VALUE
INDUCTANCE TOLERANCE CORE PACKAGE CODE JEDEC LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
L
P
E
5
0
SIZE
4
7
E
R
1
0
INDUCTANCE
VALUE
2
N
TOL.
U
CORE
PRODUCT FAMILY
PACKAGE
CODE
NOTE Series is also available with SnPb terminations by using package code RY for tape and reel (in place of ER) or SM for bulk (in place of EB).
Document Number: 34065
Revision: 10-Oct-08
For technical questions, contact: magnetics@vishay.com
www.vishay.com
157
