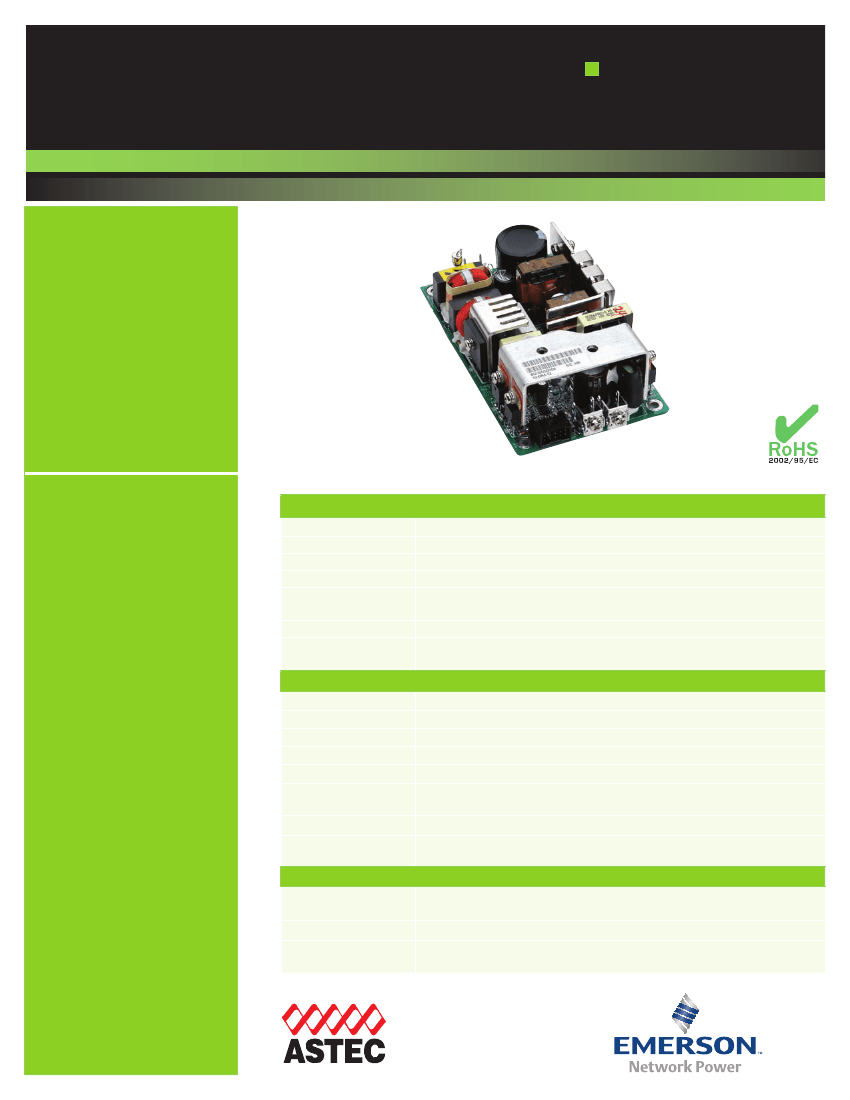

LPS120 Series
120 Watts
Total Power:
Input Voltage:
# of Outputs:
80 - 130 Watts
85 - 264 VAC
Single
Rev. 09.15.09_12
LPS120 Series
1 of 3
Special Features
•
•
•
•
•
•
•
•
•
•
•
•
•
Active power factor correction
3” x 5” footprint
Less than 1U high
EN61000-3-2 compliant
Remote sense
Power fail and remote inhibit
Single wire current sharing
Adjustable main output
Built-in Class B EMI filter
Overvoltage protection
Overload protection
Thermal overload protection
5 V Standby output
and 12V Fan output
Electrical Specifications
Input
Input range:
Frequency:
Inrush current:
Efficiency:
EMI/RFI:
Power factor:
Safety ground
leakage current:
85 - 264 VAC ; 127 - 300VDC
47 - 440 Hz
40 A max., cold start @ 25 °C
80% typical at full load
FCC Class B conducted; CISPR22 Class B conducted; EN55022 Class B con-
ducted; VDE0878PT3 Class B conducted
0.99 typical
0.5 mA @ 50/60 Hz, 264 VAC input
Output
Maximum power:
Adjustment range:
Fan output:
Standby outputs:
80 W for convection ; 130 W with 30CFM forced air
± 5% minimum on the main outputs
12 V @ 500mA - 5%, +7%
5V @ 500mA ± 5%
Hold-up time:
20ms @ 125 W load, 120 VAC input
Overload protection:
Short circuit protection on all outputs. Case overload protected @
120 - 135% above rating
Overvoltage protection: 20 - 35% above nominal output
Remote sense:
Compensates for 0.5 V lead drop max. Will operate without remote sense
connected. Reverse connection protected.
Logical Control
Safety
TUV:
UL:
CSA
NEMKO:
AUSTEL:
CB:
CE:
60950
60950
60950
60950
60950
Certificate and report
Mark (LVD)
Power failure:
Remote inhibit:
Remote sense:
TTL logic signal goes high 100 - 500 msec after main output; it goes low at
least 4 msec before loss of regulation
Requires a contact closure to disable the outputs, except 5 V standby.
Compensates for 0.5 V lead drop min. Will operate without remote sense
connected. Reverse connection protected.
Embedded Power for
Business-Critical Continuity
Environmental Specifications
Operating temperature:
0° to 50 °C ambient derate each

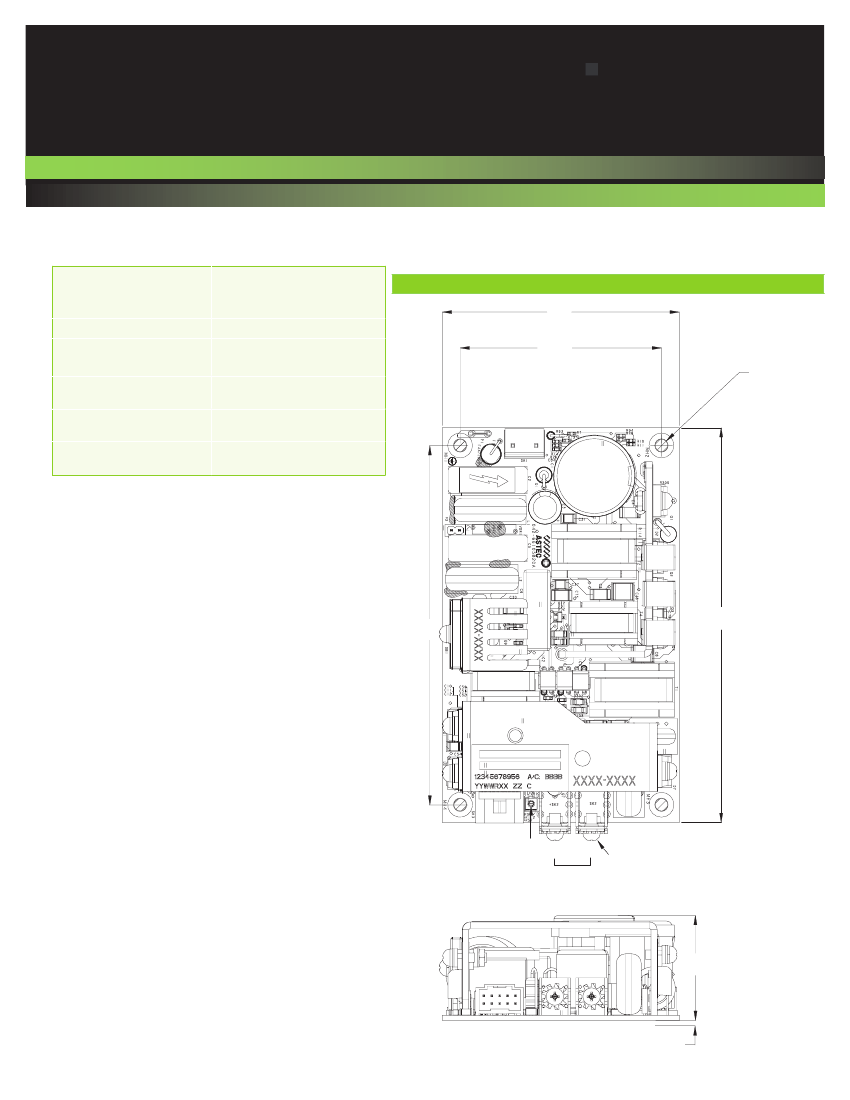

Mechanical Drawing
output as 2.5% per degree from
50° to 70 °C. -20 °C start up
-40 °C to +85 °C
Designed to meet EN61000-4;
-2, -3, -4, -5, -6, -8, -11 Level 3
Operating; non-condensing
10% to 95% RH
IEC68-2-6 to the levels of
IEC721-3-2
> 550,000 hours at full load and
25 °C ambient conditions
3.00
(76.2)
2.55
(64.8)
Rev. 09.15.09_128
LPS120 Series
2 of 3
Storage temperature:
Electromagnetic
susceptibility:
Humidity:
Vibration:
MTBF demonstrated
SK1
P1
EARTH
0.15" DIA. 4 places
(4.0)
NEUTRAL
LIVE
4.55
(115.6)
5.00
(127.0)
V
Adjust
POT
SK3
1
5
6
10
2
SK2
1
M3.5 (2 places)
1.29
(32.8)
SK3
0.20" (5)
Embedded Power for
Business-Critical Continuity
Ordering Information
Model
Number
LPS121
LPS122
LPS123
LPS124
LPS125
LPS128
Output
Voltage
3.3 V
5 V
12 V
15 V
24 V
48 V
Minimum
Load
0 A
0 A
0 A
0 A
0 A
0 A
Maximum Load
with Convection
Cooling
21 A
16 A
6.7 A
5.3 A
3.4 A
1.7A
Maximum Load
with 30CFM
Peak Load Regulation
2
Forced Air
36 A
26 A
10.8 A
8.7 A
5.4 A
2.7 A
29 A
29 A
12.8 A
10.0 A
6.3 A
3.2 A
± 2%
± 2%
± 2%
± 2%
± 2%
± 2%
Ripple
P/P
(PARD)
3
50 mV
50 mV
120 mV
150 mV
240 mV
480 mV
Americas
5810 Van Allen Way
Carlsbad, CA 92008
USA
Telephone: +1 760 930 4600
Facsimile: +1 760 930 0698
Rev. 09.15.09_12
LPS120 Series
3 of 3
Europe (UK)
1. Peak current lasting < 30 seconds with a maximum 10% duty cycle.
2. At 25 °C including initial tolerance, line voltage, load currents and output voltages adjusted to factory settings.
3. Peak-to-peak with 20 MHz bandwidth and 10 µF (tantalum capacitor) in parallel with a 0.1 µF capacitor at rated line volt-
age and load ranges.
4. When in parallel a 10% load is required for each power supply.
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
Telephone: +44 (0) 1384 842 211
Facsimile: +44 (0) 1384 843 355
Asia (HK)
Pin Assignments
Connector
SK1
SK2
SK3
LPS120
Pin1
Pin3
TB-1
TB-2
Pin1
Pin2
Pin3
Pin4
Pin5
Pin6
Pin7
Pin8
Pin9
Pin10
Neutral
Line
COMMON
Main output
+V1 Remote sense
-V1 Remote sense
+Remote inhibit
-Remote inhibit
+Power fail
Common
SWP
+12V
12V common
+5V standby
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
Telephone: +852 2176 3333
Facsimile: +852 2176 3888
For global contact, visit:
www.PowerConversion.com
techsupport.embeddedpower
@emerson.com
