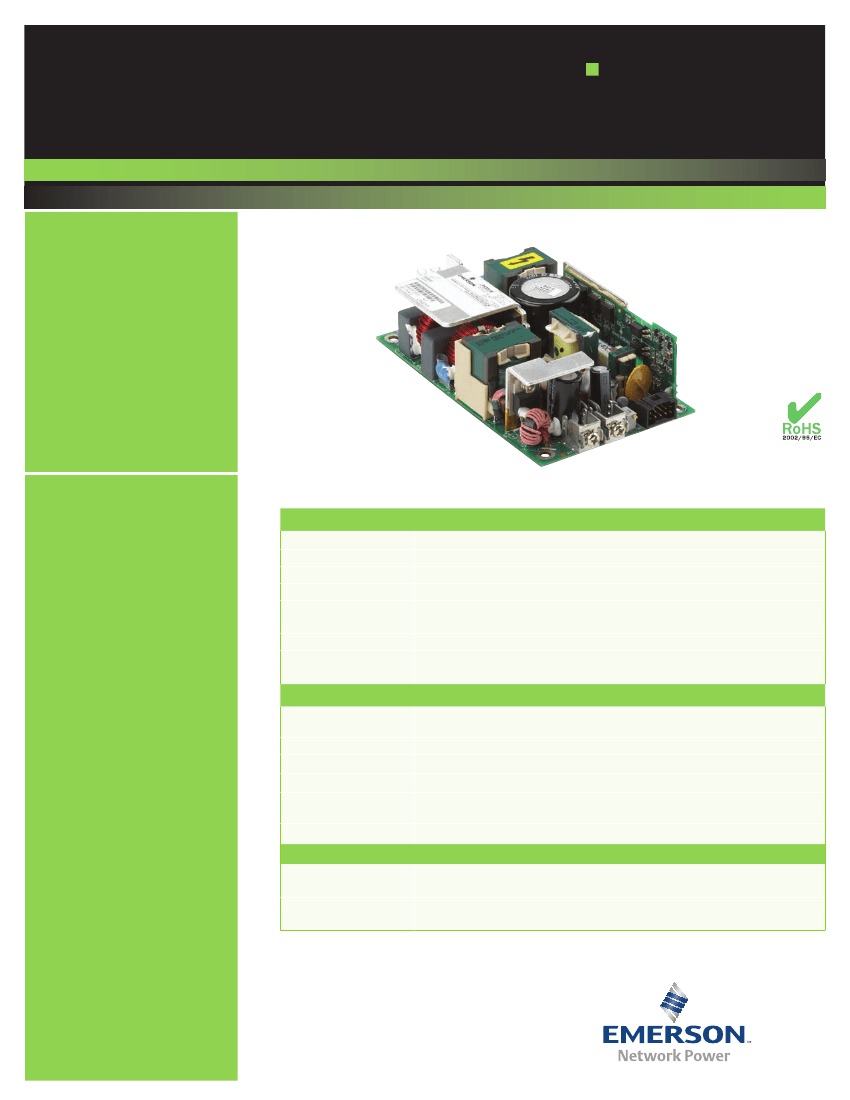

LPS200-M_0907: Description250 Watts Medical and ITE safeties; File Size444KB，3 Pages; ManufacturerVertiv

Download Datasheet View All

LPS200-M_0907 Overview

250 Watts Medical and ITE safeties

Preview

Download Datasheet

View All

Embedded Power for

Business-Critical Continuity

LPS200-M Series

250 Watts

Total Power:

Input Voltage:

# of Outputs:

125 - 250 Watts

90 - 264 Vac

Single

Rev. 7.9.09_#98

LPS200-M Series

of 3

Special Features

•

Medical and ITE safeties

Active power factor correction

3” x 5” footprint

Less than 1U high

EN61000-3-2 compliant

Remote sense

Power fail

Adjustable main output

Built-in Class B EMI filter

Overvoltage protection

Overload protection

Thermal overload protection

Isolated 12V Fan output

Electrical Specifications

Input

Input range:

Frequency:

Inrush current:

Efficiency:

EMI/RFI:

Power factor:

Safety ground

leakage current:

90 - 264 Vac; 120 - 300 Vdc

47-63 Hz

50 A max., cold start @ 25 °C

86% typical at full load

FCC Class B conducted; CISPR22 Class B conducted;

EN55022 Class B conducted; VDE0878PT3 Class B conducted

0.99 typical

275 uA @ 50/60 Hz, 264 Vac input

Output

125 W for convection (100 W for LPS202-M) ; 250 W (200 W for LPS202-M)

with 30CFM forced air

Adjustment range:

±10% minimum on the main outputs

Fan output:

12 V @ 0.5 A convection, @ 1 A forced air isolated, ±10%

Hold-up time:

16 ms @ 250 W load, 120 Vac input

Short circuit protection on all outputs. Case overload protected @ 110-160%

Overload protection:

above rating

Overvoltage protection: 15-50% above nominal output

Maximum power:

Logical Control

Power failure:

Open collector logic signal goes high 100-500 msec after main output; it

goes low at least 6 msec before loss of regulation

Compensates for 0.5 V lead drop min. Will operate without remote sense

connected. Reverse connection protected.

Safety

•

TUV

60950, 60601-1

cULus

60950, 60601-1

Certificate & report

Mark (LVD)

Remote sense:
