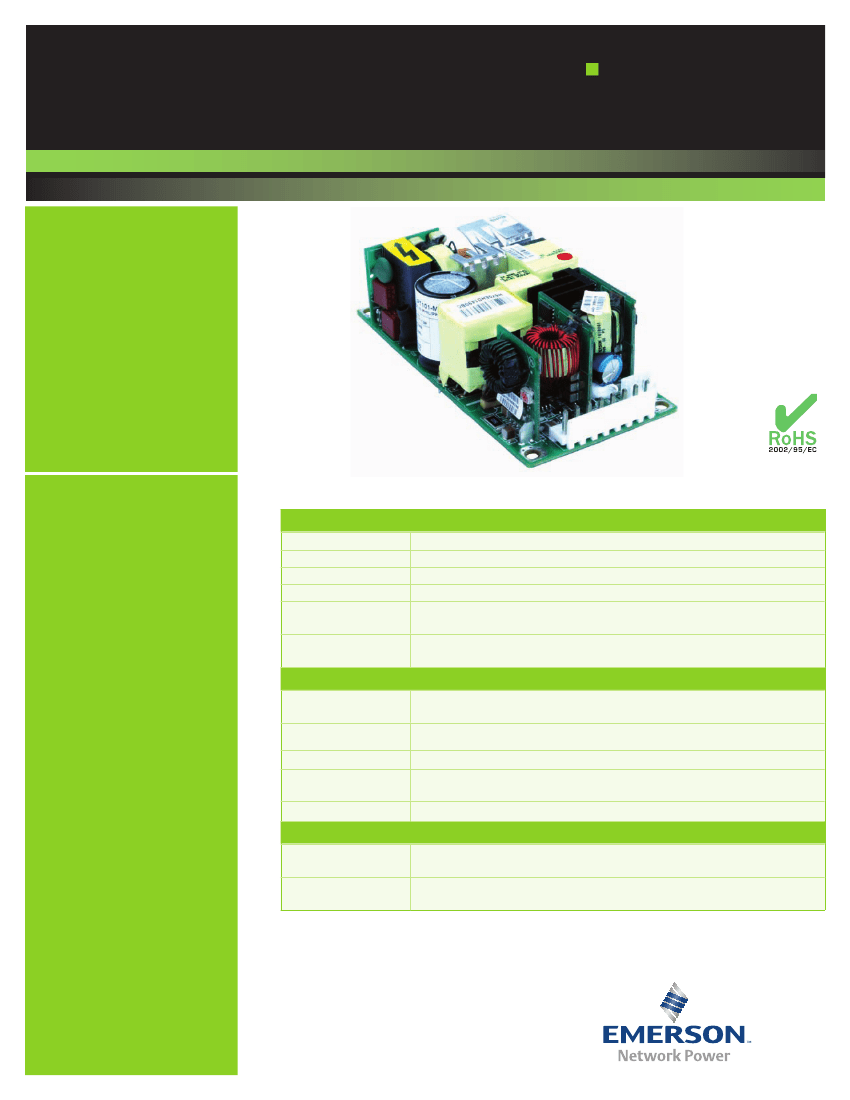

LPT100-M Series
130 Watts
Total Power:
Input Voltage:
# of Outputs:
80 - 130 Watts
90 - 264 Vac
Triple
Rev. 10.9.09_141
LPT100-M Series
1 of 3
Special Features
•
•
•
•
•
•
•
•
•
•
•
•
•
Medical and ITE safeties
Active power factor correction
2” x 4” footprint
Less than 1U high
EN61000-3-2 compliant
Remote sense
Power fail
Adjustable main output
Built-in Class B EMI filter
Overvoltage protection
Overload protection
Thermal overload protection
LPX50 enclosure kit available
Electrical Specifications
Input
Input range:
Frequency:
Inrush current:
Efficiency:
EMI/RFI:
Safety ground
leakage current:
90 - 264 Vac; 127 - 300 Vdc
47 - 63 Hz
50 A max., cold start @ 25 °C
82% typical at full load
FCC Class B conducted; CISPR22 Class B conducted;
EN55022 Class B conducted; VDE0878PT3 Class B conducted
275 µA @ 50/60 Hz, 264 Vac input
Output
80 W for convection;
130 W with 200 LFM forced air
Adjustment range:
All outputs adjustable - 40%, +10%, except for +24V output on LPT104-M
which will be -10%, +20% and 3.3 V output on the LPT101-M +10%, -15%
Hold-up time:
10 ms @ 130 W load, 120 Vac input
Overload protection: Short circuit protection on all outputs. Case overload
protected @ 110 - 160% above rating for V1 & V2, 110-190% for V3
Overvoltage protection: 15 - 35% above nominal output
Maximum power:
Logical Control
Power failure:
Active LowTTL logic signal goes high 100 - 500 msec after main output; it
goes low at least 6 msec before loss of regulation
Compensates for 0.5 V lead drop min. Will operate without remote sense
connected. Reverse connection protected.
Safety
•
•
•
•
•
•
•
TUV 60950, 60601-1
UL
60950, 60601-1
CSA
60950, 60601-1
NEMKO
60950, 60601-1
AUSTEL
60950, 60601-1
CB
Certificate & report
CE
Mark (LVD)
Remote sense:
Embedded Power for
Business-Critical Continuity
Environmental Specifications
Operating temperature:
Storage temperature:
Electromagnetic
susceptibility:
Humidity:
Vibration:
MTBF calculated:
0° to 50 °C ambient derate each output as 2.5% per degree from 50° to 70 °C. -20 °C start up
-40 °C to +85 °C
designed to meet EN61000-4;
-2, -3, -4, -5, -6, -8, -11 Level 3
Operating; non-condensing 10% to 90% RH, non-operating, non-condensing 10% - 95%
IEC68-2-6 to the levels of IEC721-3-2
583,000 hours at full load and 25 °C ambient conditions. 230 Vac input, Bellcore
Rev. 10.9.09_141
LPT100-M Series
of 3

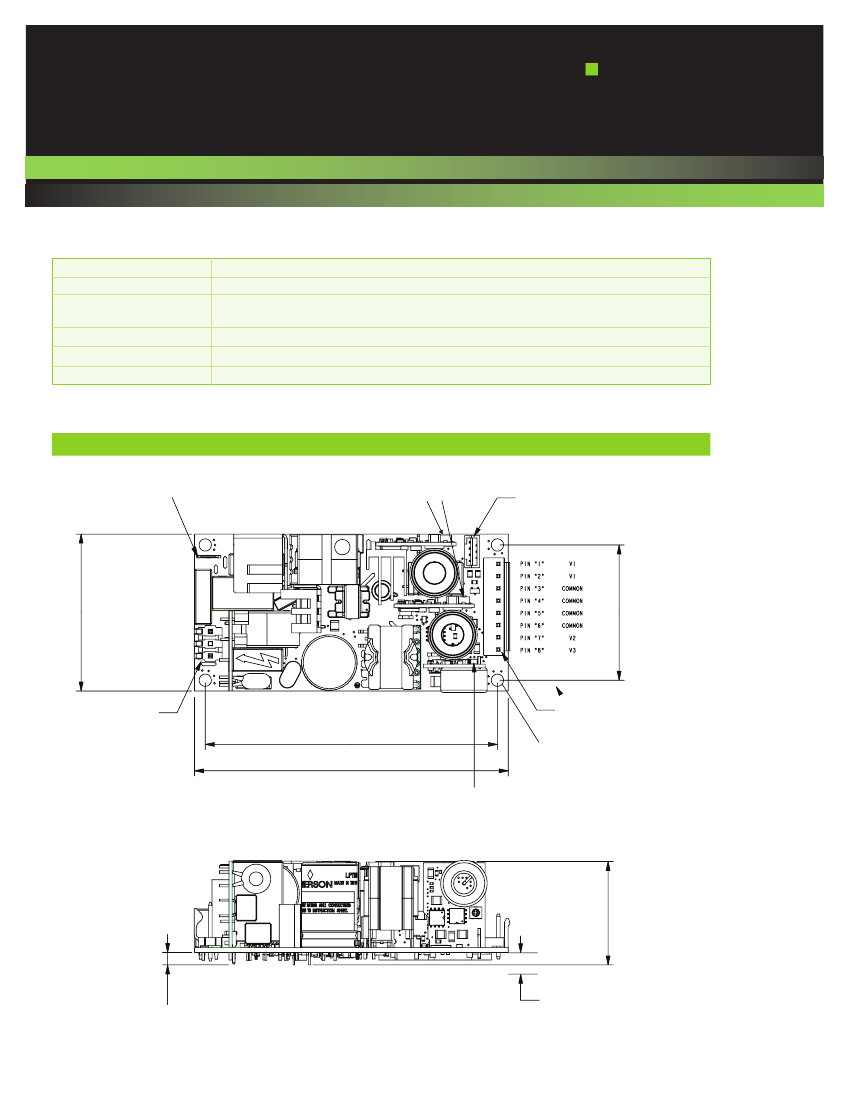

Mechanical Drawing
GND
Output Voltage
Adjust Pots
SK3
2.00”
(50.8)
PIN 1 (LIVE)
PIN 3 (NEUTRAL)
SK1
3.73”
(94.6)
4.00”
(101.6)
SK2
Mounting Hole
ø
0.16” [4.0] 4 Places
Max. Screw Head
Diameter .22” (5.6)
Output Voltage
Adjust Pots
0.10”
(2.5)
0.197” (5.0) Minimum
Standoff height
1.28”
(32.7)
1.72”
(43.8)
Embedded Power for
Business-Critical Continuity
Ordering Information
Model
Number
Maximum Load Maximum Load
Output Minimum
with Convection
with 30CFM
Voltage
Load
Cooling
Forced Air
+3.3 V
LPT101-M
+5 V
+12 V
+5 V
LPT102-M
+12 V
-12 V
+5 V
LPT103-M
+15 V
-15 V
+5 V
LPT104-M
+24 V
+12 V
0 A
0 A
0 A
0 A
0 A
0 A
0 A
0 A
0 A
0 A
0 A
0 A
13 A
5 A
1 A
13 A
5 A
1 A
13 A
4 A
1 A
13 A
1.5 A
1 A
18 A
9 A
2.3 A
18 A
9 A
2 A
18 A
7.2 A
1.5 A
18 A
3 A
2.3 A
Peak
Load
20 A
10 A
2.3 A
20 A
10 A
2 A
20 A
8 A
2 A
2 A
3.5 A
2.3 A
Regulation
±2%
±5%
±5%
±2%
±5%
±5%
±2%
±5%
±5%
±2%
±7%
±5%
2
Americas
Ripple
P/P
(PARD)
3
50 mV
50 mV
120 mV
50 mV
120 mV
120 mV
50 mV
150 mV
150 mV
50 mV
240 mV
120 mV
5810 Van Allen Way
Carlsbad, CA 92008
USA
Telephone: +1 760 930 4600
Facsimile: +1 760 930 0698
Rev. 10.9.09_141
LPT100-M Series
3 of 3
Europe (UK)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
Telephone: +44 (0) 1384 842 211
Facsimile: +44 (0) 1384 843 355
Asia (HK)
1. Peak current lasting < 15 seconds with a maximum 10% duty cycle.
2. At 25 °C including initial tolerance, line voltage, load currents and output voltages adjusted to factory settings.
3. Peak-to-peak with 20 mHz bandwidth and 10 µF (tantalum capacitor) in parallel with a 0.1 µF capacitor at rated line voltage
and load ranges.
14/F, Lu Plaza
2 Wing Yip Street
Kwun Tong, Kowloon
Hong Kong
Telephone: +852 2176 3333
Facsimile: +852 2176 3888
For global contact, visit:
www.PowerConversion.com
techsupport.embeddedpower
@emerson.com
While every precaution has been taken to ensure
accuracy and completeness in this literature, Emerson
Network Power assumes no responsibility, and disclaims
all liability for damages resulting from use of this
information or for any errors or omissions.
Pin Assignments
Connector
SK1
PIN 1
PIN 3
SK2
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
PIN 6
PIN 7
PIN 8
SK3
PIN 1
PIN 2
PIN 3
PIN 4
LPT100-M
Neutral
Line
V1out
V1out
GND
GND
GND
GND
V2out
V3out
Power Fail
GND
+ Remote Sense
- Remote Sense
Mating Connectors
Molex P/N 09-50-8031
PINS: 08-52-0113
AC Ground:
Molex P/N 01-9002001
DC Output (SK2):
JST P/N VHR-8N
PINS: SVH-21T-P1.1
Remote Sense (SK3): Molex P/N 87639-0400
PINS: 50212-8100
Emerson Network Power Connector Kit #70-841-026, includes
all of the above
AC Input (SK1):
