LPX471M250C5P3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> LPX471M250C5P3

LPX471M250C5P3: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 200 V, 1500 uF, THROUGH HOLE MOUNT; CategoryPassive components; File Size155KB，3 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric View All

LPX471M250C5P3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LPX471M250C5P3	-	-	View	Buy Now

LPX471M250C5P3 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 200 V, 1500 uF, THROUGH HOLE MOUNT

LPX471M250C5P3 Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
negative deviation	20 %
positive deviation	20 %
Rated DC voltage urdc	200 V
Processing package description	RADIAL LEADED, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
terminal coating	TIN
Installation features	THROUGH HOLE MOUNT
Manufacturer Series	LPX
capacitance	1500 uF
packaging shape	CYLINDRICAL PACKAGE
Capacitor type	NON SOLID
Terminal shape	SNAP-IN
equivalent series resistance	0.133ohm
polarity	POLARIZED
tangent angle	0.3
ripple current	3.6A
leakage current	1643.17uA

Preview

Download Datasheet

View All

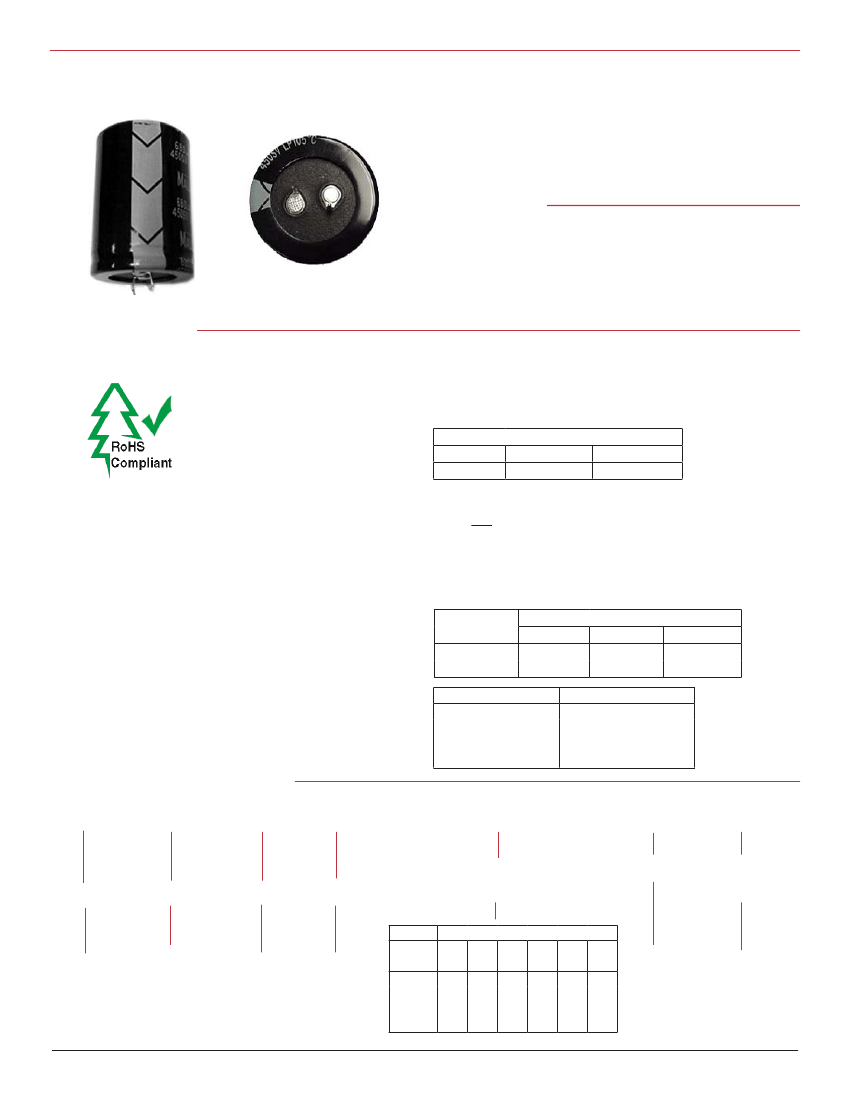

Type LPX

85 ºC Radial Snap-In Aluminum Electrolytic Capacitors

High Voltage, High Value Radial Leaded Snap-In

Type LPX radial leaded snap-in aluminum electrolytic

capacitors are a compact design for high density pack-

aging and are ideal for high voltage, switch mode power

supply input ﬁltering applications.

Highlights

•

Capacitance Range:

Voltage Range:

Tolerance:

Operating Temperature Range:

Dissipation Factor:

Complies with the EU Directive

2002/95/EC requirement restricting

the use of Lead (Pb), Mercury (Hg),

Cadmium (Cd), Hexavalent chromium

(Cr(VI)), PolyBrominated Biphenyls

(PBB) and PolyBrominated Diphenyl

Ethers (PBDE).

Speciﬁcations

High voltage

High Capacitance

85 ºC

Good for input ﬁltering in consumer applications

22 to 35 mm diameter with 10 mm lead spacing

56 to 2,700 µF

160 to 450 Vdc

±20%

–40 ºC to +85 ºC

DF at 120 Hz, +25 ºC

Vdc

DF (%)

160 -250

400 - 450

For values that are >1000 µF, the DF (%) increases

2% for every additional 1000 µF

DC Leakage Test:

I = 3√CV

C = capacitance in µF

V = rated voltage

I = leakage current in µA

Rated

Vdc

120 Hz

1.00

Ripple Multipliers

1 kHz

1.05

1.15

Ripple Multiplier

1.60

2.20

2.60

3.00

Frequency Ripple Multipliers:

10 to 50 kHz

1.10

1.20

160 to 250

315 to 450

Temperature Ripple Multipliers:

Temperature

+75 ºC

+65 ºC

+55 ºC

Part Numbering System

LPX

471

160

Case

Type

Cap

Tolerance

Voltage

Diameter

Polarity

Insulating

Sleeve

Code

Length

LPX

471 = 470 µF

272 = 2,700 µF

±20%

160 = 160

22 (.87)

25 (1.00)

30 (1.18)

35 (1.38)

(in.)

(1.00) (1.18) (1.38) (1.57) (1.77) (2.00)

3 = PVC

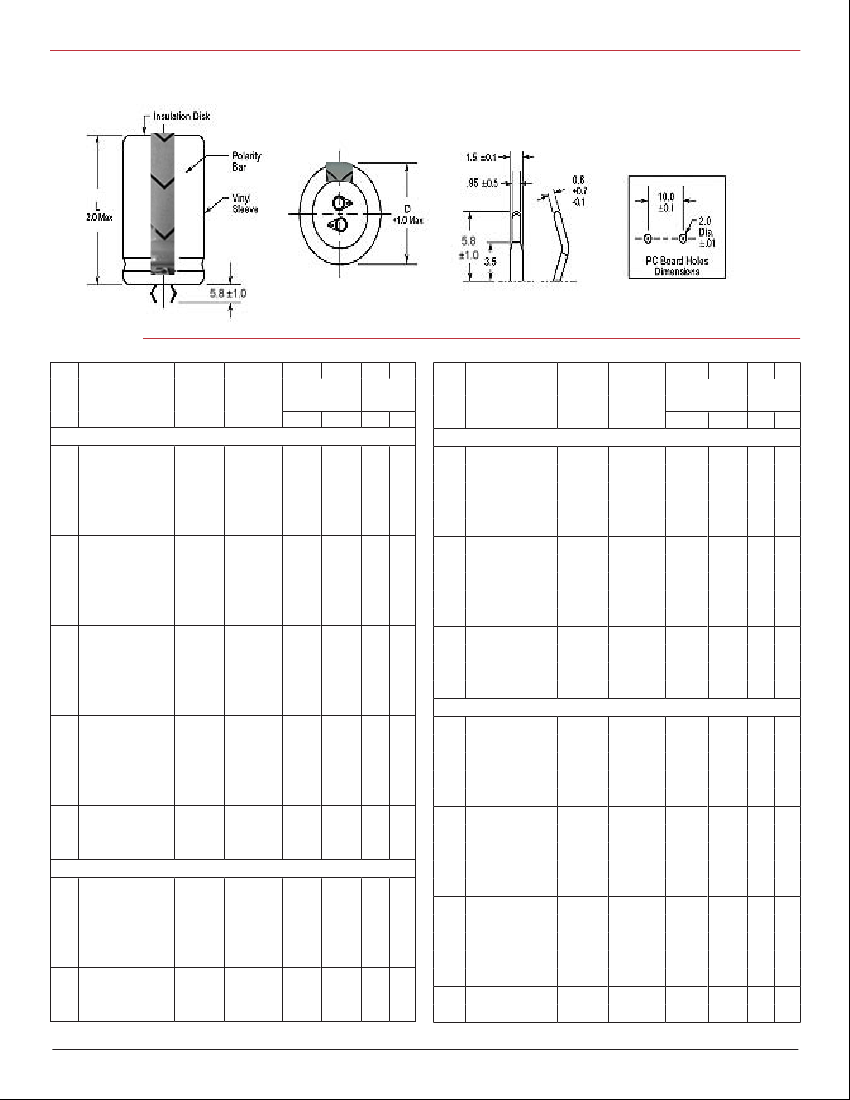

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
