LP2WRR datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> LP2WRR

Preview

LP2WRR: DescriptionSwitch, DPDT, Momentary, 3A, 30VDC, Panel Mount; CategoryMechanical and electronic products switch; File Size76KB，3 Pages; ManufacturerKnitter-switch; Websitehttp://www.knitter-switch.com/; Environmental Compliance

Download Datasheet Parametric View All

LP2WRR Overview

Switch, DPDT, Momentary, 3A, 30VDC, Panel Mount

LP2WRR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Knitter-switch
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator length	0.098 inch
Actuator stroke	1.4986 mm
Actuator type	PUSHBUTTON
Other features	ROHS COMPLIANT,WITH RED LED
body width	17.6022 mm
Body color	BLACK
body height	10.0076 mm
Body length or diameter	21.209 mm
center contact material	BRASS
Center contact plating	SILVER
Contact (AC) maximum rated R load	3A@250VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	3 A
Contact (DC) maximum rated R load	3A@30VDC
Contact function	ON-(ON)
Contact resistance	0.05 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	1500VAC V
Electrical life	30000 Cycle(s)
End contact material	BRASS
End contact plating	SILVER
illumination	LED
Insulation resistance	100000000 Ω
insulator material	POLYAMIDE
Manufacturer's serial number	LP2
Installation features	PANEL MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Solderability	HAND
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Terminal length	0.197 inch
Terminal material	BRASS
Termination type	SOLDER LUG

Preview

Download Datasheet

View All

Illuminated Pushbutton Switches

Specifications:

Contact rating:

Contact resistance:

Insulation resistance:

Dielectric strength:

Operating temperature:

Mechanical life:

Contacts / Terminals:

Case material:

Mounting:

Soldering conditions:

250 V AC, 3 A / 125 V AC, 3 A

30 V DC, 3 A

< 50 mΩ

> 100 MΩ at 500 V DC

1500 V, 50 Hz for the duration of 1 minute

– 25° to + 70° C

minimum 30 000 operations

solder tags or PC terminals, brass, silver-plated

also available gold-plated, version B (see page 4)

PA, black

single-hole mounting or on pc-board

hand-soldering – max.: 30 W, 5 sec, 270° C

auto-soldering – max.: 3 sec, 245º C ± 10º C

3

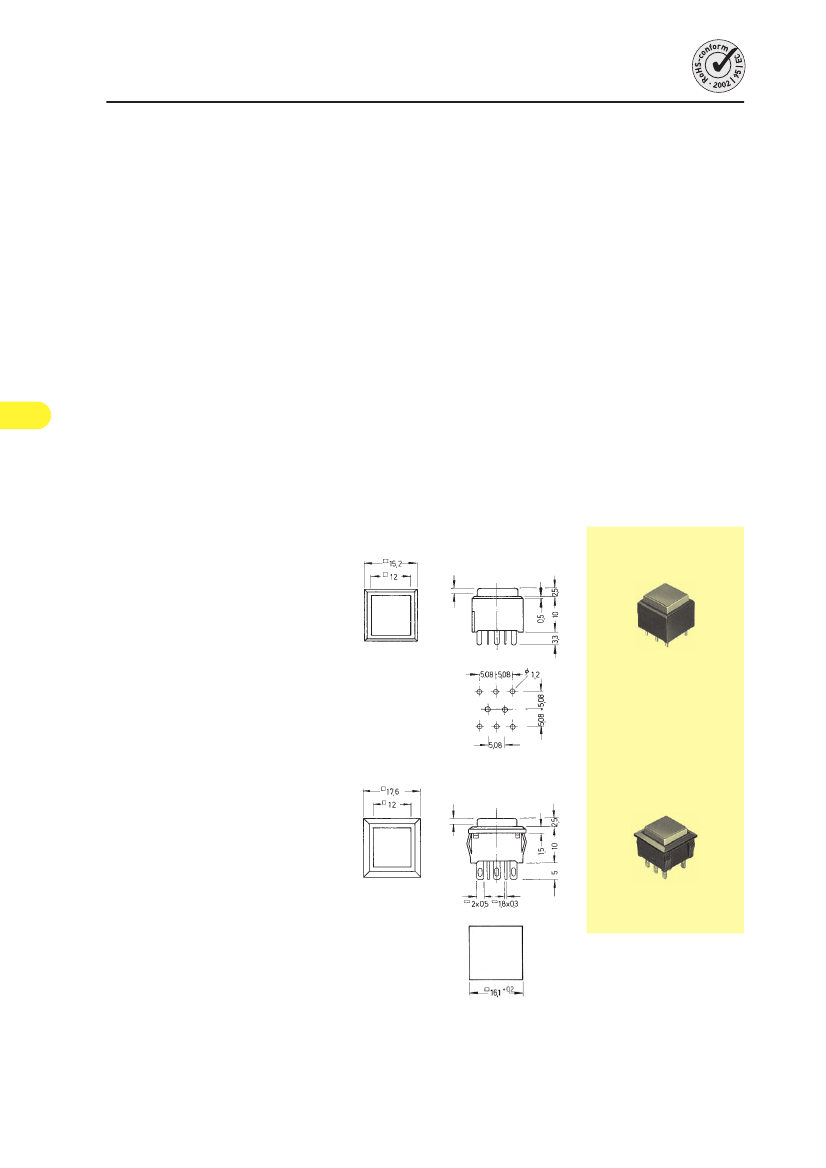

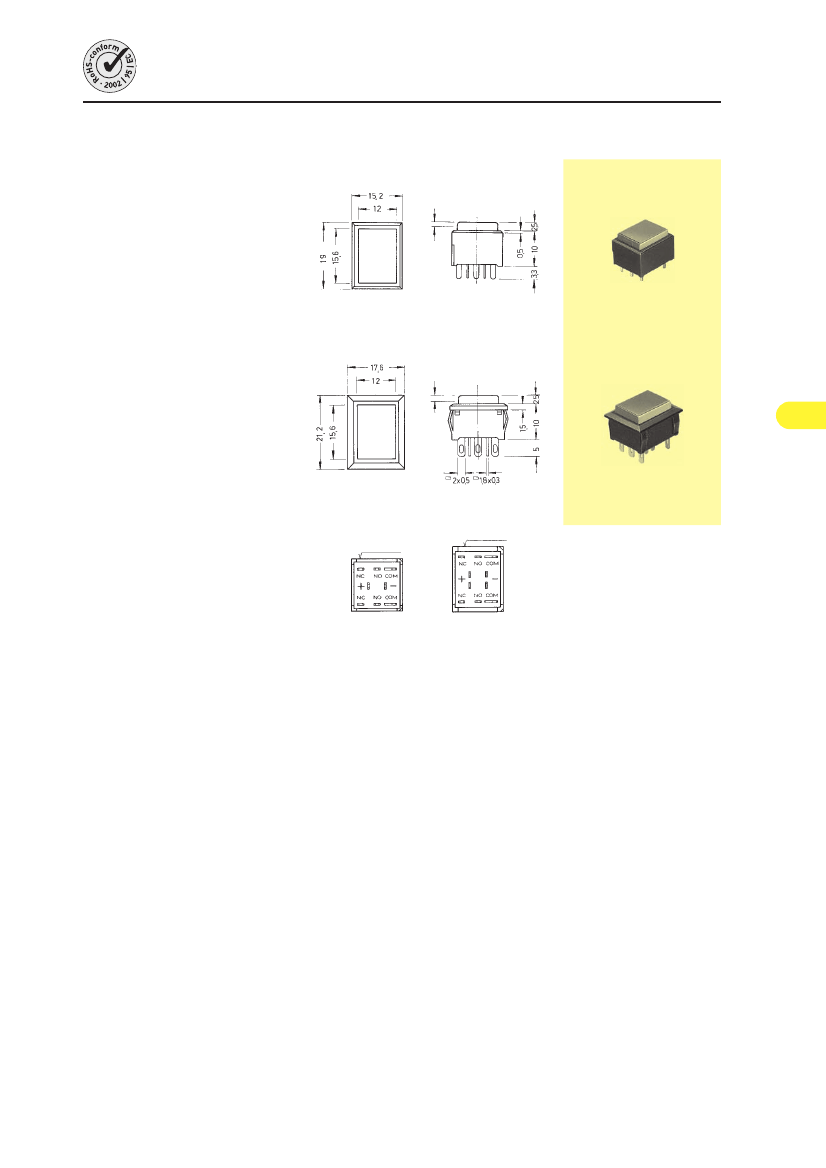

Models:

Switching functions

DPDT

LP 2 SR. – PC

LP 2 SN. – PC

Illumination by one LED

R (LED red)

G (LED green)

Y (LED yellow)

on

–

mom

on

travel 1,5

DPDT

LP 2 SR.

LP 2 SN.

Illumination by one LED

R (LED red)

G (LED green)

Y (LED yellow)

on

–

mom

on

travel 1,5

Panel cutout

64

Recommended Resources

Field output circuit diagram composed of uPC1378H

DC 12v converter working principle circuit diagram

Output adjustable voltage stabilized power supply circuit

Smoke detector circuit diagram B

Novel and simple dimmer circuit

555 pulse electrotherapy instrument circuit
