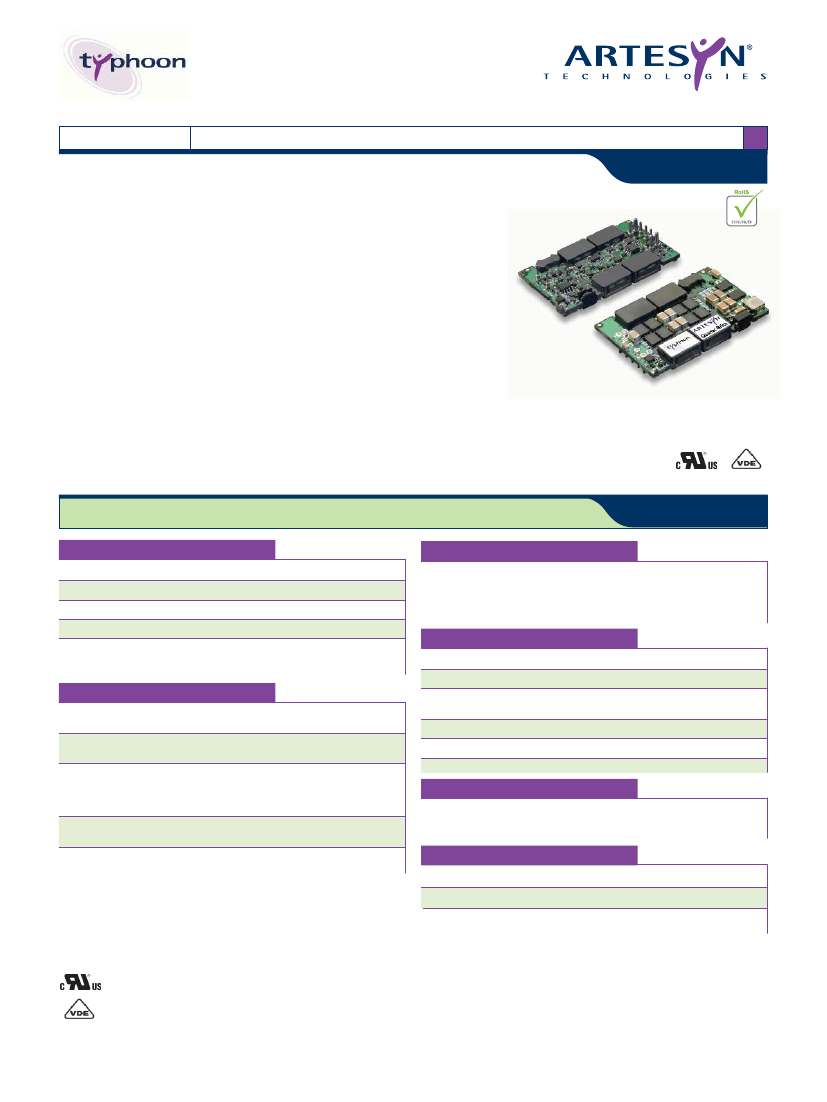

Quarter-Brick Series
Single output
DC-DC CONVERTERS
•
•
•
•
•
•
•
•
•
High Current, High Efficiency, Low Profile
NEW Product
1
Ultra high efficiency topology
Unprecedented useable output power levels
High power density (200 W/in
3
) open-frame technology
Wide ambient temperature range, -40 ºC to +85 ºC
80% to 110% output trim
Monotonic start-up in normal and prebiased loads
Basic insulation system
Overvoltage and overtemperature protection
Secondary side control, no optocouplers,
fast transient response
•
100 V, 100 ms input transient rated
•
Available RoHS compliant
This is a new high efficiency, open-frame, low profile, single board, isolated dc-dc converter
series in an industry standard quarter-brick package that provides up to 200 W of output power.
The series delivers very high output current at low voltages, and excellent useable power for
today’s high performance applications. The series features two input voltage ranges of 18 Vdc
to 36 Vdc and 36 Vdc to 75 Vdc and is available with output voltages of 1.2 V, 1.5 V, 1.8 V,
2.5 V, 3.3 V and 5 V. The output voltage is adjustable from 80% to 110% of the nominal value.
The series also has a remote ON/OFF capability. Overcurrent, overvoltage and overtemperature
protection features are included as standard. Full international safety approval including
EN60950-1 VDE and UL/cUL60950, reduces compliance costs and time to market.
All specifications are typical at nominal input, full load at 25 °C ambient unless otherwise stated
Patent No. 6,765,810
Other Patents Pending
2 YEAR WARRANTY
SPECIFICATIONS
OUTPUT SPECIFICATIONS
Voltage adjustability
Minimum load
Overshoot
Undershoot
Transient response
(See Note 1)
INPUT SPECIFICATIONS
Input voltage range
Input current
Active high remote ON/OFF
Logic compatibility
ON
OFF
Undervoltage lockout
Start-up time
(See Note 2)
Power up
Power down
Power up
Remote ON/OFF
24 V nominal
48 V nominal
No load
Remote OFF
18-36 Vdc
36-75 Vdc
85 mA to 150 mA
5 mA
Open collector ref to -input
Open circuit or >2.4 Vdc
<0.4 Vdc
35.5 V (typ.)
33.5 V (typ.)
10 ms (typ.)
10 ms (typ.)
At turn-on and turn-off
80% to 110%
0%
None
None
70 mV,
typ. deviation
20 µs recovery
EMC CHARACTERISTICS
Immunity:
ESD air enclosure
Radiated field enclosure
Conducted
Input transients
EN61000-4-2 8 kV/6 kV(O/P within spec.)
EN61000-4-3 10 V/m (O/P within spec.)
EN61000-4-6 10 V
(O/P within spec.)
100 V, 100 ms
GENERAL SPECIFICATIONS
Basic insulation
Switching frequency
Approvals and
standards
Material flammability
Weight
MTBF
Input/output
Fixed
(See Note 3)
2250 Vdc
480 kHz
EN60950-1 VDE
UL/cUL 60950
UL94V-0
37 g (1.30 oz)
Telcordia Tech SR-332 3,866,933 hours
ENVIRONMENTAL SPECIFICATIONS
Thermal performance
Operating ambient,
temperature
Non-operating
-40 °C to +85 °C
-55 °C to +125 °C
PROTECTION
Short-circuit
Overvoltage
Thermal
Continuous
Non-latching
125 ºC hot spot temperature
with automatic recovery
International Safety Standard Approvals
UL/cUL CAN/CSA 22.2 No. 60950-00 : UL 60950
File No. E135734/60950
VDE Certificate No. 10401-3336-0197
File Name: quarter_brick_single.pdf Rev (07): 17 Nov 2005
Quarter-Brick Series
Single output
DC-DC CONVERTERS
High Current, High Efficiency, Low Profile
NEW Product
MODEL
NUMBER
(6,9,10)
2
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
INPUT
OUTPUT
VOLTAGE
CURRENT
(MAX.)
(4)
INPUT
RIPPLE
CURRENT
(5)
OUTPUT
CURRENT
(MAX.)
EFFICIENCY
(TYP.)
REGULATION
SET POINT
ACCURACY
(Max.)
LINE
LOAD
RIPPLE &
NOISE
(pk - pk)
48 Vin VALUE MODELS
1.2 V
1.5 V
1.8 V
1.92 A
2.36 A
2.82 A
150 mA
150 mA
150 mA
50 A
50 A
50 A
88.5%
89.5%
90.4%
±1.5%
±1.5%
±1.5%
±0.1%
±0.1%
±0.1%
±0.2%
±0.2%
±0.2%
60 mV
60 mV
60 mV
LQS50A48-1V2J
LQS50A48-1V5J
LQS50A48-1V8J
48 Vin PERFORMANCE MODELS
1.2 V
1.5 V
1.8 V
2.5 V
3.3 V
4.05 A
3.8 A
4.6 A
4.1 A
5.2 A
250 mA
200 mA
200 mA
200 mA
200 mA
100 A
80 A
80 A
50 A
50 A
86.0%
88.8%
90.0%
90.0%
91.0%
±1.5%
±1.5%
±1.5%
±1.5%
±1.5%
±0.1%
±0.1%
±0.1%
±0.1%
±0.1%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
60 mV
60 mV
60 mV
60 mV
60 mV
LQS100A48-1V2J
LQS80A48-1V5J
LQS80A48-1V8J
LQS50A48-2V5J
LQS50A48-3V3J
48 Vin ULTRA MODELS
1.5 V
1.8 V
2.5 V
3.3 V
5V
4.8 A
5.7 A
6.2 A
6.2 A
6.2 A
200 mA
200 mA
200 mA
200 mA
200 mA
100 A
100 A
80 A
60 A
40 A
88.5%
89.5%
91.0%
91.0%
92.0%
24 Vin MODELS
1.8 V
3.3 V
3.4 A
6.5 A
200 mA
300 mA
30 A
30 A
91.0%
89.5%
±1.5%
±1.5%
±0.1%
±0.1%
±0.2%
±0.2%
60 mV
60 mV
LQS30A24-1V8J
LQS30A24-3V3J
±1.5%
±1.5%
±1.5%
±1.5%
±1.5%
±0.1%
±0.1%
±0.1%
±0.1%
±0.1%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
60 mV
60 mV
60 mV
60 mV
60 mV
LQS100A48-1V5J
LQS100A48-1V8J
LQS80A48-2V5J
LQS60A48-3V3J
LQS40A48-5V0J
(7)
Part Number System with Options
LQS60A48-3V3RANJ
RoHS Compliance
(9)
J = Pb-free (RoHS 6/6 compliant)
Pin Length Options
Blank = 0.188” (4.78 mm)
N = 0.145” (3.68 mm)
K = 0.110” (2.79 mm)
Body Height, Package Type and Pin Length
A = 0.300” (7.62 mm), Through Hole,
0.188” (4.78 mm) Pins
E = 0.340” (8.64 mm), Through Hole,
0.188” (4.78 mm) Pins
S = 0.28” (7.11 mm), Surface Mount
(6)
Remote ON/OFF Logic
Blank = Positive
R = Negative
L
= Low Profile
Q
= 1/4 Brick
Type of output
S = Single
Rated Output Current
40 A = 40 Amps, 60 A = 60 Amps etc.
Nominal Rated Input Voltage
24 = 24 Volts (18 Vdc to 36 Vdc range)
48 = 48 Volts (36 Vdc to 75 Vdc range)
Output Voltage
1V5 = 1.5 Volts, 1V8 = 1.8 Volts etc.
Notes
1
di/dt = 1 A/µs, Vin = 48 Vdc, Tc = 25 °C, load change = 50% to 75% lo
max. and 75% to 50% lo max. Deviation varies by model. For further
details see longform datasheet.
Start-up into resistive load.
This product is only for inclusion by professional installers within other
equipment and must not be operated as a stand alone product.
Recommended input fusing is up to 10 A HRC 200 V rated fuse.
Peak to peak measured without external π filter. Significant reduction
possible with external filter. See Application Note 141 for further details.
‘S’ option applies to the 24 V models only.
7
8
2
3
4
5
6
Except LQS40A48-5V0J which has the double output pins.
Active low Remote ON/OFF is available. Standard product is Active
High. When ordering active low parts, designate with the Suffix ‘R’ e.g.
LQS100A48-1V8RAJ.
9
TSE RoHS 5/6 (non Pb-free) compliant versions may be available on
special request, please contact your local sales representative for details.
10
NOTICE: Some models do not support all options. Please contact your
local Artesyn representative or use the on-line model number search tool
at http://www.artesyn.com/powergroup/products.htm to find a suitable
alternative.
File Name: quarter_brick_single.pdf Rev (07): 17 Nov 2005
Quarter-Brick Series
Single output
DC-DC CONVERTERS
High Current, High Efficiency, Low Profile
NEW Product
3
For the most current data and application support visit www.artesyn.com/powergroup/products.htm

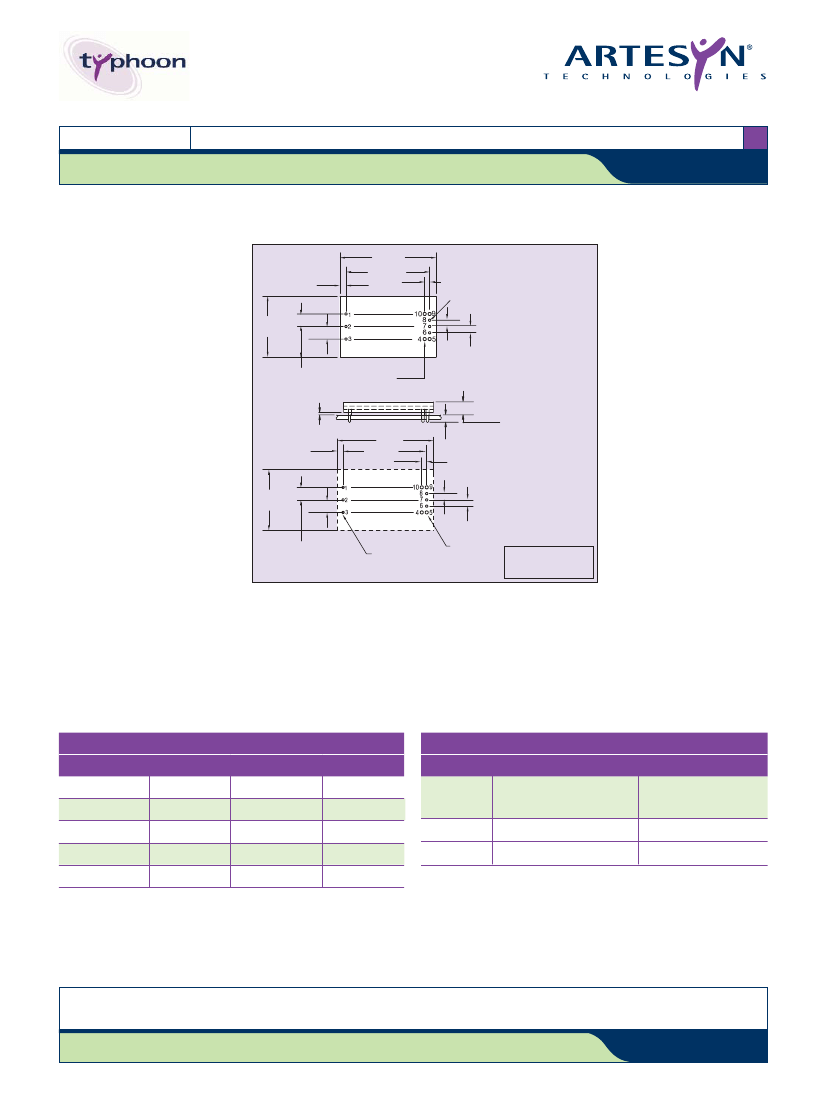

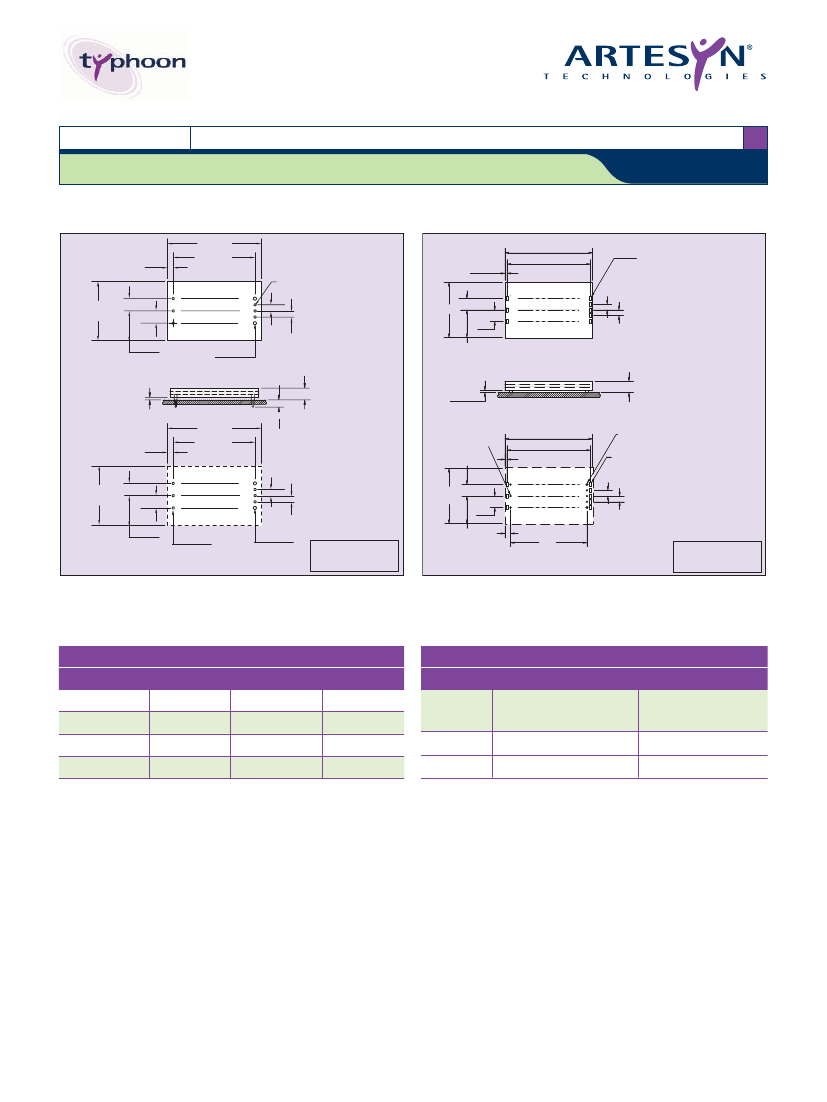

2.30 (58.4)
2.000 (50.80)
0.15
(3.8)
2.30
(58.4)
0.057±0.020
(1.45±0.51)
2.186
(55.52)
0.055 (1.40) x 0.105 (2.67)
(8 pls)
ø
0.040
±0.002
(
ø
1.02
±0.05)
(6 pls)
0.300
(7.62)
0.300
(7.62)
1
8
7
6
5
4
0.150
(3.81)
0.725
±0.020
(18.42
±0.51)
0.150
(3.81)
TOP VIEW
1.45 (7.62)
(36.8)
0.300
(7.62)
0.725±0.020
(18.42±0.51)
0.300
0.150
(3.81)
1
2
3
1.45
(36.8)
TOP VIEW
2
3
8
7
6
5
4
0.150
(3.81)
ø
0.062
±0.002
(
ø
1.57
±0.05)
(2 pls)
HEIGHT
0.28 (7.1)
CLEARANCE
(See Option Table)
0.188 (4.78)
2.30 (58.4)
2.000 (50.80)
0.15
(3.8)
HEIGHT
(See Option Table)
CLEARANCE
0.015 (0.38)
ø0.080±0.008
(ø2.03±0.02)
(2 pls)
Ref IPC-2222
Level B
0.067(1.70) x 0.118(3.00)
(8 pls)
0.150
(3.81)
8
7
6
5
4
0.150
(3.81)
0.15
(3.8)
Lead coplanarity within 0.006 (0.15) max.
2.000
(50.80)
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
x.xx
±0.02
(x.x
±0.5)
x.xxx
±0.010
(x.xx
±0.25)
ø0.058±0.008
(ø1.47±0.02)
(6 PLS)
Ref IPC-2222
Level B
2.30
(58.4)
0.057±0.020
(1.45±0.51)
2.186
(55.52)
TOP VIEW
1.45
(36.8)
0.300
(7.62)
0.300
(7.62)
1
2
3
8
7
6
5
4
1.45
(36.8)
0.150
(3.81)
0.150
(3.81)
0.300
(7.62)
0.300
(7.62)
1
2
3
0.725
±0.020
(18.42
±0.51)
ø
0.054
±0.003
(
ø
1.37
±0.08)
(6 pls)
ø
0.074
±0.003
(
ø
1.88
±0.08)
(2 pls)
RECOMMENDED HOLE PATTERN
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
x.xx
±0.02
(x.x
±0.5)
x.xxx
±0.010
(x.xx
±0.25)
0.725±0.020
(18.42±0.51)
RECOMMENDED PCB LAYOUT
24 V/48 V Mechanical Drawing for Output Current of 50 A or Less
(See Note 7)
24 V Surface-mount Mechanical Drawing and Pinout Table
PIN CONNECTIONS
PIN NUMBER
1
2
3
4
FUNCTION
+Vin
ON/OFF
-Vin
-Vout
PIN NUMBER
5
6
7
8
FUNCTION
-Sense
Trim
+Sense
+Vout
A
E
OPTION
DIMENSION OPTIONS
CLEARANCE
±0.016 (0.41)
0.030 (0.76)
0.070 (1.78)
Dimension Options Table
HEIGHT
+0.022 (0.56)
-0.030 (0.76)
0.300 (7.62)
0.340 (8.64)
Pin Connection Table
File Name: quarter_brick_single.pdf Rev (07): 17 Nov 2005
Quarter-Brick Series
Single output
DC-DC CONVERTERS
High Current, High Efficiency, Low Profile
NEW Product
4
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
2.30 (58.4)
2.000 (50.80)
0.15
(3.8)
0.118
(3.00)
ø
0.040
±0.002
(
ø
1.02
±0.05)
(6 pls)
1.45
(36.8)
0.300
(7.62)
0.300
(7.62)
TOP VIEW
0.150
(3.81)
0.725
±0.020
(18.42
±0.51)
0.150
(3.81)
ø
0.062
±0.002
(
ø
1.57
±0.05)
(4 pls)
CLEARANCE
(See Option Table)
0.188 (4.78)
2.30 (58.4)
0.15
(3.8)
2.000 (50.80)
0.118
(3.00)
HEIGHT
(See Option Table)
1.45
(36.8)
0.300
(7.62)
0.300
(7.62)
0.150
(3.81)
0.725
±0.020
(18.42
±0.51)
0.150
(3.81)
ø
0.058
±0.008
(
ø
1.47
±0.02)
(6 pls)
Ref IPC-2222 Level B
ø
0.074
±0.003
(
ø
1.88
±0.08)
(4 pls)
Ref IPC-2222 Level B
RECOMMENDED HOLE PATTERN
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
x.xx
±0.02
(x.x
±0.5)
x.xxx
±0.010
(x.xx
±0.25)
48 V Mechanical Drawing for Output Current Greater than 50 A
“The Double P” Pinout
(7)
PIN CONNECTIONS
PIN NUMBER
1
2
3
4
5
FUNCTION
+Vin
ON/OFF
-Vin
-Vout
-Vout
PIN NUMBER
6
7
8
9
10
FUNCTION
-Sense
Trim
+Sense
+Vout
+Vout
A
E
OPTION
DIMENSION OPTIONS
CLEARANCE
±0.016 (0.41)
0.030 (0.76)
0.070 (1.78)
HEIGHT
+0.022 (0.56)
-0.030 (0.76)
0.300 (7.62)
0.340 (8.64)
Pin Connection Table
Dimension Options Table
Datasheet © Artesyn Technologies® 2005
The information and specifications contained in this datasheet are believed to be correct at time of publication. However, Artesyn Technologies accepts no responsibility for consequences arising
from printing errors or inaccuracies. The information and specifications contained or described herein are subject to change in any manner at any time without notice. No rights under any patent
accompany the sale of any such product(s) or information contained herein.
Please consult our website for the following items:
Application Note
Longform Datasheets
www.artesyn.com
File Name: quarter_brick_single.pdf Rev (07): 17 Nov 2005
京公网安备 11010802033920号
EEWORLD
