LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LSR2040
Page 1/4

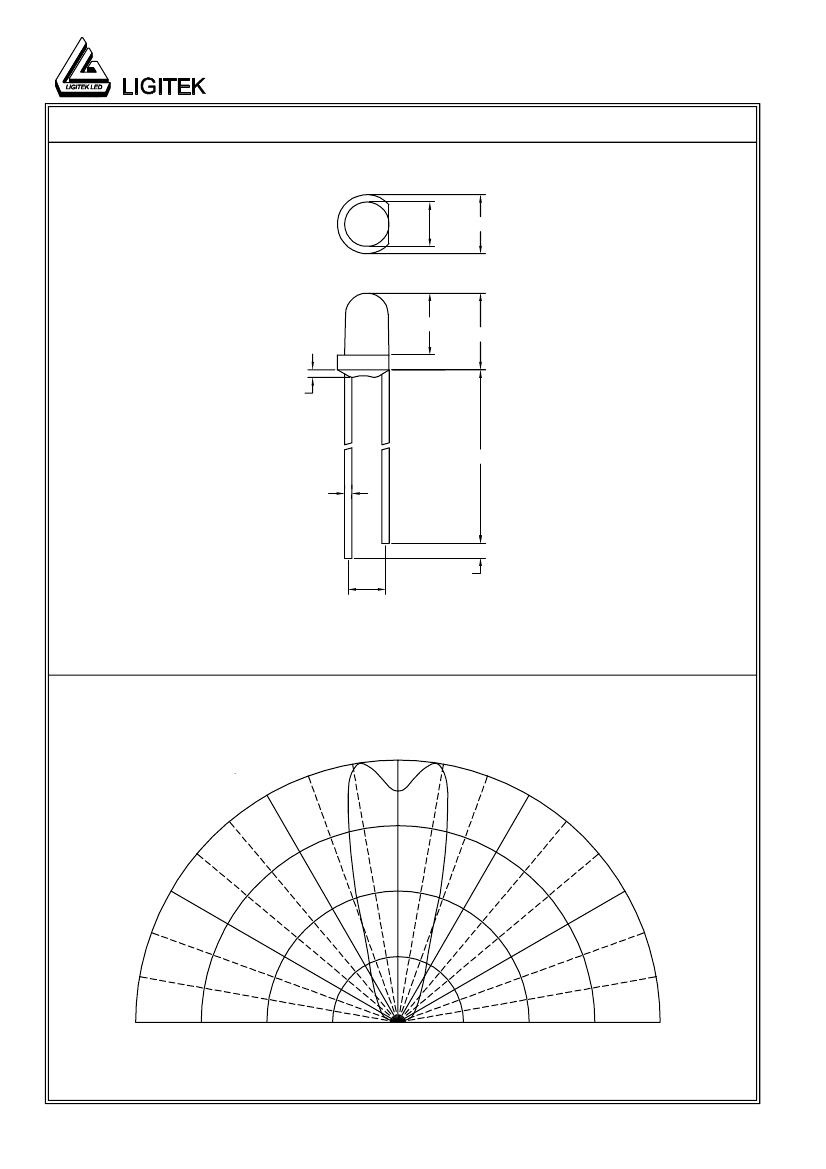

Package Dimensions
3.0
4.0
4.2
5.2
1.5MAX
25.0MIN
□0.5
TYP
1.0MIN
2.54TYP
Note : 1.All dimension are in millimeter tolerance is
±
0.25mm unless otherwise noted.
2.Specifications are subject to change without notice.
Directivity Radiation
0
°
-30
°
30
°
-60
°
60
°
100% 75% 50%
25%
0
25% 50% 75% 100%
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LSR2040
Page 2/4
Absolute Maximum Ratings at Ta=25
℃
Ratings
Parameter
Symbol
SR
Forward Current
Peak Forward Current
Duty 1/10@10KHz
Power Dissipation
Reverse Current @5V
Operating Temperature
Storage Temperature
Soldering Temperature
I
F
I
FP
PD
Ir
T
opr
Tstg
Tsol
30
100
100
10
-40 ~ +85
-40 ~ +100
Max 260
℃
for 5 sec Max
(2mm from body)
mA
mA
mW
UNIT
μ
A
℃
℃
Typical Electrical & Optical Characteristics (Ta=25
℃
)
PART NO
MATERIAL
Emitted
COLOR
Lens
Red Diffused
Forward
Peak
Spectral
voltage
wave
halfwidth
length
△λ
nm
@20mA(V)
λ
Pnm
Luminous
intensity
@20mA(mcd)
Viewing
angle
2
θ
1/2
(deg)
Min. Max. Min.
660
20
1.5
2.4
65
Typ.
120
36
LSR2040
GaAlAs
Red
Note : 1.The forward voltage data did not including
±
0.1V testing tolerance.
2. The luminous intensity data did not including
±
15% testing tolerance.
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LSR2040
Page 3/4
Typical Electro-Optical Characteristics Curve
SR CHIP
Fig.1 Forward current vs. Forward Voltage
1000
Fig.2 Relative Intensity vs. Forward Current
3.0
Forward Current(mA)
100
10
1.0
0.1
1.0
2.0
3.0
4.0
5.0
Relative Intensity
Normalize @20mA
2.5
2.0
1.5
1.0
0.5
0.0
1.0
10
100
1000
Forward Voltage(V)
Fig.3 Forward Voltage vs. Temperature
Forward Current(mA)
Fig.4 Relative Intensity vs. Temperature
3.0
2.5
2.0
1.5
1.0
0.5
0.0
-40
-20
0
20
40
60
80
100
Forward Voltage@20mA
Normalize @25
℃
1.1
1.0
0.9
0.8
-40
-20
0
20
40
60
80
100
Relative Intensity@20mA
Normalize @25
℃
1.2
Ambient Temperature(
℃
)
Ambient Temperature(
℃
)
Fig.5 Relative Intensity vs. Wavelength
Relative Intensity@20mA
1.0
0.5
0.0
600
650
700
750
Wavelength (nm)
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LSR2040
Page 4/4
Reliability Test:
Test Item
Test Condition
1.Under Room Temperature
2.If=20mA
3.t=1000 hrs (-24hrs, +72hrs)
Description
This test is conducted for the purpose
of detemining the resisance of a part
in electrical and themal stressed.
The purpose of this is the resistance of
the device which is laid under ondition
of hogh temperature for hours.
Reference
Standard
MIL-STD-750: 1026
MIL-STD-883: 1005
JIS C 7021: B-1
Operating Life Test
High Temperature
Storage Test
1.Ta=105
℃±
5
℃
2.t=1000 hrs (-24hrs, +72hrs)
MIL-STD-883:1008
JIS C 7021: B-10
Low Temperature
Storage Test
1.Ta=-40
℃±
5
℃
2.t=1000 hrs (-24hrs, +72hrs)
The purpose of this is the resistance
of the device which is laid under
condition of low temperature for hours.
JIS C 7021: B-12
High Temperature
High Humidity Test
1.Ta=65
℃±
5
℃
2.RH=90 %~95 %
3.t=240hrs
±
2hrs
The purpose of this test is the resistance
of the device under tropical for hous.
MIL-STD-202:103B
JIS C 7021: B-11
Thermal Shock Test
1.Ta=105
℃±
5
℃
&-40
℃±
5
℃
(10min) (10min)
2.total 10 cycles
The purpose of this is the resistance of
the device to sudden extreme changes
in high and low temperature.
This test intended to determine the
thermal characteristic resistance
of the device to sudden exposures
at extreme changes in temperature
when soldering the lead wire.
This test intended to see soldering well
performed or not.
MIL-STD-202: 107D
MIL-STD-750: 1051
MIL-STD-883: 1011
Solder Resistance
Test
1.T.Sol=260
℃±
5
℃
2.Dwell time= 10
±
1sec.
MIL-STD-202: 210A
MIL-STD-750: 2031
JIS C 7021: A-1
MIL-STD-202: 208D
MIL-STD-750: 2026
MIL-STD-883: 2003
JIS C 7021: A-2
Solderability Test
1.T.Sol=230
℃±
5
℃
2.Dwell time=5
±
1sec
