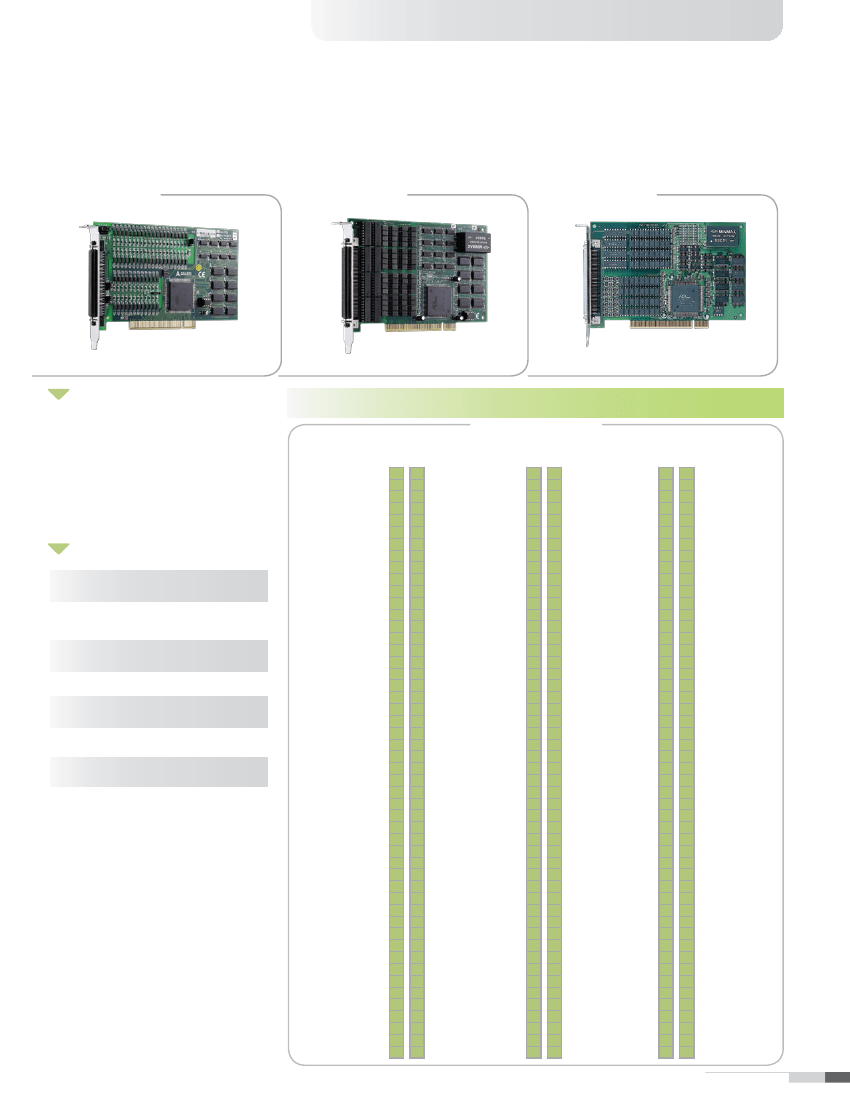

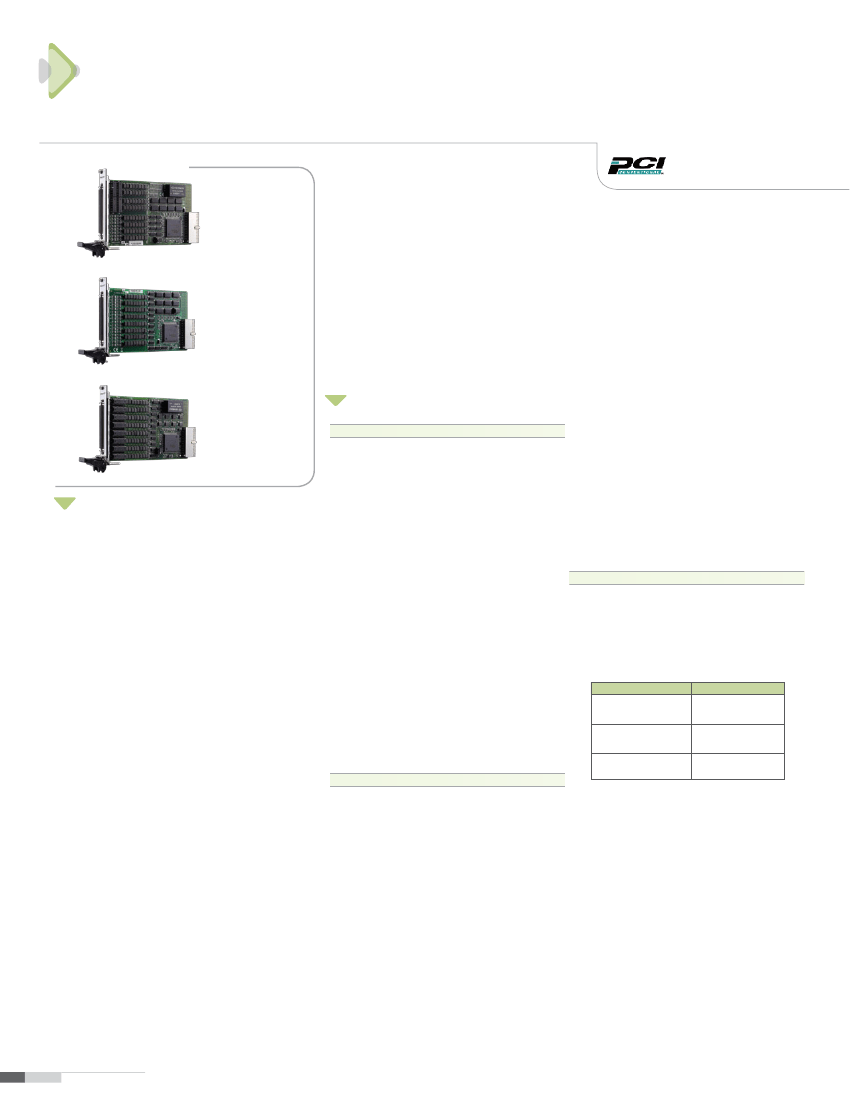

PCI-7432/7433/7434, cPCI-7432/7433/7434

64-CH Isolated Digital I/O Cards

CompactPCI

Introduction

cPCI-7432

ADLINK's cPCI/PCI-743X series cards are 64-CH high-density digital input and/or output cards that provide a robust

2,500 V isolation protection and are suitable for most industrial applications. The wide input range of the cPCI/PCI-7432

and cPCI/PCI-7433 makes it easy to sense the status of external devices. There are several options for PCI-743X series,

such as normal version with input range from 0 to 24 V, as well as HIR version with high input range from 0 to 50 V. The

PCI- 7433ALC is specifically designed for AC power test system.

The cPCI/PCI-7432 and cPCI/PCI-7434 feature a wide output range from 5 to 35 V, suitable for relay driving and industrial

cPCI-7433

automation applications. The cPCI/PCI-7432 and cPCI/PCI-7433 also provide two interrupt sources on digital input

channels, which are easily configurable.

Specifications

cPCI-7434

Isolated Digital Input

■

Power dissipation: Max. 2.25 W per chip

(8 DO channels) (PCI-7432/7432HIR/7434,

cPCI-7432/7434)

Max. 1.47 W per chip (8 DO channels)

(cPCI-7434P)

Number of channels

•

32 (PCI-7432/7432HIR, cPCI-7432)

•

64 (PCI-7433/7433HIR, cPCI-7433)

Maximum input range (Non-polarity)

•

24 V, non-polarity (PCI-7432/7433, cPCI-7432/7433)

■

Features

■

Supports a 32-bit 5 V PCI bus (PCI-7432/7433/7434)

3U Eurocard form factor, CompactPCI compliant

(PICMG 2.0 R2.1) (cPCI-7432/7433/7434)

32-CH isolated digital inputs & 32-CH isolated digital outputs

(PCI-7432/7432HIR, cPCI-7432)

■

Supply voltage: 5-35 V

Isolation voltage: 2500 V

RMS

Data transfers: programmed I/O

Digital logic levels: 0 V to 24 V, non-polarity

•

Input high voltage: 5 V to 24 V

•

Input low voltage: 0 V to 1.5 V

Input resistance

•

2.4 kΩ @ 0.5 W (PCI-7432, cPCI-7432, cPCI-7433)

•

2.4 kΩ @ 1 W (PCI-7433)

•

4.7 kΩ @ 0.5 W (PCI-7432HIR)

•

4.7 kΩ @ 1 W (PCI-7433HIR)

Isolation voltage: 2500 V

RMS

: PCI-7432/7432HIR/

7433/7433HIR

5000 V

RMS

: cPCI-7432/7433

■

General Specifications

■

I/O connector: 100-pin SCSI-II female

Operating temperature: 0˚C to 60˚C

Storage temperature: -20˚C to 80˚C

Relative humidity: 5% to 95%, non-condensing

Power requirements

Device

PCI-7432/7432HIR,

cPCI-7432

+5 V

■

64-CH isolated digital inputs

(PCI-7433/7433HIR, cPCI-7433)

64-CH isolated digital outputs

(PCI-7434, cPCI-7434/7434P)

Isolation Voltage:

•

2500 V

RMS

: PCI-7432/7433/7434

•

5000 V

RMS

: cPCI-7432/7433/7434/7434P

■

530 mA typical

500 mA typical

560 mA typical

■

Sink current up to 500 mA on single isolated output

Isolated input voltage up to 24 V

(PCI-7432/7433, cPCI-7432/7433)

Isolated input voltage up to 50 V (PCI-7432HIR/7433HIR)

Two external interrupt sources (PCI-7432/7432HIR/7433/

7433HIR, cPCI-7432/7432RP/7433)

■

Interrupt sources: digital input channel 0 & 1

Data transfers: programmed I/O

■

PCI-7433/7433HIR,

cPCI-7433

PCI-7434, cPCI-7434P

■

Isolated Digital Output

■

Number of channels

•

32 (PCI-7432/7432HIR, cPCI-7432)

•

64 (PCI-7434, cPCI-7434)

Output type: open collector Darlington transistor

Sink current (PCI-7432/7432HIR/7434, cPCI-7434)

•

500 mA for single channel @ 100% duty cycle

•

500 mA for all channels @ 20% duty cycle

Dimensions (not including connectors)

•

156 mm x 106 mm (PCI-7432 & PCI-7432HIR)

•

175 mm x 107 mm (PCI-7433, PCI-7433HIR)

•

156 mm x 106 mm (PCI-7434)

•

156 mm x 106 mm (PCI-7434P)

•

160 mm x 100 mm (cPCI-7432/7433/7434)

■

Operating Systems

•

Windows 7/Vista/XP/2000/2003 Server

•

Linux

■

Recommended Software

•

AD-Logger

•

VB.NET/VC.NET/VB/VC++/BCB/Delphi

•

DAQBench

■

Driver Support

•

DAQPilot for LabVIEW™

•

DAQ-MTLB for MATLAB

•

PCIS-DASK for Windows

•

PCIS-DASK/X for Linux

■

Source

current (cPCI-7434P)

•

500 mA for single channel @ 100% duty cycle

•

260 mA for all channels @ 10% duty

2-51 www.adlinktech.com
