LT1638IDD

Description
1.2MHz, 0.4V/μs Over-The-Top Micropower Rail-to-Rail Input and Output Op Amps
CategoryAnalog mixed-signal IC    Amplifier circuit
File Size239KB,16 Pages
ManufacturerLinear ( ADI )
Websitehttp://www.analog.com/cn/index.html
Download Datasheet Parametric Compare View All

LT1638IDD Overview

1.2MHz, 0.4V/μs Over-The-Top Micropower Rail-to-Rail Input and Output Op Amps

LT1638IDD Parametric

Parameter NameAttribute value
Brand NameLinear Technology
Is it Rohs certified?incompatible
MakerLinear ( ADI )
Parts packaging codeDFN
package instruction3 X 3 MM, EXPOSED PAD, PLASTIC, DFN-8
Contacts8
Manufacturer packaging codeDD
Reach Compliance Codenot_compliant
ECCN codeEAR99
Amplifier typeOPERATIONAL AMPLIFIER
ArchitectureVOLTAGE-FEEDBACK
Maximum average bias current (IIB)0.05 µA
Maximum bias current (IIB) at 25C0.05 µA
Nominal Common Mode Rejection Ratio88 dB
frequency compensationYES
Maximum input offset voltage1450 µV
JESD-30 codeS-PDSO-N8
JESD-609 codee0
length3 mm
low-biasNO
low-dissonanceNO
micropowerYES
Humidity sensitivity level1
Negative supply voltage upper limit-22 V
Nominal Negative Supply Voltage (Vsup)-15 V
Number of functions2
Number of terminals8
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeVSON
Encapsulate equivalent codeSOLCC8,.11,20
Package shapeSQUARE
Package formSMALL OUTLINE, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)235
powerNO
power supply3/5/+-15 V
Programmable powerNO
Certification statusNot Qualified
Maximum seat height0.85 mm
minimum slew rate0.17 V/us
Nominal slew rate0.4 V/us
Maximum slew rate0.7 mA
Supply voltage upper limit22 V
Nominal supply voltage (Vsup)15 V
surface mountYES
technologyBIPOLAR
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formNO LEAD
Terminal pitch0.5 mm
Terminal locationDUAL
Maximum time at peak reflow temperature20
Nominal Uniform Gain Bandwidth1200 kHz
Minimum voltage gain100000
broadbandNO
width3 mm
FEATURES

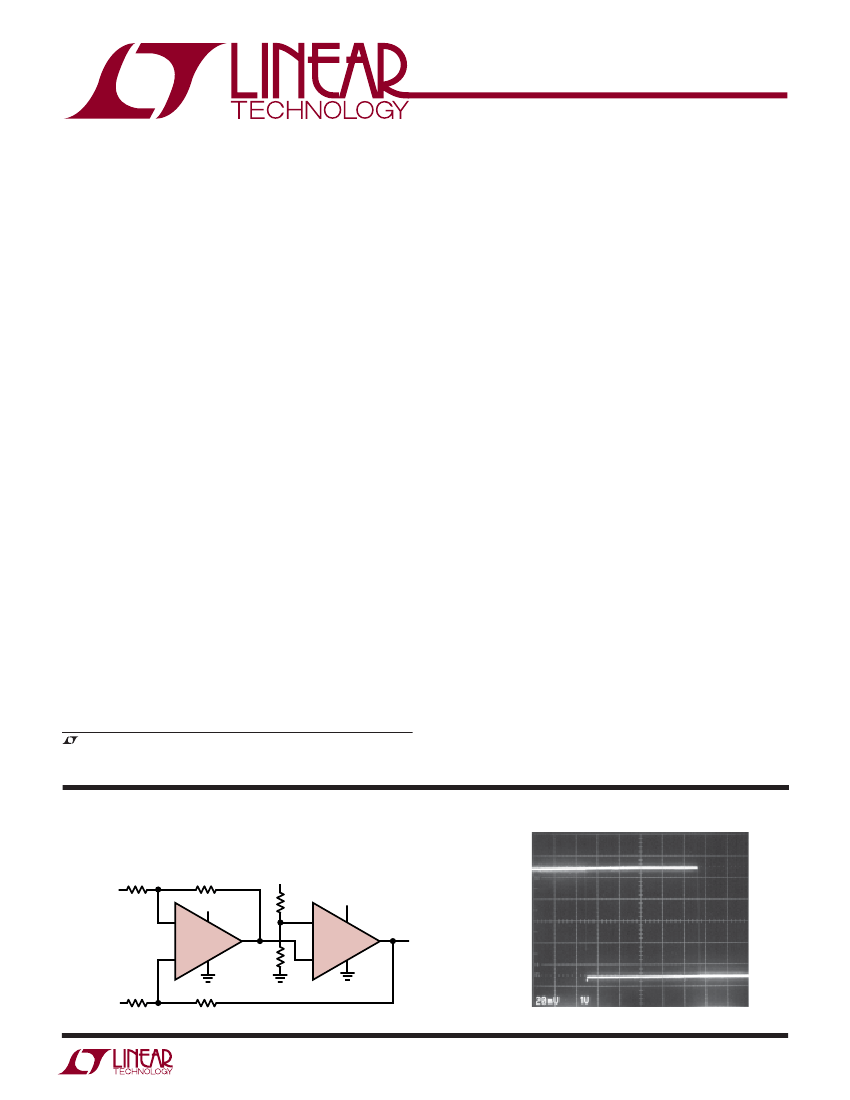

LT1638/LT1639
1.2MHz, 0.4V/μs
Over-The-Top Micropower
Rail-to-Rail Input and Output
Op Amps
DESCRIPTIO
The LT
®
1638 is a low power dual rail-to-rail input and output
operational amplifier available in the standard 8-pin PDIP and
SO packages as well as the 8-lead MSOP package. The
LT1639 is a low power quad rail-to-rail input and output
operational amplifier offered in the standard 14-pin PDIP and
surface mount packages. For space limited applications the
LT1638 is available in a 3mm x 3mm x 0.8mm dual fine pitch
leadless package (DFN).
The LT1638/LT1639 op amps operate on all single and
split supplies with a total voltage of 2.5V to 44V drawing
only 170μA of quiescent current per amplifier. These
amplifiers are reverse battery protected and draw no
current for reverse supply up to 18V.
The input range of the LT1638/LT1639 includes both
supplies, and a unique feature of this device is its capability
to operate over the top with either or both of its inputs
above V
+
. The inputs handle 44V, both differential and
common mode, independent of supply voltage. The input
stage incorporates phase reversal protection to prevent
false outputs from occurring when the inputs are below
the negative supply. Protective resistors are included in
the input leads so that current does not become excessive
when the inputs are forced below the negative supply. The
LT1638/LT1639 can drive loads up to 25mA and still
maintain rail-to-rail capability. The op amps are unity-gain
stable and drive all capacitive loads up to 1000pF when
optional output compensation is used.
Output Voltage vs Input Voltage
Operates with Inputs Above V
+
Rail-to-Rail Input and Output
Low Power: 230
μ
A per Amplifier Max
Gain Bandwidth Product: 1.2MHz
Slew Rate: 0.4V/μs
High Output Current: 25mA Min
Specified on 3V, 5V and
±15V
Supplies
Reverse Battery Protection to 18V
No Supply Sequencing Problems
High Voltage Gain: 1500V/mV
Single Supply Input Range: – 0.4V to 44V
High CMRR: 98dB
No Phase Reversal
Available in 14-Lead SO, 8-Lead MSOP and DFN
Packages
APPLICATIO S
Battery- or Solar-Powered Systems
Portable Instrumentation
Sensor Conditioning
Supply Current Sensing
Battery Monitoring
Micropower Active Filters
4mA to 20mA Transmitters
, LT, LTC and LTM are registered trademarks of Linear Technology Corporation.
Over-The-Top is a registered trademark of Linear Technology Corporation.
All other trademarks are the property of their respective owners.
TYPICAL APPLICATIO
10k
V1
V
CC
1M
Over-The-Top
®
Comparator with
100mV Hysteresis Centered at 0mV
V
CC
1M
V
CC
5V
+
A
1/2 LT1638
+
B
1/2 LT1638
1M
V0
10k
V2
1M
0V
1638/39 TA01
V
CC
= 5V, V
CM
= 0V TO 44V, t
PD
= 27μs
U
U
U
20mV/DIV
1638/39 TA02
16389fd
1

LT1638IDD Related Products

LT1638IDD LT1638HS8 LT1639HS LT1638CDD
Description 1.2MHz, 0.4V/μs Over-The-Top Micropower Rail-to-Rail Input and Output Op Amps 1.2MHz, 0.4V/μs Over-The-Top Micropower Rail-to-Rail Input and Output Op Amps 1.2MHz, 0.4V/μs Over-The-Top Micropower Rail-to-Rail Input and Output Op Amps 1.2MHz, 0.4V/μs Over-The-Top Micropower Rail-to-Rail Input and Output Op Amps
Brand Name Linear Technology Linear Technology Linear Technology Linear Technology
Is it Rohs certified? incompatible incompatible incompatible incompatible
Maker Linear ( ADI ) Linear ( ADI ) Linear ( ADI ) Linear ( ADI )
Parts packaging code DFN SOIC SOIC DFN
package instruction 3 X 3 MM, EXPOSED PAD, PLASTIC, DFN-8 0.150 INCH, PLASTIC, SO-8 SOP, SOP14,.25 VSON, SOLCC8,.11,20
Contacts 8 8 14 8
Manufacturer packaging code DD S8 S DD
Reach Compliance Code not_compliant _compli not_compliant not_compliant
ECCN code EAR99 EAR99 EAR99 EAR99
Amplifier type OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK
Maximum average bias current (IIB) 0.05 µA 0.05 µA 0.05 µA 0.05 µA
Nominal Common Mode Rejection Ratio 88 dB 72 dB 72 dB 88 dB
frequency compensation YES YES YES YES
Maximum input offset voltage 1450 µV 3400 µV 3600 µV 1450 µV
JESD-30 code S-PDSO-N8 R-PDSO-G8 R-PDSO-G14 S-PDSO-N8
JESD-609 code e0 e0 e0 e0
length 3 mm 4.9 mm 8.65 mm 3 mm
low-bias NO NO YES NO
low-dissonance NO NO NO NO
micropower YES YES YES YES
Humidity sensitivity level 1 1 1 1
Negative supply voltage upper limit -22 V -22 V -22 V -22 V
Nominal Negative Supply Voltage (Vsup) -15 V -15 V -15 V -15 V
Number of functions 2 2 4 2
Number of terminals 8 8 14 8
Maximum operating temperature 70 °C 125 °C 125 °C 70 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code VSON SOP SOP VSON
Encapsulate equivalent code SOLCC8,.11,20 SOP8,.25 SOP14,.25 SOLCC8,.11,20
Package shape SQUARE RECTANGULAR RECTANGULAR SQUARE
Package form SMALL OUTLINE, VERY THIN PROFILE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE, VERY THIN PROFILE
Peak Reflow Temperature (Celsius) 235 235 235 235
power NO NO NO NO
power supply 3/5/+-15 V 3/5/+-15 V 3/5/+-15 V 3/5/+-15 V
Programmable power NO NO NO NO
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 0.85 mm 1.75 mm 1.75 mm 0.85 mm
minimum slew rate 0.17 V/us 0.1 V/us 100 V/us 0.185 V/us
Nominal slew rate 0.4 V/us 0.4 V/us 0.4 V/us 0.4 V/us
Maximum slew rate 0.7 mA 0.55 mA 2.2 mA 0.7 mA
Supply voltage upper limit 22 V 22 V 22 V 22 V
Nominal supply voltage (Vsup) 15 V 15 V 15 V 15 V
surface mount YES YES YES YES
technology BIPOLAR BIPOLAR BIPOLAR BIPOLAR
Temperature level COMMERCIAL AUTOMOTIVE AUTOMOTIVE COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form NO LEAD GULL WING GULL WING NO LEAD
Terminal pitch 0.5 mm 1.27 mm 1.27 mm 0.5 mm
Terminal location DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature 20 20 20 20
Nominal Uniform Gain Bandwidth 1200 kHz 1200 kHz 1200 kHz 1200 kHz
Minimum voltage gain 100000 15000 15000 125000
broadband NO NO NO NO
width 3 mm 3.9 mm 3.9 mm 3 mm
Maximum bias current (IIB) at 25C 0.05 µA 0.15 µA - 0.05 µA
