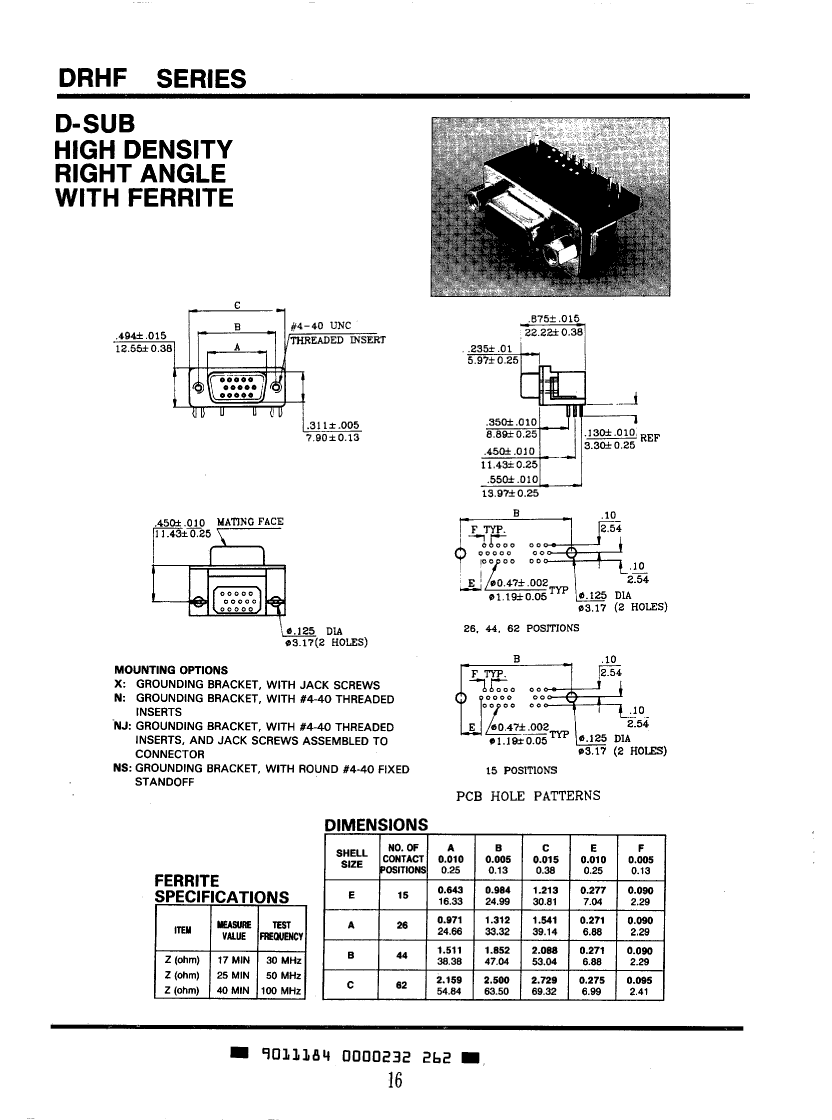

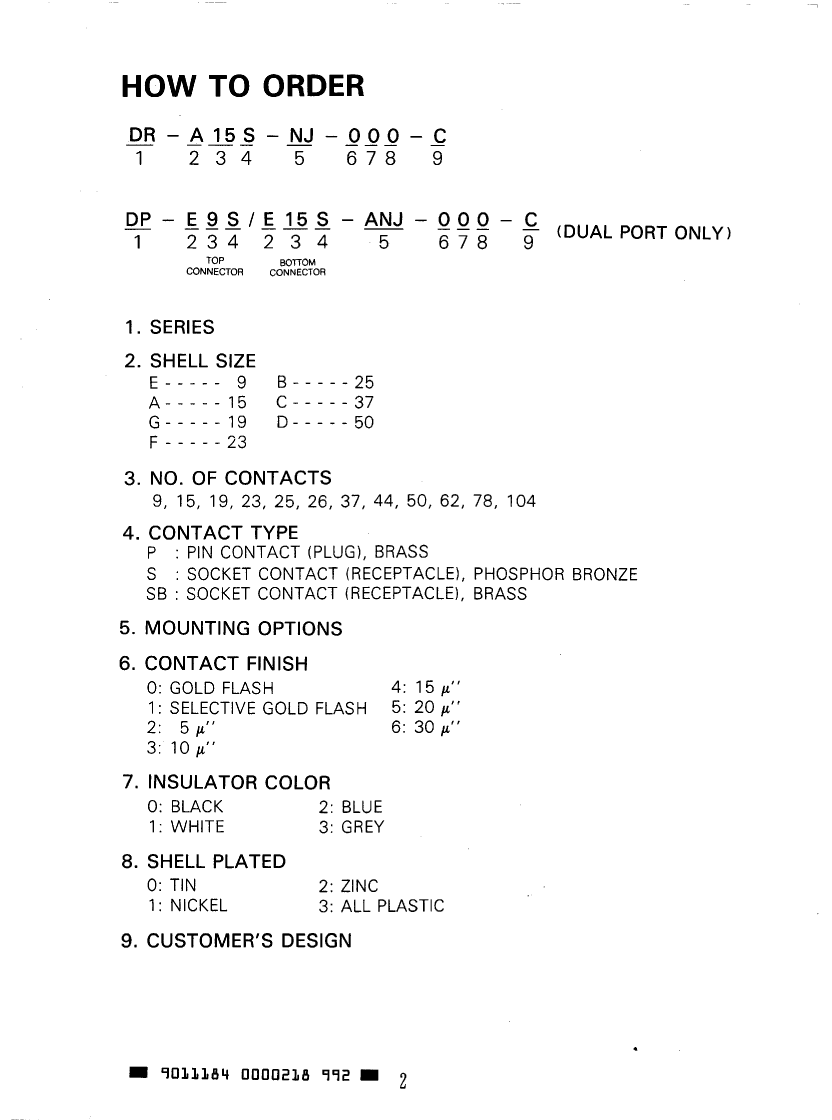

D Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug

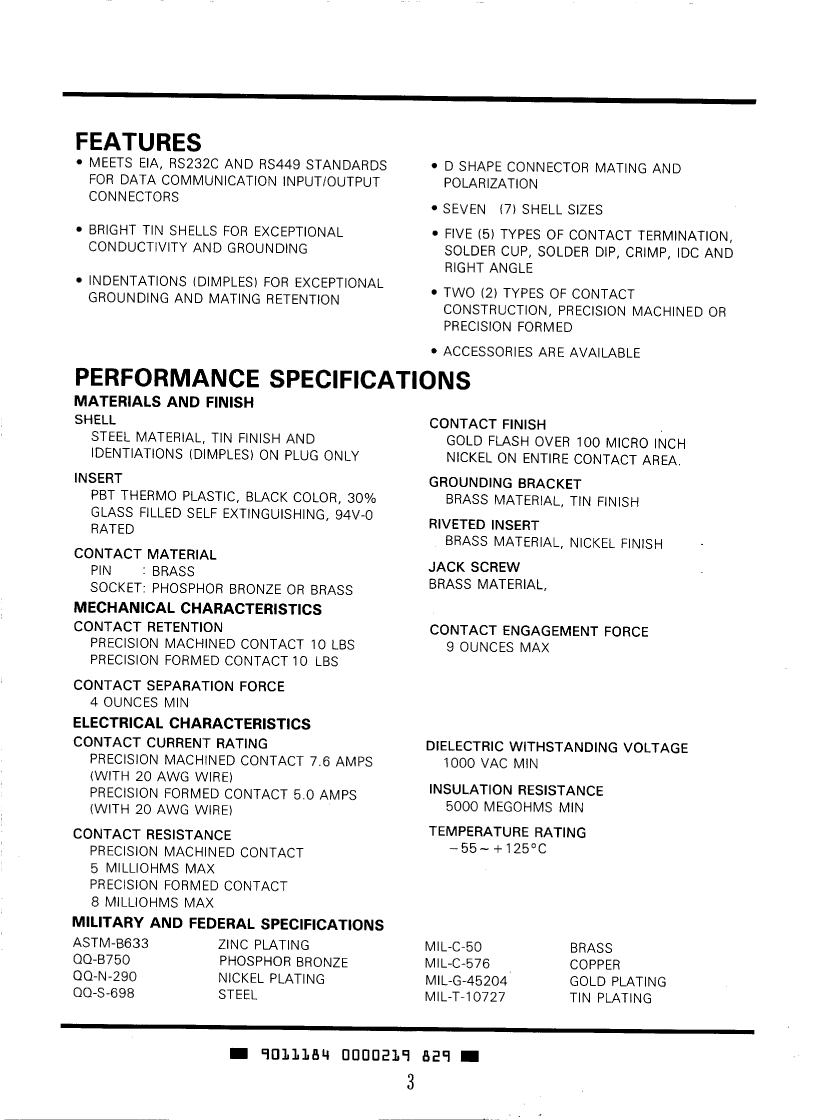

| Parameter Name | Attribute value |
| Maker | Singatron Enterprises Co |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | FERRITE FILTER, 0.350 FTPRINT |
| body width | 0.494 inch |
| subject depth | 0.64 inch |
| body length | 1.541 inch |
| Body/casing type | PLUG |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | GOLD |
| Contact point gender | FEMALE |
| Contact material | BRASS |
| contact mode | STAGGERED |
| Contact resistance | 8 mΩ |
| Contact style | RND PIN-SKT |
| Dielectric withstand voltage | 1000VAC V |
| Filter function | YES |
| maximum insertion force | 2.502 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLUE |
| insulator material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE |
| Manufacturer's serial number | DRHF |
| Plug contact pitch | 0.09 inch |
| Installation option 1 | #4-40 |
| Installation option 2 | INSERT |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 3 |
| Number of rows loaded | 3 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 10u inch |
| Rated current (signal) | 5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | ZINC |
| Shell material | STEEL |
| Terminal length | 0.13 inch |
| Terminal pitch | 2.286 mm |
| Termination type | SOLDER |
| Total number of contacts | 26 |
| Evacuation force-minimum value | 1.112 N |
