LTC6101AIS5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> LTC6101AIS5

LTC6101AIS5: DescriptionSPECIALTY ANALOG CIRCUIT, PDSO5; CategoryAnalog mixed-signal IC The signal circuit; File Size257KB，22 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LTC6101AIS5 Overview

SPECIALTY ANALOG CIRCUIT, PDSO5

LTC6101AIS5 Parametric

Parameter Name	Attribute value
Brand Name	Linear Technology
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	SOT
package instruction	VSSOP, TSOP5/6,.11,37
Contacts	5
Manufacturer packaging code	S5
Reach Compliance Code	_compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G5
JESD-609 code	e0
length	2.9 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	VSSOP
Encapsulate equivalent code	TSOP5/6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	235
power supply	4/60 V
Certification status	Not Qualified
Maximum seat height	1 mm
Maximum supply current (Isup)	0.64 mA
Maximum supply voltage (Vsup)	60 V
Minimum supply voltage (Vsup)	4 V
Nominal supply voltage (Vsup)	12 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	20
width	1.625 mm

Preview

Download Datasheet

View All

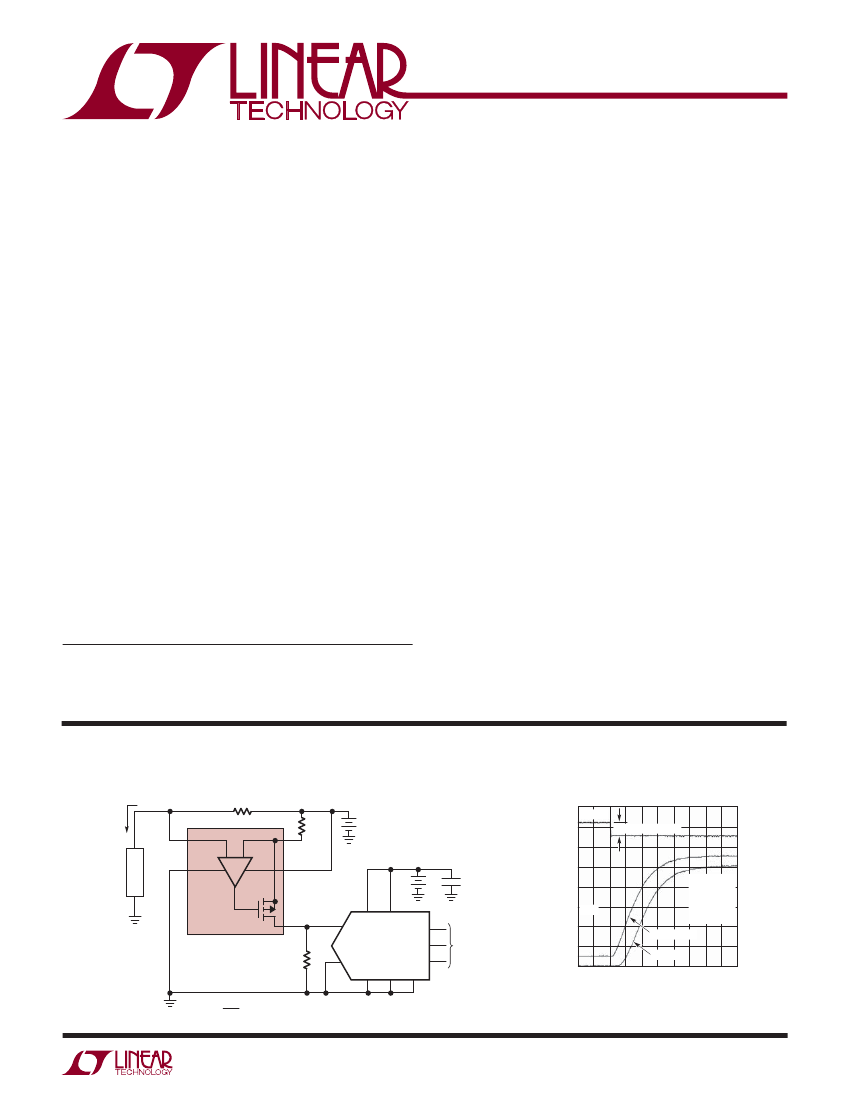

FEATURES

LTC6101/LTC6101HV

High Voltage,

High-Side Current Sense

Ampliﬁer in SOT-23

DESCRIPTION

The LTC

6101/LTC6101HV are versatile, high voltage, high

side current sense ampliﬁers. Design ﬂexibility is provided

by the excellent device characteristics; 300μV Max offset

and only 375μA (typical at 60V) of current consumption.

The LTC6101 operates on supplies from 4V to 60V and

LTC6101HV operates on supplies from 5V to 100V.

The LTC6101 monitors current via the voltage across an

external sense resistor (shunt resistor). Internal circuitry

converts input voltage to output current, allowing for a

small sense signal on a high common mode voltage to

be translated into a ground referenced signal. Low DC

offset allows the use of a small shunt resistor and large

gain-setting resistors. As a result, power loss in the shunt

is reduced.

The wide operating supply range and high accuracy make

the LTC6101 ideal for a large array of applications from

automotive to industrial and power management. A maxi-

mum input sense voltage of 500mV allows a wide range

of currents to be monitored. The fast response makes the

LTC6101 the perfect choice for load current warnings and

shutoff protection control. With very low supply current,

the LTC6101 is suitable for power sensitive applications.

The LTC6101 is available in 5-lead SOT-23 and 8-lead

MSOP packages.

Supply Range:

5V to 100V, 105V Absolute Maximum (LTC6101HV)

4V to 60V, 70V Absolute Maximum (LTC6101)

Low Offset Voltage: 300μV Max

Fast Response: 1μs Response Time (0V to 2.5V on

a 5V Output Step)

Gain Conﬁgurable with 2 Resistors

Low Input Bias Current: 170nA Max

PSRR: 118dB Min

Output Current: 1mA Max

Low Supply Current: 250μA, V

= 12V

Speciﬁed Temperature Range: –40°C to 125°C

Operating Temperature Range: –55°C to 125°C

Low Proﬁle (1mm) SOT-23 (ThinSOT™) Package

APPLICATIONS

Current Shunt Measurement

Battery Monitoring

Remote Sensing

Power Management

LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and

ThinSOT is a trademark of Linear Technology Corporation. All other trademarks are the property

of their respective owners.

TYPICAL APPLICATION

16-Bit Resolution Unidirectional Output into LTC2433 ADC

LOAD

–

+IN

SENSE

Step Response

SENSE

–

ΔV

SENSE

–

= 100mV

5.5V

100Ω

–IN

5V TO 105V

–

+ –

1μF

LTC6101HV

OUT

LTC2433-1

TO μP

OUT

= 25°C

= 12V

= 100

OUT

= 5k

SENSE

= V

OUT

= 100μA

OUT

4.99k

0.5V

OUT

= 0

500ns/DIV

6101 TA01

6101 TA01b

OUT

• V

SENSE

= 49.9V

SENSE

6101fh

LTC6101AIS5 Related Products

	LTC6101AIS5	LTC6101ACS5	LTC6101AHS5	LTC6101HVACS5	LTC6101HVAHS5	LTC6101HVAIS5
Description	SPECIALTY ANALOG CIRCUIT, PDSO5	SPECIALTY ANALOG CIRCUIT, PDSO5	SPECIALTY ANALOG CIRCUIT, PDSO5	SPECIALTY ANALOG CIRCUIT, PDSO5	SPECIALTY ANALOG CIRCUIT, PDSO5	SPECIALTY ANALOG CIRCUIT, PDSO5
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
Parts packaging code	SOT	SOT	SOT	TSOT	TSOT	TSOT
package instruction	VSSOP, TSOP5/6,.11,37	VSSOP, TSOP5/6,.11,37	VSSOP, TSOP5/6,.11,37	VSSOP, TSOP5/6,.11,37	VSSOP, TSOP5/6,.11,37	VSSOP, TSOP5/6,.11,37
Contacts	5	5	5	5	5	5
Reach Compliance Code	_compli	_compli	_compli	_compli	_compli	_compli
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5
JESD-609 code	e0	e0	e0	e0	e0	e0
length	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm	2.9 mm
Humidity sensitivity level	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1
Number of terminals	5	5	5	5	5	5
Maximum operating temperature	85 °C	70 °C	125 °C	70 °C	125 °C	85 °C
Minimum operating temperature	-40 °C	-	-40 °C	-	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	VSSOP	VSSOP	VSSOP	VSSOP	VSSOP	VSSOP
Encapsulate equivalent code	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	235	235	235	235	255	255
power supply	4/60 V	4/60 V	4/60 V	5/100 V	5/100 V	5/100 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Maximum supply current (Isup)	0.64 mA	0.64 mA	0.72 mA	0.64 mA	0.72 mA	0.64 mA
Maximum supply voltage (Vsup)	60 V	60 V	60 V	60 V	60 V	60 V
Minimum supply voltage (Vsup)	4 V	4 V	4 V	4 V	4 V	4 V
Nominal supply voltage (Vsup)	12 V	12 V	12 V	12 V	12 V	12 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	AUTOMOTIVE	COMMERCIAL	AUTOMOTIVE	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.95 mm	0.95 mm	0.95 mm	0.95 mm	0.95 mm	0.95 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	20	20	20	20	40	40
width	1.625 mm	1.625 mm	1.625 mm	1.625 mm	1.625 mm	1.625 mm
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99
