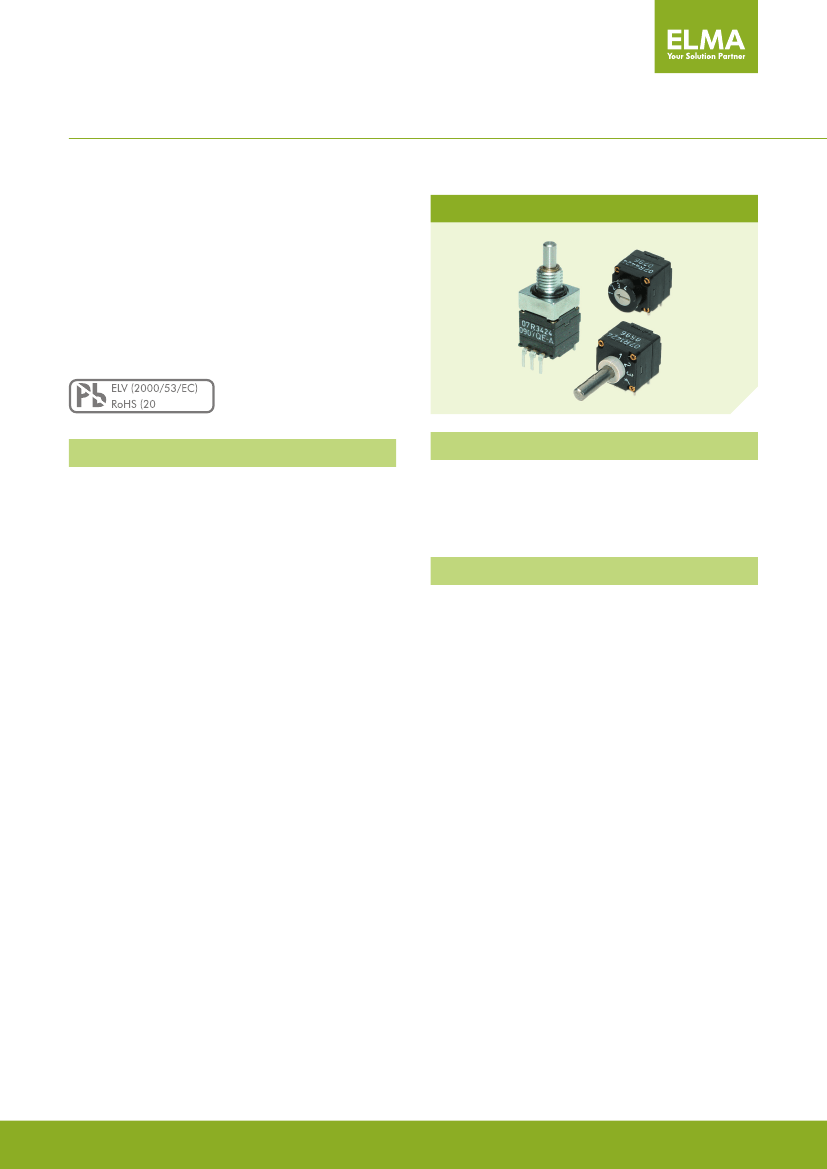

DATA SHEET
SELECTOR SWITCH
TYPE 07R
MAIN FEATURES
MINIATURE, UP TO 4 POSITIONS
PCB mounting (THT, reflow version on request)
Up to 3.5 Ncm switching torque
Gold plated contacts
Washable (sealed contact system)
Optional IP68 front panel sealing
Operating temperature range: -40° to +85°C
Various options and customizations
›
›
›
›
›
›
›
TYPE 07R
11/65/EU)
PRODUCT VARIETY
■
■
■
■
■
■
■
POSSIBLE CUSTOMIZATIONS
■
■
■
■
Vertical or horizontal mounting
Shorting or non-shorting
Switching torque 2.2 or 3.5 Ncm
Front panel sealing IP60 or IP68
Number of positions
Bushing style
Shaft style and length
Shaft dimension and shape
Bushing dimension
Switching torque
Others
TYPICAL APPLICATIONS
■
■
■
■
■
Industrial controls
Avionics, instrumentation, test systems
Medical and audio equipment
Mobile equipment
Construction
www.elma.com
1/5
DATA SHEET
SELECTOR SWITCH
TYPE 07R
1
PREFERENCE TYPES SELECTION CHARTS
WITH SHAFT, WITHOUT THREADED BUSHING
SWITCHING
MODE
Shorting
Non-shorting
Shorting
Non-shorting
FUNCTION
(POLES X POSITIONS)
1x4
1x4
1 x 5 (4 electrical positions)
1 x 5 (4 electrical positions)
1
For other types/options, see type key.
HORIZONTAL
PART NUMBER
07R1423
07R1424
07R1513
07R1514
SCREWDRIVER WITH BEZEL / FRONT PANEL OPERATION
SWITCHING MODE
Shorting
Non-shorting
Shorting
Non-shorting
FUNCTION
(POLES X POSITIONS)
1x4
1x4
1 x 5 (4 electrical positions)
1 x 5 (4 electrical positions)
PART NUMBER
07R4423
07R4424
07R4513
07R4514
WITH SHAFT, WITH THREADED BUSHING, IP68
SWITCHING MODE
Shorting
Non-shorting
Shorting
Non-shorting
FUNCTION
(POLES X POSITIONS)
1x4
1x4
1 x 5 (4 electrical positions)
1 x 5 (4 electrical positions)
PART NUMBER
07R1423-30000
07R1424-30000
07R1513-30000
07R1514-30000
VERTICAL
WITH SHAFT, WITHOUT THREADED BUSHING
SWITCHING MODE
Shorting
Non-shorting
Shorting
Non-shorting
SCREWDRIVER WITHOUT BEZEL
SWITCHING MODE
Shorting
Non-shorting
Shorting
Non-shorting
FUNCTION
(POLES X POSITIONS)
1x4
1x4
1 x 5 (4 electrical positions)
1 x 5 (4 electrical positions)
PART NUMBER
07R2423
07R2424
07R2513
07R2514
FUNCTION
(POLES X POSITIONS)
1x4
1x4
1 x 5 (4 electrical positions)
1 x 5 (4 electrical positions)
PART NUMBER
07R3423
07R3424
07R3513
07R3514
WITH SHAFT, WITH THREADED BUSHING, IP68
SWITCHING MODE
Shorting
Non-shorting
Shorting
Non-shorting
FUNCTION
(POLES X POSITIONS)
1x4
1x4
1 x 5 (4 electrical positions)
1 x 5 (4 electrical positions)
PART NUMBER
07R3423-30000
07R3424-30000
07R3513-30000
07R3514-30000
www.elma.com
2/5
DATA SHEET
SELECTOR SWITCH
TYPE 07R
SPECIFICATIONS
MECHANICAL DATA
Resolution:
Switching torque (new condition):
Rotational life:
End-Stop strength:
Fastening torque of nut:
5 positions max. (36° indexing)
2.2 or 3.5 Ncm (+/- 25%)
10'000 cycles min.
45 Ncm min.
100 Ncm max.
ELECTRICAL DATA
Function:
Switching mode:
Load current:
Switching voltage:
Contact resistance (new condition):
Insulation resistance (new condition):
Dielectric withstanding voltage:
1 pole, 2 to 4 positions (5 pos. indexing has 4 electrical positions; pos. 0 has no connection)
Shorting or non-shorting
0.2 A max. (resistive load)
42 VDC max.
50 m
10
11
min. (contact to contact / housing)
500 VDC during 60 seconds
MATERIAL DATA
Shaft:
Housing:
Nut:
Contact system:
Soldering leads:
O-rings:
Stainless steel
Zinc diecast, fiber enforced high performance plastic
Brass
CuBe alloy, AuCo plated (hard gold)
CuBe alloy, tin plated
NBR (nitrile), 70 shore
ENVIRONMENTAL DATA
Operating/storage temperature range:
IP sealing:
Vibration:
Flammability:
-40° to +85°C
IP60, optional IP68 (2 bar, 1 h) shaft/front panel sealing
Washable (sealed contact system)
10 G
rms
max. @ 10 to 2000 Hz
UL94-HB
PACKAGING QUANTITY
Tray:
50 or 200 pcs. (antistatic tray: 100 pcs.)
SOLDERING CONDITIONS
Hand soldering:
Wave soldering:
280°C max. during 2 sec max.
280°C max. peak temperature during 2 sec max.
SWITCHING MODES
For information about switching mode please see technical
explanations
at the end of the catalog
PIN TO POSITION DIAGRAM
PIN
8 4 2 1
0
1
2
3
4
On
Off
Position
www.elma.com
3/5
DATA SHEET
SELECTOR SWITCH
TYPE 07R

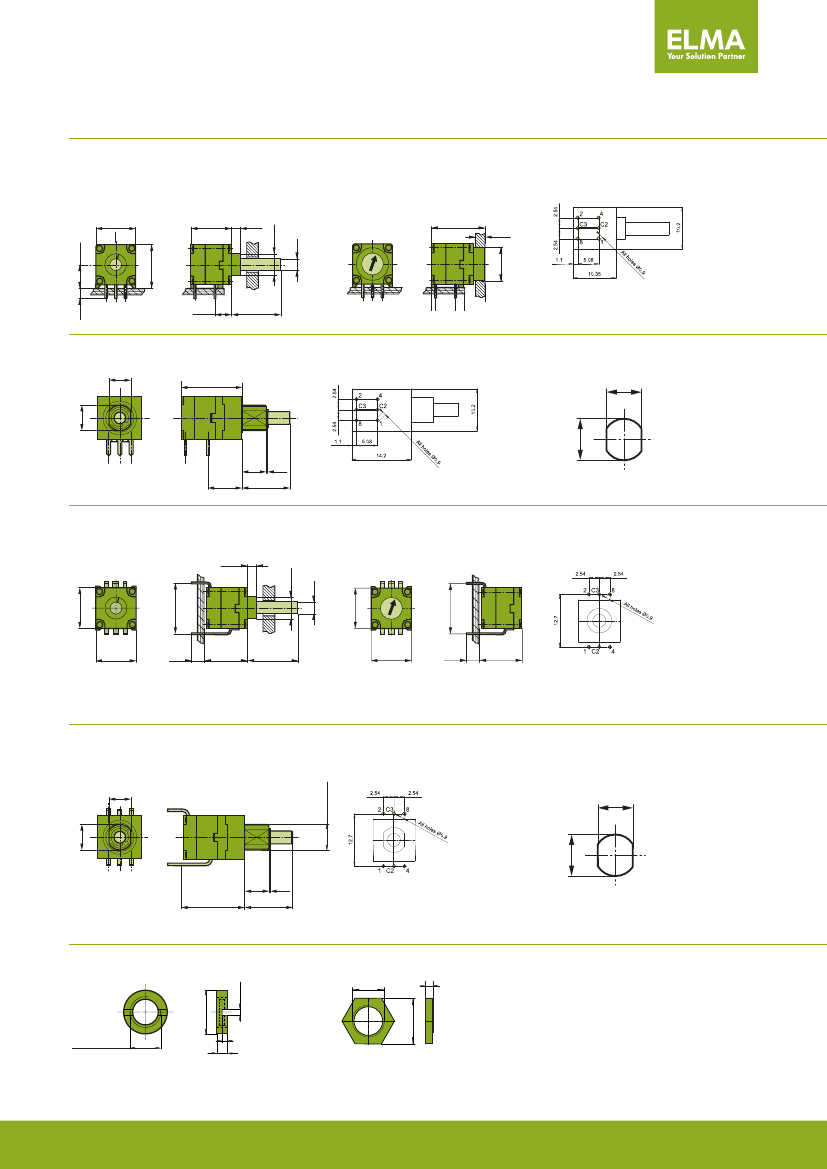

DRAWINGS
HORIZONTAL,
WITH SHAFT, WITHOUT THREADED BUSHING
HORIZONTAL,
SCREWDRIVER WITH BEZEL
Tolerances unless otherwise specified DIN ISO 2768-1 (m)
DRILLING DIAGRAM
Commons (C2, C3) must be connected
together on the PCB
ø3
-0,018
ø3
-0,018
ø5,5
ø5,5
10,16
10,16
5,42
5,42
10,5
10,5
10,35
10,35
2,25
2,25
13,77
13,77
3
3
ø8,6
ø8,6
0
0
0
0
0
0
3,1
3,1
1 C2 4
1 C2 4
4,17
4,17
AL
±0,25
AL
±0,25
1 C2 4
1 C2 4
1,1
1,1
5,08
5,08
2,3
2,3
7,59
7,59
View from component side of
the PCB
HORIZONTAL,
WITH SHAFT, WITH THREADED BUSHING
DRILLING DIAGRAM
FRONT PANEL CUT OUT
5
M6 x 0,75
5
14,2
14,2
together on the PCB
5
+0,03
+0,105
Commons (C2, C3) must be connected
5
+0,03
+0,105
+0,03
+0,105
M6 x 0,75
6
+0,03
+0,105
1 C2 4
5,5
8
0,7
AL
±0,25
View from component side of
the PCB
VERTICAL,
WITH SHAFT, WITHOUT THREADED BUSHING
1 C2 4
VERTICAL,
SCREWDRIVER WITHOUT BEZEL
5,5
0,7
8
ø5,5
2
C3
8
10,16
12,7
0
2,25
ø3
AL
±0,25
DRILLING DIAGRAM
Commons (C2, C3) must be connected
together on the PCB
2
C3
8
10,16
12,7
1
C2
4
10,16
3,1
10,6
12,8
±0,25
1
C2
4
10,16
3,1
10,6
View from component side of
the PCB
VERTICAL,
WITH SHAFT, WITH THREADED BUSHING
DRILLING DIAGRAM
FRONT PANEL CUT OUT
2 C3 8
5
M6 x 0,75
5
14,2
M6 x 0,75
Commons (C2, C3) must be connected
together on the PCB
6
5
+0,03
+0,105
+0,03
+0,105
5
+0,03
+0,105
+0,03
+0,105
M6 x 0,75
6
1 C2 4
14,4
5,5 0,7
AL
±0,25
View from component side of
the PCB
1 C2 4
SLOTTED NUT
5,5
M6 x 0,75
0,7
2.5
8
HEX NUT (SUPPLIED)
AL
±0,25
1,3
Ø 8,5
M6 x 0,75
Part Number (50 pcs. bag)
- Brass: 4424-28
- Stainless steel (cross slot): 4424-31
1
2
Spare part:
Part Number (50 pcs. bag)
- Brass: 4424-22
9
6
www.elma.com
4/5
DATA SHEET
SELECTOR SWITCH
TYPE 07R
TYPE KEY
07R
_
_
_
_
–
_
_
_
_
_
STYLE
0
1
2
3
4
5
Horizontal; screwdriver without bezel
Horizontal; with shaft
Vertical; screwdriver without bezel
Vertical; with shaft
Horizontal; screwdriver with bezel
Vertical; screwdriver with bezel
SHAFT LENGTH (AL)
000
xxx
Basic style: 12.8 mm
Threaded bushing: 11.5 mm
1
Custom
(e.g. 10.5 mm = 105)
Customized shaft length
Shaft length (AL) description measured from
mounting face (see picture below).
1
NUMBER OF POSITIONS
AND CONTACTS
2
3
4
5
2
3
4
5
pos.
pos.
pos.
pos.
(1-2)
(1-3)
(1-4)
(0-4, 0 has no connection)
Max shaft length (AL):
Bushing basic style = 30 mm
Bushing threaded = 26 mm
1 TO 4/5 POSITIONS
1
2
5 pos. (factory set for 5 pcs.)
1 to 4 pos. (factory set for 2, 3
and 4 pos.)
BUSHING; IP SEALING
00
None
20
Threaded (nut supplied)
30
Threaded; IP68 (nut supplied)
SWITCHING MODE
3
4
Shorting
Non-shorting
TORQUE; PACKAGING
-
V
T
S
2.2 Ncm; tray (50/200 pcs.)
2.2 Ncm; antistatic tray (100 pcs.)
3.5 Ncm; tray (50/200 pcs.)
3.5 Ncm; antistatic tray (100 pcs.)
www.elma.com
5/5
