BG085-54-A-0600-0300-0120-N-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> BG085-54-A-0600-0300-0120-N-D

BG085-54-A-0600-0300-0120-N-D: DescriptionBoard Connector, 54 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size170KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG085-54-A-0600-0300-0120-N-D Overview

Board Connector, 54 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator,

BG085-54-A-0600-0300-0120-N-D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.2 inch
subject depth	0.247 inch
body length	2.7 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	100 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	BG085
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	54

Preview

Download Datasheet

View All

Number of

Contacts

Dimensions

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

53.34

55.88

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

101.60

5.00

Ø1.

2.54

Recommended PCB Layout

B±0.38

A±0.25

2.54

0.64 sq. Pin

2° Max. Sway & Toe

(Either Direction At The top)

5.00

2.54

D±0.2

C±0.2

2.54

E±0.2

Specifications

规格

Material

物料

Contact

端子

: Copper Alloy

Insulator Material

绝缘½

Standard

标准

: Polyamide, Nylon 6T, UL 94V-0

Options

可选

: Polyester, LCP, UL 94V-0

Polyester, PBT, UL 94V-0

Electrical

电气

Current Rating

电流额定值

: 3 Amp

Insulator Resistance

绝缘电阻值

: 1000 MΩ min.

Contact Resistance

接触电阻值

: 20 mΩ max.

Dielectric Withstanding

耐电压

: AC 600 V

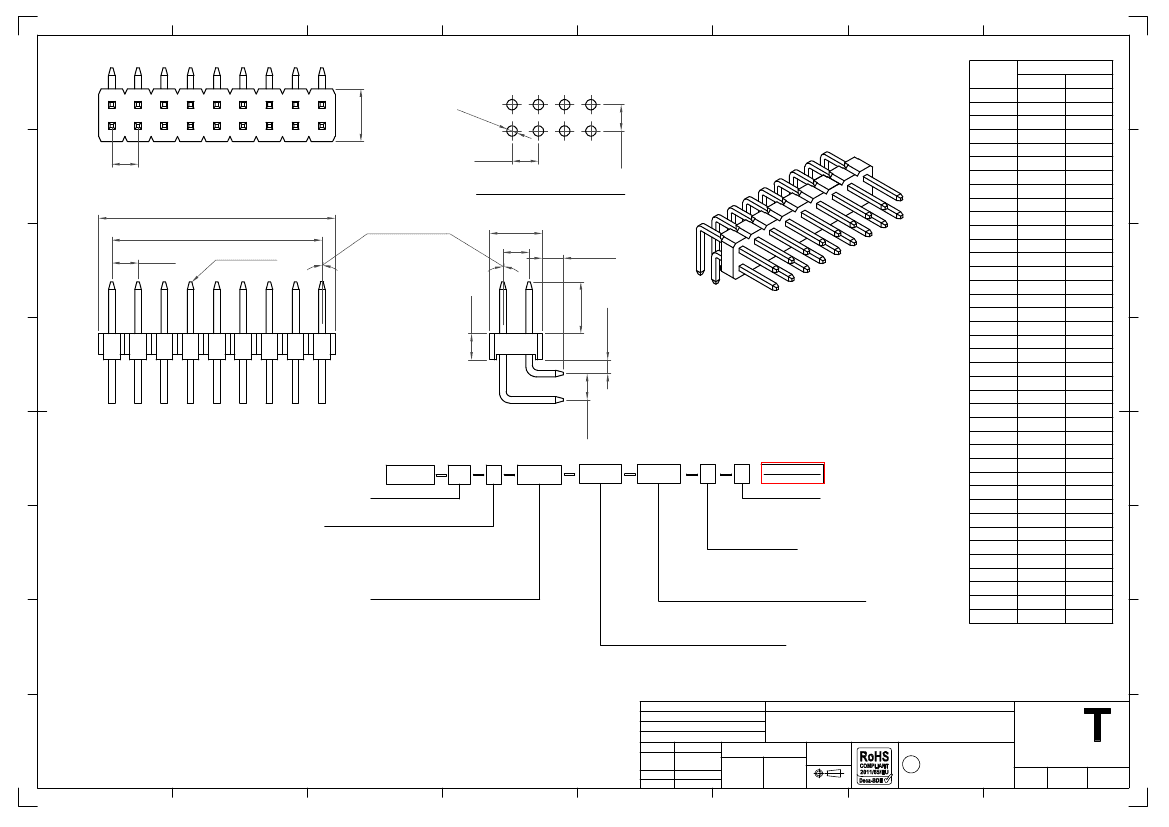

Ordering Grid

2.54

BG085

No. of Contacts

04 to 80

XXXX

Request Samples

and Quotation

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact Area/Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Dimension C

(1/100mm) (Post Height)

0600

6.00mm

(Standard)

Or specify custom Post Height

eg. 0250 = 2.50mm

Packing Options

G = Plastic Box

(Standard - 04 Contacts)

D = Tube

(Standard - 06-80 contacts)

E = Tube with Cap

Insulator Material

N = Nylon 6T

(Standard)

P = PBT

L = LCP

Dimension E

(1/100mm) (Insulator to Pin Centre)

0120 = 1.20mm

(Standard)

Or specify custom Insulator to Pin Centre length

eg. 0250 = 2.50mm

Environmental & Mechanical

机械

环境

Operating Temperature

工½温度

: -40° to +105°C

Soldering Process

可焊性

Nylon 6T (Standard

标准物料

) -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 230°C for 5-10 sec.

Manual Solder

人工焊接

: 350°C for 3-5 sec

LCP (Option

可选物料

) -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 250°C for 5-10 sec.

Manual Solder

人工焊接

: 350°C for 3-5 sec

PBT (Option

可选物料

) - Manual Solder

人工焊接

: 330°C for 3-5 sec.

(Not

suitable for hi-temp process

不适合高温处理

)

Dimension D

(1/100mm) (Insulator to Pin End)

0300 = 3.00mm

(Standard)

Or specify custom Insulator to Pin End length

eg. 0250 = 2.50mm

Part Number

Product Description

BG085

Mates with

配套之母座

(Subject

to pin length

在端子长度适合的条件下

)

BG120 BG140 BG150 BG151 BG160

BG165 BG170 BG175 BG180 BG185

BG190 BG195 BG200 BG210

Drawing Date

30th October 2006

Detail

Revision

Date

AJO

BG085

F PCN

29/07/09

Length

2.54mm Pitch Pin Header

Dual Row, Through Hole, Horizontal

Tolerances

(Except as Noted)

Angle

X.° ± 5°

X. ± 0.30

X.X° ± 2°

X.X ± 0.20

X.XX° ± 1°

X.XX ± 0.15

X.XXX ± 0.10 X.XXX° ± 0.5°

Units:

Metric (mm)

3rd Angle Projection

This drawing is confidential and

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

Drawn By

LYH

www.gct.co

Not to

Scale

Sheet No.

1/1
