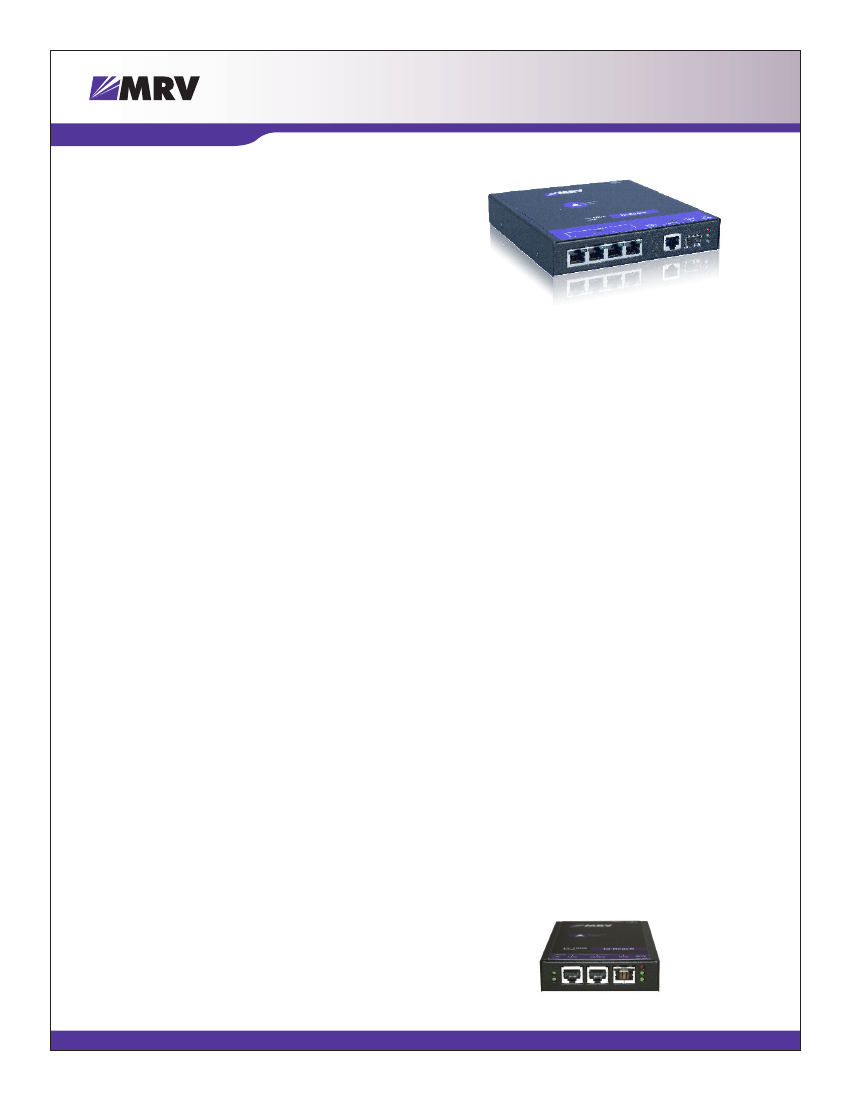

Out-of-Band Networking
Datasheet
LX Series
1000S Console Servers
A Complete Out-of-Band Networking Solution
The 1000S Series of console servers (also referred to as terminal
servers) gives IT administrators the ability to perform secure
remote management of operational and physical infrastructures.
Applications
With models ranging from 1 to 4 ports, the LX-1000S Series can
meet a wide range of needs. The 1000S Series offers power
options for installations utilizing North American or International
power. Additional flexibility is available with the option to choose
models with an internal v.90 modem providing remote dial up
capabilities.
The 1000S Series uses the proven LX Series
software which allows a common set of features to be utilized
consistently across multiple LX Series form factors.
The 1000S Series can be used with MRV’s 5250/ 4800 Power
Control Series to provide administrators with the ability to
manage, control, and monitor individual power outlets for critical
equipment. Using secure access through the 1004S Series,
network managers can remotely power cycle a locked up server,
bring a redundant system online or turn on an auxiliary air
conditioner.
Physical infrastructure control and monitoring can be enabled on
each 1000S Series serial port, supporting 2 sensor inputs or 2
control outputs. Sophisticated Trigger/Action control can be used
for customizing that meets specific organizational notification and
control needs.
• Enterprise data centers
• Remote/branch offices
• Telco central office and remote facilities
• Utilities
• Test and development labs
Benefits
• Cutting Costs - Nearly eliminate the need for personnel to be
physically present at remote equipment site
• Increasing Security, Lowering Risk - Protect service ports from
unauthorized, undetected access - Capture logs as a record of
system activity to meet regulations such as Sarbanes-Oxley,
HIPAA, etc.
• Improving Service Levels - Easy, efficient access uses scarce
technical resources more effectively - Reduces need for
redundancy by minimizing downtime
• Simplifying Operations - Verify access using existing security
infrastructure
• Simplifying Event Notification and Response - Automatic
response to an emergency can increase safety and avoid disasters
Industry Leading Security
Easy, Powerful Management Tools
MRV offers the industry’s first console servers to meet the
demanding US Government FIPS 140-2 cryptographic security
standard. With US government approved agency testing, the
LX Series software delivers the most secure and richest set
of features, including, point and click access to any port,
per port password protection, SSH v2.0, SNMP V3, IP V6,
RADIUS, SecurID, LDAP, TACACS+, PPP PAP/ CHAP, PPP dial-
back, user access lists, and on-board database. The Cluster
Control and Configuration features simplify configuration and
control of large networks without a single point of failure.
The 1000S Series has a management option to fit every style.
The easy to use browser based Graphical User Interface allows
full configuration and management, while the industry standard
style extensive Command Line Interface is a powerful tool for
automated scripts. MRV’s MegaVision product can be used as a
standalone network management and fault management system,
or be combined with other management platforms.
sales@mr v. com
Out-of-Band Networking
Datasheet
Technical Specifications
Number of Ports
Internal Modem Option
Power
120-240V AC, 50/60Hz
802.3AF PoE
Physical
Height
Width
Depth
Shipping Weight
General
Network Interface
Serial Interface
Operating System
Sensor Inputs
Control Outputs
Port Speeds
Base Memory
Environment Operating
Temperature
Storage Temperature
Humidity
Certifications
Emissions/Immunity
Safety
Telecommunications
FCC Part 15, Class A
Complies with UL 60950-1; CSA C22.2No. 60-950-
00; CB Scheme certified
NEBS Level 3 (NEBS models only)
Modem Models: FCC Part 68, IC CS 03 and
CTR21 compliant.
RoHS 5/6 compliant
2 Ethernet RJ-45 10/100Base-T port, SFP Option
RS-232, modular RJ-45 connectors
Linux
2 sensor inputs per port
2 control outputs per port
300bps to 230kbps
8 MB Flash, 64 MB SDRAM
32 to 104˚ F (0 to 40˚C) Long Term;
-5 to 50˚C Short Term
-40 to 185˚ F (-40 to 85˚C)
5% to 85% Long Term; 5% to 90% Short Term
2.5 cm, 1.0 in
8.9 cm 3.5 in
15.9 cm, 6.25 in
1.2 kg, 1.25 lbs
2.5 cm, 1.0 in
8.9 cm 3.5 in
15.9 cm, 6.25 in
1.2 kg, 1.25 lbs
2.8 cm, 1.1in
15.0 cm, 5.9 in
15.9 cm, 6.25 in
1.5 kg, 3.2 lbs
2.8 cm, 1.1in
15.0 cm, 5.9 in
15.9 cm, 6.25 in
1.5 kg, 3.2 lbs
1.0 Amps
-
1.0 Amps
-
1.2 Amps
-
-
0.15 Amps
1
V.90
LX-1001S
LX-1002S
2
-
LX-1004SFP
4
V.90
LX-1004S PoE
4
V.90
Ordering Information
LX-1001S-101AC
LX-1002S-001AC
LX-1004S-001POE
LX-1004S-101POE
LX-1004S-005AC
LX-1004S-105AC
1 Port and V.90 Modem, AC Power
2 Ports, AC Power
4 Ports, 802.3AF Power
4 Ports, Modem, 802.3AF Power
4 Ports, SFP Slot, AC Power
4 Ports, Modem, SFP Slot,
AC Power
Environmental
