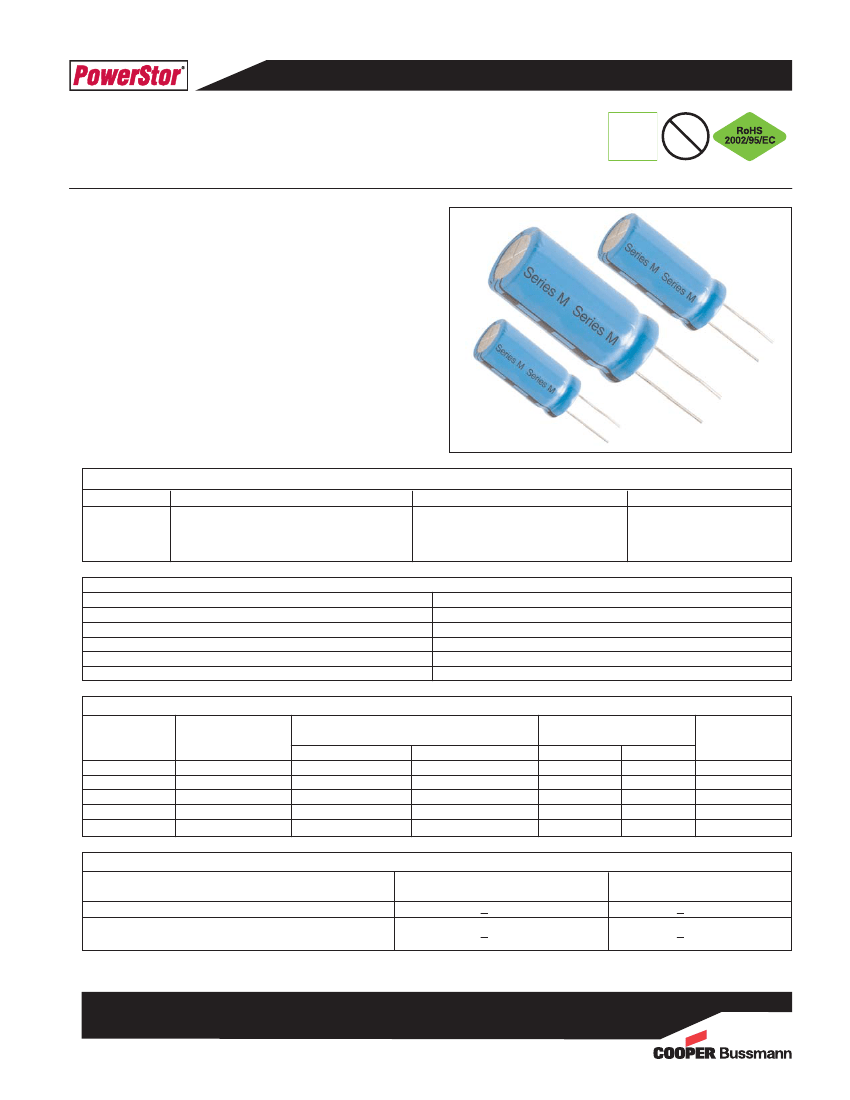

Supercapacitors
M Series
Description
Cooper Bussmann
®
PowerStor
®
supercapacitors are unique, ultra-high
capacitance devices utilizing electrochemical double layer capacitor (EDLC)
construction combined with new, high performance materials. This
combination of advanced technologies allows Cooper Bussmann to offer a
wide variety of capacitor solutions tailored to specific applications that range
from a few micro-amps for several days to several amps for milliseconds.
HF
Pb
FREE
HALOGEN
M Series
The new PowerStor M Series of supercapacitors offers high capacitance and
ultra-low equivalent series resistance in 8mm, 10mm and 13mm diameter
can sizes.
Features and Benefits
Series
M
Generic
2.5 Volts, low ESR, high capacitance
long cycle life, low leakage current
RoHS compliant, halogen free, lead free
Specific
Low ESR with high energy density
Applications
Pulse power, bridge or
hold up power
Specifications
Working Voltage
Surge Voltage
Nominal Capacitance
Capacitance Tolerance
Operating Temperature Range
Extended Operating Temperature Range
2.5V
3.0V
1.0F to 9.0F
-20% to +80% (20°C)
-40°C to 60°C
-40°C to 85°C (Max. working voltage: 2.0V)
Standard Product
Capacitance (F)
1
2
3
6
9
Part Number
M0810-2R5105-R
M0820-2R5205-R
M1020-2R5305-R
M1030-2R5605-R
M1325-2R5905-R
Nominal ESR (Ω) (Equivalent Series Resistance)
Measured @
1kHz
DC
0.150
0.200
0.075
0.100
0.035
0.050
0.025
0.035
0.020
0.030
Nominal Dimensions (mm)
Diameter
Length
8
13
8
20
10
20.5
10
30
13
26
Typicam Mass
(grams/piece)
1.2
1.5
2.8
3.9
5.6
Performance
Parameter
Life (1000 hrs @ 60°C @ 2.5Vdc)
Storage - Low and High Temperature
(1000 hrs @ -40°C and 60°C)
Capacitance Change
(% of initial measured value)
<
30 %
<
30 %
ESR
(% of initial measured value)
<
200 %
<
200 %
0909
BU-SB09840
Page 1 of 2
Data Sheet: 4308

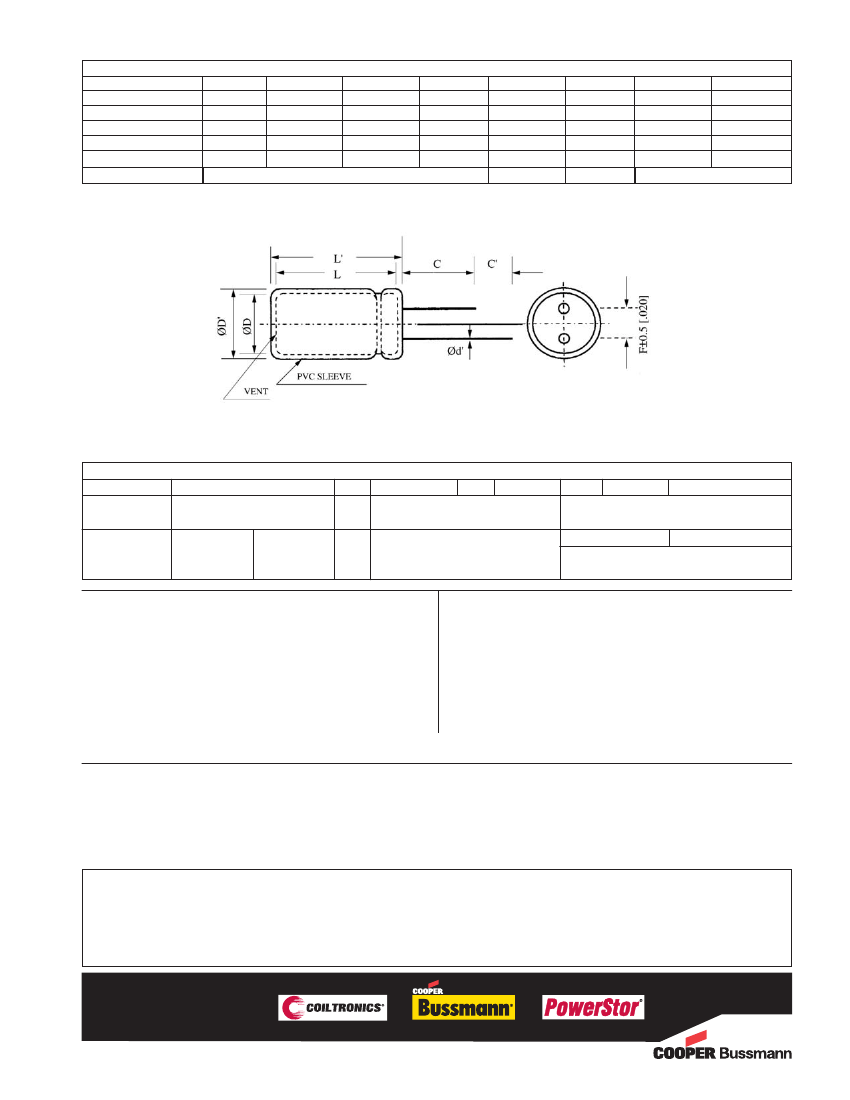

Dimensions (mm)
Part Number
M0810-2R5105-R
M0820-2R5205-R
M1020-2R5305-R
M1030-2R5605-R
M1325-2R5905-R
Tolerances
D
8.0
8.0
10.0
10.0
13.0
D’
8.5
8.5
10.5
10.5
13.5
L
13.0
20.5
21.8
31.0
27.9
Maximum
L’
13.5
21.0
22.3
31.5
28.4
F
3.5
3.5
5.0
5.0
5.0
± 0.5
d
0.5
0.5
0.6
0.6
0.6
± 0.02
C
20.0
20.0
20.0
20.0
20.0
Minimum
C’
5.0
5.0
5.0
5.0
5.0
Note (1): Longer lead is positive.
Part Numbering System
M
Series
Code
M = Series
-
Dimensions
Diameter
Length
R
Voltage (V)
R is Decimal
2R5 = 2.5V
Capacitance (μF)
Value
Multiplier
Example:
905 = 9 x 10
5
µF or 9.0F
Packaging Information
Standard packaging: Bulk, 100 units per package.
Large, bulk packaging available upon request.
Part Marking
Manufacturer
Capacitance (F)
Max. Operating Voltage (V)
Series Code (or part number)
Polarity
North America
Cooper Bussmann
1225 Broken Sound Parkway NW
Suite F
Boca Raton, FL 33487-3533
Tel: 1-561-998-4100
Fax: 1-561-241-6640
Toll Free: 1-888-414-2645
Cooper Bussmann
P.O. Box 14460
St. Louis, MO 63178-4460
Tel: 1-636-394-2877
Fax: 1-636-527-1607
Europe
Cooper Bussmann
Cooper (UK) Limited
Burton-on-the-Wolds
Leicestershire • LE12 5TH UK
Tel: +44 (0) 1509 882 737
Fax: +44 (0) 1509 882 786
Cooper Bussmann
Avda. Santa Eulalia, 290
08223
Terrassa, (Barcelona), Spain
Tel: +34 937 362 812
+34 937 362 813
Fax: +34 937 362 719
Asia Pacific
Cooper Bussmann
1 Jalan Kilang Timor
#06-01 Pacific Tech Centre
Singapore 159303
Tel: +65 278 6151
Fax: +65 270 4160
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncon-
trolled. This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann
reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to
change or update, without notice, any technical information contained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the
Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the label-
ing, can be reasonably expected to result in significant injury to the user.
© 2009 Cooper Bussmann
S t . L o u i s, M O 6 3 1 7 8
w w w. c o o p e r bu s s m a n n . c o m
0909
BU-SB09840
Page 2 of 2
Data Sheet: 4308
