V16(PH)2-C15KL-20KC datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> V16(PH)2-C15KL-20KC

V16(PH)2-C15KL-20KC: DescriptionPotentiometer, Carbon, 0.05W, 15000ohm, 50V, 20% +/-Tol, 8361; CategoryPassive components The resistor; File Size366KB，3 Pages; ManufacturerSong Huei Electric Co., Ltd.; Websitehttp://www.song-huei.com.tw

Download Datasheet Parametric View All

V16(PH)2-C15KL-20KC Overview

Potentiometer, Carbon, 0.05W, 15000ohm, 50V, 20% +/-Tol, 8361

V16(PH)2-C15KL-20KC Parametric

Parameter Name	Attribute value
Maker	Song Huei Electric Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
structure	Snap-In
Lead diameter	1.2 mm
Lead length	4.2 mm
Manufacturer's serial number	V16(PH)2
Package height	24 mm
Package length	21 mm
Package form	Quick Connect
Package width	15.5 mm
Rated power dissipation(P)	0.05 W
resistance	15000 Ω
Resistor type	POTENTIOMETER
rotation angle	300 deg
series	V16(PH)2
size code	8361
technology	CARBON
Terminal shape	SNAP-IN
Tolerance	20%
Operating Voltage	50 V

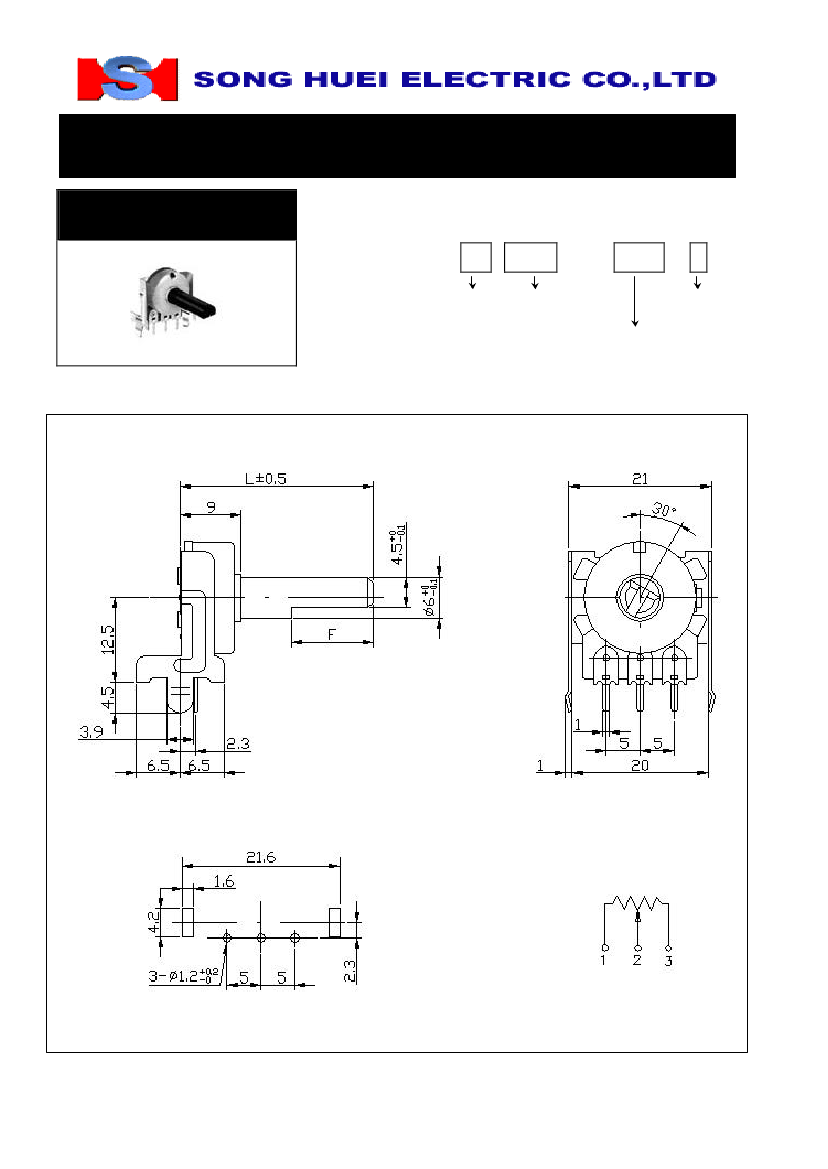

V16(PH)2-C15KL-20KC Preview

16mm Snap-in Insulated Shaft Potentiometers (16mm

塑膠軸旋½電½器)

V16(PH)2

Part Number

V16(PH)2 - B

50K , L -

Shaft Type

軸型

Taper Resistance Value

線性阻值

Shaft Length

軸長

Dimensions

規格尺寸

http://www.song-huei.com.tw

16mm Snap-in Insulated Shaft Potentiometers

Shaft Dimensions

軸心尺寸

(16mm

塑膠軸旋½電½器

)

http://www.song-huei.com.tw

9mm Metal Shaft Rotary

Shaft Potentiometers (16mm

屬軸旋 ½ 電 ½ 器)

16mm Snap-in Insulated

Potentiometer (9mm

金

塑膠軸旋½電½器)

Electrical Characteristics

電氣特性

Total Resistance

½阻值

5K ~ 2MΩ

Total Resistance Tolerance

½阻值誤差

20%

Resistance Taper

線性

Resistance Taper Characteristics

阻值變化特性範圍

Rated Power

定格電力

Residual Resistance

殘留阻值

Noise

雜音

Insulation Resistance

絕緣阻抗

Withstand Voltage

耐電壓

Rotational Life

旋½½½

A. B. C. D. W. Taper

A50%

15-25%

B50%

40-60%

C50%

75-85%

D50%

2-15%

W50%

45-55%

B Taper : 50V 0.1W; Other Tapers: 50V 0.05W

≥

250KΩ 0.1%

250KΩ> R

10KΩ

10KΩ≥ R

47 mV Max.

DC250V 100MΩ

1 minute at AC250V

10,000 Cycles

20ΩMax. ( between Term. 1, 2)

20ΩMax. ( between Term. 2, 3)

Mechanical Characteristics

機械特性

Total Rotational Angle

全迴 ½ 角度

Stopper Strength

全迴 ½ 止強度

Rotational Torque

迴 ½ 力距

Shaft Pull-Push Strength

軸心壓入拉起強度

Shaft Lever Wobble

軸心搖動接受力

Center Click Torque

中心卡點力距

Shaft Bending

軸心瞬間 ½ 曲

Soldering Heat

焊錫耐熱性

Remark

備註

300°

5°

6kgf.cm max./3sec.

30 ~ 250 gf.cm

8kgf.cm max./3 minute.

Without bushing 0.7 x L / 20 mmp-p max.

60 ~ 300 g.cm

0.3mm max.

300℃, 3s. (Only for Hand-Soldering)

♣

Insulated shaft of black .

http://www.song-huei.com.tw
