DB200-PF15GFT-I datasheet, PDF

Datasheet> All Categories > The connector> The connector> DB200-PF15GFT-I

DB200-PF15GFT-I: DescriptionD Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerMMT Corp; Websitehttp://www.mmtmachrone.com

Download Datasheet Parametric Compare View All

DB200-PF15GFT-I Overview

D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

DB200-PF15GFT-I Parametric

Parameter Name	Attribute value
Maker	MMT Corp
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.492 inch
subject depth	0.236 inch
body length	1.541 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DB200
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	HEX HEAD
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.191 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	15
Evacuation force-minimum value	.1946 N

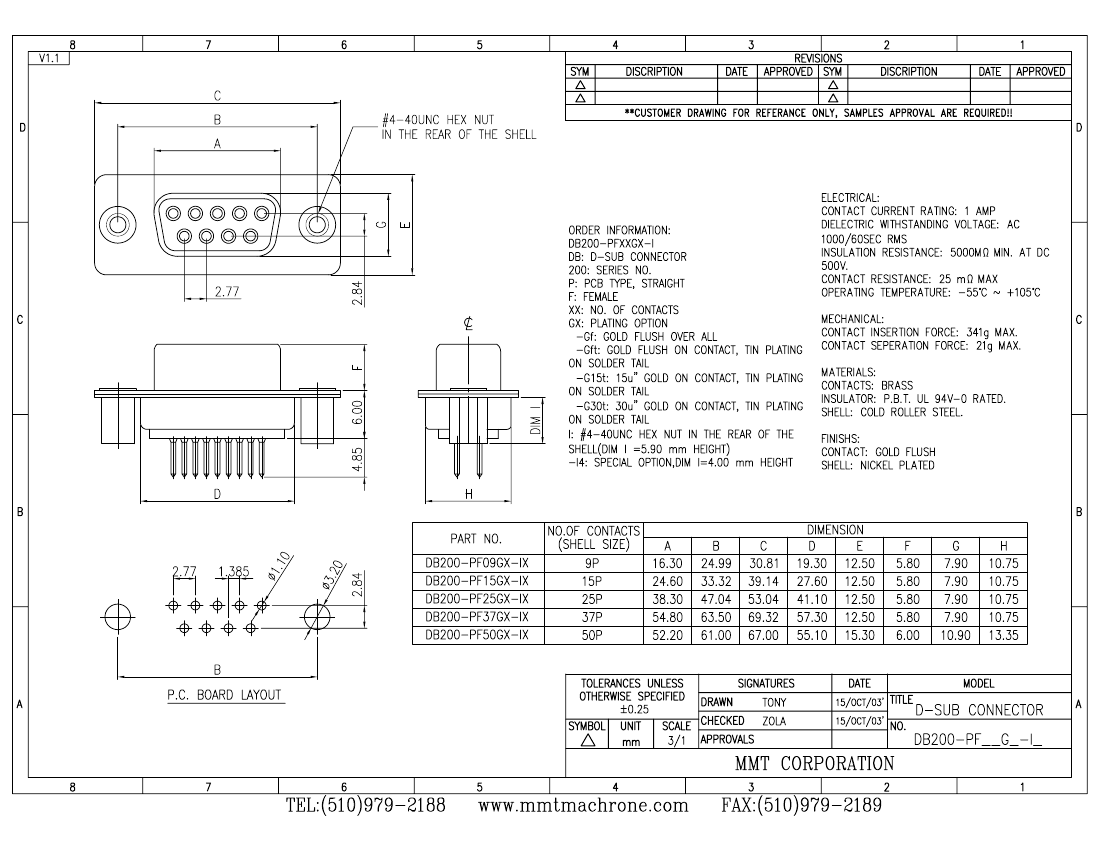

Preview

Download Datasheet

View All

DB200-PF15GFT-I Related Products

	DB200-PF15GFT-I	DB200-PF15G15T-I	DB200-PF15G30T-I	DB200-PF15GF-I
Description	D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug
Maker	MMT Corp	MMT Corp	MMT Corp	MMT Corp
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.492 inch	0.492 inch	0.492 inch	0.492 inch
subject depth	0.236 inch	0.236 inch	0.236 inch	0.236 inch
body length	1.541 inch	1.541 inch	1.541 inch	1.541 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Contact to complete cooperation	AU	AU	AU	AU
Contact completed and terminated	TIN	TIN	TIN	GOLD FLASH
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BRASS	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V
maximum insertion force	3.336 N	3.336 N	3.336 N	3.336 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DB200	DB200	DB200	DB200
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Installation option 1	#4-40	#4-40	#4-40	#4-40
Installation option 2	HEX HEAD	HEX HEAD	HEX HEAD	HEX HEAD
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2
Number of rows loaded	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm
Plating thickness	FLASH inch	15u inch	30u inch	FLASH inch
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	STEEL	STEEL	STEEL	STEEL
Terminal length	0.191 inch	0.191 inch	0.191 inch	0.191 inch
Terminal pitch	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	15	15	15
Evacuation force-minimum value	.1946 N	.1946 N	.1946 N	.1946 N
