RL1824X7R145K2E200 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> RL1824X7R145K2E200

RL1824X7R145K2E200: DescriptionCeramic Capacitor, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1.4uF, Through Hole Mount, RADIAL LEADED; CategoryPassive components capacitor; File Size112KB，3 Pages; ManufacturerPresidio Components Inc; Websitewww.presidiocomponents.com

Download Datasheet Parametric View All

RL1824X7R145K2E200 Overview

Ceramic Capacitor, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 1.4uF, Through Hole Mount, RADIAL LEADED

RL1824X7R145K2E200 Parametric

Parameter Name	Attribute value
Maker	Presidio Components Inc
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	1.4 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
Installation features	THROUGH HOLE MOUNT
multi-layer	No
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
surface mount	NO
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal shape	WIRE

Preview

Download Datasheet

View All

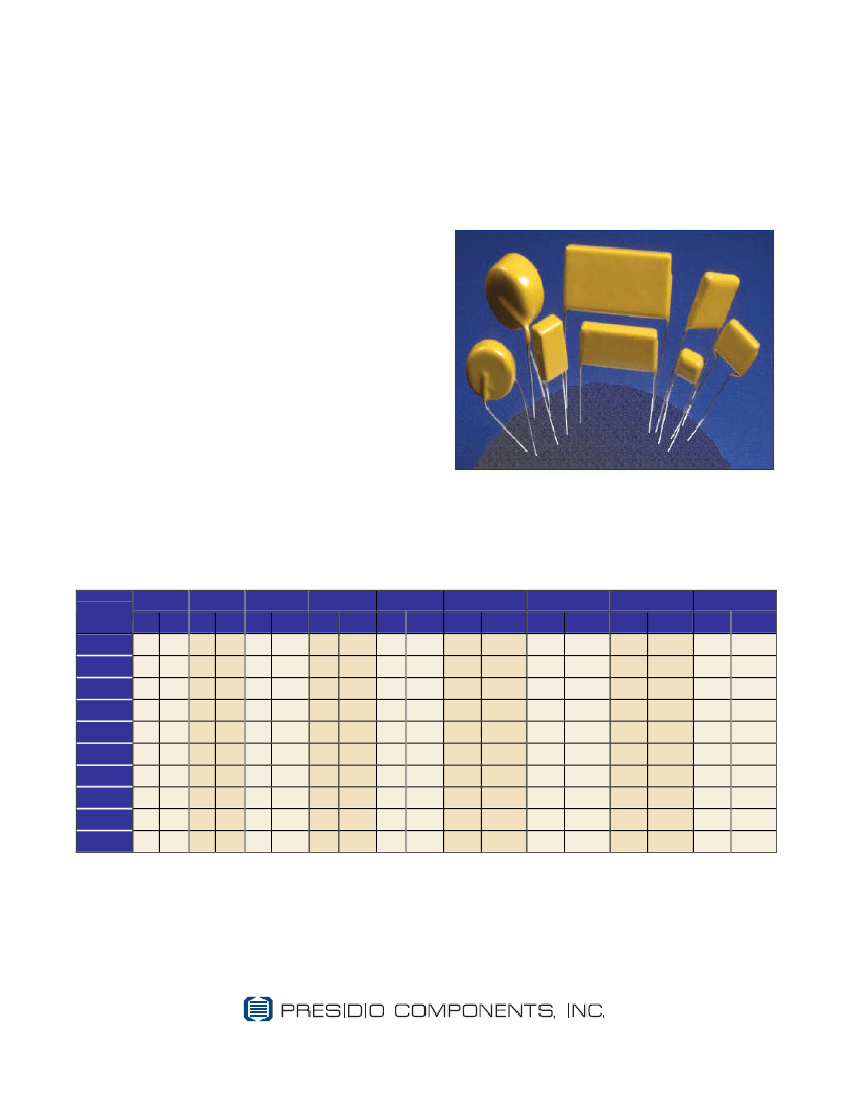

High Voltage Radial Leaded Capacitors

X7R and NPO Dielectric

Epoxy Coated and Uncoated Radial Leaded Capacitors

Specifications

Operating Temperature Range:

•

-55°C to +125°C

High Temperature to 250°C available

Temperature Coefficient:

•

X7R: ±15% ∆C

NPO: ±30 ppm/°C max.

Dissipation Factor:

•

X7R: 2.5% max.

NPO: < .0015 (.15%)

Insulation Resistance:

•

X7R/NPO: 1000 ohms x Farad or 100

Gigohms, whichever is less

Maximum Capacitance ( F)

SIZE

RL1814

RL1824

RL2225

RL2824

RL3933

RL4844

RL5854

RL6864

RL9650

RL13565

50V

100V

200V

500V

1000V

2000V

X7R

NPO

3000V

X7R

NPO

4000V

X7R

NPO

5000V

X7R

NPO

X7R NPO X7R NPO X7R NPO X7R NPO X7R NPO

.80 .018 .42 .012 .18 .0075 .075 .0035 .012 .0010

1.4 .033 .90 .024 .35 .014

1.9 .047 1.2 .033 .47 .020

2.2 .056 1.5 .040 .58 .022

4.7 .12 3.0 .085 1.2 .050

8.2 .20 5.6 .14 1.9 .082

.30 8.2 .21 3.0

.44

.47

.31 4.5

.34 .50

9.0

.12

.18

.20

.36

.15 .0068 .024 .0020

.20 .0090 .032 .0027 .0060 .00050

.25

.50

.82

1.2

1.8

2.0

3.9

.011 .040 .0036 .0080 .00075 .0033 .00025

.024 .080 .0075 .019

.039

.060

.085

.095

.17

.16

.25

.35

.39

.70

.014

.022

.030

.033

.060

.035

.055

.082

.10

.18

.0017 .0082 .00065 .0039 .00030

.0032

.0050

.0070

.0082

.015

.027

.039

.047

.082

.0013 .0082 .00060 .0056 .00042

.0021

.0030

.0035

.0065

.015

.018

.022

.047

.0010 .0082 .00070

.0015

.0018

.0035

.012

.015

.033

.0010

.012

.024

Note:

Other sizes and voltages are available. Consult factory for details.

7169 Construction Court, San Diego, CA 92121 USA • Tel: 858-578-9390 • Fax: 800-538-3880 or 858-578-6225

Web: www.presidiocomponents.com • Email: info@presidiocomponents.com
