504-5SAS1BA: DescriptionCircular DIN Connector, 5 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size299KB，1 Pages; ManufacturerAMCO Tec International Inc

Download Datasheet Parametric Compare View All

504-5SAS1BA Overview

Circular DIN Connector, 5 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle

504-5SAS1BA Parametric

Parameter Name	Attribute value
Maker	AMCO Tec International Inc
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.52 inch
subject depth	0.512 inch
body length	0.598 inch
Body/casing type	RECEPTACLE
Connector type	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	60 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	500VAC V
maximum insertion force	44.0352 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
Manufacturer's serial number	504
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Plating thickness	FLASH inch
polarization key	POLAR PIN POSITION
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	COPPER ALLOY
Terminal length	0.13 inch
Termination type	SOLDER
Total number of contacts	5
Evacuation force-minimum value	8.896 N

Preview

Download Datasheet

View All

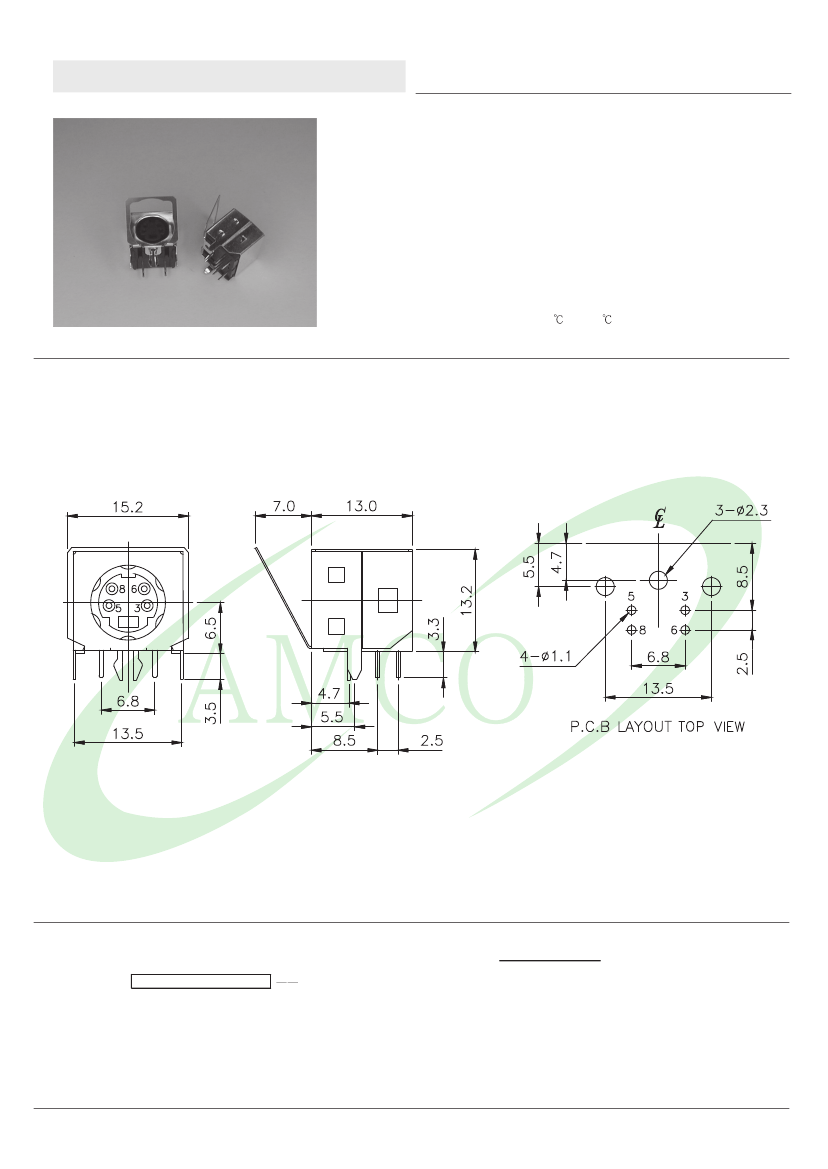

504/Mini Din Single Type

MATERIAL :

1. HOUSING : THERMOPLASTIC PBT UL 94V-0.

2. CONTACT : PHOSPHOR BRONZE.

3. SHIELD : COPPER ALLOY.

FINISH :

1. CONTACT : UNDER PLATED 50u" MIN. NICKEL ALL OVER 120u" MIN.

TIN/LEAD IN SOLDERING AREA SELECTIVE GOLD PLATED IN CONTACT AREA.

2. SHIELD : PLATED WITH 120u" THICK BRIGHT TIN OVER 50u" MIN. THICK. NICKEL.

SPECIFICATIONS :

1. CURRENT RATING : 100V AC 1A MAX. 12V DC 2A MAX.

2. INSULATION RESITANCE : 500 MEGOHMS MIN. AT 500V DC.

3. DIELECTRIC STRENGTH : 500V AC/ 1 MINUTE.

4. CONTACT RESISTANCE : 60 MILLIOHMS MAX.

5. INSERTION FORCE : 4.5KG MAX.

6. WITHDRAWAL FORCE : 0.9KG-4.5KG.

7. CONTACT RETEENTION : 4LB MINI.

8. OPERATING TEMPERA

TURE : -25 TO +70 .

504. MINI DIN

Series No.

SINGLE TYPE

FULL SHIELD

WITH SPRING

No. of Grounding

Contacts Finger

3~9

S: One Side

Touch

T: Two Corners

Touch

F: Four Corners

Touch

Mounting Type

(Center Ground / Shield Ground)

A TYPE: With a / With d

B TYPE: With a / With c

C TYPE: With b / With c

D TYPE: With b / With d

(a: Harpoon Boardlock)

(b: Keying Post)

Contact Plated

T1: TIN

G1: Gold Flash

S1: Gold Flash

Plastic

Color Branding

B:Black

G:Green

P:Purple

A:Amco Mark

N:No Mark

G2: 3u" Gold S2: 3u" Gold

G3: 5u" Gold S3: 5u" Gold

G4: 10u" Gold S4: 10u" Gold

G5: 15u" Gold S5: 15u" Gold

(c: Integral Kink Boardlock) G6: 30u" Gold S6: 30u" Gold

(d: Integral Keying Boardlock) (G:Full Gold)(S:Selective Gold)

AMCO TEC INTERNATIONAL INC.

504-5SAS1BA Related Products

	504-5SAS1BA	504-4SAS1BA	504-6SAS1BA	504-7SAS1BA
Description	Circular DIN Connector, 5 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle	Circular DIN Connector, 4 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle	Circular DIN Connector, 6 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle	Circular DIN Connector, 7 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle
Maker	AMCO Tec International Inc	AMCO Tec International Inc	AMCO Tec International Inc	AMCO Tec International Inc
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
body width	0.52 inch	0.52 inch	0.52 inch	0.52 inch
subject depth	0.512 inch	0.512 inch	0.512 inch	0.512 inch
body length	0.598 inch	0.598 inch	0.598 inch	0.598 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	60 mΩ	60 mΩ	60 mΩ	60 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	YES	YES	YES	YES
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V
maximum insertion force	44.0352 N	44.0352 N	44.0352 N	44.0352 N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK
Manufacturer's serial number	504	504	504	504
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch
polarization key	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION
Rated current (signal)	2 A	2 A	2 A	2 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Shell material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Terminal length	0.13 inch	0.13 inch	0.13 inch	0.13 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	5	4	6	7
Evacuation force-minimum value	8.896 N	8.896 N	8.896 N	8.896 N
