8Q2041: DescriptionRocker Switch, DPDT, (on)-off-(on), Momentary, 0.01A, 5VDC, Solder Lug Terminal, Rocker Actuator, Panel Mount,; CategoryMechanical and electronic products switch; File Size415KB，3 Pages; ManufacturerFujisoku Corporation

Download Datasheet Parametric Compare View All

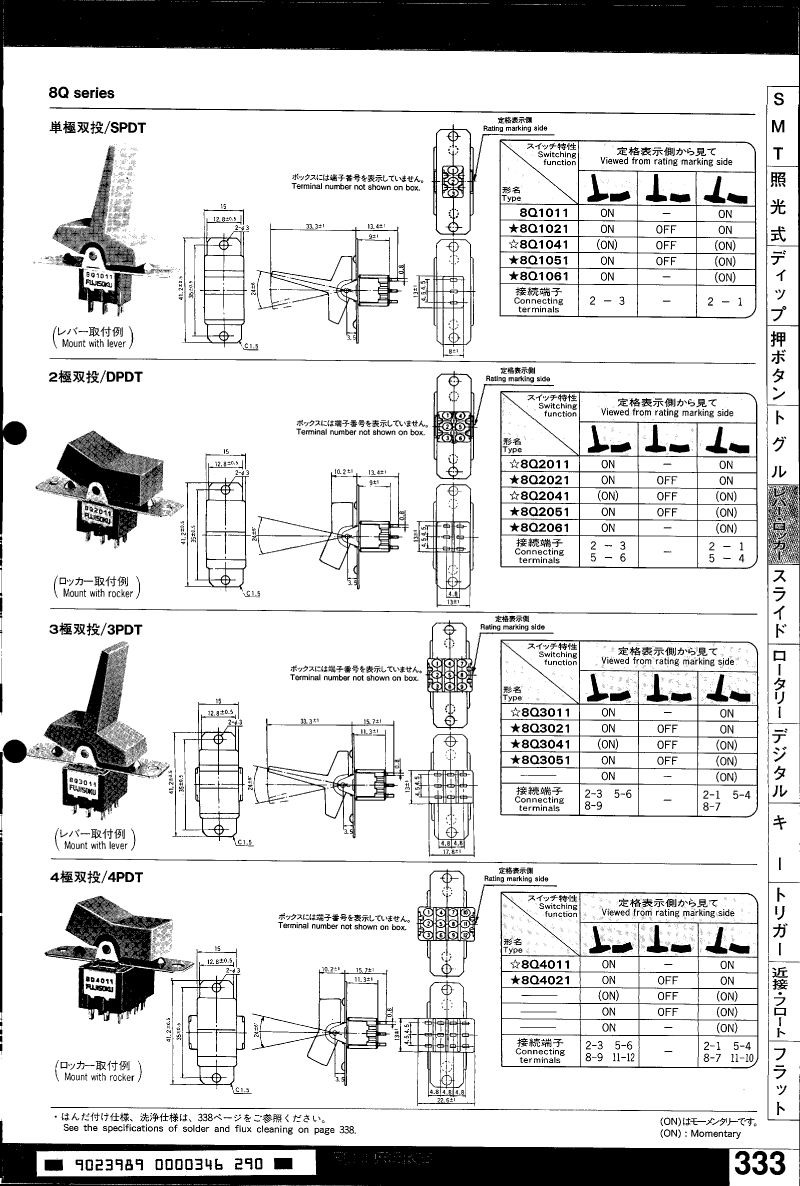

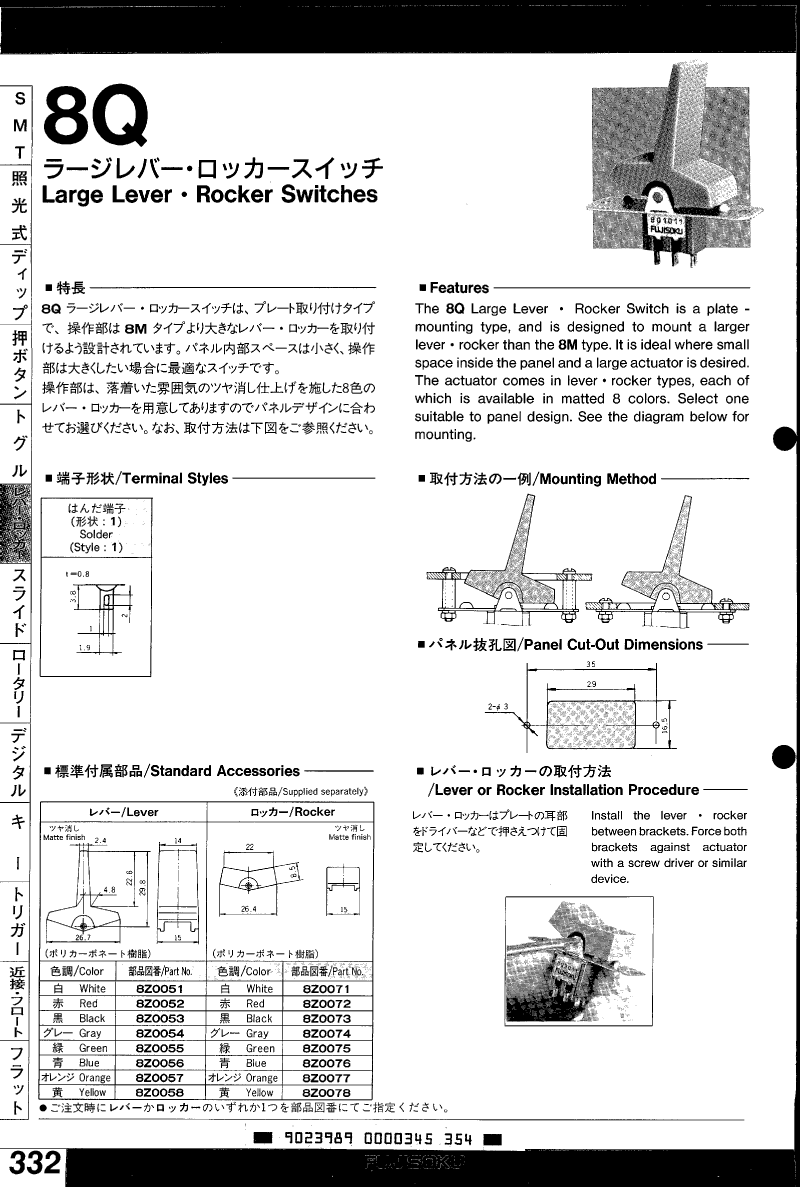

8Q2041 Overview

Rocker Switch, DPDT, (on)-off-(on), Momentary, 0.01A, 5VDC, Solder Lug Terminal, Rocker Actuator, Panel Mount,

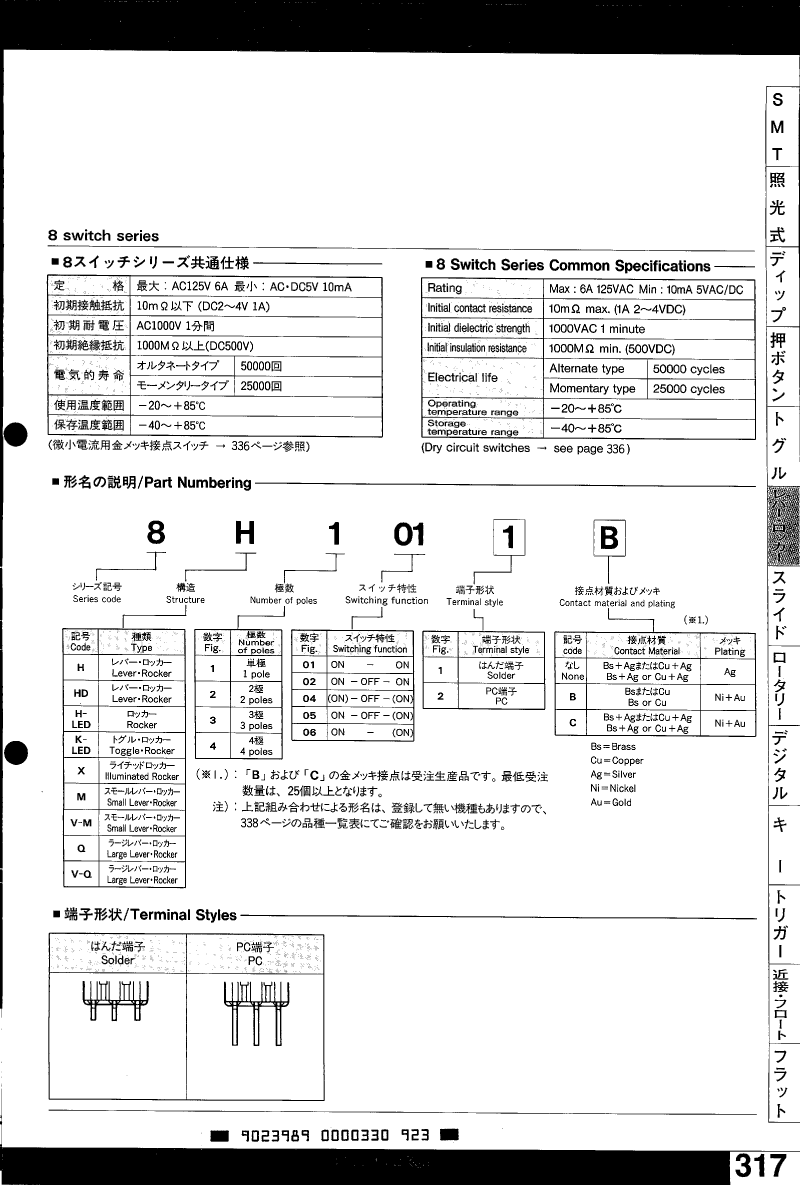

Parameter Name	Attribute value
Maker	Fujisoku Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator angle	24 deg
Actuator type	ROCKER
body width	13.0048 mm
body height	8.9916 mm
Body length or diameter	13.0048 mm
Center contact plating	SILVER
Contact (AC) maximum rated R load	6A@125VAC
Maximum contact current (AC)	6 A
Maximum contact current (DC)	0.01 A
Contact (DC) maximum rated R load	0.01A@5VDC
Contact function	(ON)-OFF-(ON)
Contact resistance	0.01 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	5 V
Dielectric withstand voltage	1000VAC V
Electrical life	25000 Cycle(s)
End contact plating	SILVER
Insulation resistance	1000000000 Ω
Manufacturer's serial number	8Q
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Solderability	HAND
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	ROCKER SWITCH
Termination type	SOLDER LUG
Washability	SOLVENT

	8Q2041
Description	Rocker Switch, DPDT, (on)-off-(on), Momentary, 0.01A, 5VDC, Solder Lug Terminal, Rocker Actuator, Panel Mount,
Maker	Fujisoku Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator angle	24 deg
Actuator type	ROCKER
body width	13.0048 mm
body height	8.9916 mm
Body length or diameter	13.0048 mm
Center contact plating	SILVER
Contact (AC) maximum rated R load	6A@125VAC
Maximum contact current (AC)	6 A
Maximum contact current (DC)	0.01 A
Contact (DC) maximum rated R load	0.01A@5VDC
Contact function	(ON)-OFF-(ON)
Contact resistance	0.01 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	5 V
Dielectric withstand voltage	1000VAC V
Electrical life	25000 Cycle(s)
End contact plating	SILVER
Insulation resistance	1000000000 Ω
Manufacturer's serial number	8Q
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Solderability	HAND
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	ROCKER SWITCH
Termination type	SOLDER LUG
Washability	SOLVENT
