242A18230X datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 242A18230X

242A18230X: DescriptionD Subminiature Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size130KB，2 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric View All

242A18230X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	242A18230X	-	-	View	Buy Now

242A18230X Overview

D Subminiature Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug

242A18230X Parametric

Parameter Name	Attribute value
Maker	CONEC
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	H. DENSITY & THD REAR SPACER
body width	0.509 inch
body length	1.556 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	424VDC V
Filter function	YES
maximum insertion force	3.336 N
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED POLYAMIDE
Manufacturer's serial number	242A
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.9812 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Terminal length	0.142 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	26
Evacuation force-minimum value	2.1962 N

Preview

Download Datasheet

View All

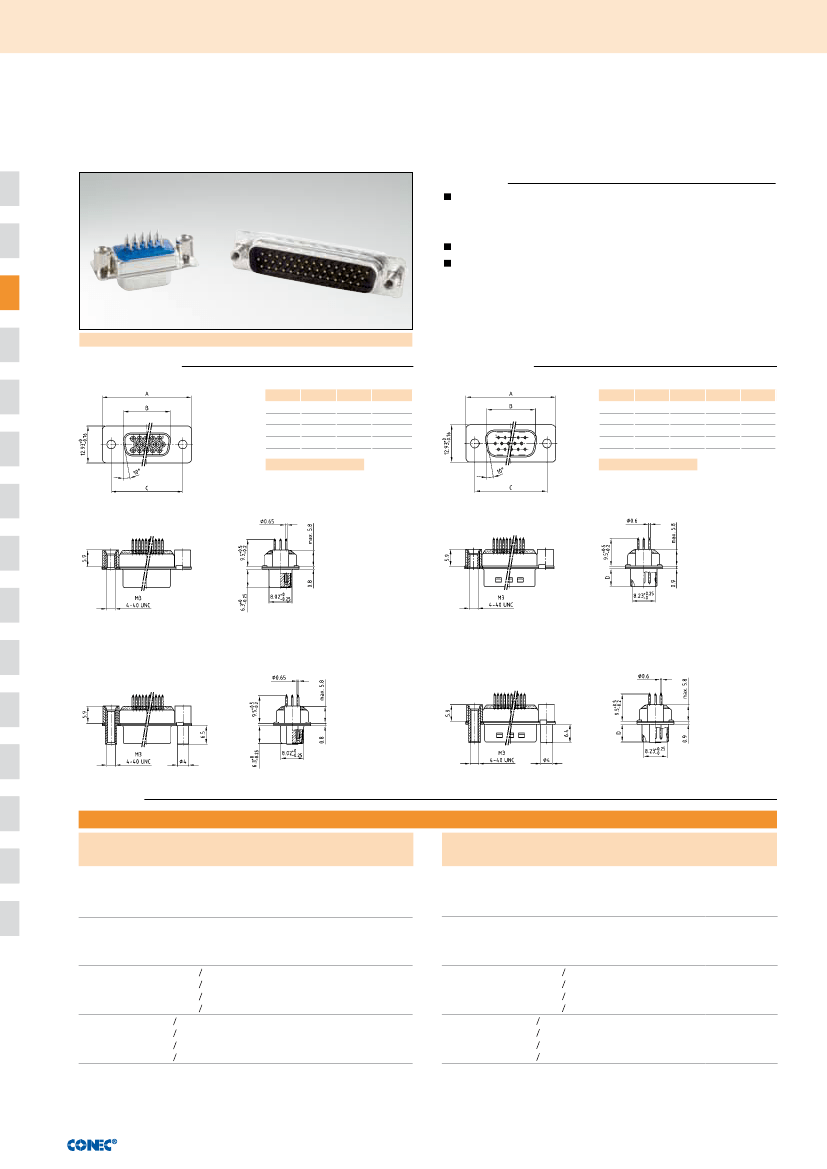

Filt e r D- S UB Co n nec to rs

C-Filter D-SUB High Density

Solder pin – Straight – Precision machined contacts

Description

Mounting styles:

- with 4-40 UNC or M3 threaded rear spacer

- with 4-40 UNC or M3 front and threaded rear spacer

Quality class 3 (also available in quality class 1)

Shell: Steel tin plated (brass tin plated on request)

RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784

Socket connector

No. of pos.

Plug connector

-0.76

31.19

39.52

53.42

69.70

-0.25

16.46

24.79

38.50

54.96

25.00

33.30

47.04

63.50

+ 0.12

- 0.13

+ 0.15

- 0.10

± 0.13

No. of pos.

-0.76

31.19

39.52

53.42

69.70

+0.25

16.79

25.12

38.84

55.30

25.00

33.30

47.04

63.50

+ 0.12

- 0.13

+ 0.15

- 0.10

± 0.13

-0.3

6.12

5.99

PCB layout: Kat1iT9A

PCB layout: Kat1iU0A

Mounting style: Threaded rear spacer

Mounting style: Front and threaded rear spacer

Order data

Capacitance 180 pF

Socket connector

No. of pos. Mounting style

4-40 UNC Threaded rear spacer

M3 Threaded rear spacer

4-40 UNC Front Threaded rear spacer

M3 Front Threaded rear spacer

Plug connector

Part Number

242 A 27500

242 A 27510

242 A 27520

242 A 27530

242 A 27540

242 A 27550

242 A 27560

242 A 27570

242 A 27580

242 A 27590

242 A 27600

242 A 27610

242 A 27620

242 A 27630

242 A 27640

242 A 27650

No. of pos. Mounting style

4-40 UNC Threaded rear spacer

M3 Threaded rear spacer

4-40 UNC Front Threaded rear spacer

M3 Front Threaded rear spacer

Part Number

241 A 27600

241 A 27610

241 A 27620

241 A 27630

241 A 27640

241 A 27650

241 A 27660

241 A 27670

241 A 27680

241 A 27690

241 A 27700

241 A 27710

241 A 27720

241 A 27730

241 A 27740

241 A 27750
