42-13079 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 42-13079

42-13079: DescriptionWire And Cable,; CategoryThe connector Connector bracket; File Size140KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com; Environmental Compliance

Download Datasheet Parametric View All

42-13079 Overview

Wire And Cable,

42-13079 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CONEC
Reach Compliance Code	compliant

Preview

Download Datasheet

View All

Technical specification:

Technische Daten:

Rated Voltage/

Bemessungsspannung:

50 V AC / 60 V DC

IEC 61076-2-104

Current rating/

Strombelastbarkeit:

5 A at /

bei

40°C

>=100 MΩ

5,6

IEC 61076-2-104

Insulation resistance/

Isolationswiderstand:

IEC 60512

Pollution degree/

Verschmutzungsgrad:

3/2

IP 67, in mated condition/

im gesteckten Zustand

IEC 60664-1

Degree of protection/

Schutzart:

IEC 60529

Temperature range/

Umgebungstemperatur:

-30°C ... +80°C

-40°C

-40°C ... +85°C

>=100

EN 60512-11-10

EN 60512-11-4

Mating cycles/

Steckzyklen:

IEC 60512-9a

Cable specification:

Kabeleigenschaften:

Temperatur range/

Umgebungstemperatur:

static/

fest verlegt

flexible/

bewegt

-40°C ... +80°C

-25°C ... +80°C

Materials/

Werkstoffe:

Contact/

Kontakt:

CuZn, Ni / Au 0,2 gal.

PA, UL 94 V-0

TPU, UL 94 HB,

grey/

grau

Contact carrier/

Kontaktträger:

Moulding body/

Griffkörper:

6,9

Contact assignment/

The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization is prohibited. Offenders will be held liable for the payment of damages.

Weitergabe sowie Vervielfältigung dieses Dokuments, Verwertung und Mitteilung seines Inhalts sind verboten, soweit nicht ausdrücklich gestattet. Zuwiderhandlungen verpflichten zu Schadenersatz.

Alle Rechte für den Fall der Patent-, Gebrauchsmuster- oder Geschmacksmustereintragung vorbehalten.

Kontaktbelegung:

brown/

braun

blue/

blau

black/

schwarz

Conec Part no/

Conec Art.-Nr.:

Description/

Beschreibung:

Length L/ Cable/

Länge L:

Kabel:

42 - 13079

42 - 13080

42 - 13081

42 - 13082

42 - xxxxx

tolerance of cable/

Kabeltoleranz:

SAL - 8 - RKS3 - RSS3 - 0,3 / K1 / 05

SAL - 8 - RKS3 - RSS3 - 0,6 / K1 / 05

SAL - 8 - RKS3 - RSS3 - 1,5 / K1 / 05

SAL - 8 - RKS3 - RSS3 - 3 / K1 / 05

SAL - 8 - RKS3 - RSS3 - ... / K1 / 05

dim. in mm

0,3m

0,6m

1,5m

TPU, UL 20549,

black/

schwarz,

3x0,5mm²,

Li9Y11Y,

Cable/

Kabel:

781-K15300

L <= 4m: L + 40mm

L > 4m: L + 1%

0,0

0,00

∢

0,50mm

0,25mm

0,10mm

5°

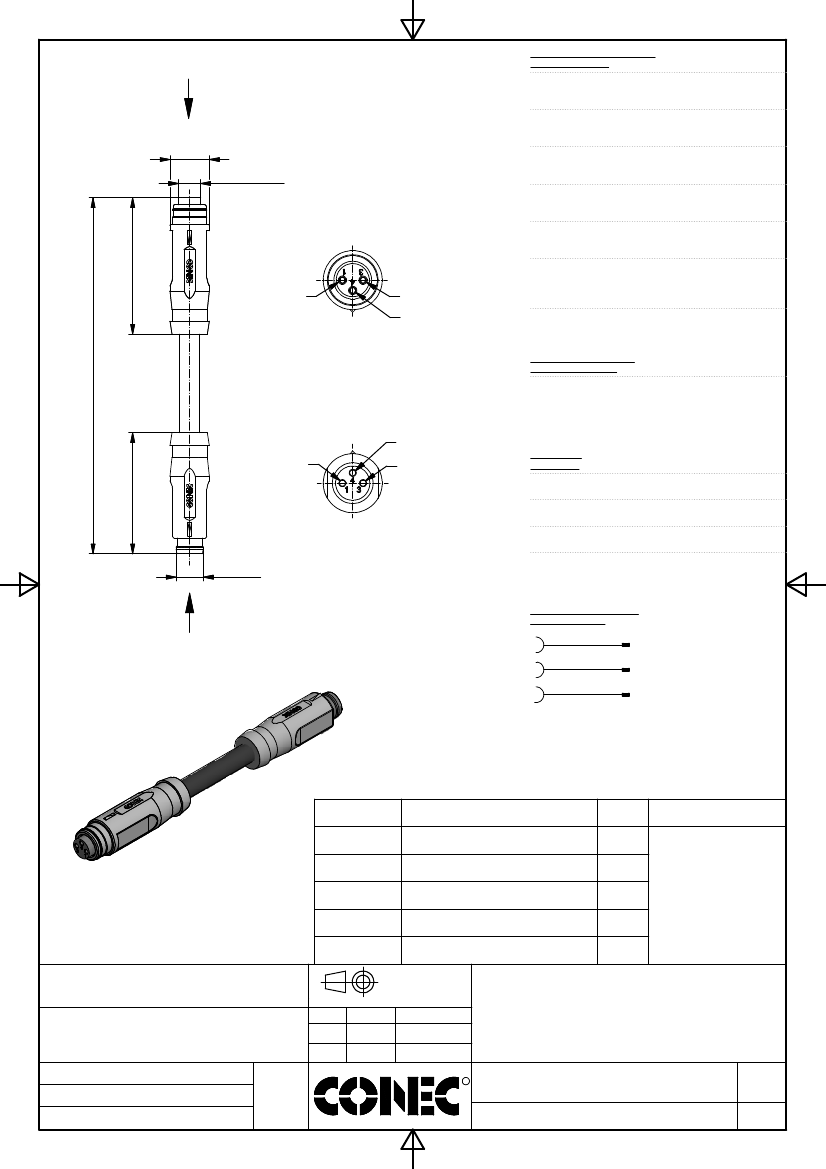

Connecting cable Ø8,

female connector axial - male connector axial, snap

Verbindungsleitung Ø8,

Kupplung axial - Stecker axial, snap

Date/

Datum

drawn

gez.

Name

general tolerance/

Allgemeintoleranz:

29.01.18

Christen

Wietfeld

Z.-nr.:

appd./

gepr.

Index:

Status:

a Original

Freigegeben

scale

Maßstab

dwg no /

42K1A1713

DIN-

RoHS & REACH compliant/

konform

1/1
