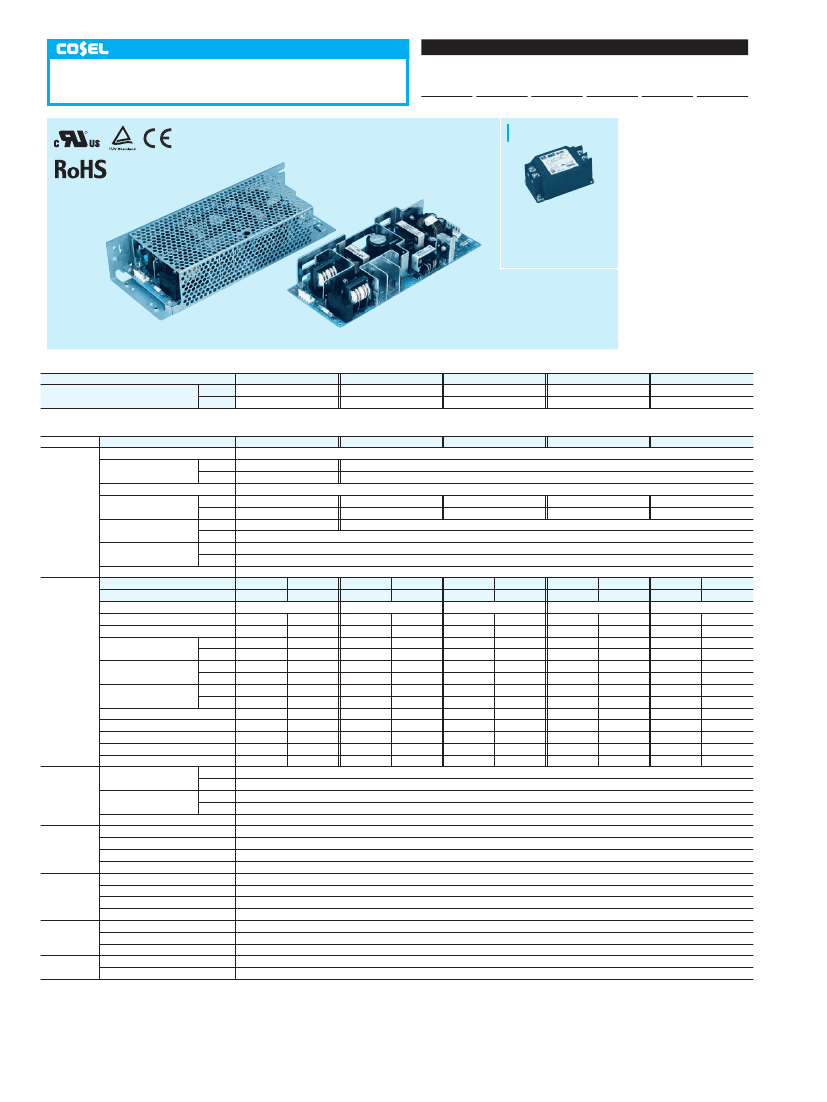

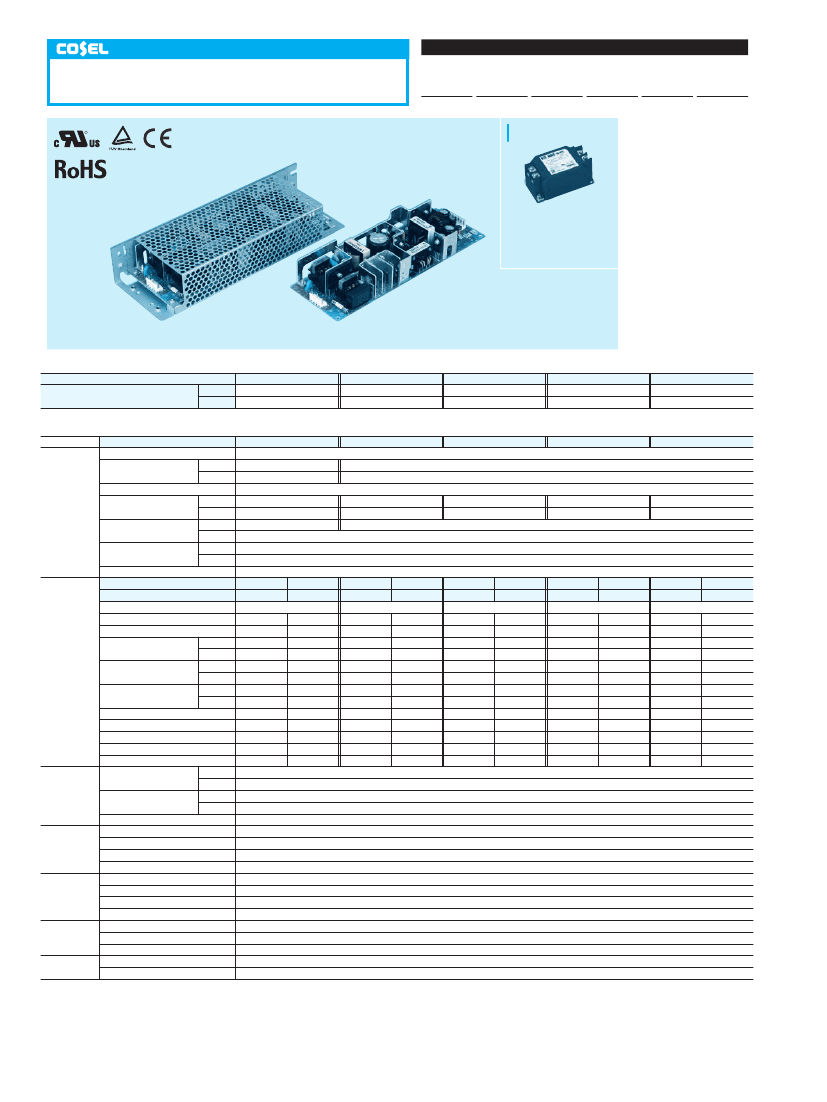

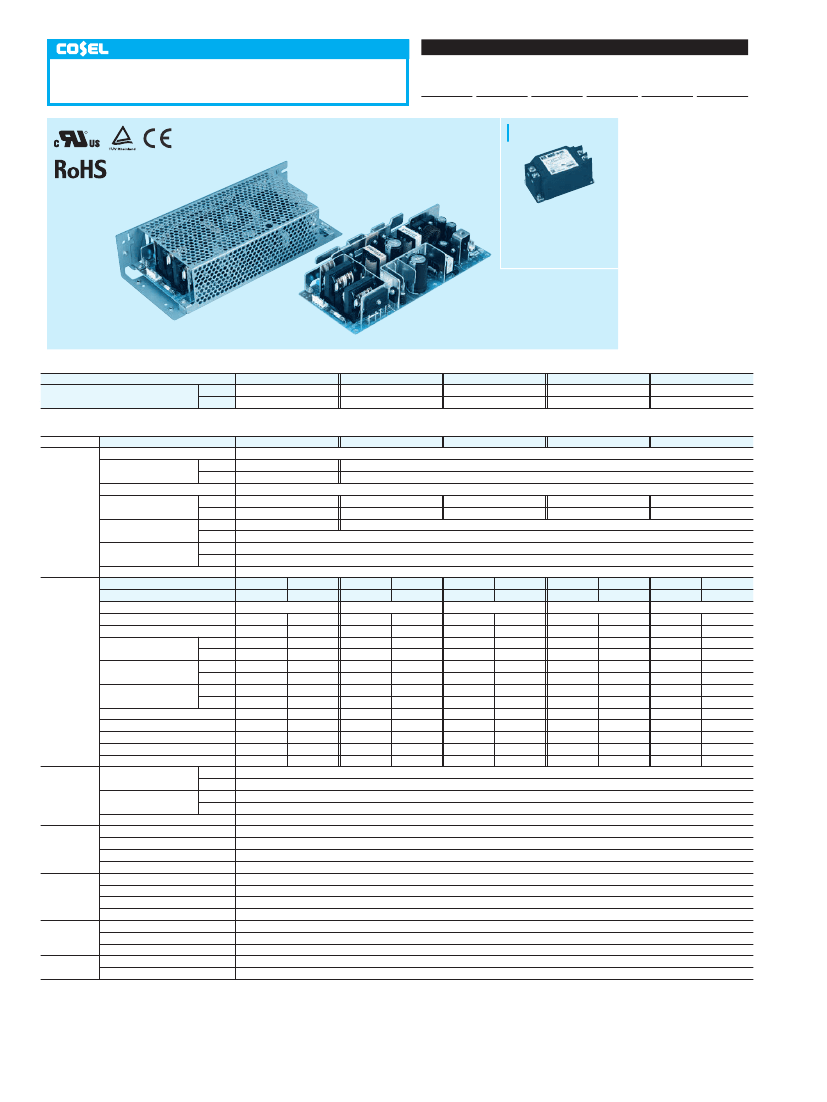

AC-DC Power Supplies Open Frame/ Enclosed Type
Ordering information
LEB100F
LEB 100
1
2
3
F
-05
4
24
5
6
-O
R
Example recommended EMI/EMC filter
NAC-06-472
High voltage pulse noise type : NAP series
Low leakage current type : NAM series
*
higher current rating EMI/EMC filter
A
may be recommended in view of the
other devices that could be connected
in parallel with the power supply.
1
Series name
2
Output wattage
3
Universal input
4
V1 Output voltage
5
V2 Output voltage
6
Optional
*1 *8
G : Low leakage current
R : with Remote ON/OFF
S : with Chassis
SN : with Chassis & cover
T : Vertical terminal block
Y : with Potentiometer
Z : with ZT
*Make
sure necessary tests will be carried out on your end equipment with the power supply installed in accordance with any required EMC/EMI regulations.
MODEL
DC OUTPUT
V1
V2
LEB100F-0512
+5V 5A
+12V 5(Peak 10)A
LEB100F-0324
+3.3V 5A
+24V 4(Peak 7)A
LEB100F-0524
+5V 5A
+24V 4(Peak 7)A
LEB100F-0530
+5V 5A
+30V 3.2(Peak 5.6)A
LEB100F-0536
+5V 5A
+36V 2.7(Peak 4.7)A
SPECIFICATIONS
MODEL
VOLTAGE[V]
CURRENT[A]
FREQUENCY[Hz]
INPUT
ACIN 100V
ACIN 200V
ACIN 100V
POWER FACTOR
ACIN 200V
ACIN 100V
INRUSH CURRENT[A]
ACIN 200V
LEAKAGE CURRENT[mA]
VOLTAGE[V]
CURRENT[A]
*
2
TOTAL OUTPUT WATTAGE[W]
*
3
LINE REGULATION[mV]
LOAD REGULATION[mV]
0 to +50
C
*
4
RIPPLE[mVp-p]
-10 - 0
C
*
4
0 to +50
C
*
4
RIPPLE NOISE[mVp-p]
-10 - 0
C
*
4
0 to +50
C
TEMPERATURE REGULATION[mV]
-10 to +50
C
DRIFT[mV]
*
5
START-UP TIME[ms]
*
6
HOLD-UP TIME[ms]
*
6
OUTPUT VOLTAGE ADJUSTMENT RANGE[V]
OUTPUT VOLTAGE SETTING[V]
V1
OVERCURRENT PROTECTION
V2
V1
OVERVOLTAGE PROTECTION
V2
REMOTE ON/OFF
INPUT-OUTPUT
-
RC
*
7
INPUT-FG
OUTPUT
-
RC-FG
*
7
OUTPUT-OUTPUT(V1
-
RC-V2)
*
7
OPERATING TEMP.,HUMID.AND ALTITUDE
STORAGE TEMP.,HUMID.AND ALTITUDE
VIBRATION
IMPACT
AGENCY APPROVALS
CONDUCTED NOISE
HARMONIC ATTENUATOR
CASE SIZE/WEIGHT
COOLING METHOD
EFFICIENCY[%]
ACIN 100V
ACIN 200V
LEB100F-0512
LEB100F-0324
LEB100F-0524
LEB100F-0530
AC85 - 264 1
f
or DC 120 - 370
1.2typ (Io=100%)
1.4typ (Io=100%)
0.6typ (Io=100%)
0.7typ (Io=100%)
50/60 (47 - 63) or DC
74typ (Io=100%)
78typ (Io=100%)
78typ (Io=100%)
78typ (Io=100%)
(Io=100%)
(Io=100%)
(Io=100%)
76typ
80typ
80typ
80typ (Io=100%)
0.98typ
0.99typ
0.93typ
15typ (Io=100%) (At cold start) (Ta=25
C
)
30typ (Io=100%) (At cold start) (Ta=25
C
)
0.75max (60Hz, According to IEC60950 and DEN-AN)
+5
+12
+3.3
+24
+5
+24
+5
+30
0-5
0 - 5 (Peak 10) 0 - 5
0 - 4 (Peak 7) 0 - 5
0 - 4 (Peak 7) 0 - 5
0 - 3.2 (Peak 5.6)
85 (Peak 145)
100 (Peak 172)
100 (Peak 172)
100 (Peak 172)
20max
48max
20max
96max
20max
96max
20max
120max
40max
100max
40max
150max
40max
150max
40max
180max
80max
120max
80max
120max
80max
120max
80max
200max
140max
160max
140max
160max
140max
160max
140max
240max
120max
150max
120max
150max
120max
150max
120max
300max
160max
180max
160max
180max
160max
180max
160max
360max
50max
120max
50max
240max
50max
240max
50max
300max
60max
150max
60max
290max
60max
290max
60max
350max
20max
48max
20max
96max
20max
96max
20max
120max
250max
500max
250max
500max
250max
500max
250max
500max
40typ
20typ
40typ
20typ
40typ
20typ
40typ
20typ
4.5 - 5.5
Fixed
2.85 - 3.60 Fixed
4.5 - 5.5
Fixed
4.5 - 5.5
Fixed
11.5 - 12.5
xx
23.0 - 25.0
xx
23.0 - 25.0
xx
28.7 - 31.5
xx
Works over 105% of rating current and recovers automatically
Works over 101% of peak current and recovers automatically
Works over 115% of rating, by zener diode clamping
Works at 115 - 140% of rating
Option (Refer to Instruction Manual)
AC3,000V 1minute, Cutoff current = 10mA, DC500V 50M
W
min (At Room Temperature)
AC2,000V 1minute, Cutoff current = 10mA, DC500V 50M
W
min (At Room Temperature)
AC500V 1minute, Cutoff current = 100mA, DC500V 50M
W
min (At Room Temperature)
AC100V 1minute, Cutoff current = 100mA, DC100V 10M
W
min (At Room Temperature)
-10 to +70
C
, 20 - 90%RH (Non condensing) (Refer to DERATING CURVE), 3,000m (10,000feet) max
-20 to +75
C
, 20 - 90%RH (Non condensing), 9,000m (30,000feet) max
10 - 55Hz, 19.6m/s
2
(2G), 3minutes period, 60minutes each along X, Y and Z axis
196.1m/s
2
(20G), 11ms, once each X, Y and Z axis
UL60950-1, C-UL, EN60950-1, EN50178 Complies with DEN-AN and IEC60950-1 (At only AC input)
Complies with FCC-B, CISPR22-B, EN55022-B, VCCI-B
Complies with IEC61000-3-2
*
9
75
X
35
X
222mm [2.95
X
1.38
X
8.74 inches] (W
X
H
X
D) /420g max (with chassis & cover : 690g max)
Convection
*6
*7
*8
*9
*
*
*
LEB100F-0536
78typ
80typ
(Io=100%)
(Io=100%)
OUTPUT
+5
+36
0-5
0 - 2.7 (Peak 4.7)
100 (Peak 172)
20max
144max
40max
180max
80max
200max
140max
240max
120max
300max
160max
360max
50max
300max
60max
350max
20max
144max
250max
500max
40typ
20typ
4.5 - 5.5
Fixed
34.5 - 37.5
xx
PROTECTION
CIRCUIT AND
OTHERS
ISOLATION
ENVIRONMENT
SAFETY AND
NOISE
REGULATIONS
OTHERS
*1
*2
*3
*4
Specification is changed at option, refer to Instruction Manual 5.
Peak loading for 10sec. And Duty 35% max, refer to Instruction Manual 4. In detail.
Refer to Instruction Manual 2.2 in detail.
This is the value that measured on measuring board with capacitor of 22mF within 150mm
from output terminal.Measured by 20MHz oscilloscope or Ripple-Noise meter (Equivalent to
KEISOKU-GIKEN: RM101).
*5
Drift is the change in DC output for an eight hour period after a half-hour warm-up at 25C,
with the input voltage held constant at the rated input/output.
ACIN 100V,lo=100%
Applicable when remote control (optional) is added.
Please contact us about safety approvals for the model with option.
Please contact us about class C.
Series/Parallel operation is not possible.
Derating is required when operated with chassis and cover.
A sound may occur from power supply at peak loading.
LEB-2
LEB100F

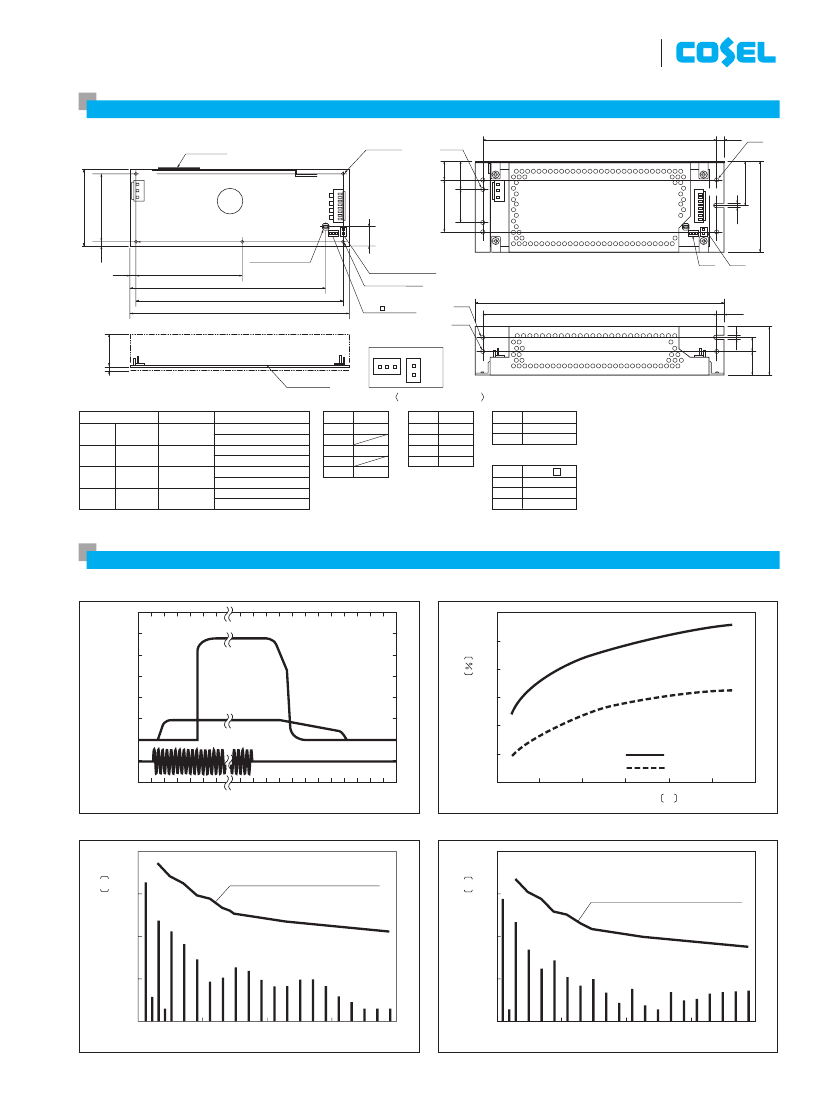

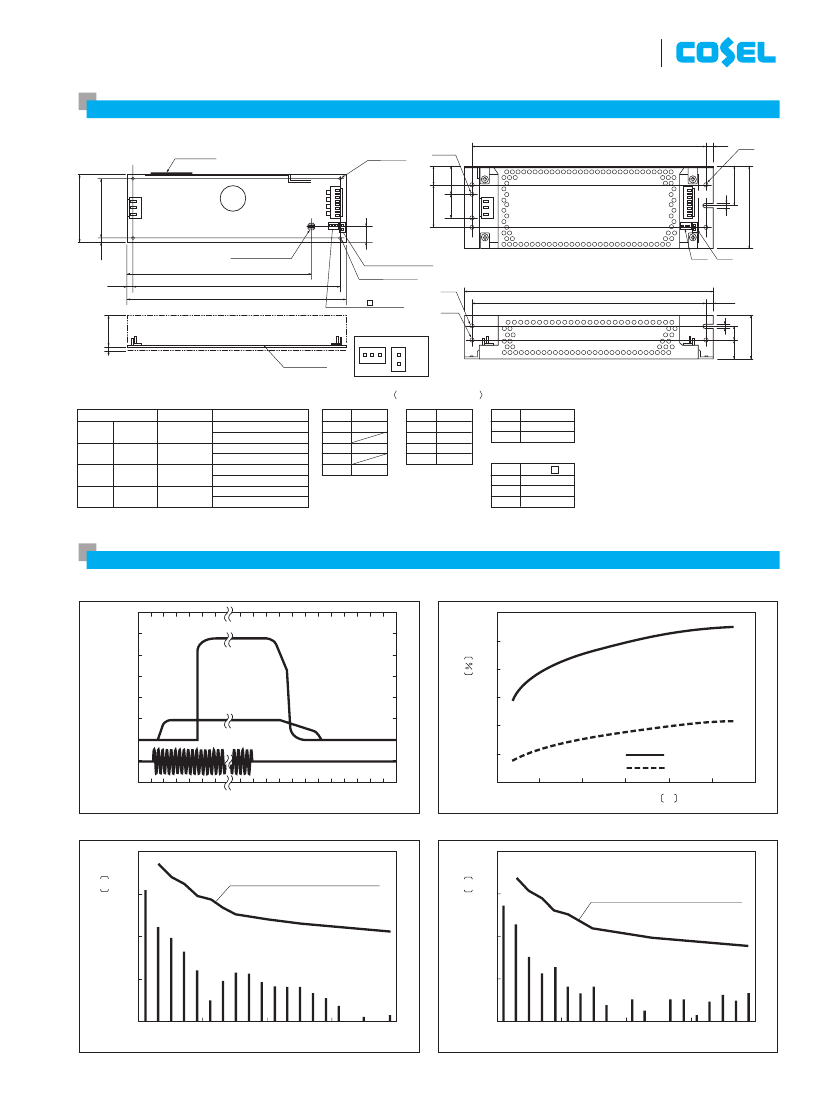

External view
+
235
-0.5
Name plate
3-º3.5 [0.14]
Mounting
Hole
CN2
2-º4.5
[0.18]
[9.25]
8
[0.31]
4-M4
Mounting
Hole
20
[0.79]
30
[1.18]
+
65
-0.5
CN1
[2.95]
CN3
CN4
[0.2]
Voltage adjust
(V1)
[0.67]
(17)
(197)
5
[0.2]
[7.76]
212 +
0.5
-
[8.35]
Connector for Remote
ON/OFF (option)
º3.5-4.0
[0.14-0.16]
Mounting Hole
º4.5
CN4
5
[8.74]
[1.26]
222
Connector for
-Z (option)
[0.18]
2-M4
Mounting
Hole
[9.92]
252
+
235
-0.5
[9.25]
CN4
CN3
RC(-)
(Lead)
3
max
[0.12]
PCB t=1.6
[0.06]
+
COM
-
RC(+)
I / O Connector Mating Connector
Terminal
Chain : SVH-21T-P1.1
CN1
VHR-5N
B3P5-VH
Loose: BVH-21T-P1.1
Chain : SVH-21T-P1.1
CN2
VHR-8N
B8P-VH
Loose: BVH-21T-P1.1
Chain : SXH-001T-P0.6
CN3
XHP-2
(Option) B2B-XH-A
Loose: BXH-001T-P0.6
Chain : SXH-001T-P0.6
CN4
XHP-3
(Option) B3B-XH-A
Loose: BXH-001T-P0.6
(Mfr: J.S.T.)
CN1
Pin No. Input
1
AC(L)
2
3
AC(N)
4
5
FG
PIN CONNECTION
CN2
Pin No. Output
G2
1, 2
V2
3, 4
G1
5, 6
V1
7, 8
CN3
(Option)
Pin No. Remote ON/OFF
1
RC(+)
2
RC(-)
CN4
(Option)
Pin No.
-Z
1
+
COM
2
-
3
¶Weight:
420g max
(with chassis & cover : 690g max)
¶Tolerance:
t
1 [t0.04]
¶Dimensions
in mm, [ ]= inches
¶PCB
Material : CEM3
¶Chassis
and cover is optional.
¶Mounting
torque: 1.5N
·
m(16kgf
·
cm)max
¶Keep
drawing current per pin below 5A for CN2
Performance data
¡
RISE TIME & FALL TIME (LEB100F-0524)
+24V
ACIN 100V Io=100%
¡
EFFICIENCY (LEB100F-0524)
82
80
78
EFFICIENCY
DC Output
76
+5V
AC Input
74
72
Load factor100%
Load factor 50%
100
140
180
220
260
300
100ms/DIV
20ms/DIV
70
60
INPUT VOLTAGE
V
¡
INPUT HARMONIC CURRENT (LEB100F-0524)
10
¡
INPUT HARMONIC CURRENT (LEB100F-0524)
10
A
HARMONIC CURRENT
HARMONIC CURRENT
1
Load factor
100%
Input voltage AC 100V
A
Harmonic current standard class A
(at odd number)
1
Harmonic current standard class A
(at odd number)
Load factor
100%
Input voltage AC 230V
0.1
0.1
0.01
0.01
0.001
0
10
20
30
40
0.001
0
10
20
30
HARMONIC ORDER
HARMONIC ORDER
4.5
20 [0.18]
[0.79] 15
[0.59]
46
[1.81]
40
32
4.5
[0.18]
CN3
5
3
1
FG
AC
(N)
AC
(L)
[2.56]
+
45
-0.5
[1.77]
+
25
-0.5
[0.98]
75
8
[0.31]
85
[3.35]
C1
19
G2
+V2
G1
+V1
1
4
5
8
CN1
CN2
42
[1.65]
LEB-3
AC-DC Power Supplies Open Frame/ Enclosed Type
Ordering information
LEB150F
LEB 150
1
2
3
F
-05
4
24
5
6
-O
R
Example recommended EMI/EMC filter
NAC-06-472
High voltage pulse noise type : NAP series
Low leakage current type : NAM series
*
higher current rating EMI/EMC filter
A
may be recommended in view of the
other devices that could be connected
in parallel with the power supply.
1
Series name
2
Output wattage
3
Universal input
4
V1 Output voltage
5
V2 Output voltage
6
Optional
*1 *8
G : Low leakage current
R : with Remote ON/OFF
S : with Chassis
SN : with Chassis & cover
T : Vertical terminal block
Y : with Potentiometer
Z : with ZT
*Make
sure necessary tests will be carried out on your end equipment with the power supply installed in accordance with any required EMC/EMI regulations.
MODEL
DC OUTPUT
V1
V2
LEB150F-0512
+5V 5A
+12V 7.5(Peak 14)A
LEB150F-0324
+3.3V 5A
+24V 6(Peak 10)A
LEB150F-0524
+5V 5A
+24V 6(Peak 10)A
LEB150F-0530
+5V 5A
+30V 4.8(Peak 8)A
LEB150F-0536
+5V 5A
+36V 4(Peak 6.7)A
SPECIFICATIONS
MODEL
VOLTAGE[V]
CURRENT[A]
FREQUENCY[Hz]
INPUT
ACIN 100V
ACIN 200V
ACIN 100V
POWER FACTOR
ACIN 200V
ACIN 100V
INRUSH CURRENT[A]
ACIN 200V
LEAKAGE CURRENT[mA]
VOLTAGE[V]
CURRENT[A]
*
2
TOTAL OUTPUT WATTAGE[W]
*
3
LINE REGULATION[mV]
LOAD REGULATION[mV]
0 to +45
C
*
4
RIPPLE[mVp-p]
-10 - 0
C
*
4
0 to +45
C
*
4
RIPPLE NOISE[mVp-p]
-10 - 0
C
*
4
0 to +45
C
TEMPERATURE REGULATION[mV]
-10 to +45
C
DRIFT[mV]
*
5
START-UP TIME[ms]
*
6
HOLD-UP TIME[ms]
*
6
OUTPUT VOLTAGE ADJUSTMENT RANGE[V]
OUTPUT VOLTAGE SETTING[V]
V1
OVERCURRENT PROTECTION
V2
V1
OVERVOLTAGE PROTECTION
V2
REMOTE ON/OFF
INPUT-OUTPUT
-
RC
*
7
INPUT-FG
OUTPUT
-
RC-FG
*
7
OUTPUT-OUTPUT(V1
-
RC-V2)
*
7
OPERATING TEMP.,HUMID.AND ALTITUDE
STORAGE TEMP.,HUMID.AND ALTITUDE
VIBRATION
IMPACT
AGENCY APPROVALS
CONDUCTED NOISE
HARMONIC ATTENUATOR
CASE SIZE/WEIGHT
COOLING METHOD
EFFICIENCY[%]
ACIN 100V
ACIN 200V
LEB150F-0512
LEB150F-0324
LEB150F-0524
LEB150F-0530
AC85 - 264 1
f
or DC 120 - 370
1.6typ (Io=100%)
2.0typ (Io=100%)
0.8typ (Io=100%)
1.0typ (Io=100%)
50/60 (47 - 63) or DC
76typ (Io=100%)
79typ (Io=100%)
79typ (Io=100%)
79typ (Io=100%)
(Io=100%)
(Io=100%)
(Io=100%)
79typ
82typ
82typ
82typ (Io=100%)
0.98typ
0.99typ
0.93typ
15typ (Io=100%) (At cold start) (Ta=25
C
)
30typ (Io=100%) (At cold start) (Ta=25
C
)
0.75max (60Hz, According to IEC60950 and DEN-AN)
+5
+12
+3.3
+24
+5
+24
+5
+30
0-5
0 - 7.5 (Peak 14) 0 - 5
0 - 6 (Peak 10) 0 - 5
0 - 6 (Peak 10) 0 - 5
0 - 4.8 (Peak 8)
115 (Peak 193)
150 (Peak 246)
150 (Peak 246)
150 (Peak 246)
20max
48max
20max
96max
20max
96max
20max
120max
40max
100max
40max
150max
40max
150max
40max
180max
80max
120max
80max
120max
80max
120max
80max
200max
140max
160max
140max
160max
140max
160max
140max
240max
120max
150max
120max
150max
120max
150max
120max
300max
160max
180max
160max
180max
160max
180max
160max
360max
50max
120max
50max
240max
50max
240max
50max
300max
60max
150max
60max
290max
60max
290max
60max
350max
20max
48max
20max
96max
20max
96max
20max
120max
250max
500max
250max
500max
250max
500max
250max
500max
40typ
20typ
40typ
20typ
40typ
20typ
40typ
20typ
4.5 - 5.5
Fixed
2.85 - 3.60 Fixed
4.5 - 5.5
Fixed
4.5 - 5.5
Fixed
11.5 - 12.5
xx
23.0 - 25.0
xx
23.0 - 25.0
xx
28.7 - 31.5
xx
Works over 105% of rating current and recovers automatically
Works over 101% of peak current and recovers automatically
Works over 115% of rating, by zener diode clamping
Works at 115 - 140% of rating
Option (Refer to Instruction Manual)
AC3,000V 1minute, Cutoff current = 10mA, DC500V 50M
W
min (At Room Temperature)
AC2,000V 1minute, Cutoff current = 10mA, DC500V 50M
W
min (At Room Temperature)
AC500V 1minute, Cutoff current = 100mA, DC500V 50M
W
min (At Room Temperature)
AC100V 1minute, Cutoff current = 100mA, DC100V 10M
W
min (At Room Temperature)
-10 to +70
C
, 20 - 90%RH (Non condensing) (Refer to DERATING CURVE), 3,000m (10,000feet) max
-20 to +75
C
, 20 - 90%RH (Non condensing), 9,000m (30,000feet) max
10 - 55Hz, 19.6m/s
2
(2G), 3minutes period, 60minutes each along X, Y and Z axis
196.1m/s
2
(20G), 11ms, once each X, Y and Z axis
UL60950-1, C-UL, EN60950-1, EN50178 Complies with DEN-AN and IEC60950-1 (At only AC input)
Complies with FCC-B, CISPR22-B, EN55022-B, VCCI-B
Complies with IEC61000-3-2
*
9
85
X
40
X
222mm [3.35
X
1.57
X
8.74 inches] (W
X
H
X
D) /530g max (with chassis & cover : 870g max)
Convection
*6
*7
*8
*9
*
*
*
LEB150F-0536
79typ
82typ
(Io=100%)
(Io=100%)
OUTPUT
+5
+36
0-5
0 - 4 (Peak 6.7)
150 (Peak 246)
20max
144max
40max
180max
80max
200max
140max
240max
120max
300max
160max
360max
50max
300max
60max
350max
20max
144max
250max
500max
40typ
20typ
4.5 - 5.5
Fixed
34.5 - 37.5
xx
PROTECTION
CIRCUIT AND
OTHERS
ISOLATION
ENVIRONMENT
SAFETY AND
NOISE
REGULATIONS
OTHERS
*1
*2
*3
*4
Specification is changed at option, refer to Instruction Manual 5.
Peak loading for 10sec. And Duty 35% max, refer to Instruction Manual 4. In detail.
Refer to Instruction Manual 2.2 in detail.
This is the value that measured on measuring board with capacitor of 22mF within 150mm
from output terminal.Measured by 20MHz oscilloscope or Ripple-Noise meter (Equivalent to
KEISOKU-GIKEN: RM101).
*5
Drift is the change in DC output for an eight hour period after a half-hour warm-up at 25C,
with the input voltage held constant at the rated input/output.
ACIN 100V,lo=100%
Applicable when remote control (optional) is added.
Please contact us about safety approvals for the model with option.
Please contact us about class C.
Series/Parallel operation is not possible.
Derating is required when operated with chassis and cover.
A sound may occur from power supply at peak loading.
LEB-4
LEB150F
External view
Name plate
4-º3.5
[0.14]
Mounting
Hole
CN2
2-º4.5
[0.18]
+
235
-0.5
[9.25]
8
[0.31]
4-M4
Mounting
Hole
[0.79]
+
75
-0.5
[2.95]
[3.35]
CN3
[0.2]
Voltage adjust
(V1)
5
(24)
CN4
5
[0.2]
+
105
-
0.5
[4.13]
Connector for Remote
ON/OFF (option)
º3.5-4.0
[0.14-0.16]
Mounting Hole
Connector for
-Z (option)
[0.94]
CN4
CN3
(204)
[8.03]
+
212
-
0.5
[8.35]
222
[8.74]
º4.5
[0.18]
2-M4
Mounting
Hole
[9.92]
252
+
235
-0.5
[9.25]
8
[0.31]
CN4
CN3
RC(-)
[0.12]
(Lead)
3
max
PCB t=1.6
[0.06]
+
COM
-
RC(+)
I / O Connector Mating Connector
Terminal
Chain : SVH-21T-P1.1
CN1
VHR-5N
B3P5-VH
Loose: BVH-21T-P1.1
Chain : SVH-21T-P1.1
CN2
VHR-8N
B8P-VH
Loose: BVH-21T-P1.1
Chain : SXH-001T-P0.6
CN3
XHP-2
(Option) B2B-XH-A
Loose: BXH-001T-P0.6
Chain : SXH-001T-P0.6
CN4
XHP-3
(Option) B3B-XH-A
Loose: BXH-001T-P0.6
(Mfr: J.S.T.)
CN1
Pin No. Input
1
AC(L)
2
3
AC(N)
4
5
FG
PIN CONNECTION
CN2
Pin No. Output
G2
1, 2
V2
3, 4
G1
5, 6
V1
7, 8
CN3
(Option)
Pin No. Remote ON/OFF
1
RC(+)
2
RC(-)
CN4
(Option)
Pin No.
-Z
1
+
COM
2
-
3
¶Weight:
530g max
(with chassis & cover : 870g max)
¶Tolerance:
t
1 [t0.04]
¶Dimensions
in mm, [ ]= inches
¶PCB
Material : CEM3
¶Chassis
and cover is optional.
¶Mounting
torque: 1.5N
·
m(16kgf
·
cm)max
¶Keep
drawing current per pin below 5A(7A at peak load)for CN2
Performance data
¡
RISE TIME & FALL TIME (LEB150F-0524)
+24V
ACIN 100V Io=100%
¡
EFFICIENCY (LEB150F-0524)
84
82
80
EFFICIENCY
DC Output
78
+5V
AC Input
76
74
Load factor100%
Load factor 50%
100
140
180
220
260
300
100ms/DIV
20ms/DIV
72
60
INPUT VOLTAGE
V
¡
INPUT HARMONIC CURRENT (LEB150F-0524)
10
¡
INPUT HARMONIC CURRENT (LEB150F-0524)
10
A
HARMONIC CURRENT
HARMONIC CURRENT
1
Load factor
100%
Input voltage AC 100V
A
Harmonic current standard class A
(at odd number)
1
Harmonic current standard class A
(at odd number)
Load factor
100%
Input voltage AC 230V
0.1
0.1
0.01
0.01
0.001
0
10
20
30
40
0.001
0
10
20
30
HARMONIC ORDER
HARMONIC ORDER
25 15
[0.98] [0.59]
51
[2.01]
40
[1.46]
37
[0.18]
4.5
[0.18]
4
5
8
CN1
4.5
LEB-5
[3.74]
85
95
C1
19
+
55
-0.5
[2.17]
+
35
-0.5
[1.38]
5
3
1
FG
AC
(N)
AC
(L)
G2
+V2
G1
+V1
1
CN2
[1.85]
47
CN1
[1.18]
20
30
AC-DC Power Supplies Open Frame/ Enclosed Type
Ordering information
LEB225F
LEB 225
1
2
3
F
-05
4
24
5
6
-O
R
Example recommended EMI/EMC filter
NAC-06-472
High voltage pulse noise type : NAP series
Low leakage current type : NAM series
*
higher current rating EMI/EMC filter
A
may be recommended in view of the
other devices that could be connected
in parallel with the power supply.
1
Series name
2
Output wattage
3
Universal input
4
V1 Output voltage
5
V2 Output voltage
6
Optional
*1 *8
G : Low leakage current
R : with Remote ON/OFF
S : with Chassis
SN : with Chassis & cover
T : Vertical terminal block
Y : with Potentiometer
Z : with ZT
*Make
sure necessary tests will be carried out on your end equipment with the power supply installed in accordance with any required EMC/EMI regulations.
MODEL
DC OUTPUT
V1
V2
LEB225F-0512
+5V 5A
+12V 10(Peak 20)A
LEB225F-0324
+3.3V 5A
+24V 9(Peak 14)A
LEB225F-0524
+5V 5A
+24V 9(Peak 14)A
LEB225F-0530
+5V 5A
+30V 7.2(Peak 11)A
LEB225F-0536
+5V 5A
+36V 6(Peak 9.3)A
SPECIFICATIONS
MODEL
VOLTAGE[V]
CURRENT[A]
FREQUENCY[Hz]
INPUT
ACIN 100V
ACIN 200V
ACIN 100V
POWER FACTOR
ACIN 200V
ACIN 100V
INRUSH CURRENT[A]
ACIN 200V
LEAKAGE CURRENT[mA]
VOLTAGE[V]
CURRENT[A]
*
2
TOTAL OUTPUT WATTAGE[W]
*
3
LINE REGULATION[mV]
LOAD REGULATION[mV]
0 to +40
C
*
4
RIPPLE[mVp-p]
-10 - 0
C
*
4
0 to +40
C
*
4
RIPPLE NOISE[mVp-p]
-10 - 0
C
*
4
0 to +40
C
TEMPERATURE REGULATION[mV]
-10 to +40
C
DRIFT[mV]
*
5
START-UP TIME[ms]
*
6
HOLD-UP TIME[ms]
*
6
OUTPUT VOLTAGE ADJUSTMENT RANGE[V]
OUTPUT VOLTAGE SETTING[V]
V1
OVERCURRENT PROTECTION
V2
V1
OVERVOLTAGE PROTECTION
V2
REMOTE ON/OFF
INPUT-OUTPUT
-
RC
*
7
INPUT-FG
OUTPUT
-
RC-FG
*
7
OUTPUT-OUTPUT(V1
-
RC-V2)
*
7
OPERATING TEMP.,HUMID.AND ALTITUDE
STORAGE TEMP.,HUMID.AND ALTITUDE
VIBRATION
IMPACT
AGENCY APPROVALS
CONDUCTED NOISE
HARMONIC ATTENUATOR
CASE SIZE/WEIGHT
COOLING METHOD
EFFICIENCY[%]
ACIN 100V
ACIN 200V
LEB225F-0512
LEB225F-0524
LEB225F-0530
=
LEB225F-0324
AC85 - 264 1
f
or DC 120 - 370
1.9typ (Io=100%)
3.0typ (Io=100%)
1.0typ (Io=100%)
1.5typ (Io=100%)
50/60 (47 - 63) or DC
77typ (Io=100%)
81typ (Io=100%)
81typ (Io=100%)
81typ (Io=100%)
(Io=100%)
(Io=100%)
(Io=100%)
79typ
83typ
83typ
83typ (Io=100%)
0.98typ
0.99typ
0.93typ
15typ (Io=100%) (More than 3sec.to re-start)
30typ (Io=100%) (More than 3sec.to re-start)
0.75max (60Hz, According to IEC60950 and DEN-AN)
+5
+12
+3.3
+24
+5
+24
+5
+30
0-5
0 - 10 (Peak 20) 0 - 5
0 - 9 (Peak 14) 0 - 5
0 - 9 (Peak 14) 0 - 5
0 - 7.2 (Peak 11)
145 (Peak 265)
225 (Peak 345)
225 (Peak 345)
225 (Peak 345)
20max
48max
20max
96max
20max
96max
20max
120max
40max
100max
40max
150max
40max
150max
40max
180max
80max
120max
80max
120max
80max
120max
80max
200max
140max
160max
140max
160max
140max
160max
140max
240max
120max
150max
120max
150max
120max
150max
120max
300max
160max
180max
160max
180max
160max
180max
160max
360max
50max
120max
50max
240max
50max
240max
50max
300max
60max
150max
60max
290max
60max
290max
60max
350max
20max
48max
20max
96max
20max
96max
20max
120max
250max
500max
250max
500max
250max
500max
250max
500max
40typ
20typ
40typ
20typ
40typ
20typ
40typ
20typ
4.5 - 5.5
Fixed
2.85 - 3.60 Fixed
4.5 - 5.5
Fixed
4.5 - 5.5
Fixed
11.5 - 12.5
xx
23.0 - 25.0
xx
23.0 - 25.0
xx
28.7 - 31.5
xx
Works over 105% of rating current and recovers automatically
Works over 101% of peak current and recovers automatically
Works over 115% of rating, by zener diode clamping
Works at 115 - 140% of rating
Option (Refer to Instruction Manual)
AC3,000V 1minute, Cutoff current = 10mA, DC500V 50M
W
min (At Room Temperature)
AC2,000V 1minute, Cutoff current = 10mA, DC500V 50M
W
min (At Room Temperature)
AC500V 1minute, Cutoff current = 100mA, DC500V 50M
W
min (At Room Temperature)
AC100V 1minute, Cutoff current = 100mA, DC100V 10M
W
min (At Room Temperature)
-10 to +70
C
, 20 - 90%RH (Non condensing) (Refer to DERATING CURVE), 3,000m (10,000feet) max
-20 to +75
C
, 20 - 90%RH (Non condensing), 9,000m (30,000feet) max
10 - 55Hz, 19.6m/s
2
(2G), 3minutes period, 60minutes each along X, Y and Z axis
196.1m/s
2
(20G), 11ms, once each X, Y and Z axis
UL60950-1, C-UL, EN60950-1, EN50178 Complies with DEN-AN and IEC60950-1 (At only AC input)
Complies with FCC-B, CISPR22-B, EN55022-B, VCCI-B
Complies with IEC61000-3-2
*
9
95
X
45
X
222mm [3.74
X
1.77
X
8.74 inches] (W
X
H
X
D) /700g max (with chassis & cover : 1,080g max)
Convection
=
LEB225F-0536
81typ
83typ
(Io=100%)
(Io=100%)
OUTPUT
+5
+36
0-5
0 - 6 (Peak 9.3)
225 (Peak 345)
20max
144max
40max
180max
80max
200max
140max
240max
120max
300max
160max
360max
50max
300max
60max
350max
20max
144max
250max
500max
40typ
20typ
4.5 - 5.5
Fixed
34.5 - 37.5
xx
PROTECTION
CIRCUIT AND
OTHERS
ISOLATION
ENVIRONMENT
SAFETY AND
NOISE
REGULATIONS
OTHERS
*1
*2
*3
*4
Specification is changed at option, refer to Instruction Manual 5.
Peak loading for 10sec. And Duty 35% max, refer to Instruction Manual 4. In detail.
Refer to Instruction Manual 2.2 in detail.
This is the value that measured on measuring board with capacitor of 22mF within 150mm
from output terminal.Measured by 20MHz oscilloscope or Ripple-Noise meter (Equivalent to
KEISOKU-GIKEN: RM101).
*5
Drift is the change in DC output for an eight hour period after a half-hour warm-up at 25C,
with the input voltage held constant at the rated input/output.
*6
ACIN 100V,lo=100%
*7
Applicable when remote control (optional) is added.
*8
Please contact us about safety approvals for the model with option.
*9
Please contact us about class C.
*
Series/Parallel operation is not possible.
*
Derating is required when operated with chassis and cover.
*
A sound may occur from power supply at peak loading.
=marked
models are pending for safety approvals. Consult with us for delivery.
LEB-6
Embedded System
京公网安备 11010802033920号
EEWORLD
