DBCIDCB2D14AG1: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,14 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,BLACK; CategoryThe connector The connector; File Size105KB，1 Pages; ManufacturerAlpha 3 Manufacturing; Environmental Compliance

Download Datasheet Parametric View All

DBCIDCB2D14AG1 Overview

HEADER CONNECTOR,PCB MNT,PLUG,14 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,BLACK

DBCIDCB2D14AG1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Alpha 3 Manufacturing
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.197 inch
subject depth	0.177 inch
body length	0.7 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	3000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	B2
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14

Preview

Download Datasheet

View All

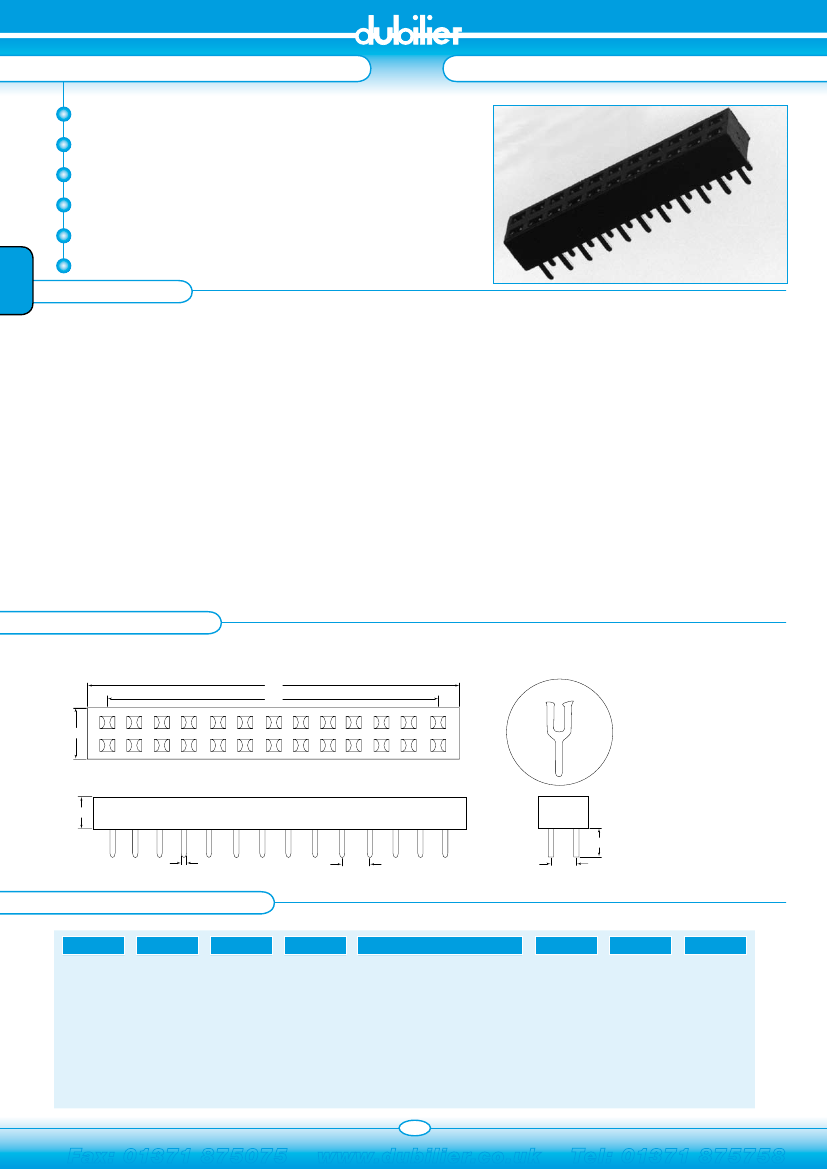

FEMALE HEADERS

Industry compatible

Competitively priced

Dual Row

No. of contacts 02-80

Gold plated contacts

FEMALE HEADER STRAIGHT - 4.5mm PROFILE

SECTION 8

5.0

4.5

2.54mm pitch

SPECIFICATION

Material & Finish

Contact Material:

Insulator Material:

Current Rating:

Brass

PBT & Glass-Fibre Reinforced UL-94V-0

1 A DC

30M Ω Max

3000M Ω Min

Contact Resistance:

Insulator Resistance:

Dielectric Withstanding

Voltage:

A

B

500V AC for One Minute

A

-40°C to + 105°C

B

5.0

Operating Temperature:

OUTLINE

5.0

DRAWING

A = 2.54mm x N° of Contacts

B = (2.54mm x N° of Contacts) -1

A

B

5.0

4.5

2.6

0.6

2.54

2.6

ORDERING INFORMATION

4.5

Dubilier

Connectors

DBC

IDC

Connector

B2

Series

D

Nº of Rows

D = Dual Row

04

Nº of Contacts/per row

02=2way

Thro to

40=40way

A

Contact Material

A=Brass

G

Contact Plating

1

Colour

1=Black

2.6

G= Gold Flash

2.54

0.6

2.54

196

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758
