DBCIDCC226AGA2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DBCIDCC226AGA2

Preview

DBCIDCC226AGA2: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,26 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,LOCKING,GRAY; CategoryThe connector The connector; File Size91KB，1 Pages; ManufacturerAlpha 3 Manufacturing; Environmental Compliance

Download Datasheet Parametric View All

DBCIDCC226AGA2 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,26 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL,LOCKING,GRAY

DBCIDCC226AGA2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Alpha 3 Manufacturing
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.331 inch
body length	2.072 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	3000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	C2
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation option 2	LONG LATCH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.197 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26

Preview

Download Datasheet

View All

IDC

Industry compatible

Competitively priced

Black or grey

Long or short latch

Gold plated contacts

2.54mm pitch

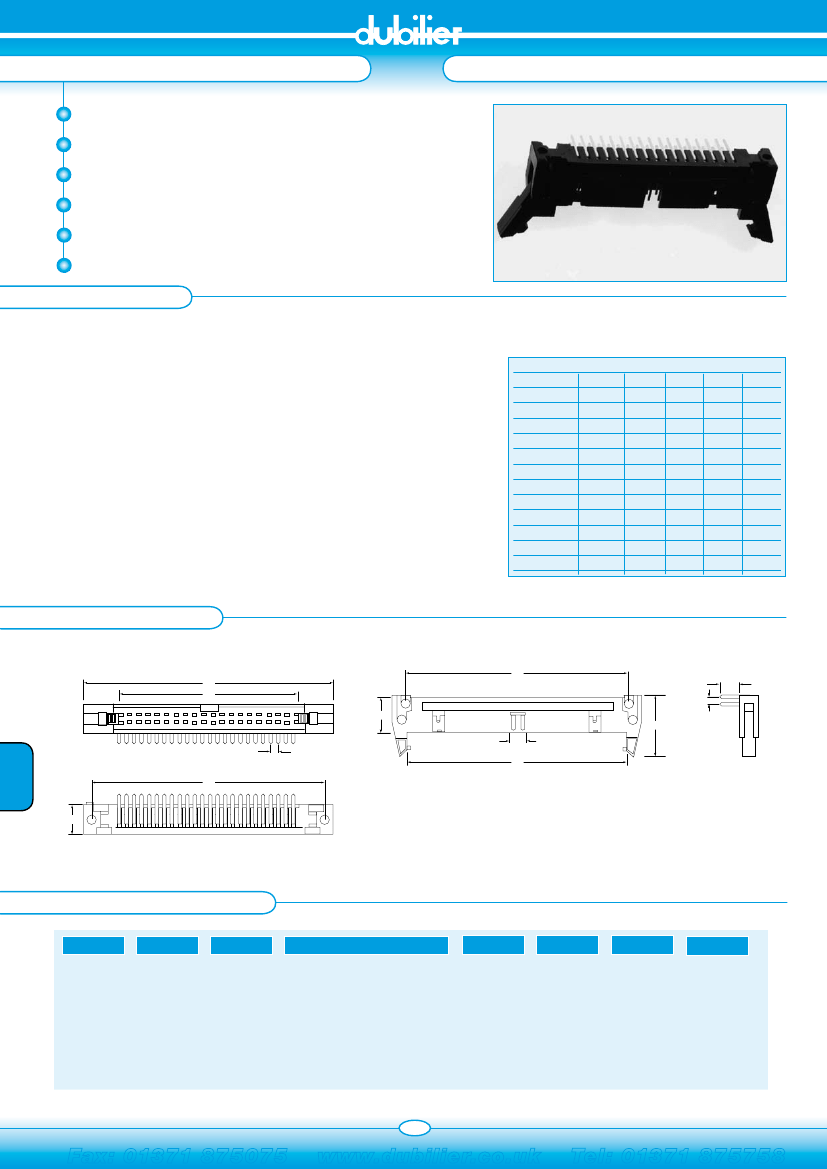

SHROUDED LATCHED HEADER - RIGHT ANGLED

SPECIFICATION

Material & Finish

Contact Material:

Insulator Material:

Current Rating:

Brass

PBT & Glass-Fibre Reinforced UL-94V-0

2 A DC

30M Ω Max

3000M Ω Min

A

B

Position

10

14

16

20

24

26

30

34

40

44

50

60

64

A

32.30

37.38

39.92

45.00

50.08

52.62

57.70

62.78

70.40

75.48

2.54

83.10

95.80

100.88

B

10.16

15.24

17.78

22.86

27.94

30.48

35.56

40.64

48.26

53.34

60.96

73.66

78.74

C

27.68

32.73

35.27

40.35

45.43

47.97

53.50

58.58

66.20

71.28

78.90

91.60

96.88

D

21.70

26.78

29.32

34.40

39.48

42.02

47.10

52.18

59.80

64.88

57.26

69.96

75.04

E

18.25

23.33

25.87

30.95

36.03

38.57

43.65

48.73

56.35

61.43

69.05

81.75

86.83

Contact Resistance:

Insulator Resistance:

Dielectric Withstanding

Voltage:

500V AC for One Minute

-40°C to + 105°C

8.4

C

Operating Temperature:

OUTLINE DRAWING

D

2.54

13.2

5.0

E

28.2

A

B

5.0

SECTION 15

8.4

13.2

2.54

C

D

ORDERING INFORMATION

2.54

5.0

DBC

IDC

Connector

5.0

E

C2

Series

Dubilier

Connectors

28.2

10

A

Contact Material

A=Brass

S

Contact Plating

S=Selective

Gold

G= Gold Flash

A

Features

A=Long Latch

B=Short Latch

1

Colour

1=Black

2=Grey

Nº of Ways

34=34way

40=40way

44=44way

50=50way

60=60way

64=64way

10=10way

14=14way

16=16way

20=20way

24=24way

26=26way

30=30way

320

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758
