2543-2X-10D

Description
Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT
CategoryThe connector    The connector
File Size162KB,2 Pages
ManufacturerHo Chien Electronics Group Inc
Environmental Compliance
Download Datasheet Parametric View All

2543-2X-10D Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT

2543-2X-10D Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerHo Chien Electronics Group Inc
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL (100)
Contact completed and terminatedGOLD (30) OVER NICKEL (100)
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number2543
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts20
UL Flammability Code94V-0
26/09/2013
Ho Chien - Headers - www.hochien.com

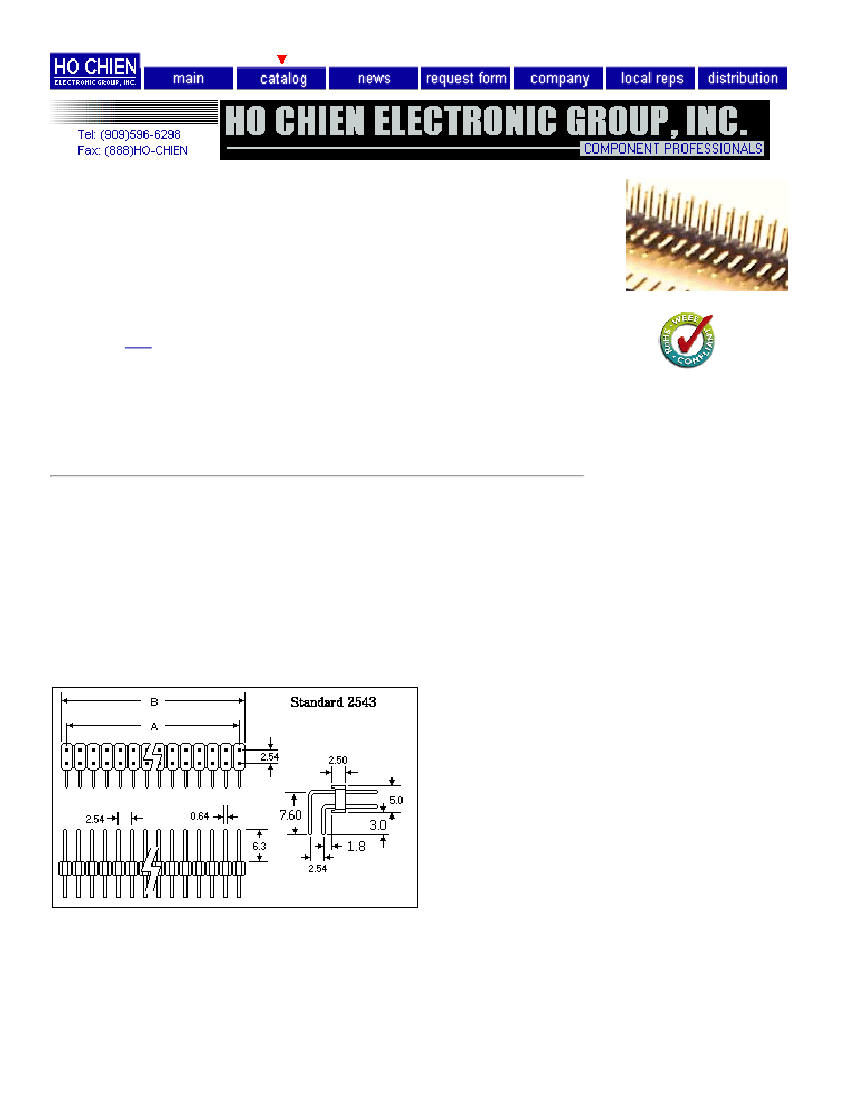

2543 Series
0.100" x 0.100"Ctr Un-shrouded Header Strip; Dual Row
[ Right Angle ]
Material:
Contact:
Phosphor Bronze
Contact Plating:
Gold or Tin ov er 0.000100" Nickel Underplating
Insulator:
PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color:
Black
Mini Jumper:
2546
Series
Electrical:
Current Rating:
3 Amp Max.
Contact Resistance:
20 Milliohms. Max.
Insulation Resistance:
5000 Megohms Min. DC 500V
Dielectric Strength:
1000V AC
o
o
Operation Temperature:
-55 C to +140 C
Ordering Part Number
2543-
Series Number
2x
Number of Row s
-[][]
Number of Positions Per Row
[
1
thru
40
pins ]
[]
Contact Plating
T:
150" Tin
G:
Gold Flash
F:
10u" Gold
E:
15u" Gold
D:
30u" Gold
www.hochien.com/2543.htm
1/2
