DHA-PC68-2G-HPD-12 datasheet, PDF

Datasheet> All Categories > The connector> The connector> DHA-PC68-2G-HPD-12

DHA-PC68-2G-HPD-12: DescriptionD Type Connector, 68 Contact(s), Male, 0.05 inch Pitch, Locking Mech, Receptacle; CategoryThe connector The connector; File Size256KB，3 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric Compare View All

DHA-PC68-2G-HPD-12 Overview

D Type Connector, 68 Contact(s), Male, 0.05 inch Pitch, Locking Mech, Receptacle

DHA-PC68-2G-HPD-12 Parametric

Parameter Name	Attribute value
Maker	DDK
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PLASTIC HOOD
body width	0.453 inch
subject depth	1.654 inch
body length	2.366 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	CENTRONIC
Dielectric withstand voltage	500VAC V
Minimum insulation diameter	0.024 inch
Insulation resistance	500000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DHA
Plug contact pitch	0.05 inch
Installation option 1	LOCKING MECH
Number of rows loaded	2
Plating thickness	10u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Total number of contacts	68
Maximum wire diameter	28 AWG
Minimum wire diameter	30 AWG

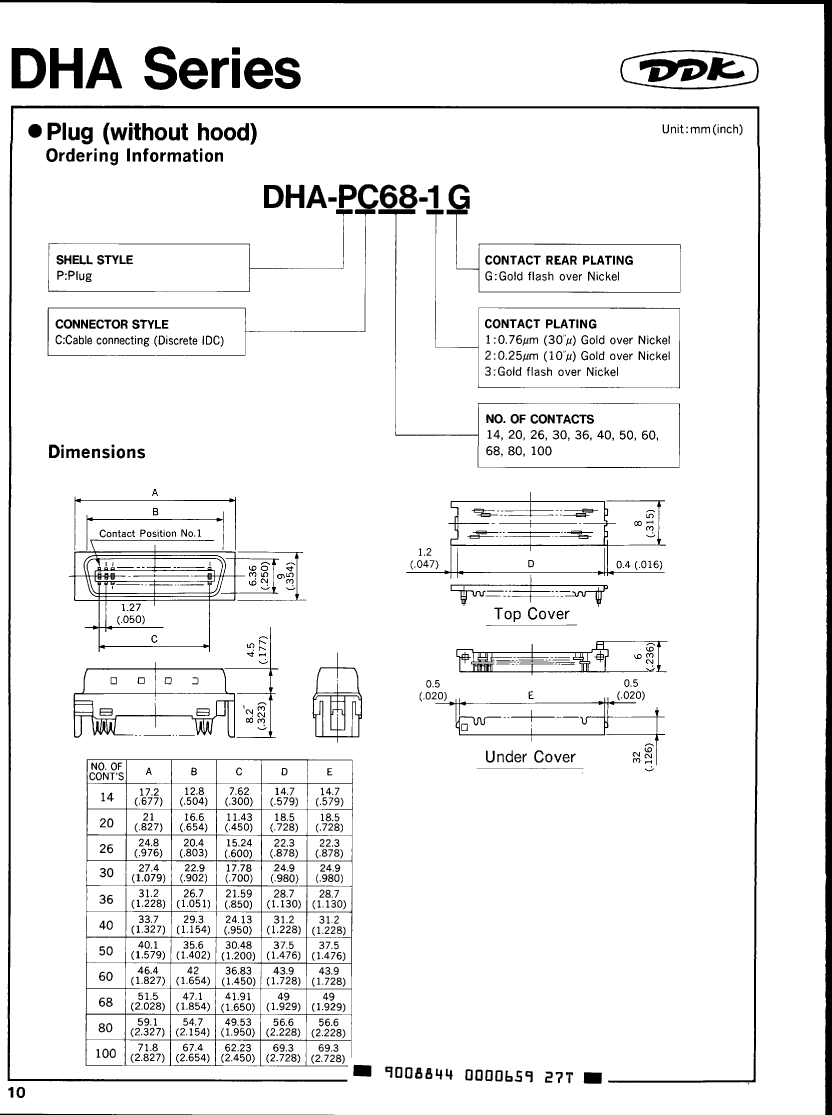

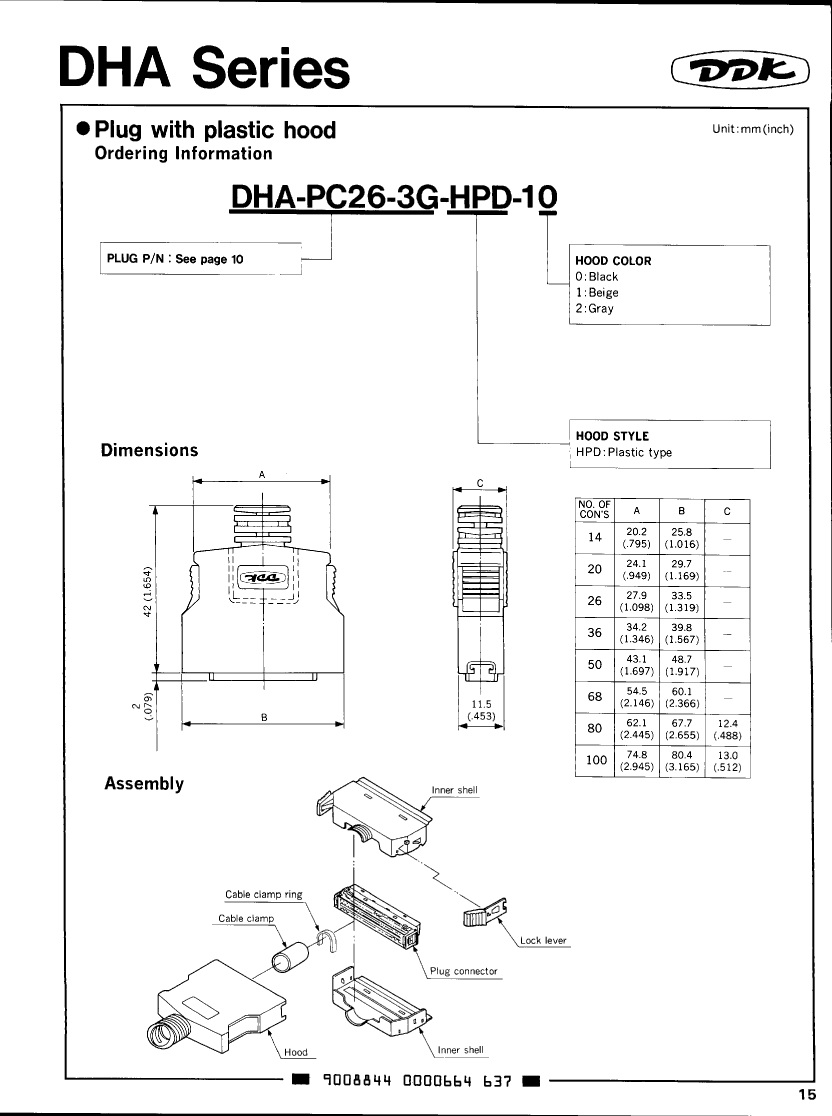

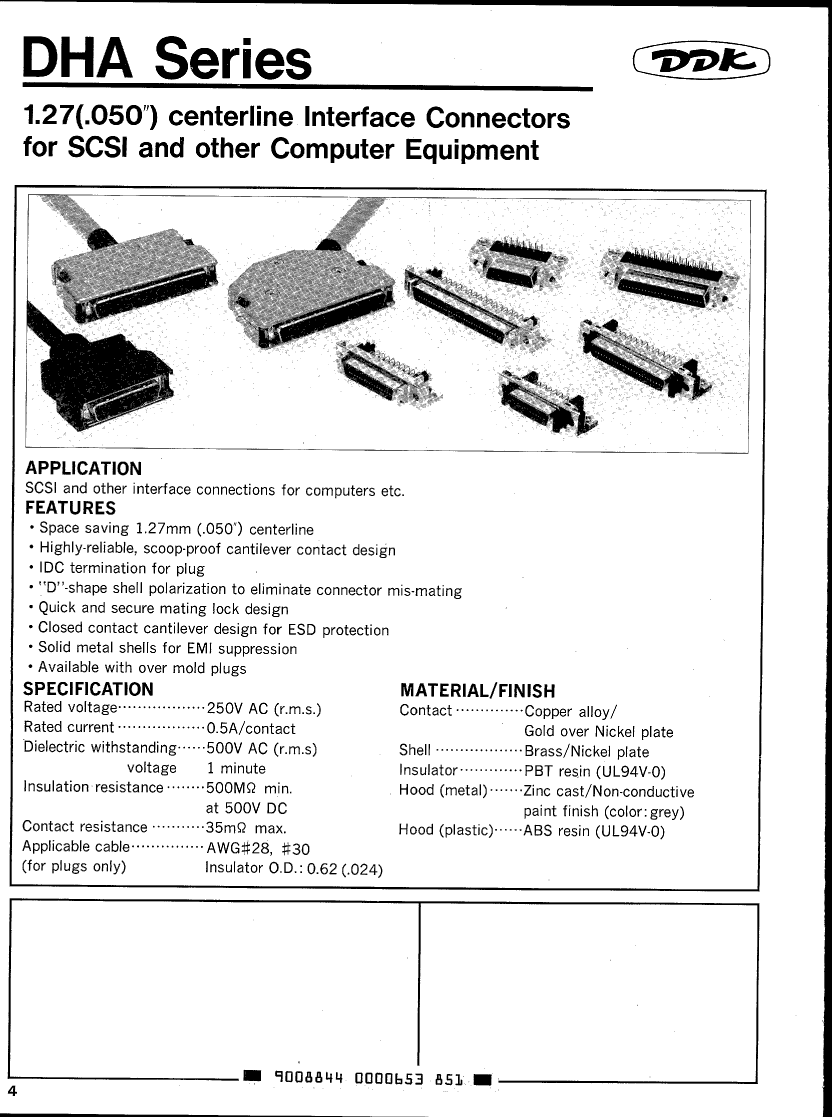

DHA-PC68-2G-HPD-12 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

DHA-PC68-2G-HPD-12 Related Products

	DHA-PC68-2G-HPD-12	DHA-PC68-1G-HPD-11	DHA-PC36-1G-HPD-10	DHA-PC68-2G-HPD-10	DHA-PC68-2G-HPD-11	DHA-PC14-1G-HPD-12	DHA-PC14-1G-HPD-10	DHA-PC14-2G-HPD-11	DHA-PC14-2G-HPD-12
Description	D Type Connector, 68 Contact(s), Male, 0.05 inch Pitch, Locking Mech, Receptacle	D Type Connector, 68 Contact(s), Male, 0.05 inch Pitch, Locking Mech, Receptacle	D Type Connector, 36 Contact(s), Male, 0.05 inch Pitch, Locking Mech, Receptacle	D Type Connector, 68 Contact(s), Male, 0.05 inch Pitch, Locking Mech, Receptacle	D Type Connector, 68 Contact(s), Male, 0.05 inch Pitch, Locking Mech, Receptacle	D Type Connector, 14 Contact(s), Male, 0.05 inch Pitch, Locking Mech, Receptacle	D Type Connector, 14 Contact(s), Male, 0.05 inch Pitch, Locking Mech, Receptacle	D Type Connector, 14 Contact(s), Male, 0.05 inch Pitch, Locking Mech, Receptacle	D Type Connector, 14 Contact(s), Male, 0.05 inch Pitch, Locking Mech, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	PLASTIC HOOD	PLASTIC HOOD	PLASTIC HOOD	PLASTIC HOOD	PLASTIC HOOD	PLASTIC HOOD	PLASTIC HOOD	PLASTIC HOOD	PLASTIC HOOD
body width	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch
subject depth	1.654 inch	1.654 inch	1.654 inch	1.654 inch	1.654 inch	1.654 inch	1.654 inch	1.654 inch	1.654 inch
body length	2.366 inch	2.366 inch	1.567 inch	2.366 inch	2.366 inch	1.016 inch	1.016 inch	1.016 inch	1.016 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ	35 mΩ
Contact style	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC	CENTRONIC
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Minimum insulation diameter	0.024 inch	0.024 inch	0.024 inch	0.024 inch	0.024 inch	0.024 inch	0.024 inch	0.024 inch	0.024 inch
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DHA	DHA	DHA	DHA	DHA	DHA	DHA	DHA	DHA
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation option 1	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH	LOCKING MECH
Number of rows loaded	2	2	2	2	2	2	2	2	2
Plating thickness	10u inch	30u inch	30u inch	30u inch	10u inch	30u inch	30u inch	10u inch	10u inch
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
Total number of contacts	68	68	36	68	68	14	14	14	14
Maximum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
Minimum wire diameter	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG	30 AWG
Maker	DDK	DDK	DDK	DDK	DDK	-	-	-	-
ECCN code	EAR99	-	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
