GF063
Series
TOCOS
POTENTIOMETERS
®

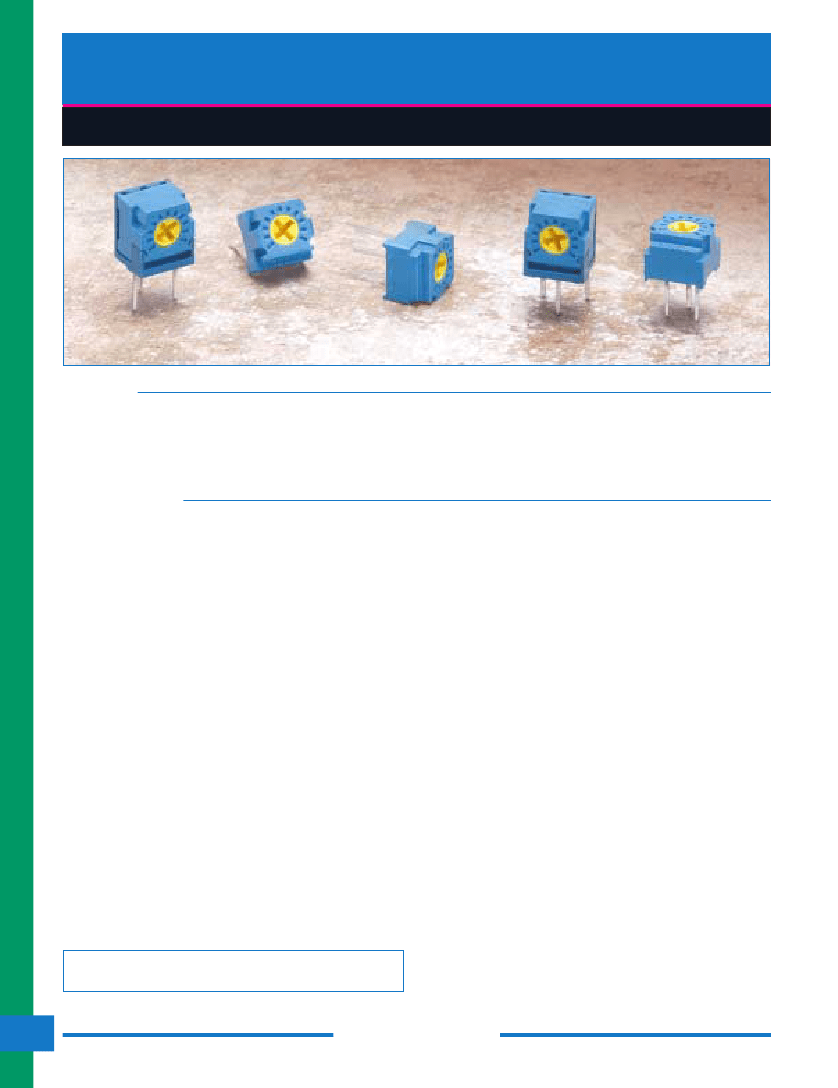

1/4’’ Square, Single-Turn, Through-Hole Sealed Cermet Trimmers
Features
1/4” square, single-turn, through-hole, sealed cermet trimmers

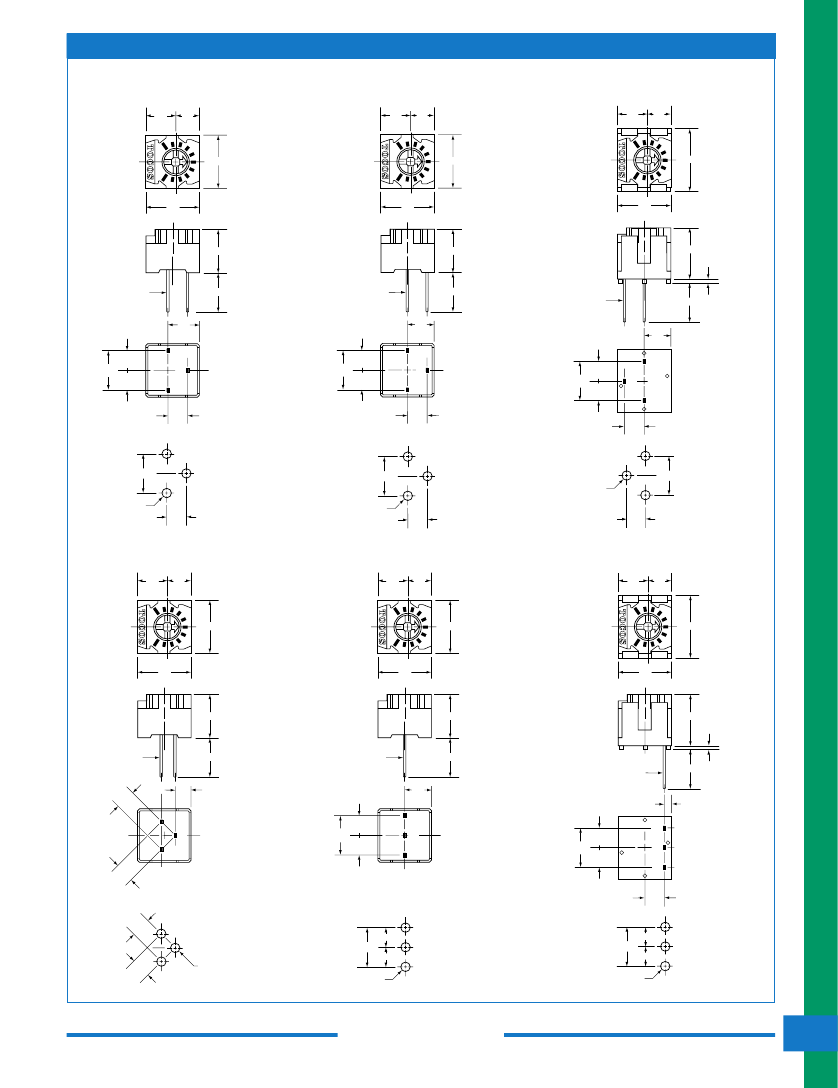

Top and side adjust styles available
Larger diameter rotor than GF06 series for easier adjustment
Precious metal, multi-contact wiper design
Cross-slot design allows automatic machine adjustment
Meets UL 94V-0 flammability requirements
Sealed to withstand wave soldering and immersion cleaning processes

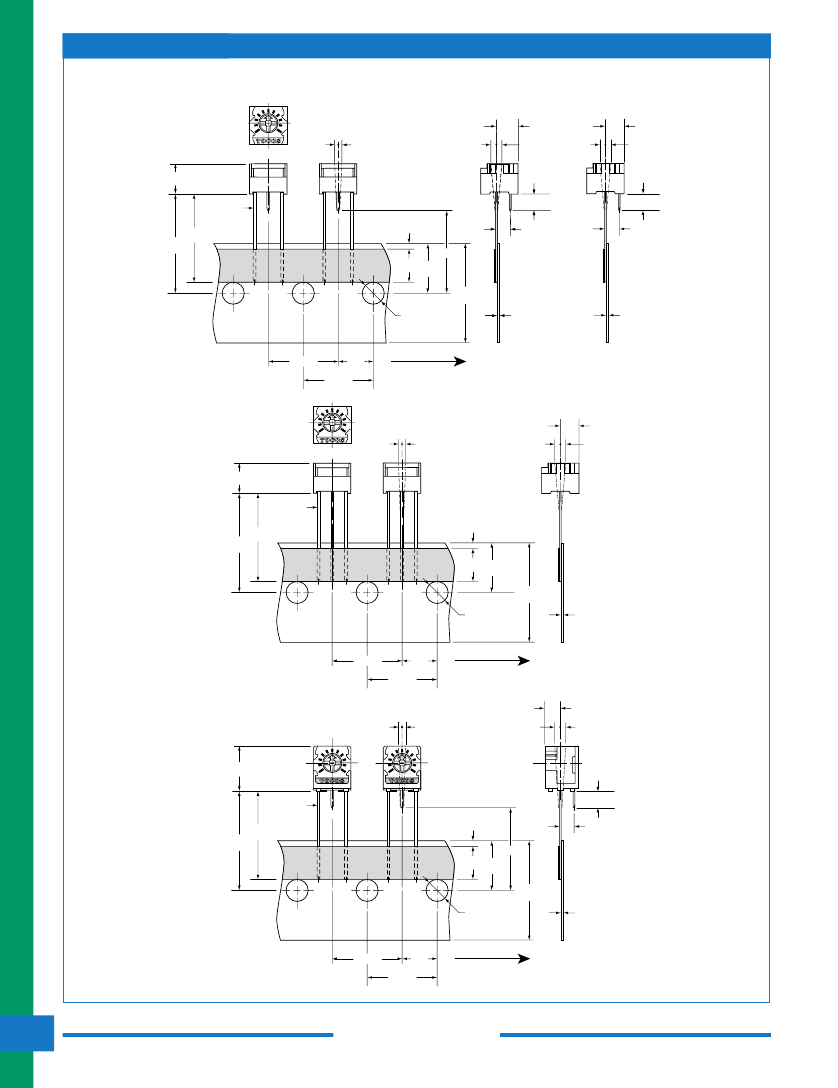

Taping available, reel or ammo packaging
Specifications
Electrical
Standard Resistance Range
. . . . . . . . . . . . . . 10Ω to 5MΩ
(standard 1, 2 & 5 sequence )
Resistance Tolerance
. . . . . . . . . . . . . . .
10% and
20%
End Resistance
. . . . . . . . . . 1% or 1Ω, whichever is greater
Resistance Taper
. . . . . . . . . . . . . . . . . . . . . . . . . . . . Linear
Peak Noise (C.R.V.)
. . . . . . . 1% or 1Ω, whichever is greater
Power Rating
. . . . . . . . 0.5 watt at
70 C, 0 watt at
125 C
Maximum Input Voltage
. . . . . . . . 250VDC or power rating,
whichever is smaller
Temperature Coefficient
. . . . . . . . . . . . . . . .
100ppm / C
Insulation Resistance
. . . . . 1,000MΩ minimum at 500VDC
Dielectric Strength
. . . . . . . . . . . . . . . . . 900VAC, 1 minute
Adjustment Travel
. . . . . . . . . . . . . . . . . . . . . . . . . 210
10
Environmental
Temperature Range
. . . . . . . . . . . . . . . . .
55 C to
125 C
Low Temperature Operation
. . . . 55 C, 0.5 watt, 2 hours
∆T/R
)
2%, S.S.
)
2%
High Temperature Exposure
. . . . . . . . . 125 C, 250 hours
∆T/R
)
2%, S.S.
)
2%
Load Life
. . . . . . . . . . . . . . . . .
70 C, 0.5 watt, 1,000 hours
∆T/R
)
3%, S.S.
)
2%
Thermal Shock
. . . . . . . . . . . . . . . . . . . . . . 55 C, 125 C,
30 minutes each, 5 cycles
∆T/R
)
1%, S.S.
)
1%
Shock
. . . . . . . . . . . . 100G, 6ms, 6 directions, 3 times each
∆T/R
)
1%, S.S.
)
1%
Vibration
. . . . . . . . . . . . . . . . 10-2,000Hz, 1.5mm amplitude,
20G, 12 hours
)
1%, S.S.
)
1%
∆T/R
Humidity
. . . . . . . . . . . . . . . . . . . . . . . .
40 C, 90-95%RH,
0.5 watt, 500 hours
∆T/R
)
3%, S.S.
)
2%
Mechanical
Mechanical Travel
. . . . . . . . . . . . . . . . . . . . . . . . . 250
10
Shaft Torque
. . . . . . . . . . . . . . 200 gf
•
cm (2.77 oz
•
in) max.
Stop Strength
. . . . . . . . . . . . . . 500 gf
•
cm (6.93 oz
•
in) min.
Flammability of Plastic Materials
. . . . . . . Meets UL 94V-0
Nominal Weight
. . . . . . . . . . . . . . . . . . . . . 0.4g (P, P1, W, U)
0.5g (P2, S, S1, X, X1, U1, Y, Y1, V, V1)
Marking
. . . . . . . . . Resistance code, date code, model type
Moisture Resistance
. . . . . .
10 C to 65 C, 80-98%RH,
0.5 watt, 10 cycles, 240 hours
∆T/R
)
2%
Soldering Heat Resistance
. . . . . . . . . . . 350 C, 3 seconds
∆T/R
)
1%
Seal Test
. . . . . . . . . . . . . . . . . 85 C, hot water for 1 minute
Rotational Life
. . . . . . . . . . 100 cycles without discontinuity
∆T/R
)
(2Ω 3%)
∆T/R
= Total Resistance Change; S.S. = Setting Stability ( voltage ratio )

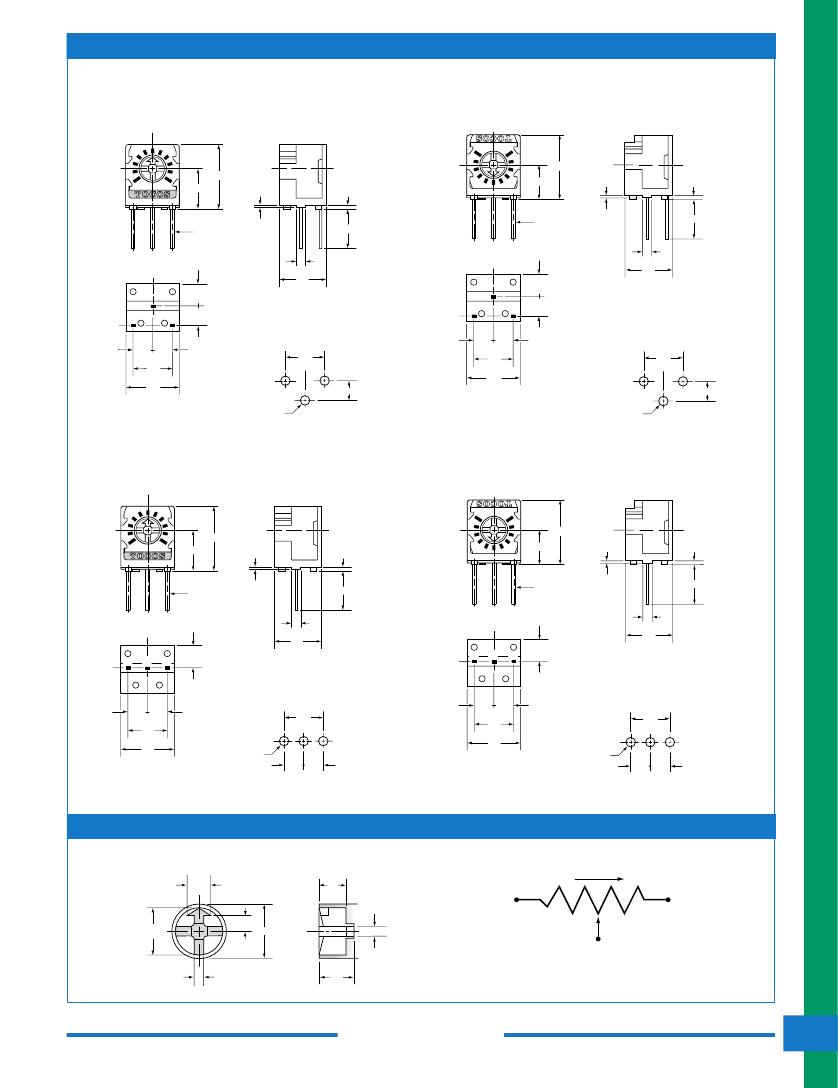

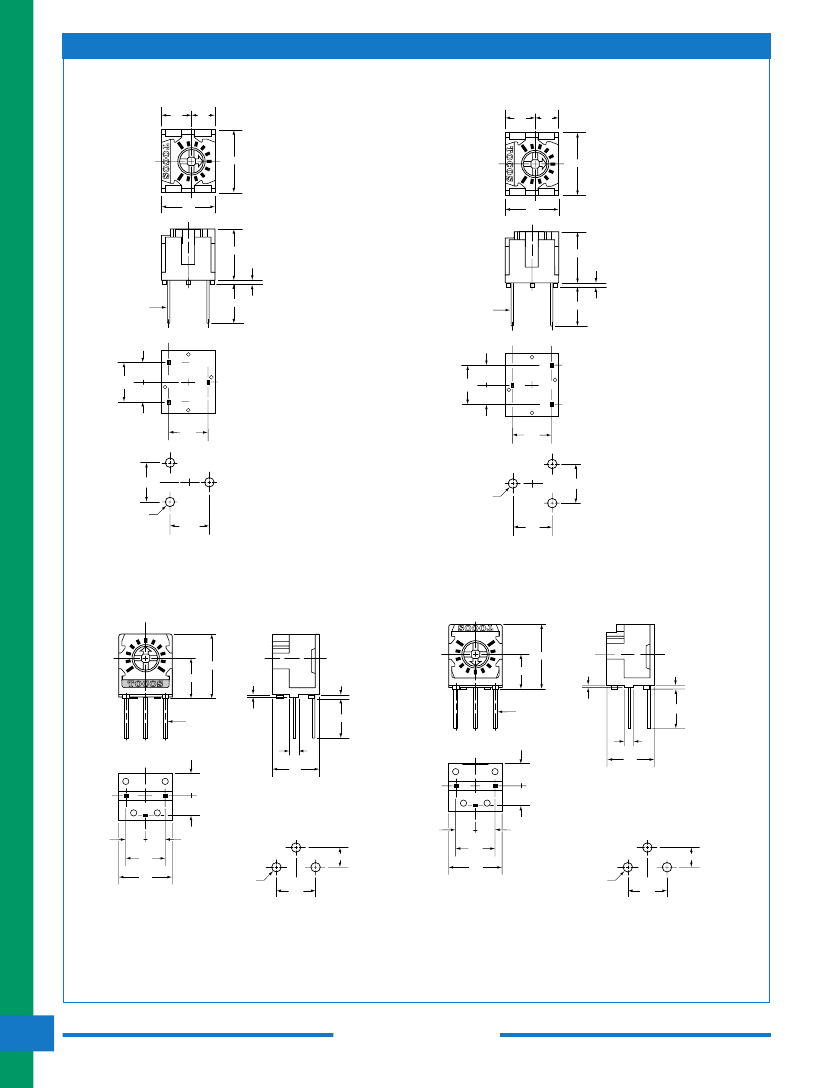

For GF063 models available with a knob,
refer to the GF063-K Series on page 68.
