88372-4003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 88372-4003

88372-4003: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size119KB，1 Pages; ManufacturerAces Electronics Co., Ltd.

Download Datasheet Parametric Compare View All

88372-4003 Overview

Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Locking, Receptacle

88372-4003 Parametric

Parameter Name	Attribute value
Maker	Aces Electronics Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	PEG
body width	0.188 inch
subject depth	0.118 inch
body length	0.984 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Dielectric withstand voltage	250VAC V
Durability	30 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	88372
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
Plating thickness	3u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.9812 mm
Termination type	SOLDER
Total number of contacts	40

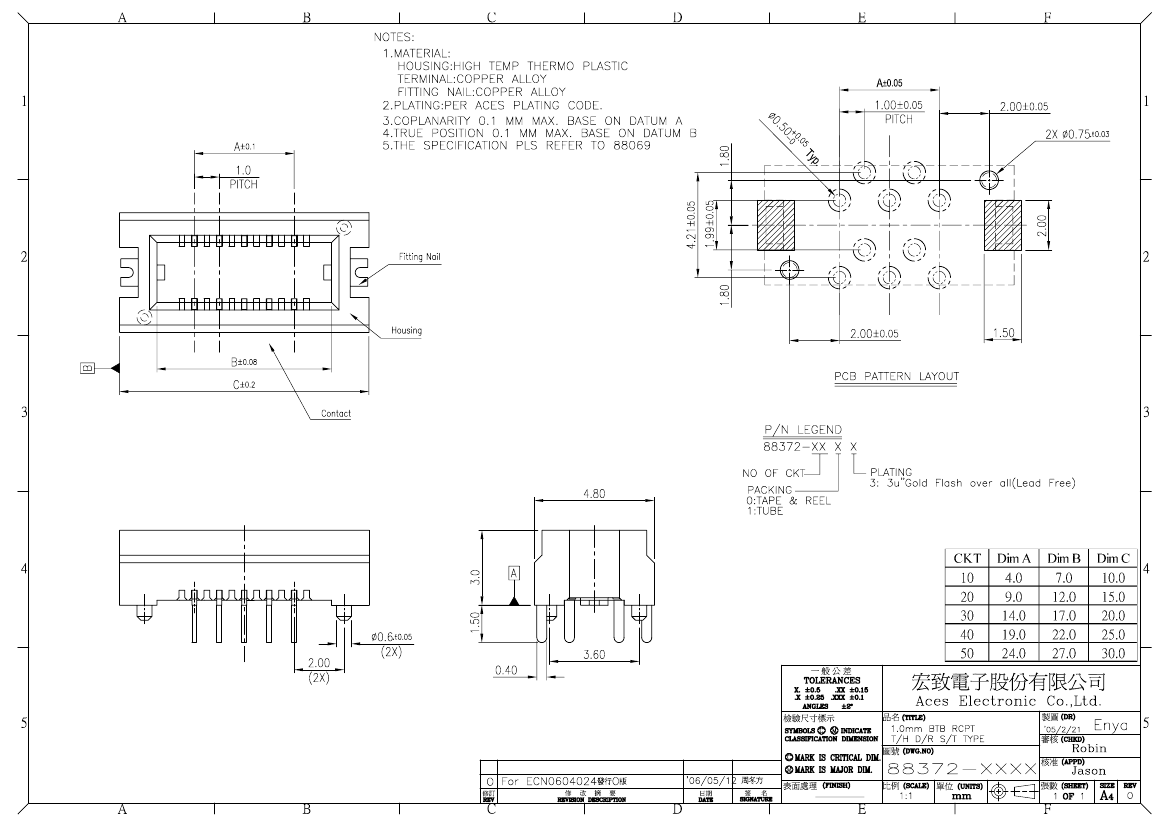

Preview

Download Datasheet

View All

88372-4003 Related Products

	88372-4003	88372-5003	88372-5013
Description	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Solder Terminal, Locking, Receptacle
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Board mount options	PEG	PEG	PEG
body width	0.188 inch	0.188 inch	0.188 inch
subject depth	0.118 inch	0.118 inch	0.118 inch
body length	0.984 inch	1.181 inch	1.181 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU
Contact point gender	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	40 mΩ
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V
Durability	30 Cycles	30 Cycles	30 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	88372	88372	88372
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	4	4	4
Number of rows loaded	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED
Plating thickness	3u inch	3u inch	3u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1.9812 mm	1.9812 mm	1.9812 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	40	50	50
