88495-6071: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug; CategoryThe connector The connector; File Size175KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

88495-6071 Overview

Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug

88495-6071 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aces Electronics Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	PEG
body width	0.189 inch
subject depth	0.177 inch
body length	0.768 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Dielectric withstand voltage	250VAC V
Durability	30 Cycles
maximum insertion force	.973 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	88495
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.699 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	60
Evacuation force-minimum value	.0973 N

Preview

Download Datasheet

View All

Part No.

CKT

88495-16xx

88495-20xx

88495-30xx

88495-40xx

88495-50xx

88495-60xx

88495-70xx

88495-80xx

88495-1Axx

100

88495-1Cxx

120

88495-1Gxx

160

88495-1Ixx

180

88495-2Axx

200

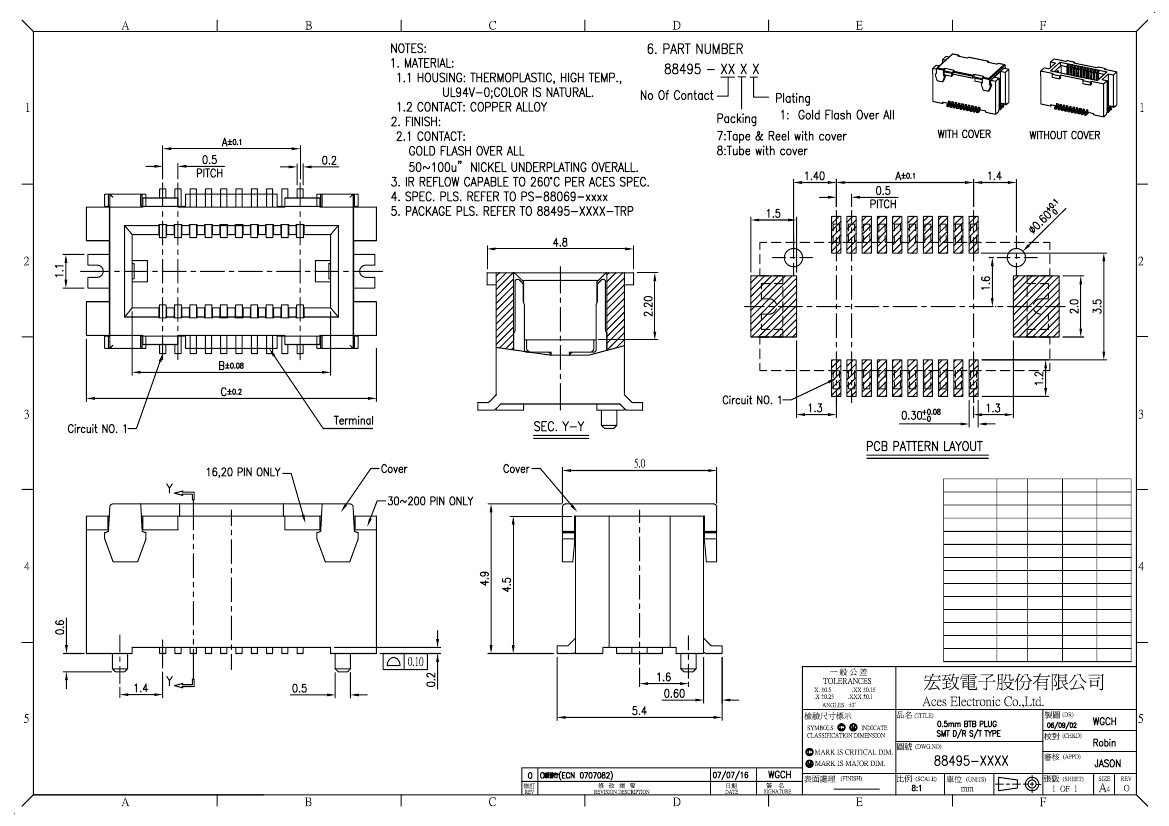

DIM A DIM B DIM C

3.5

5.5

8.5

4.5

6.5

9.5

7.0

9.0

12.0

9.5

11.5

14.5

12.0

14.0

17.0

14.5

16.5

19.5

17.0

19.0

22.0

19.5

21.5

24.5

26.5

29.5

31.5

34.5

39.5

41.5

44.5

46.5

49.5

51.5

54.5

88495-6071 Related Products

	88495-6071	88495-2081	88495-5071	88495-3071	88495-3081	88495-1671	88495-1681	88495-6081
Description	Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug	Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug	Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug	Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug	Board Connector, 30 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug	Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug	Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug	Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Board mount options	PEG	PEG	PEG	PEG	PEG	PEG	PEG	PEG
body width	0.189 inch	0.189 inch	0.189 inch	0.189 inch	0.189 inch	0.189 inch	0.189 inch	0.189 inch
subject depth	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch	0.177 inch
body length	0.768 inch	0.374 inch	0.669 inch	0.472 inch	0.472 inch	0.335 inch	0.335 inch	0.768 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles
maximum insertion force	.973 N	.973 N	.973 N	.973 N	.973 N	.973 N	.973 N	.973 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
Manufacturer's serial number	88495	88495	88495	88495	88495	88495	88495	88495
Plug contact pitch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.699 mm	4.699 mm	4.699 mm	4.699 mm	4.699 mm	4.699 mm	4.699 mm	4.699 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	60	20	50	30	30	16	16	60
Evacuation force-minimum value	.0973 N	.0973 N	.0973 N	.0973 N	.0973 N	.0973 N	.0973 N	.0973 N
Maker	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.	-	-	-
ECCN code	EAR99	-	-	EAR99	EAR99	EAR99	EAR99	EAR99
