PTK25-D48-T512M datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> PTK25-D48-T512M

PTK25-D48-T512M: DescriptionAnalog Circuit,; CategoryAnalog mixed-signal IC The signal circuit; File Size390KB，4 Pages; ManufacturerV-Infinity LLC

Download Datasheet Parametric Compare View All

PTK25-D48-T512M Overview

Analog Circuit,

PTK25-D48-T512M Parametric

Parameter Name	Attribute value
Maker	V-Infinity LLC
package instruction	,
Reach Compliance Code	unknown

Preview

Download Datasheet

View All

rev.

page

date

1 of 4

12/2008

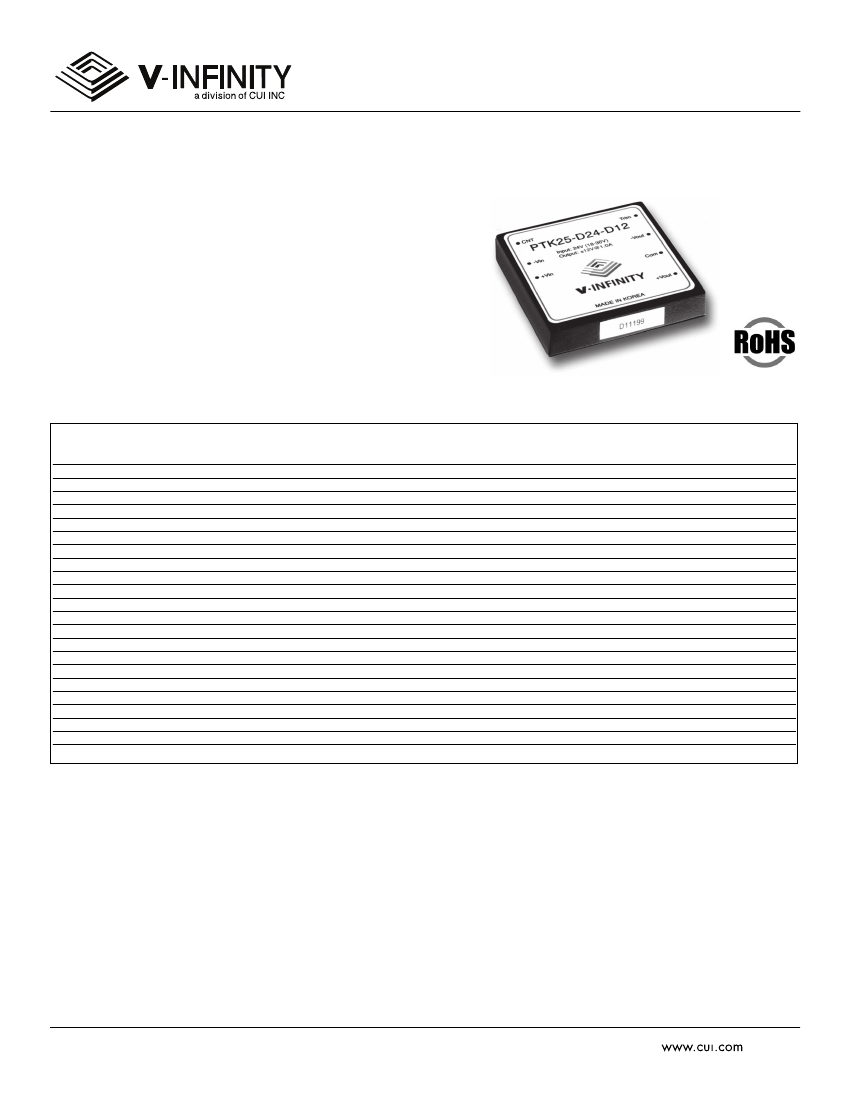

PART NUMBER:

PTK25 series

DESCRIPTION:

dc-dc converter

features

·industry standard pin out

·wide 2:1 input range

·fully isolated

·output voltage trimmable

·output on/off control

·over-current protection

·over-voltage protection

·six-sided EMI shielding

·constant switching frequency

·high efficiency

·compact size 2.0”x2.0”x0.4”

·-40°C~85°C models available

·3 year warranty

model

number

PTK25-D24-S3

PTK25-D24-S5

PTK25-D24-S12

PTK25-D24-S15

PTK25-D24-D5

PTK25-D24-D12

PTK25-D24-D15

PTK25-D24-T312

PTK25-D24-T512

PTK25-D24-T315

PTK25-D24-T515

PTK25-D48-S3

PTK25-D48-S5

PTK25-D48-S12

PTK25-D48-S15

PTK25-D48-D5

PTK25-D48-D12

PTK25-D48-D15

PTK25-D48-T312

PTK25-D48-T512

PTK25-D48-T315

PTK25-D48-T515

output

power

(max)

19.8W

25.0W

24.0W

25.0W

24.0W

19.95W

25.9W

19.95W

25.0W

19.8W

25.0W

24.0W

25.0W

24.0W

19.95W

25.9W

19.95W

25.0W

input

voltage

18-36VDC

36-72VDC

output

voltage

3.3VDC

5VDC

12VDC

15VDC

±5VDC

±12VDC

±15VDC

3.3VDC/±12VDC

5VDC/±12VDC

3.3VDC/±15VDC

5VDC/±15VDC

3.3VDC

5VDC

12VDC

15VDC

±5VDC

±12VDC

±15VDC

3.3VDC/±12VDC

5VDC/±12VDC

3.3VDC/±15VDC

5VDC/±15VDC

output

current

(max)

6.0A

5.0A

2.0A

1.6A

2.5A

1.0A

0.8A

3.5A/0.35A

3.5A/0.28A

3.5A/0.25A

6.0A

5.0A

2.0A

1.6A

2.5A

1.0A

0.8A

3.5A/0.35A

3.5A/0.28A

3.5A/0.25A

ripple & noise

mV P-P

100

120

150

75/75

120/120

150/150

75/120/120

75/150/150

100

120

150

75/75

120/120

150/150

75/120/120

75/150/150

efficiency

(typ.)

80%

85%

89%

84%

88%

87%

83%

84%

83%

84%

81%

85%

89%

84%

88%

87%

83%

84%

83%

84%

NOTE:

1. All models are also available in an extended temperature range of -40°C~85°C. For these models, append “M” to the model number, e.g.

PTK25-Q48-S5M.

2. Ripple & noise measured with a 20MHz bandwidth, off a 10uF electrolytic and a 0.1uF ceramic cap in parallel at the ouptut.

20050

112

Ave. Tualatin, Oregon

97062

phone

503.612.2300

fax

503.612.2382

PTK25-D48-T512M Related Products
