351-5-094-0-S-YSO-0470 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 351-5-094-0-S-YSO-0470

351-5-094-0-S-YSO-0470: DescriptionBoard Connector, 94 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Solder Terminal; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerMPE-Garry GmbH

Download Datasheet Parametric View All

351-5-094-0-S-YSO-0470 Overview

Board Connector, 94 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Solder Terminal

351-5-094-0-S-YSO-0470 Parametric

Parameter Name	Attribute value
Maker	MPE-Garry GmbH
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.125 inch
subject depth	0.15 inch
body length	1.85 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	350VAC V
insulator material	THERMOPLASTIC
Manufacturer's serial number	351
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	.9906 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.256 inch
Terminal pitch	0.9906 mm
Termination type	SOLDER
Total number of contacts	94

Preview

Download Datasheet

View All

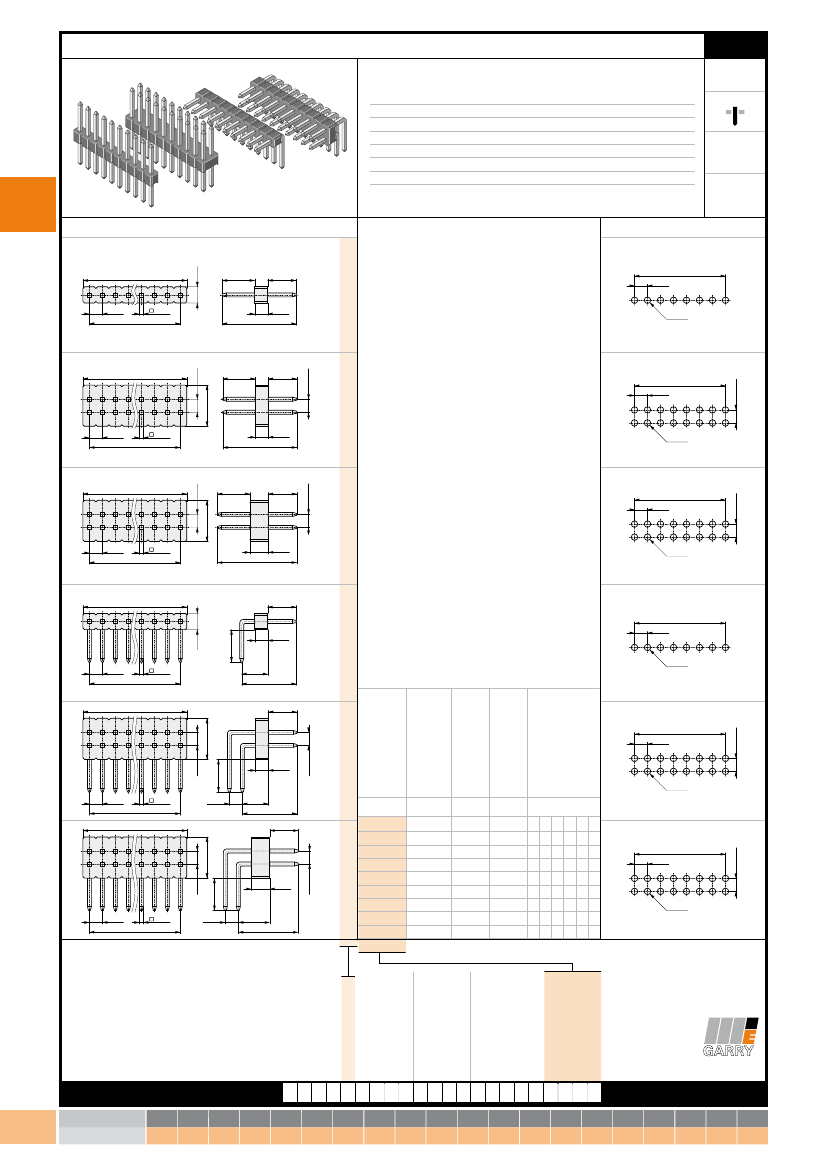

Pin Header 1,00 mm

Rated current

1,0 A

Rated voltage

100 V

RMS

/ V

Withstand voltage

250 V

RMS

for one minute

Material contact

Copper alloy

Material insulator

High temp. thermoplast UL94V-0

Operating temperature -40°C to +105°C

Max. processing temper. 260°C for 10 seconds

All dimensions in mm.

Series

351

pitch

termination

contact

size

1,00

Product

group

Variation

1,25

PCB Layout

(n-1) x 1,00

1,00

050 / 100

max.

pincount

☐

0,30

n x 1,00

1,00

0,30

(n-1) x 1,00

1,00

ø0,70

1,00

3,17

1,00

ø0,70

1,00

0,30

(n/2-1) x 1,00

1,00

3,17

1,50

ø0,70

1,00

0,30

(n/2-1) x 1,00

n x 1,00

(n-1) x 1,00

1,00

1,25

1,00

0,30

(n-1) x 1,00

(n/2) x 1,00

3,17

ø0,70

available in variation

see figure left

(n/2-1) x 1,00

1,00

ø0,70

1,00

0,30

(n/2-1) x 1,00

(n/2) x 1,00

1,00

9,40

9,90

10,70

11,20

12,00

12,50

4,70

6,00

7,30

1,90

3,20

4,50

1,90

3,20

4,50

6,50

Plating contact (T,F,S)

1 2

2,80

4 5 6

2,80

4 5 6

2,80

4 5 6

(n/2-1) x 1,00

1,00

3,17

1,00

1,50

ø0,70

1,00

0,30

(n/2-1) x 1,00

1,00

e.g. 1000 = 10,00 mm

Variation (1,2,3,...)

No. of contacts *

(001,... - 100)

Plating:

T = Sn

F = Au

S = Sel. Au

A (1/100 mm)

* No. of contacts:

Variation 1 = 001 - 050

Variation 2 = 002 - 100

Variation 3 = 002 - 100

Variation 4 = 001 - 050

Variation 5 = 002 - 100

Variation 6 = 002 - 100

www.mpe-connector.de

Order code:

351-?-???-0-?-YSO-

????

306

4-4

3-4

Mating series

see page

1,00

(n/2) x 1,00

(n/2-1) x 1,00

1,00

(n/2) x 1,00

(n/2-1) x 1,00

1,00

MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de
