MSD62SGGBU: DescriptionIC Socket, DIP62, 62 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder; CategoryThe connector socket; File Size163KB，1 Pages; ManufacturerMPE-Garry GmbH; Environmental Compliance

Download Datasheet Parametric View All

MSD62SGGBU Overview

IC Socket, DIP62, 62 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder

MSD62SGGBU Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MPE-Garry GmbH
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.2 inch
subject depth	0.165 inch
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact style	RND PIN-SKT
current rating	3 A
Device slot type	IC SOCKET
Type of equipment used	DIP62
Dielectric withstand voltage	1000VAC V
Shell material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	110
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	62
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.1 mm
Terminal pitch	2.54 mm
Termination type	SOLDER

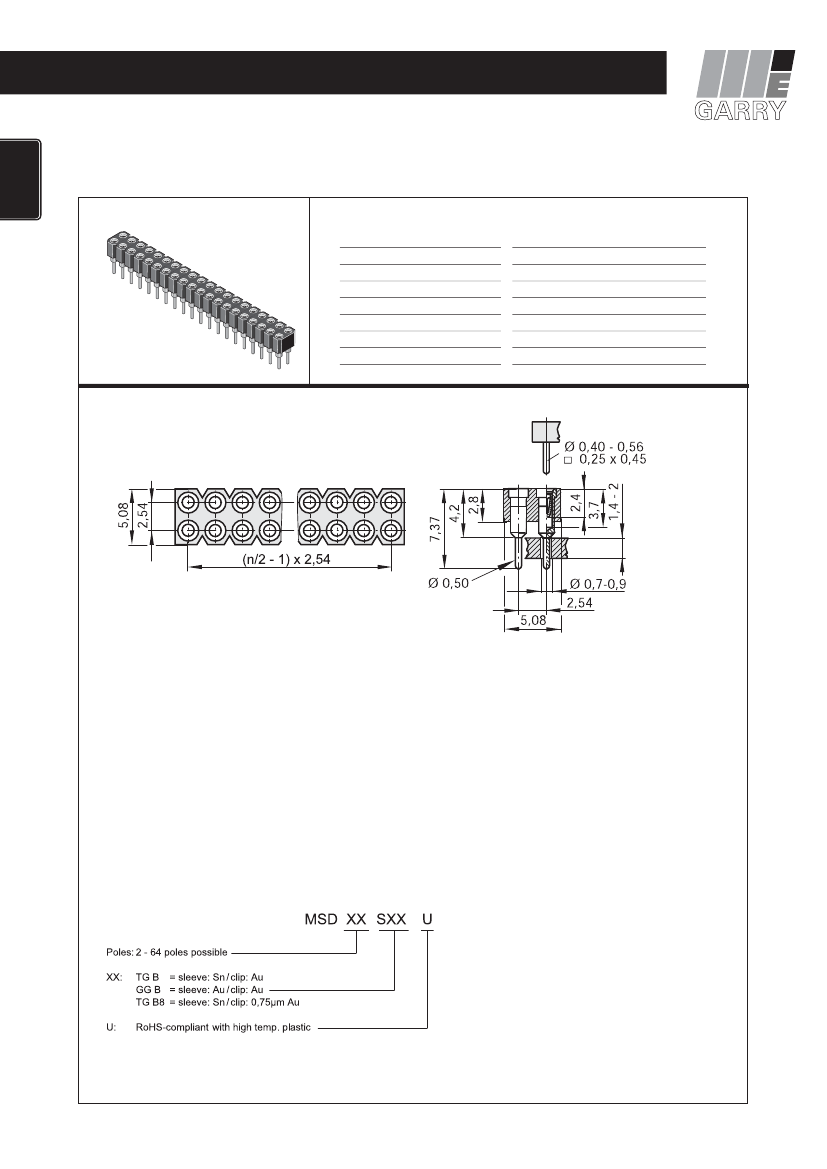

MSD62SGGBU Preview

PRODUCT GROUP 1 - PRECISION IC-SOCKET

DIL SOCKETS „THROUGH HOLE“

ID: 006

MSD 2-rows

Series 110

TECHNICAL DATA

Pitch

Insulating Material

Contact Material

Rated Current

Rated Voltage

Breakdown Voltage

Operating Temperature

Maximum Soldering Temperature

2,54 mm

high temp. thermoplast UL94V-0

Brass/BeCu

3 Amp.

100 V

RMS

/150 V

min. 1000 V

RMS

-55°C bis +125°C

260°C for 10 seconds

| 2,54 mm

All dimensions in mm.

Other dimensions upon request.

MPE-Garry GmbH · Schäfflerstraße 13 · 87629 Füssen · Germany · Tel.: +49 (0) 83 62 / 91 56-0 · Fax.: +49 (0) 83 62 / 91 56-520

e-mail: vk@mpe-connector.de · www.mpe-connector.de
