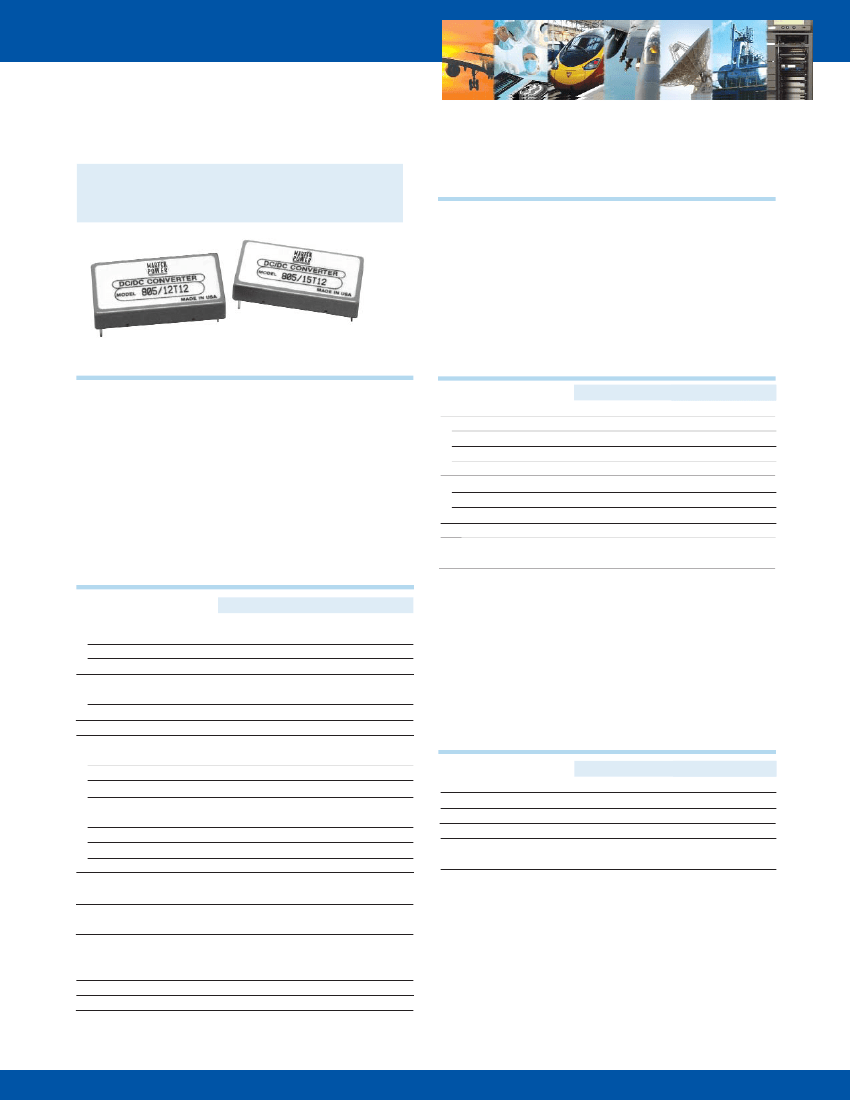

800 series
Single, Dual, Triple Output
DC/DC Converter
F
EATURES
•
•
•
•
•
•
Synchronization
6 sided Continuous Shielding
9.38W/In
3
Power Density
Efficiency to 82%
VDE / EN 60950 Approved
>1,000,000 Hours MTBF
D
ESCRIPTIONS
The 800 series is family of miniature, high performance and
high reliability DC/DC converters. The 800 series operates
over 2:1 input voltage ranges of 9 to 18, 18 to 36 or 36 to
72VDC; providing single, dual and triple output combinations
of 5, 12, 15, ±5, ±12, ±15, 5/±12 and 5/±15 VDC. Standard
features include 500VDC input/output isolation, efficiency
as high as 82%, tight line/load regulation and low output
ripple and noise. All 24 models are packaged in compact,
low profile 1” X 2” X 0.38” metal cases.
I
NPUT
C
HARACTERISTICS
Min Typ Max Unit/Comments
Input Voltage Range
12 VDC Input Models
9
12
24 VDC Input Models
18 24
48 VDC Input Models
36 48
Remote On / OFF Control
Supply ON
Supply OFF
Logic Referenced to Negative Input
Input Filter
Input Fuse Rating
18
36
72
VDC
VDC
VDC
0 VDC to 0.6 VDC
1 VDC to 5 VDC
LC Type
See Model Selection
Guide
O
UTPUT
C
HARACTERISTICS
Min Typ Max Unit/Comments
Output Voltage Accuracy
Single & Dual Outputs
Triple Outputs - Primary
- Auxiliaries
Voltage Balance:
Dual Outputs
Triple Outputs (Auxiliaries)
Minimum Load
10%
Line Regulation
Single & Dual Outputs
Triple Outputs - Primary
- Auxiliaries
Load Regulation
Single Outputs
Dual Outputs
Triple Outputs - Primary
- Auxiliaries
Ripple/Noise
Short Circuit Protection
Transient Recovery Time
Temperature Coefficient
Over Voltage Protection
±1.0 %
1
±1.0 %
1
±6.0 %
1
±1.0 %; Equal Output Loads
±1.0 %; Equal Output Loads
Full Load
±0.5 %
2
±0.5 %
2
5.0 %
2
%
3
%
3
; Equal Loads
%
3
%
3
; Equal Loads
% of Vout
(20 MHz B.W.)
Continuous, Auto-
matic Recovery
200
μS
to within1% error
band for 50% step
load change
±0.01 % per
o
C
See Model Selection Guide
±0.5
±1.0
±0.5
±6.0
2
G
ENERAL
C
HARACTERISTICS
Switching Frequency
Isolation Voltage
Isolation Resistance
MTBF (MIL-HBK-217F)
Min Typ Max Unit/Comments
kHz
100
VDC, 1 minute
500
Mohm, 500VDC
1000
Million Hours,
1
+25
o
C, Ground
Benign
1
2
3
= Output voltage at nominal line & FL
= % Output voltage measured from min. input line to maximum
= Output voltage measured from FL to 10% Load
Martek Power reserves the right to change specifications without notice.
>> B-85
1111 Knox Street
Torrance
CA 90502
USA
Tel: +1 310 202 8820
sales@martekpower.com
www.martekpower.com
E
NVIRONMENTAL
S
PECIFICATIONS
Operating Temp. Range
Storage Temp. Range
Relative Humidity
Cooling
Min
-30
-40
Typ Max
+75
+125
95
Unit/Comments
o
C; Ambient
o
C
% Humidity; non-
condensing
Free-Air Convection
P
HYSICAL
C
HARACTERISTICS
Case Size
Case Material
Shield Connection
12V and 24V Input Models
48V Input Models
Flammability
Weight
Unit/Comments
1.0 X 2.0 X 0.38 inches
(25.5 X 51.0 X 9.6 mm)
Coated Metal
Negative Input, Pin 3
Positive Input, Pin 4
UL94V-0
42.5 Grams

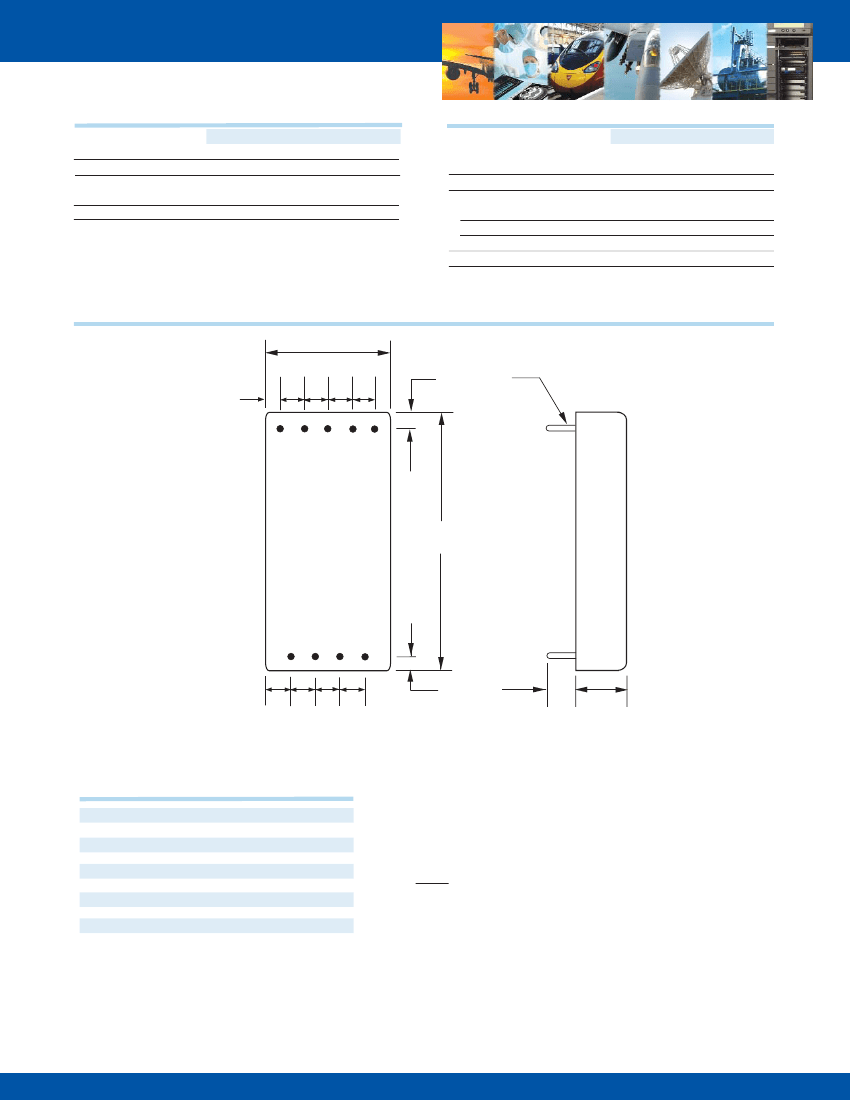

O
UTLINE
D
RAWING
1.00 (25.4)
0.20 0.20 0.20 0.20
(5.1) (5.1) (5.1) (5.1)
0.10
(2.5)
.040± .005
(1.0)
DIA.
0.10
(2.5)
9
8
7
6
5
BOTTOM
2.00
(50.8)
SIDE
4
3
2
1
0.30 MIN
(7.6 MIN)
0.10
(2.5)
.20 .20 .20 .20
(5.1) (5.1) (5.1) (5.1)
0.38
(9.6)
P
IN
O
UT
C
HART
Pin
1
2
3
4
5
6
7
8
9
Single
Dual
Triple
Remote On/Off Remote On/Off Remote On/Off
Sync
Sync
Sync
- Vin
- Vin
- Vin
+ Vin
+ Vin
+ Vin
NC
- Vout
- Vout (Aux)
NC
Common
Common(Aux)
NC
+ Vout
+Vout (Aux)
- Vout
NC
+5V Common
+ Vout
NC
+5V Vout
Notes:
1. Unless otherwise specified dimensions are in inches (mm).
Tolerances
Inches
mm
X.XX = ±0.02
X.X = ±0.5
NC = No Connection
All specifications are typical at nominal input, nominal load and 25
°
C unless otherwise specified.
External, low ESR, 10 microfarad (minimum) capacitor across output is recommended for operation.
>> B-86
